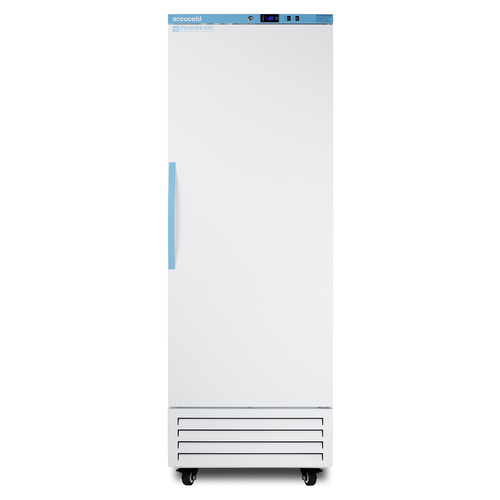

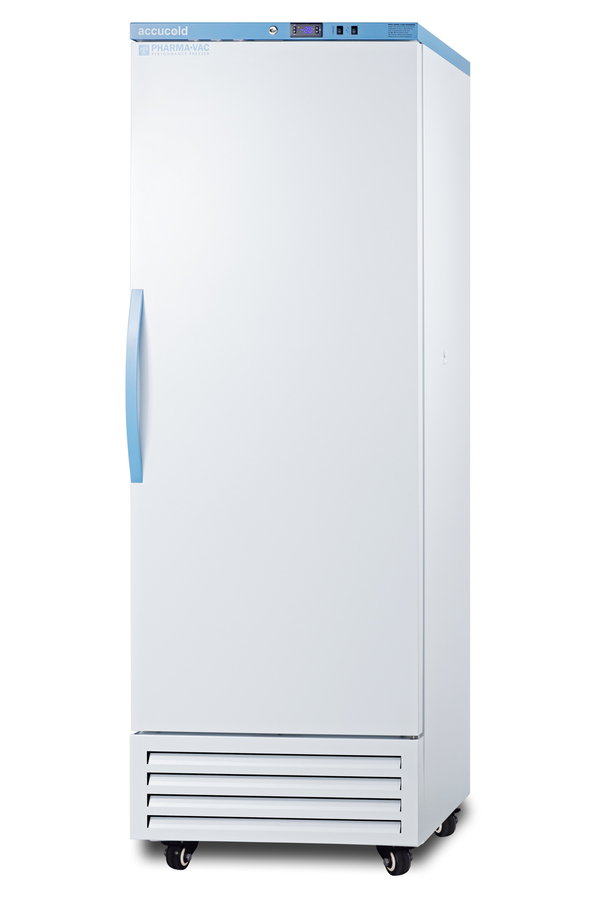

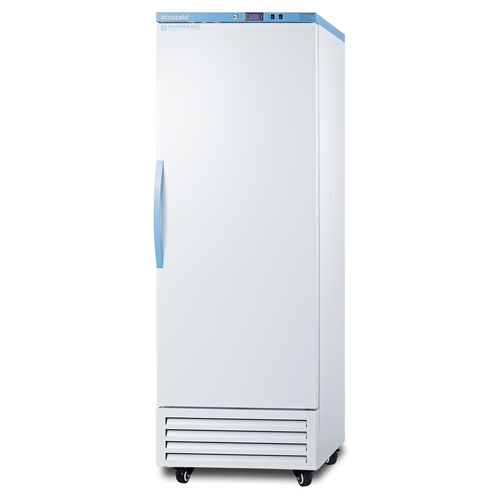

14.83 Cu. Ft. Upright Vaccine All-Freezer
Next day shipping

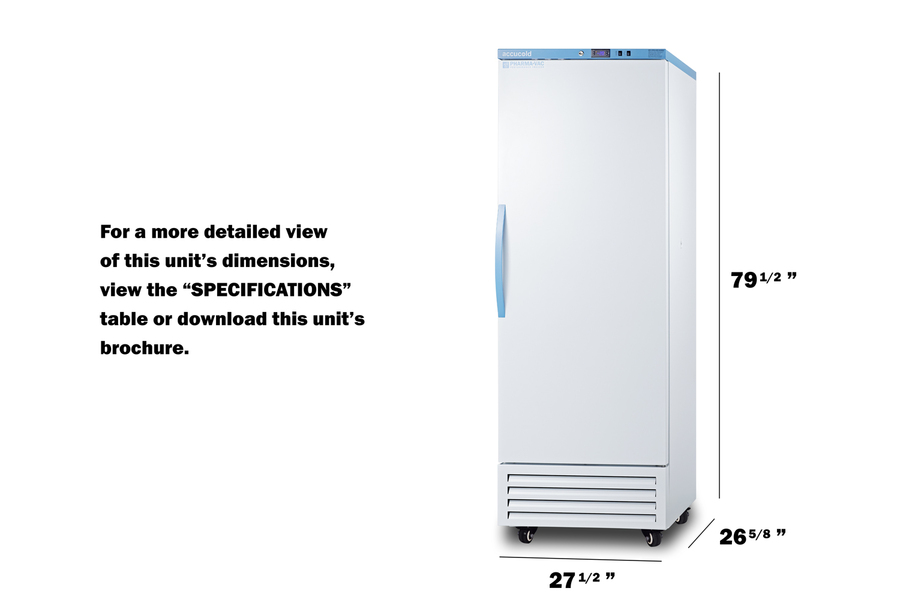

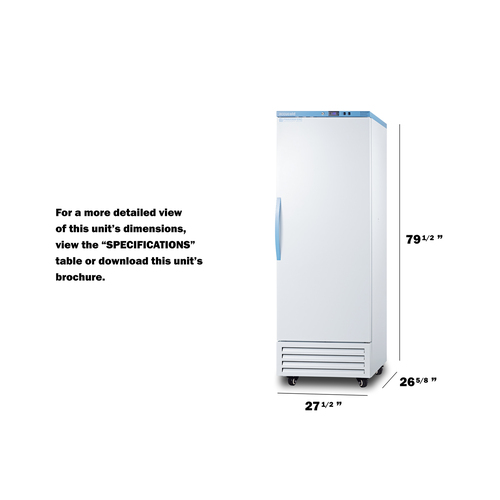

(202cm H x 70cm W x 68cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 80.0" (203 cm) |
| Height of Cabinet | 79.5" (202 cm) |
| Nominal Width | 28.0" (71 cm) |
| Width | 27.5" (70 cm) |
| Width with Door Open | 27.75" (70 cm) |
| Nominal Depth | 27.0" (69 cm) |
| Depth | 26.63" (68 cm) |
| Depth with Handle | 28.13" (71 cm) |
| Depth with door at 90° | 54.75" (139 cm) |
| Capacity | 14.83 cu.ft. (420 L) |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 4.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101147192 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 49.0" (124 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 18.0" (46 cm) |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R290a |
| Refrigerant Amount | 3.27 oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 130.0 |

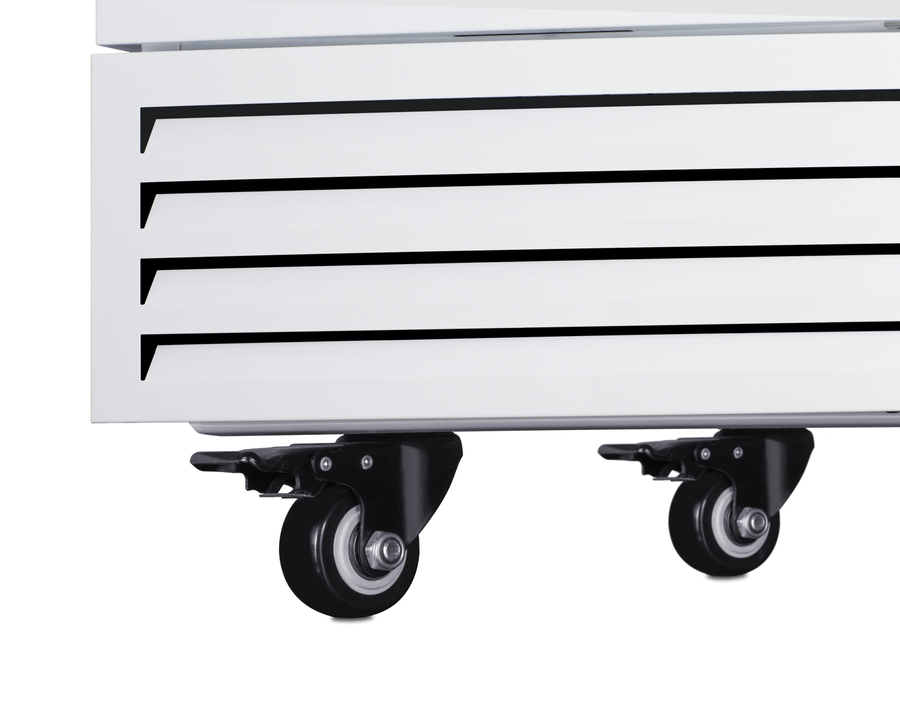

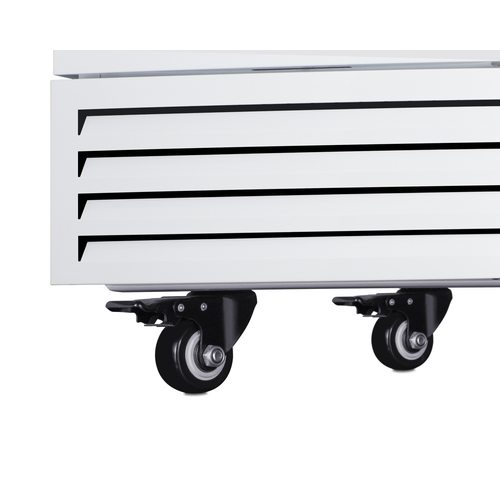

| Wheels | 4 |
| Compressor Step Height | 10.0" (25 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 16.0" (41 cm) |
| Temperature Range | -30 to -10ºC |
AVAILABLE UPGRADES
| Lock | |||
|---|---|---|---|
|
|||
| Exterior | |||
|
FEATURES
Full-sized frost-free freezer designed for medical and life science storage
Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
Over 14.5 cu.ft. of storage inside
No-frost operation for minimal user maintenance
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

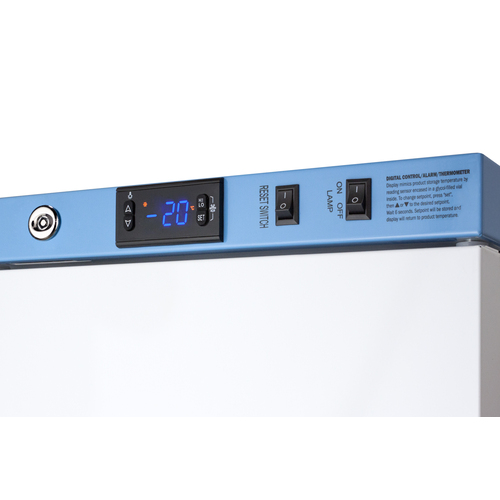

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Intuitive controls let you adjust the interior temperature between -30°C to -10ºC

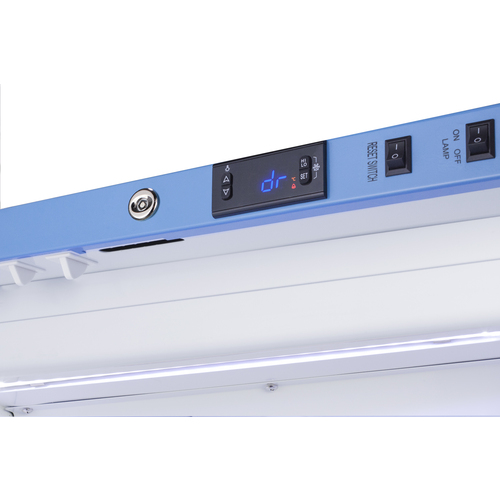

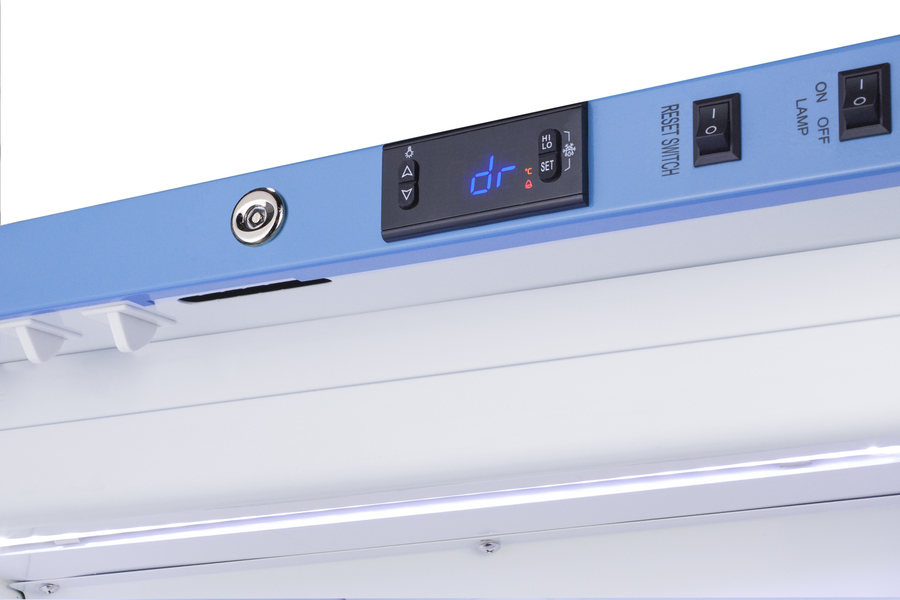

Visual and audible alarms alert if the interior temperature rises or falls out of set range
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

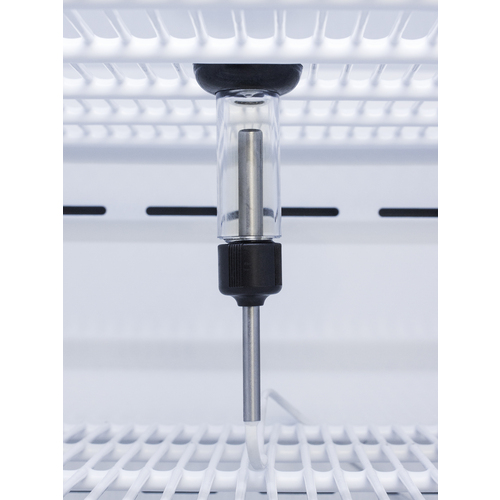

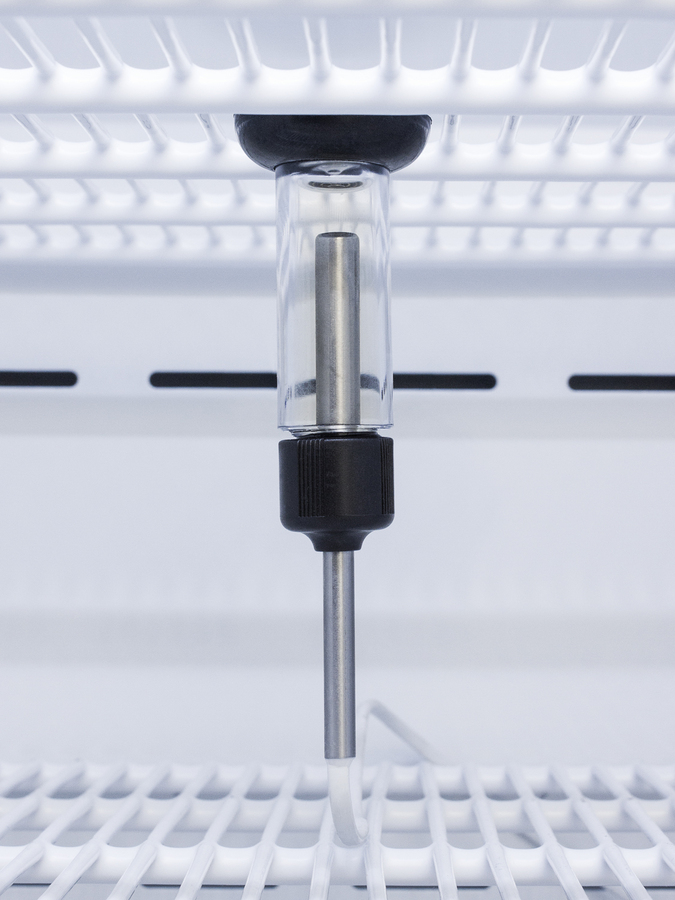

Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted

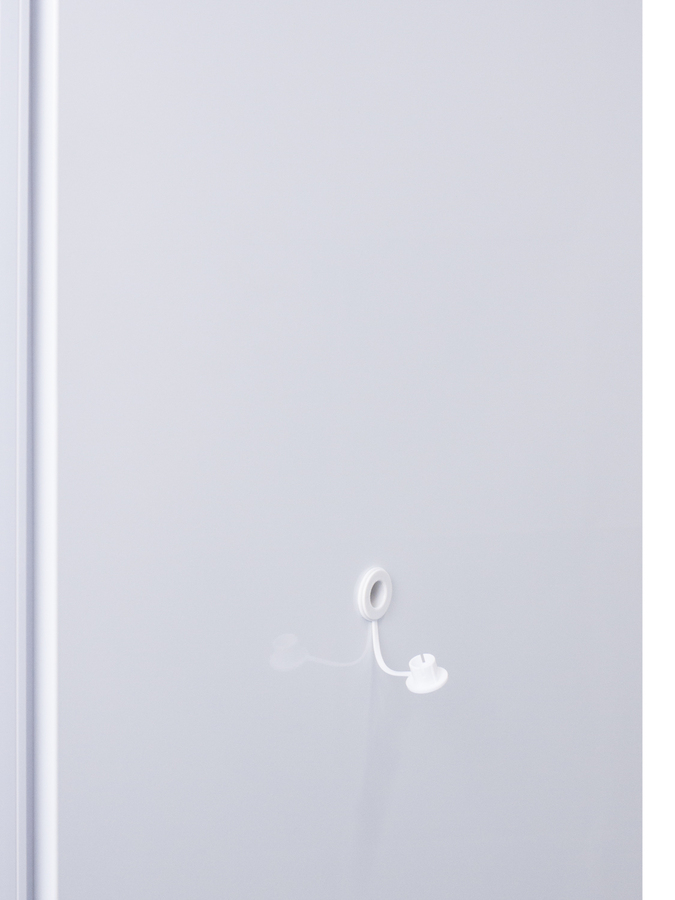

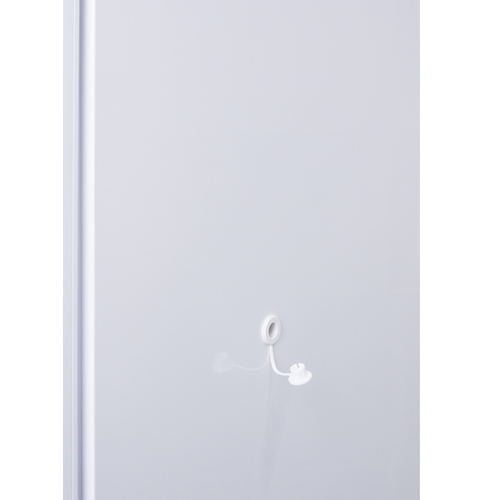

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Control panel requires password entry to adjust the parameters beyond the set point
Control panel provides a readout of the low and high temperatures in 15 minute increments
Energy efficient LED lighting with internal on/off switch
Walls are constructed from white powder coated metal for added strength and improved temperature retention

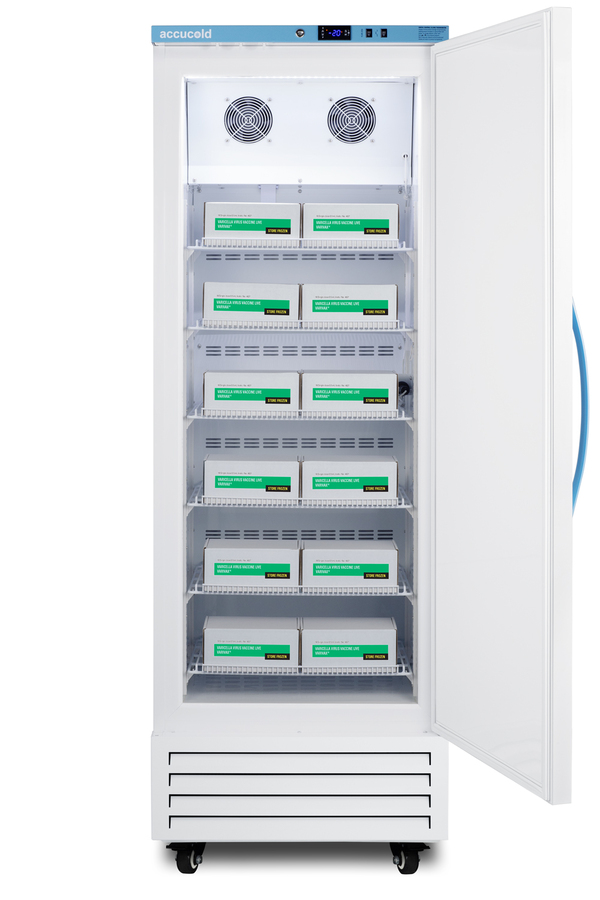

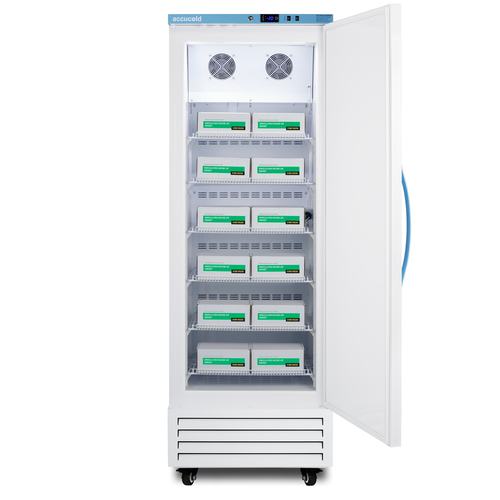

Unit's six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
No door storage to allow for the interior to accommodate deeper trays
Added protection in busy settings
User-reversible door swing for added flexibility to best accommodate your setting
Quality door gaskets ensure a tight seal for energy savings and improved performance
Conveniently located towards the top of the door for easier user access (2 keys included)

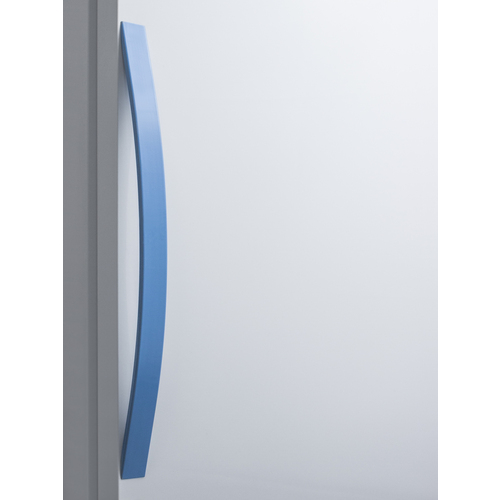

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Secure three-pronged cord for added unit safety
2 years parts and labor/5 years compressor
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold's Pharma-Vac Performance Series upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications, supporting compliance with CDC/VFC/VFA guidelines. The AFS17PV is an upright frost-free all-freezer with a temperature range of -30°C to -10°C as recommended for various vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a 'green dot' plug is also included for added safety in high-traffic areas. Inside, this freezer has 14.83 cu. ft of storage space and features six adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention. The AFS17PV comes in a white exterior finish with a blue accented control panel and user-reversible door. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 4" high casters with brakes make it easier to move as needed. Additional sizes and matching all-refrigerators are also available. Explore the entire Pharma-Vac series at accucold.com NOTE: Accucold freezers are purpose-built to meet the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or the DL2BKit accessory.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
