24" Wide Built-In All-Freezer, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101043470 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | -12ºC to -25ºC |
AVAILABLE UPGRADES
| Exterior | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| Lock | ||||||||||
|
||||||||||
| Door | ||||||||||
|
FEATURES
32" height allows the unit to be installed under lower ADA compliant counters
Less than 24 inches wide to fit tight spaces
Keep contents secure with a key lock on the door
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Allows the unit to be used freestanding
Durable design with lasting elegance
Thin 14mm diameter on stainless steel handle set horizontally across the door
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
No temperature fluctuations with an energy efficient manual defrost system

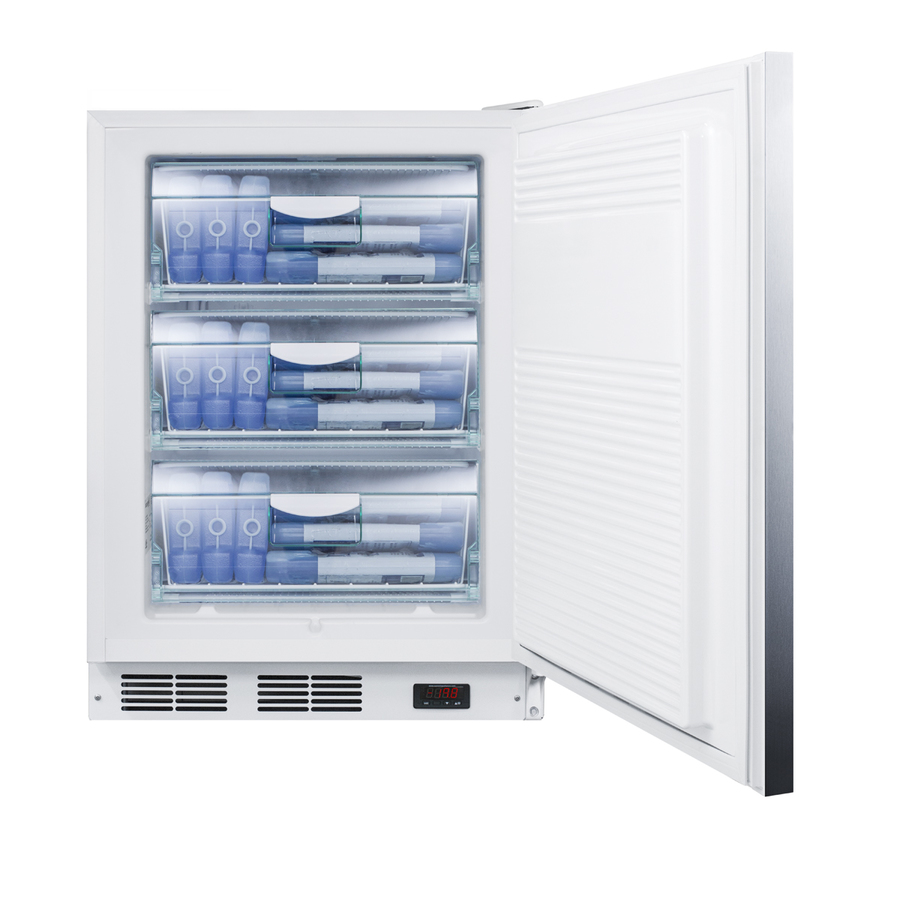

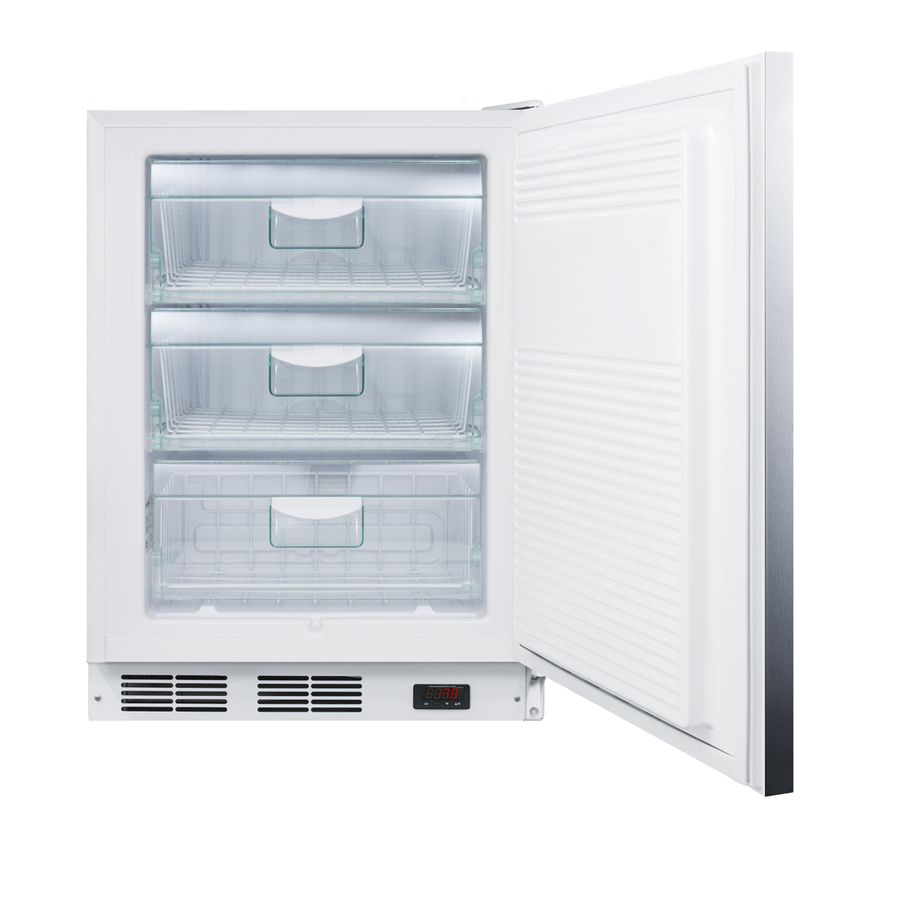

Conveniently organize your items while keeping the temperature stable when the door is opened
Static cooling system
Manage the interior temperature with ease and accuracy
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Environmentally friendly design using R404a and without ozone-damaging chemicals
DESCRIPTION

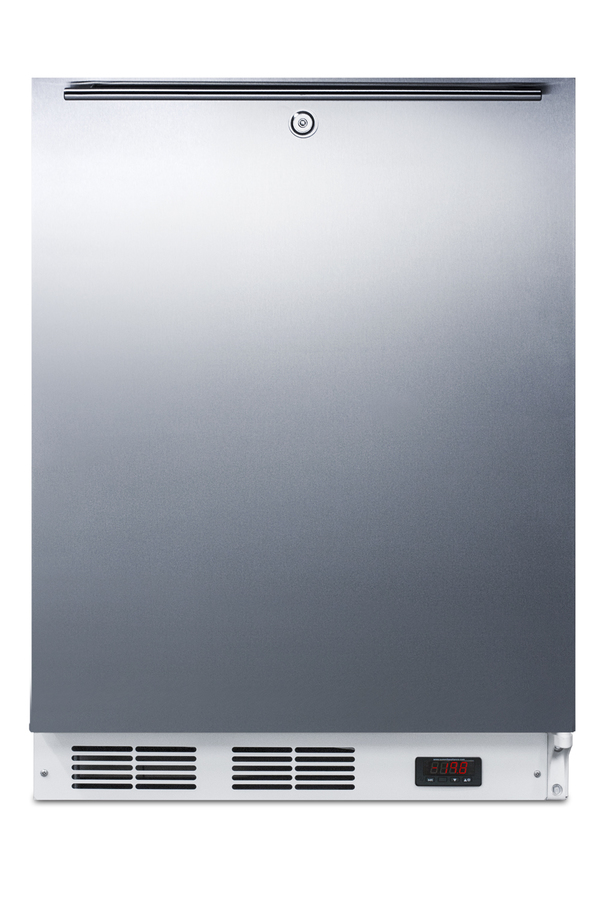

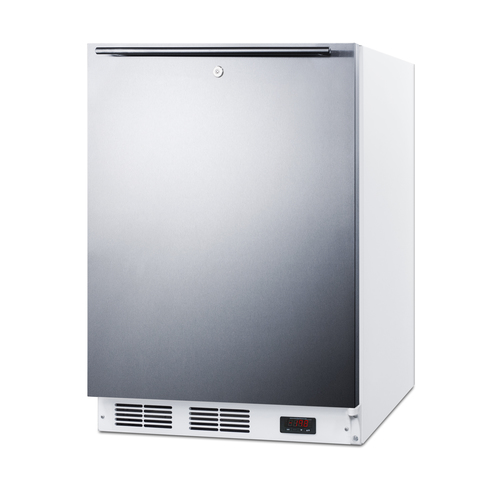

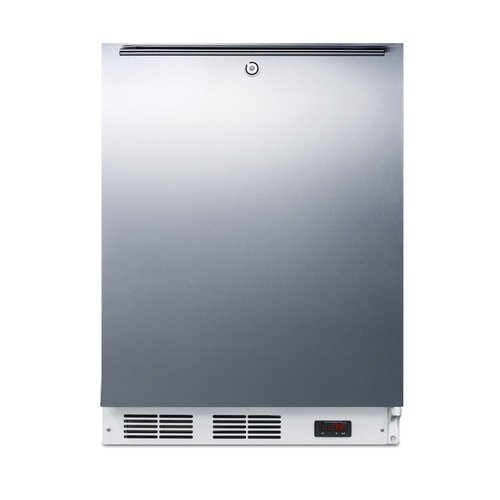

Accucold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters. The 24” wide VT65MLBISSHH can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup. This medical unit has a white cabinet with a 304 grade stainless steel wrapped door. A sleek handle (14mm diameter) is horizontally mounted for a modern look and a factory installed lock offers added security. NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
