24" Wide All-Freezer, ADA Compliant

SKU: VT65MLSSTBADA

-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101043593
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Crisper Finish	Opaque
Crisper Cover	Glass
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Shelf Type	Glass
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.5" (44 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-12ºC to -25ºC

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal

ADA compliant

32 inch height for lower ADA counters

Slim counter height dimensions

Less than 24 inches wide to fit tight spaces

Fully finished white cabinet

Allows the freezer to be used freestanding

Factory installed lock

Keep contents secure with a key lock on the door

Stainless steel door

Durable design with lasting elegance

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

-25º C capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Manual defrost

No temperature fluctuations with an energy efficient manual defrost system

No internal fans

Static cooling system

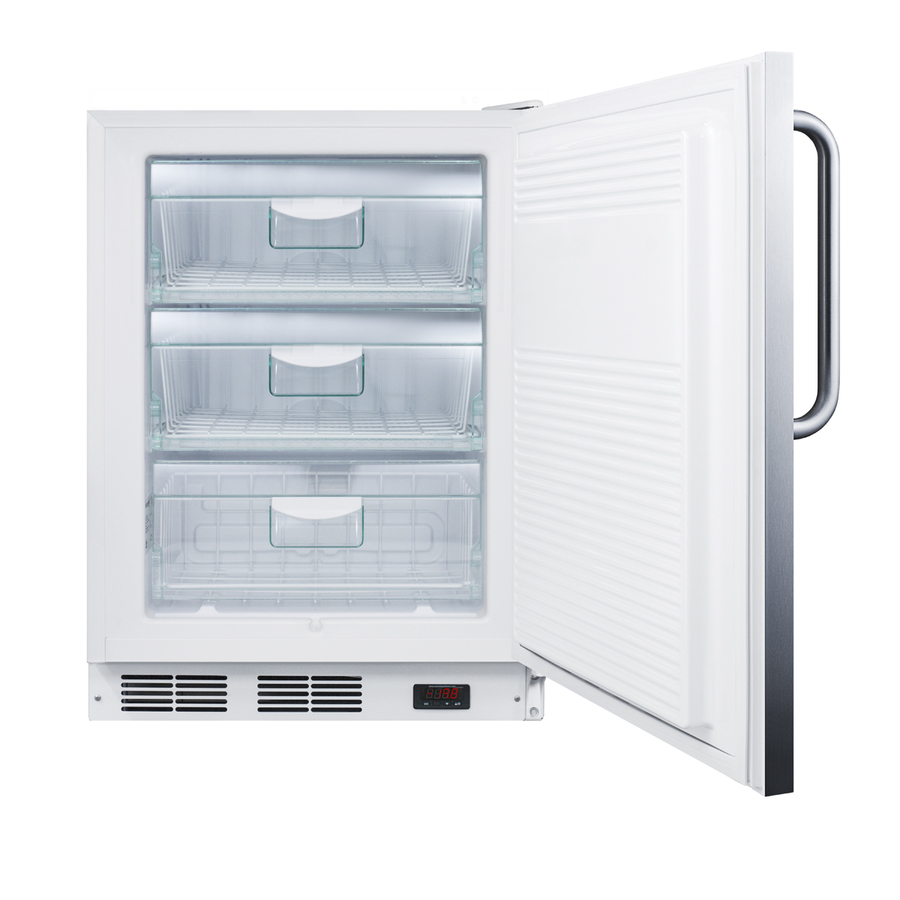

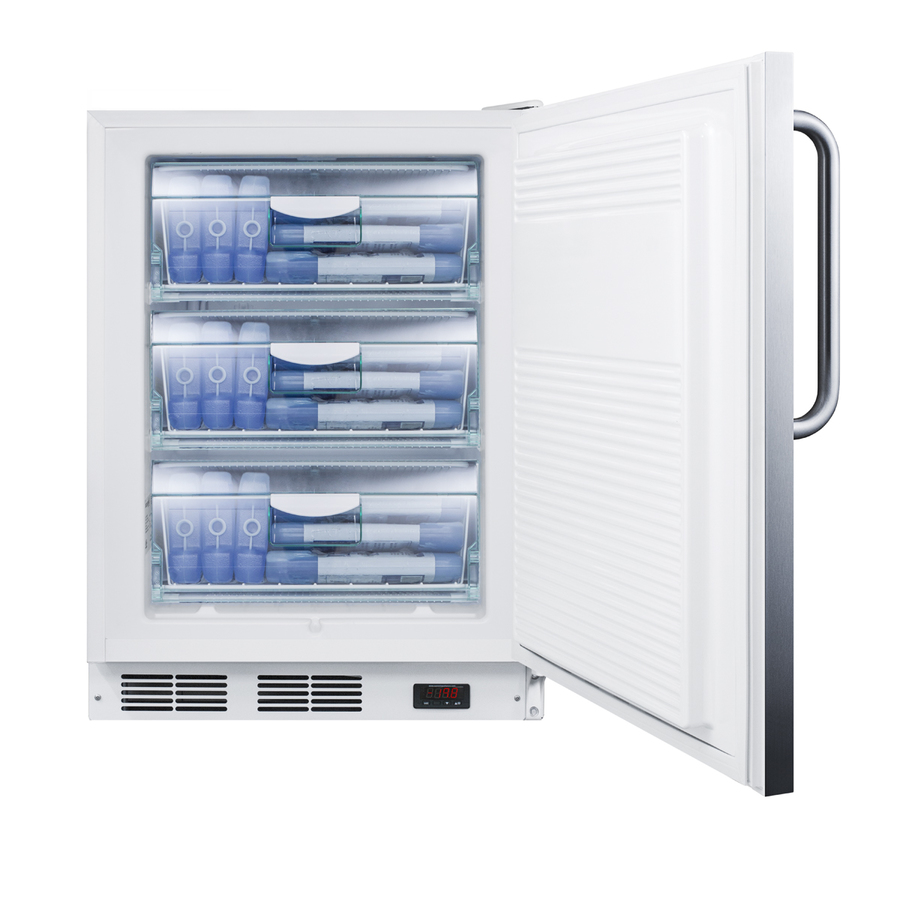

Three slide-out drawers

Conveniently organize your items while keeping the temperature stable when the door is opened

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Digital thermostat

Electronic controls located in the front kickplate for easy and intuitive temperature management

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold VT65MADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for freestanding use in ADA compliant settings.

The 32” high VT65MLSSTBADA has a 24” footprint and is designed for freestanding use, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and 304 grade stainless steel wrapped door. A factory installed lock offers added security and a curved towel bar handle completes the look.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

BROCHURE
VT65MLSSTBADA.pdf

USE & CARE
VT65M_VT65ML_manual_incl_ADA_BI_ALF_Engl_French.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
