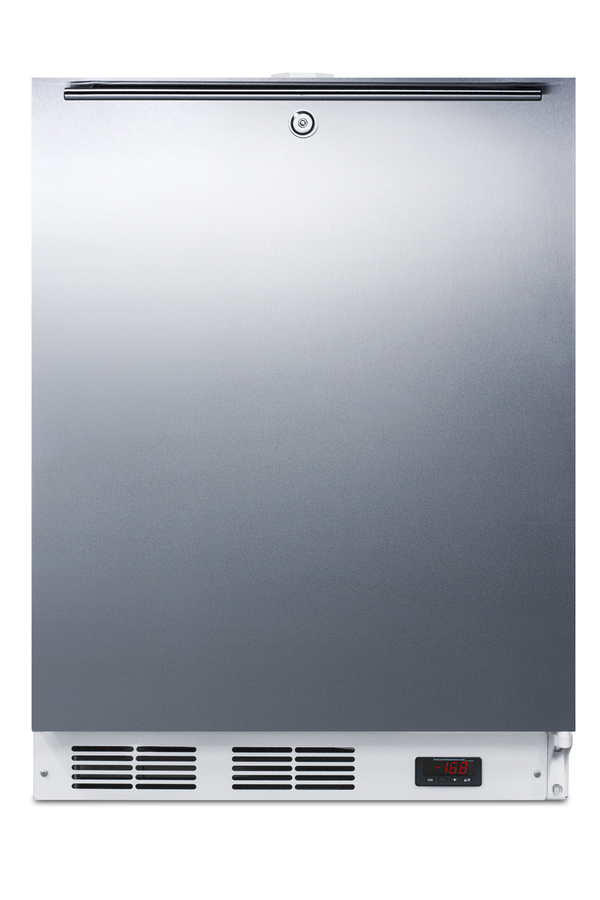

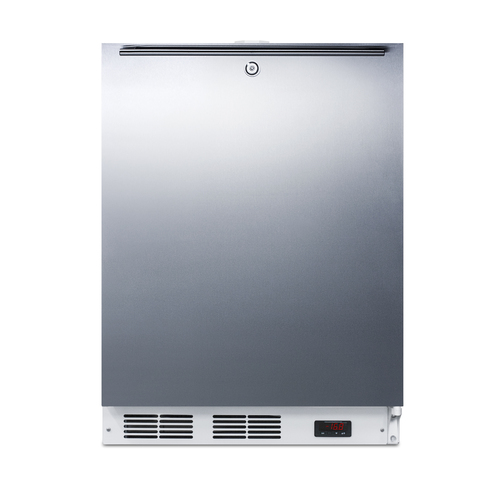

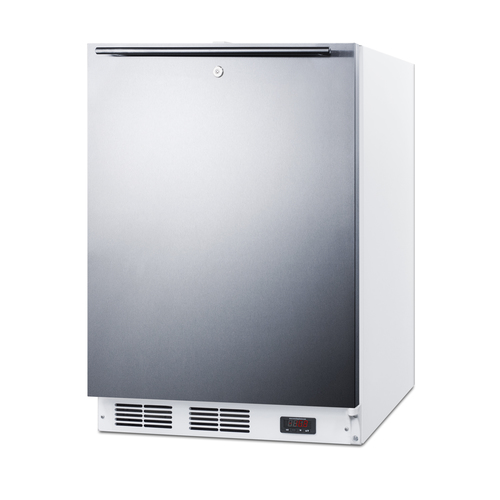

24" Wide Built-In All-Freezer, ADA Compliant

SKU: ACF48WSSHHADA
Frost-free operation eliminates the need to defrost the interior
Estimated Time to Ship:

5 to 7 days

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101051741
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.2 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Temperature Range -5 to 10ºF/-20 to -12ºC

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" high to fit under lower ADA compliant counters

Slim undercounter dimensions

Sized at less than 24" wide and deep for an easy fit in space-challenged institutions

Built-in capable

Front-breathing system allows the unit to be used built-in

Frost-free operation

Low maintenance design ensures no frost buildup inside the unit

Digital temperature control

Electronic controls located in the exterior kickplate for precise temperature management

Stainless steel wrapped reversible door

User-reversible door swing for added flexibility

Professional horizontal handle

Thin 14mm diameter on stainless steel handle set horizontally across the door

Factory installed lock

Keyed lock for added security, located towards the top of the door to ensure convenient access

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

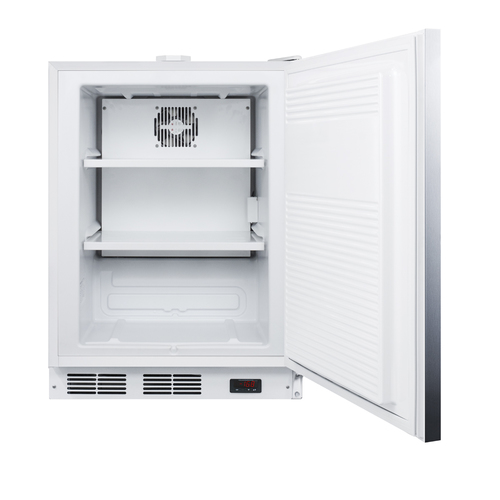

Removable shelves

Includes two slide-out shelves made from durable steel

Hospital grade cord

Secure three-pronged cord for added unit safety

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Matching refrigerator available

Pair with the FF7LBISSHHADA to create a matching set

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Fully finished white cabinet

Allows the unit to be used freestanding

Commercially approved

Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

At 24" wide and 32" high, the ACF48WSSHHADA is ideally sized for many institutional settings complying with ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes with a white cabinet and reversible stainless steel wrapped door with a horizontally mounted pro handle. It includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

Full frost-free operation ensures low maintenance operation, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.

Made in the USA, the ACF48WSSHHADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7WLBISSHHADA all-refrigerator.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
