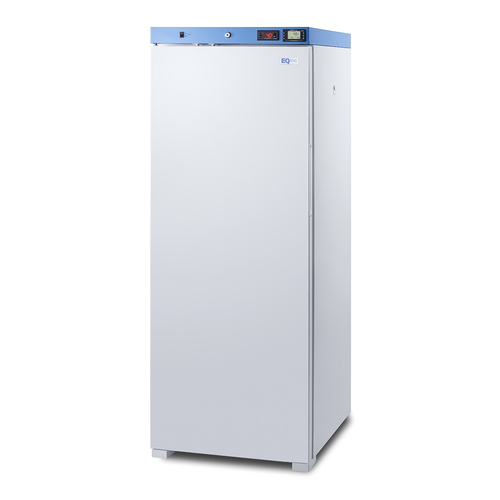

24" Wide Upright Medical Refrigerator

SKU: ACR1321WLHD

Designed for convenient, affordable, and reliable cold storage in healthcare facilities

Estimated Time to Ship:

1 to 2 days

How to Buy

64.88" H x 23.38" W x 28.13" D
(165cm H x 59cm W x 71cm D)

Overview
Nominal Height	65.0" (165 cm)
Height of Cabinet	64.88" (165 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Width with Door Open	23.63" (60 cm)
Nominal Depth	29.0" (74 cm)
Depth	28.13" (71 cm)
Depth with door at 90°	50.13" (127 cm)
Capacity	12.71 cu.ft. (360 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101107578
Refrigerator Features
Door Swing	LHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	5
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	2.0oz.
High Side PSI	1.45
Low Side PSI	0.85
Level Legs Qty	2
Interior Light	Yes
Temperature Range	2º to 8ºC
Sound Level	37.6 dB
Dimensions
Interior Height	56.5" (144 cm)
Interior Width	20.0" (51 cm)
Interior Depth	21.5" (55 cm)
Compressor Step Height	9.0" (23 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	8.0" (20 cm)

EQTemp Medical Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

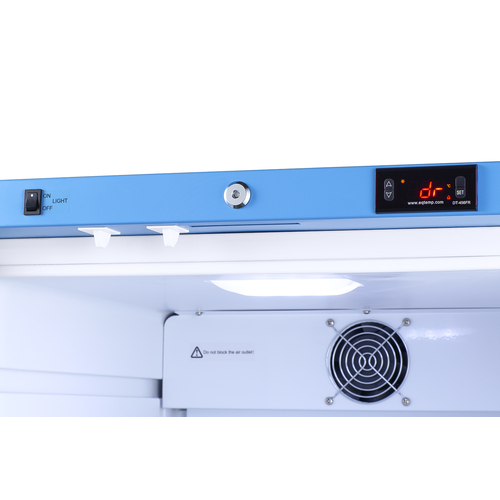

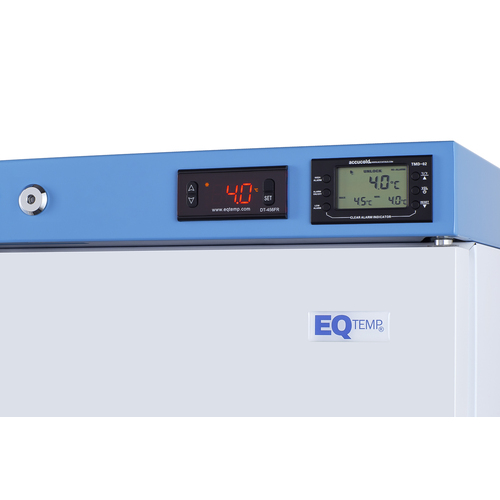

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Large capacity

Full 12.71 cu.ft. capacity inside conveniently slim footprint

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

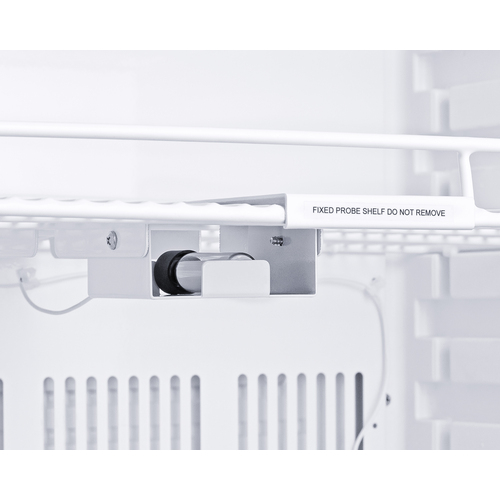

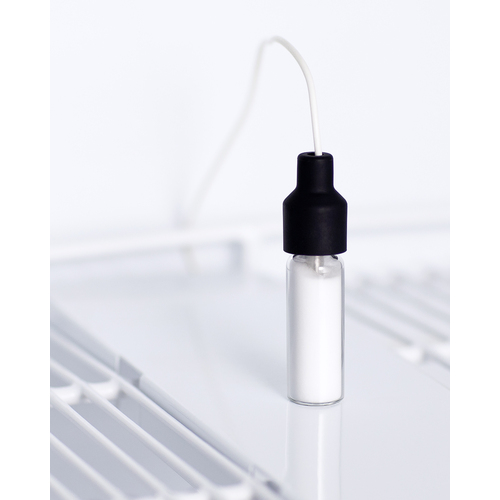

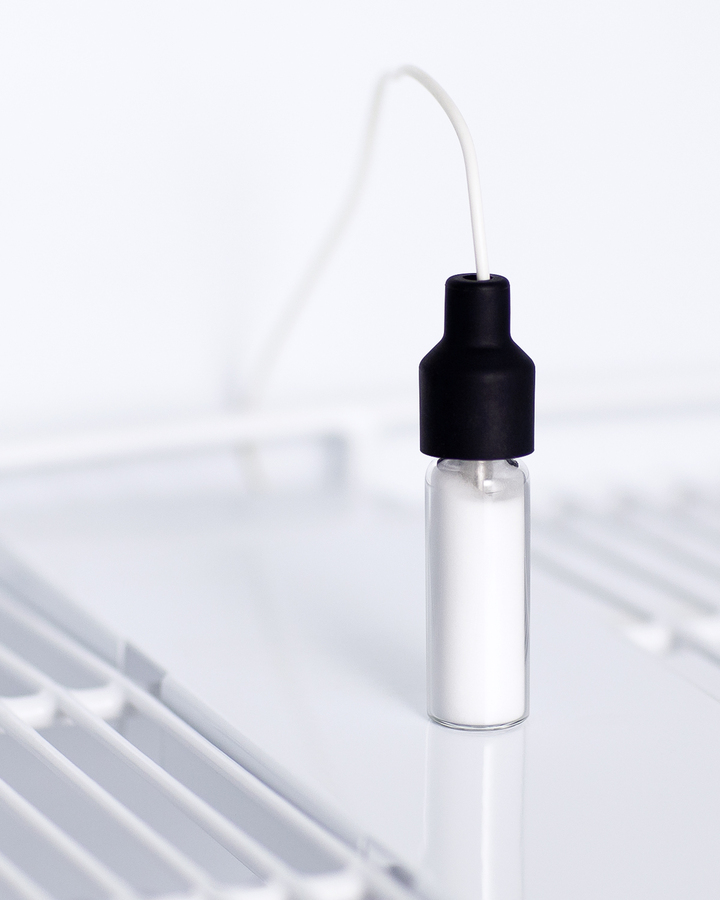

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Fully finished white cabinet

Allows the unit to be used freestanding

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

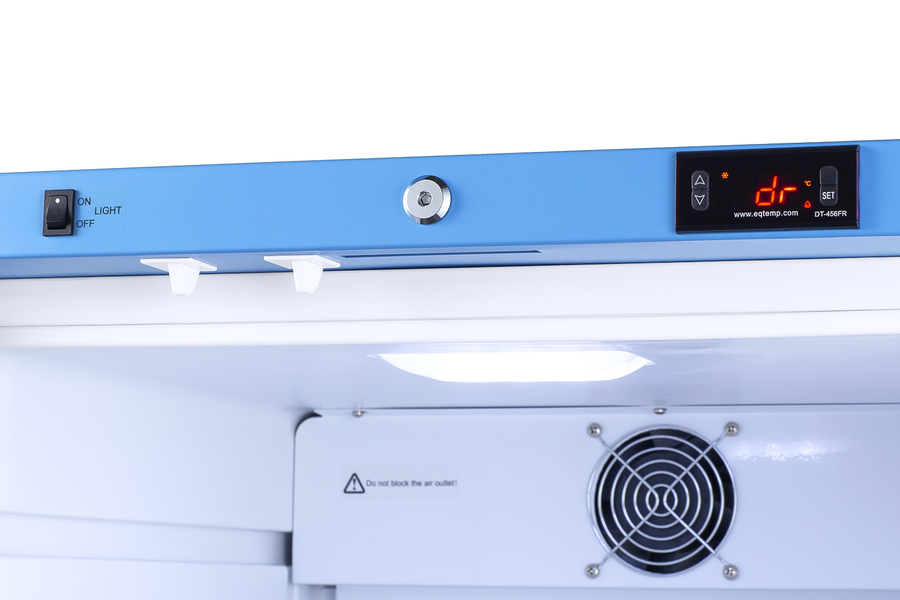

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

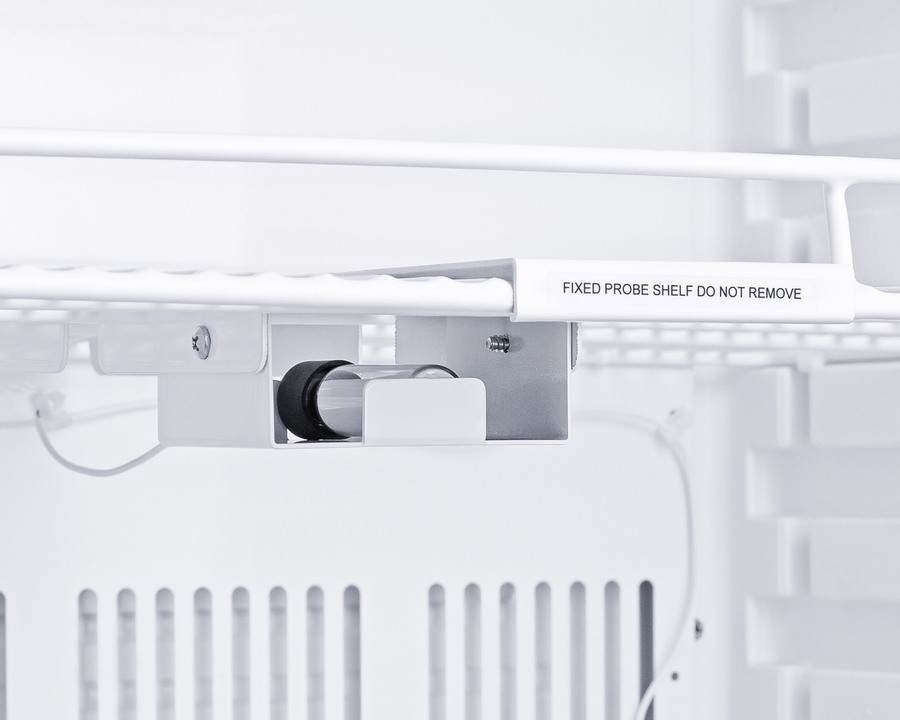

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Automatic defrost

Reduced user maintenance with automatic defrost

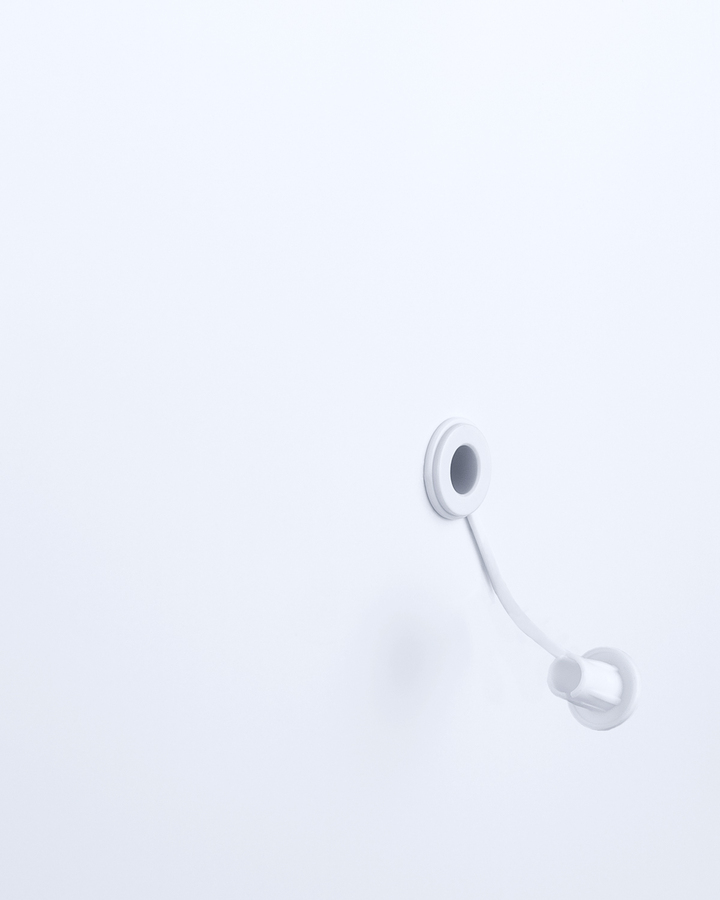

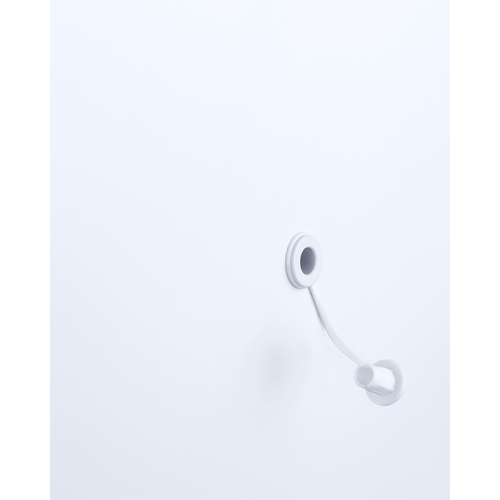

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

Left hand door swing

For this unit with a standard right hand door swing, see model ACR1321W

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

EQTemp introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

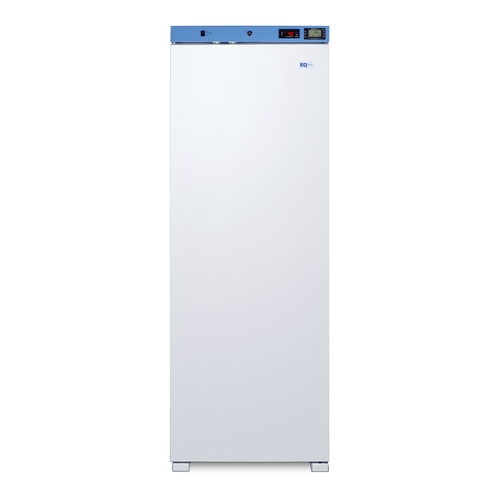

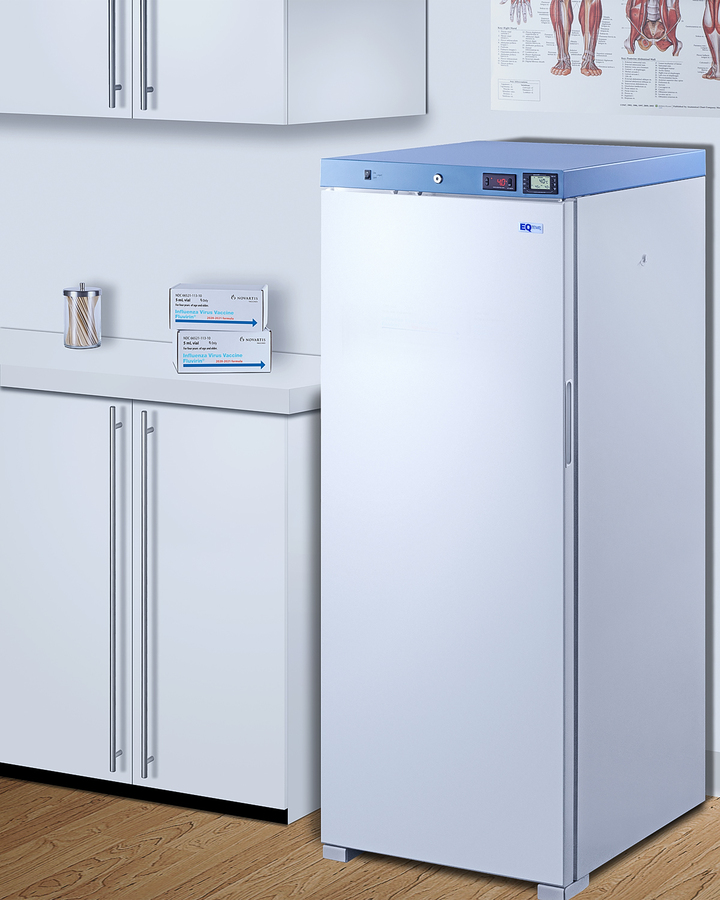

Model ACR1321WLHD is an upright 12.71 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

The ACR1321WLHD includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

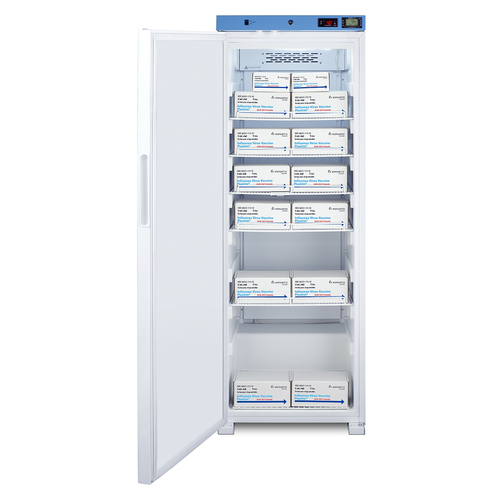

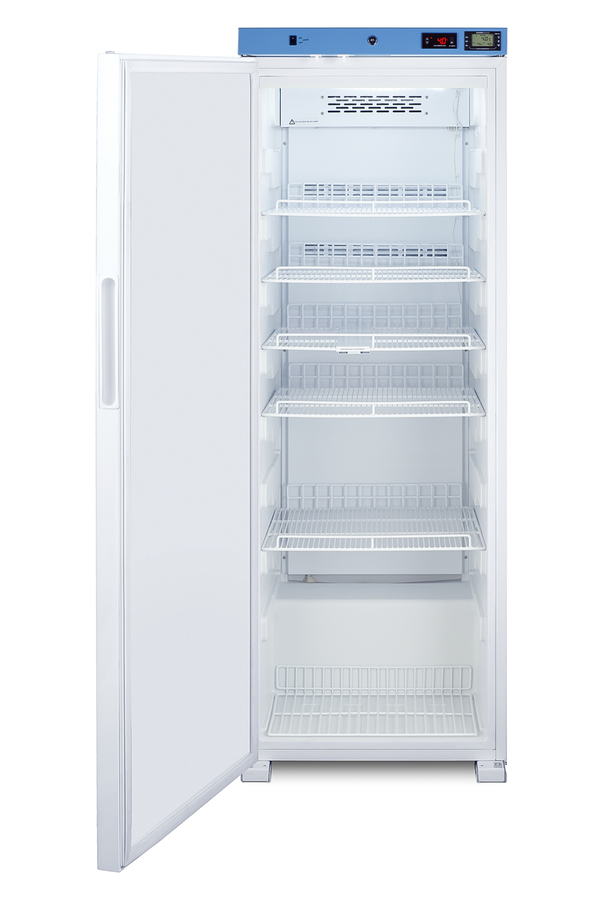

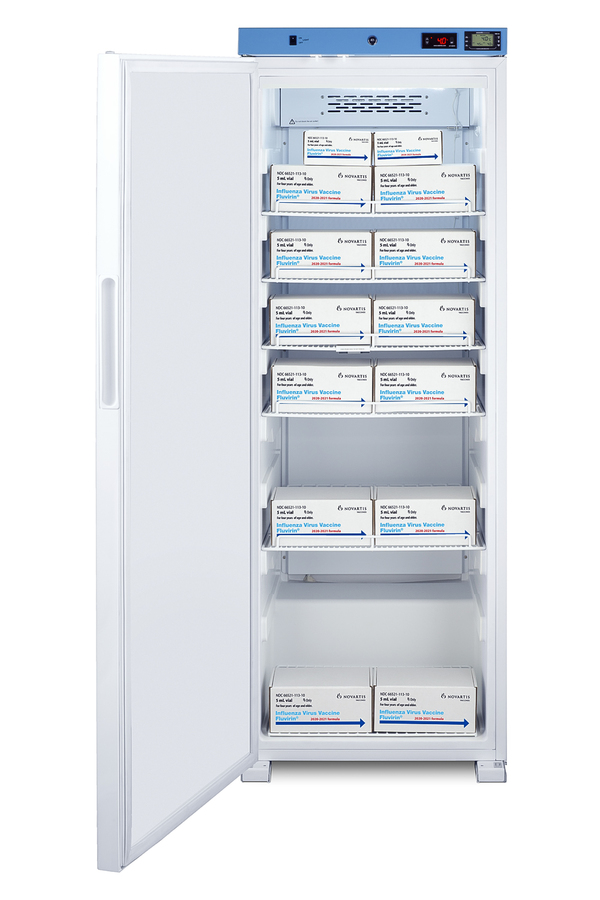

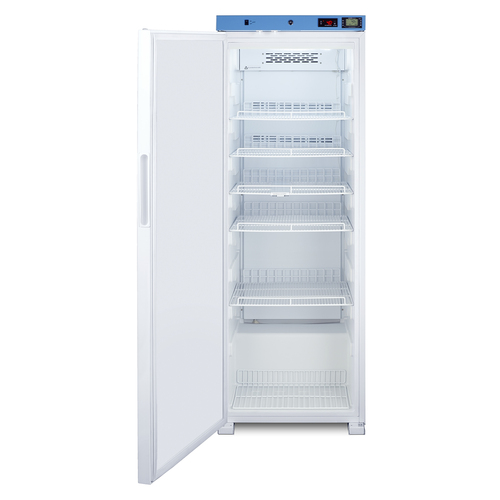

The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.

This unit ships with a left-hand door swing (for a right-hand version, see model ACR1321W). This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1321WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.

Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
ACR1321WLHD.pdf

TECHNICAL DRAWING (.dwg)
ACR1321W.dwg

ASSEMBLY DRAWING
ACR1321W-Assembly.pdf

REVIT MODEL
QF_Summit_ACR1321W_24_Wide_Upright_Healthcare_Refrigerator.rfa

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
