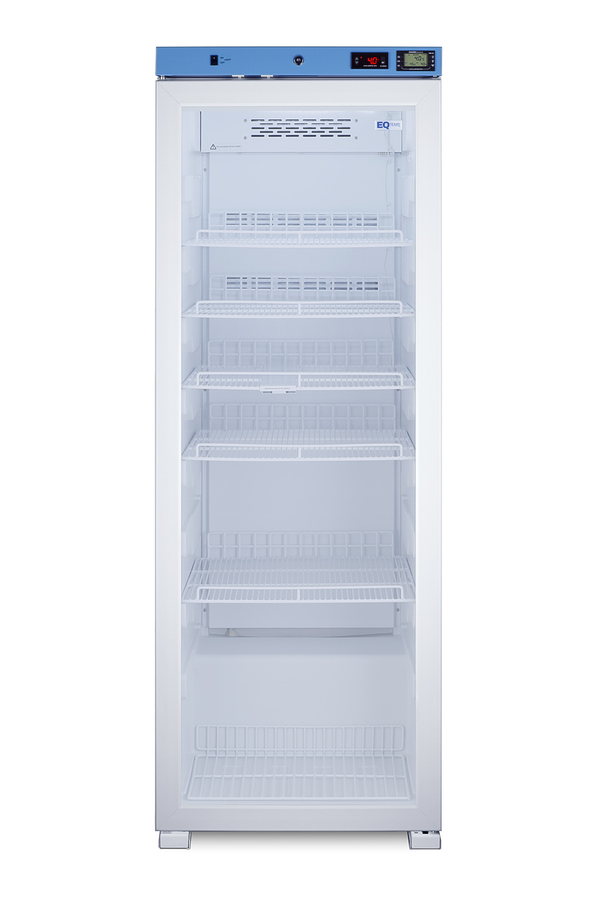

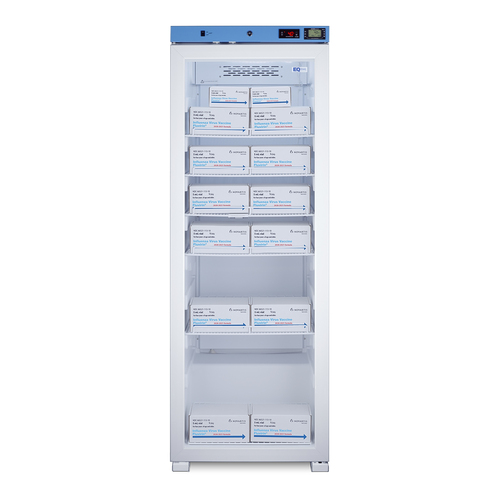

24" Wide Upright Medical Refrigerator
1 to 2 days
(165cm H x 59cm W x 71cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 65.0" (165 cm) |
| Height of Cabinet | 64.88" (165 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 28.0" (71 cm) |
| Depth with door at 90° | 50.0" (127 cm) |
| Capacity | 12.71 cu.ft. (360 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 169.0 lbs. (77 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101107646 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |

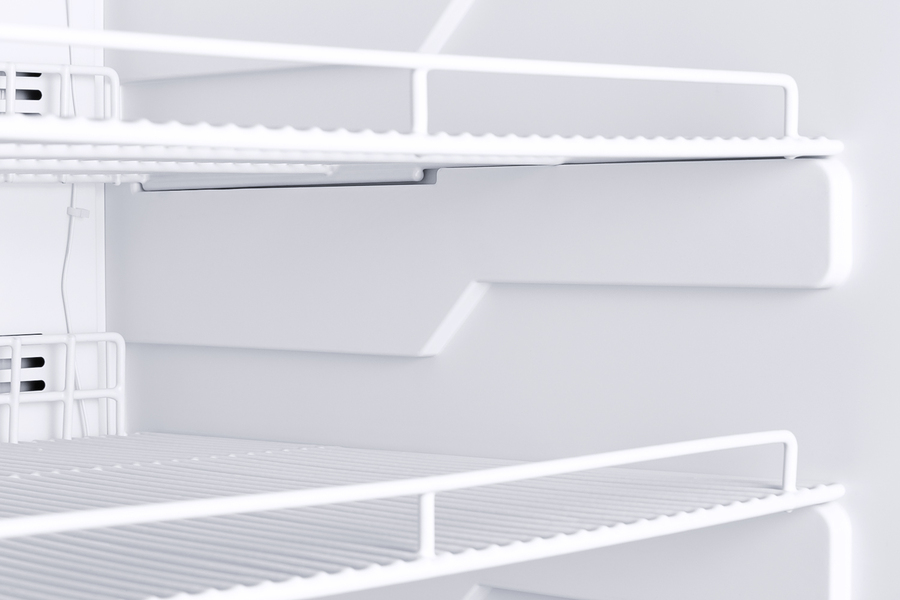

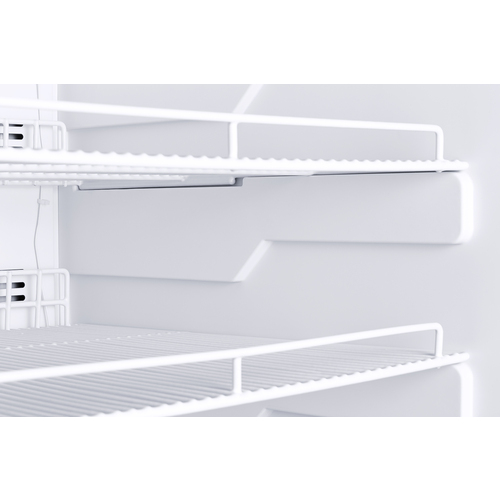

| Shelf Type | Wire |
| Shelf Qty | 5 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 2.0oz. |
| High Side PSI | 1.45 |
| Low Side PSI | 0.85 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
| Sound Level | 38.9 dB |
|
Dimensions
|
|
| Interior Height | 56.5" (144 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 21.5" (55 cm) |
| Compressor Step Height | 9.0" (23 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 8.0" (20 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities
Full 12.71 cu.ft. capacity inside conveniently slim footprint
Preset to 5ºC as recommended for many storage applications
Audible alarm sounds if the interior temperature rises or falls out of set range

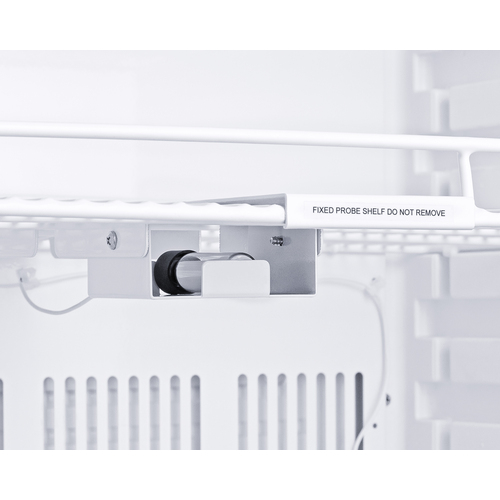

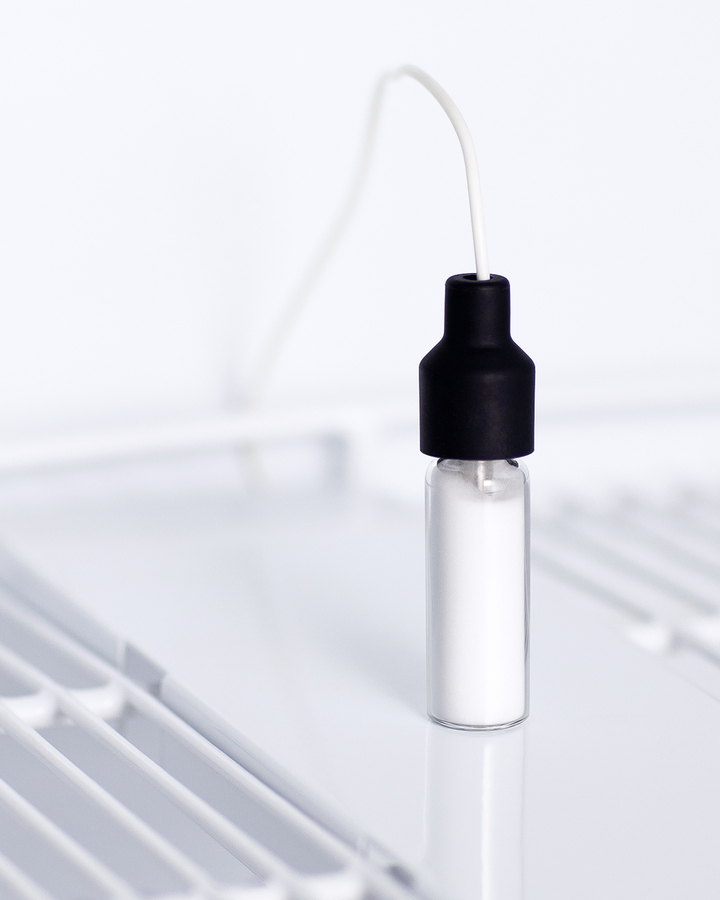

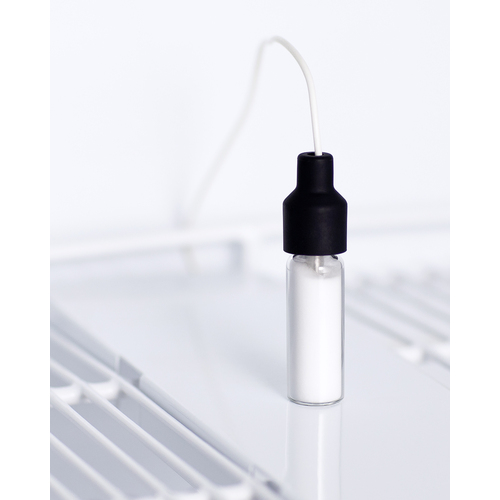

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Allows the unit to be used freestanding
Quality design ensures efficiently insulated interior
Quality door gaskets ensure a tight seal for energy savings and improved performance
Audible alarm sounds if the door is left open for more than one minute

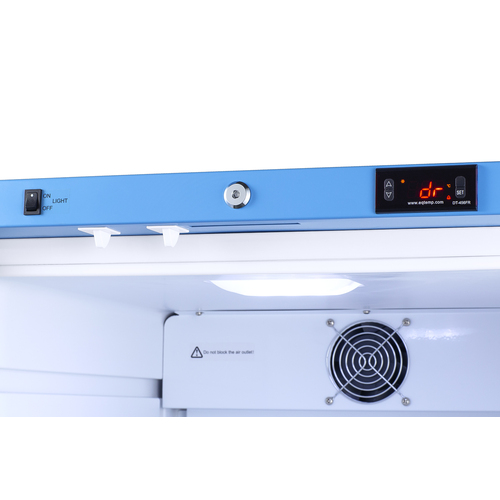

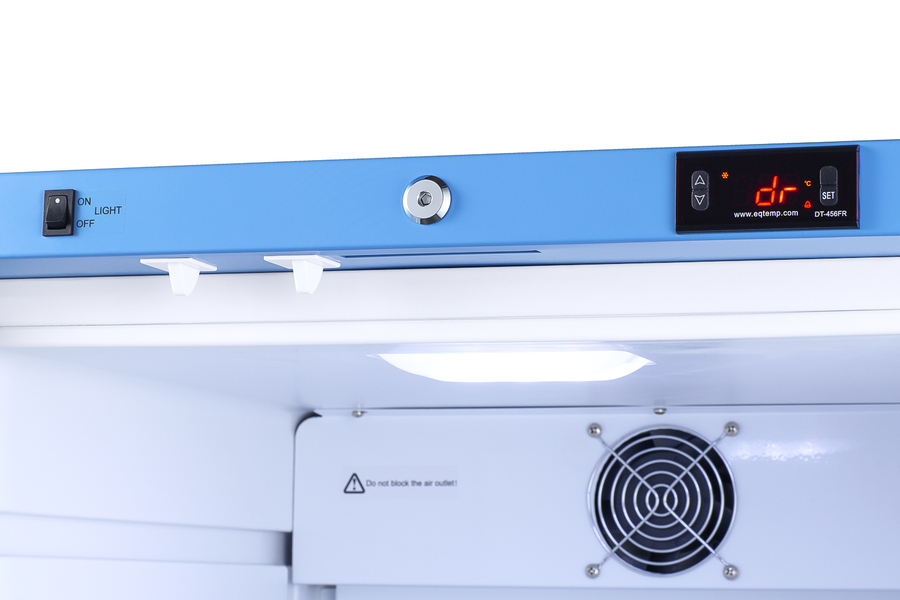

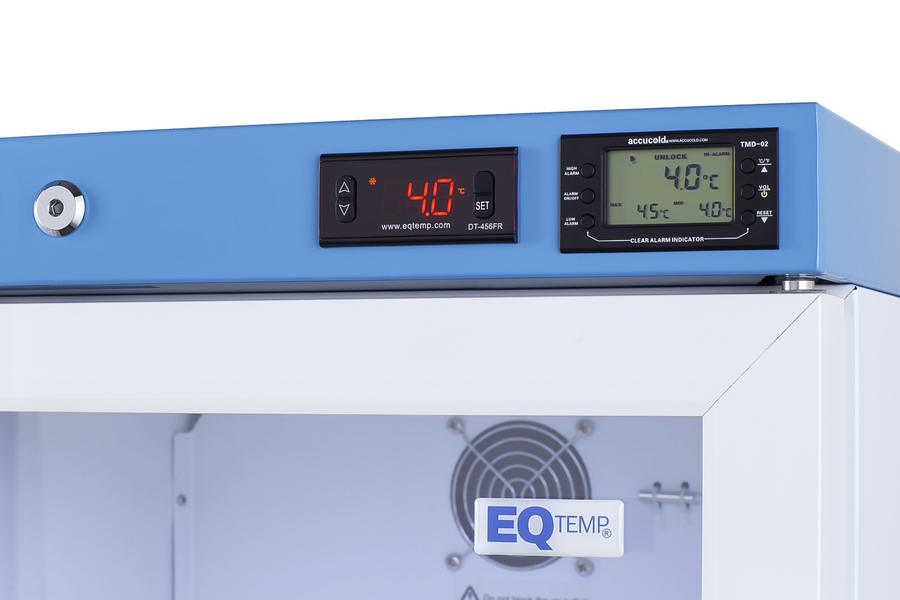

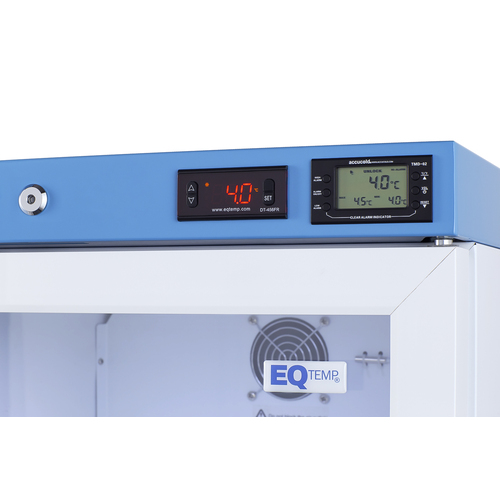

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Handle is recessed into the side of the door to ensure no added depth
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Unit will retain its last settings when power is restored in the event of power loss
Attractively illuminates the interior in a gentle white hue for easy viewing

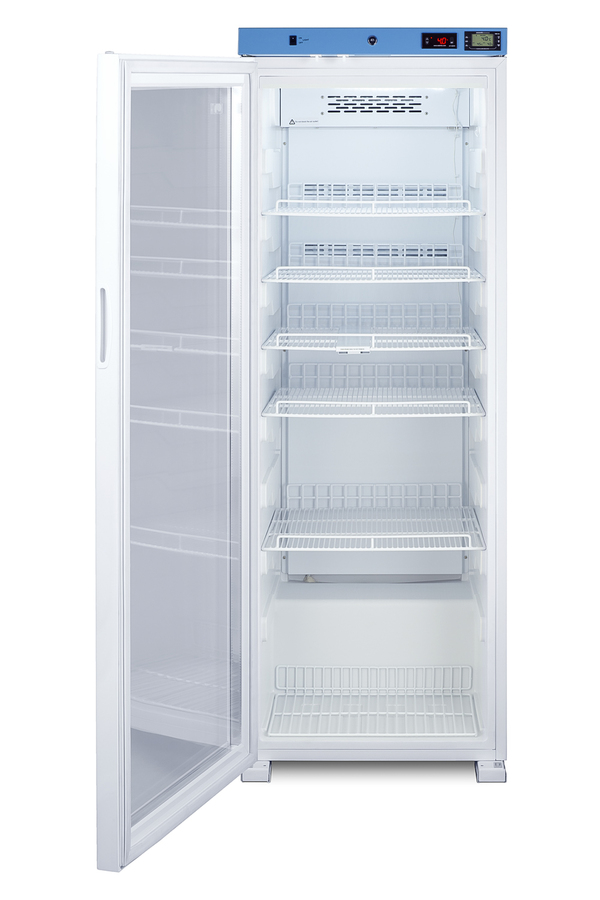

No door storage to allow for the interior to accommodate deeper trays

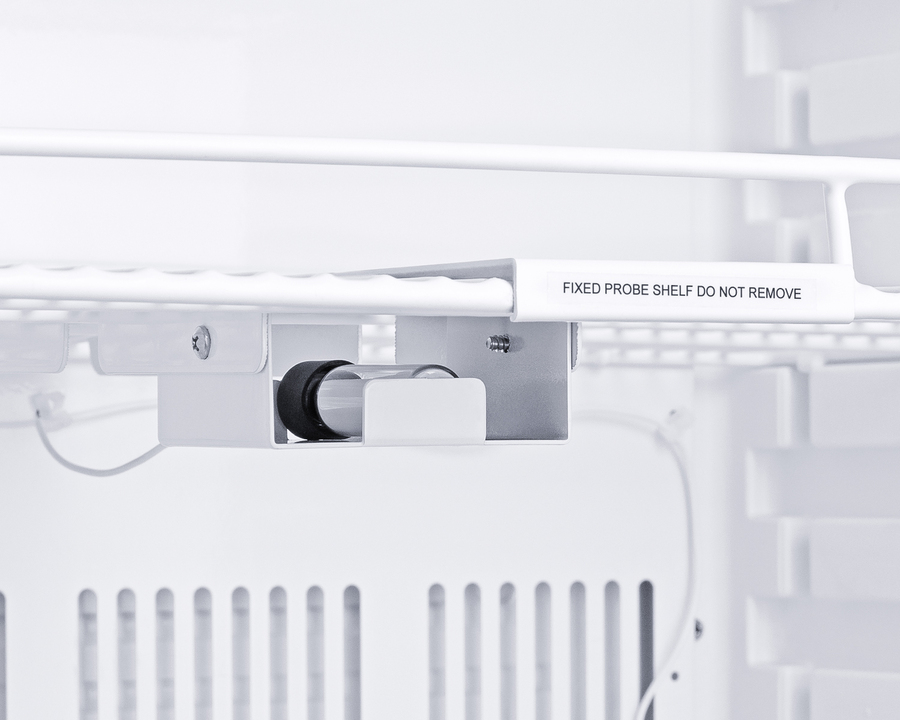

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Secure three-pronged cord for added unit safety in high traffic areas
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reduced user maintenance with automatic defrost
Keyed lock for a secure interior (2 keys included)

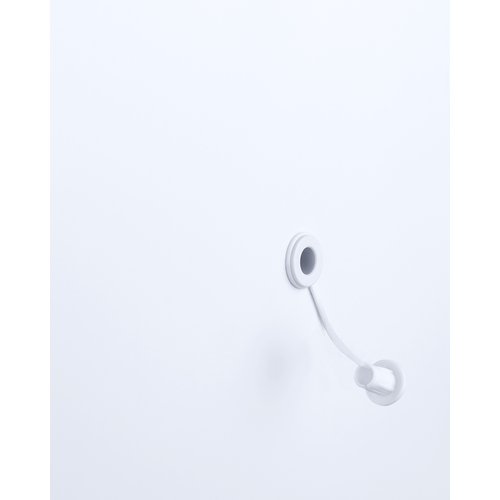

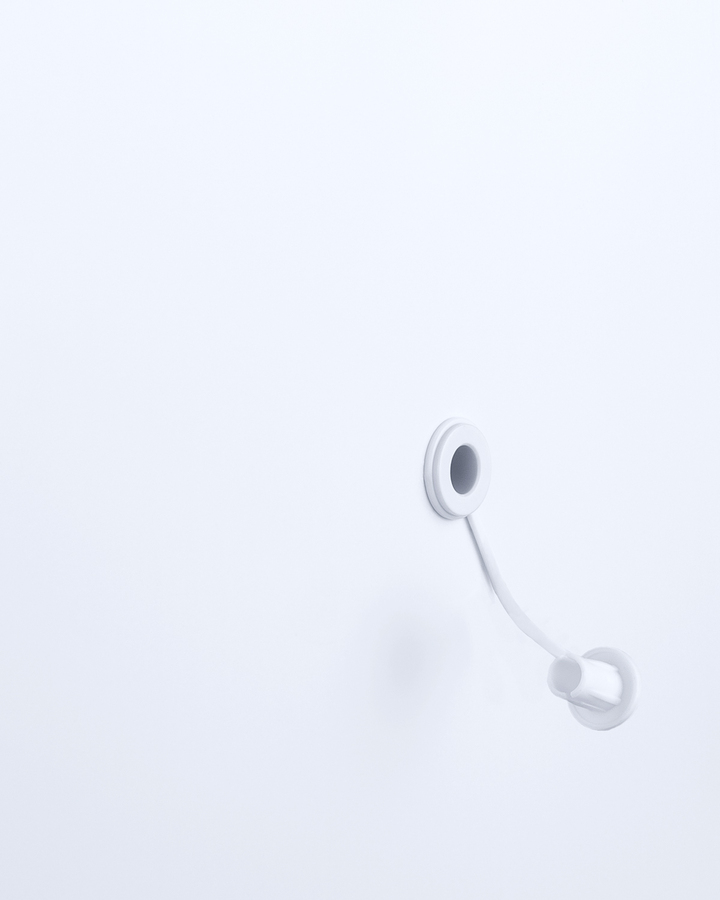

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment
For this unit with a standard right hand door swing, see model ACR1322G
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

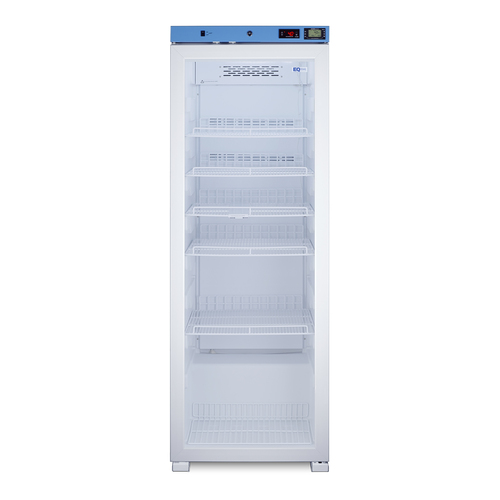

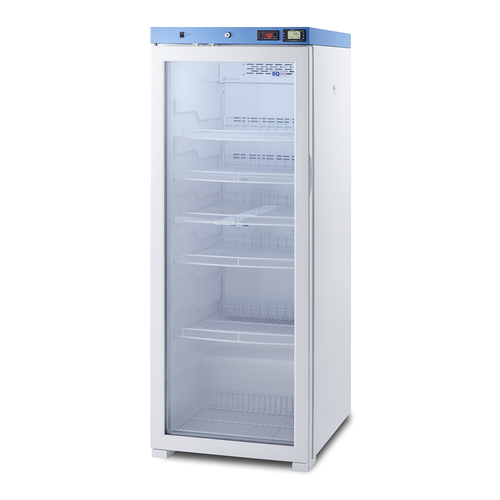

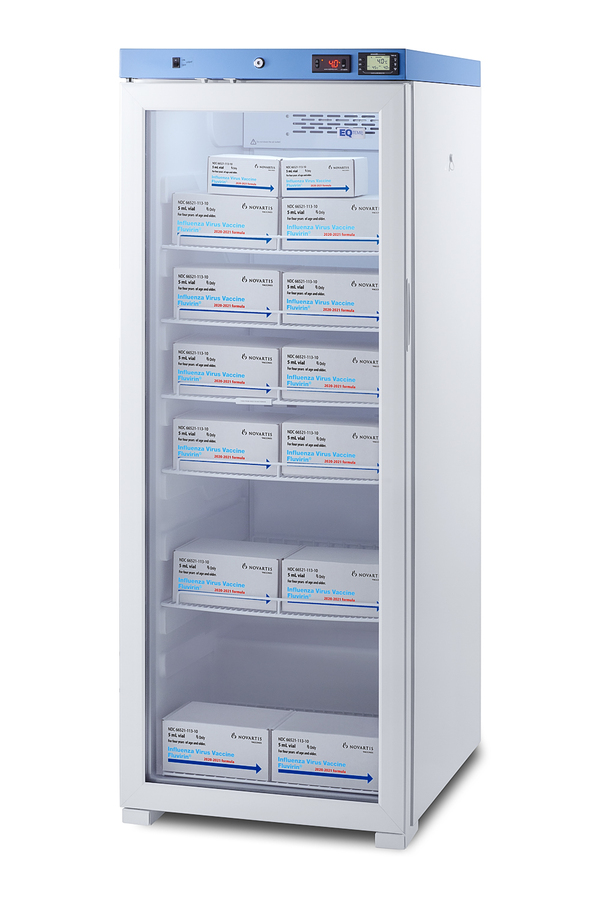

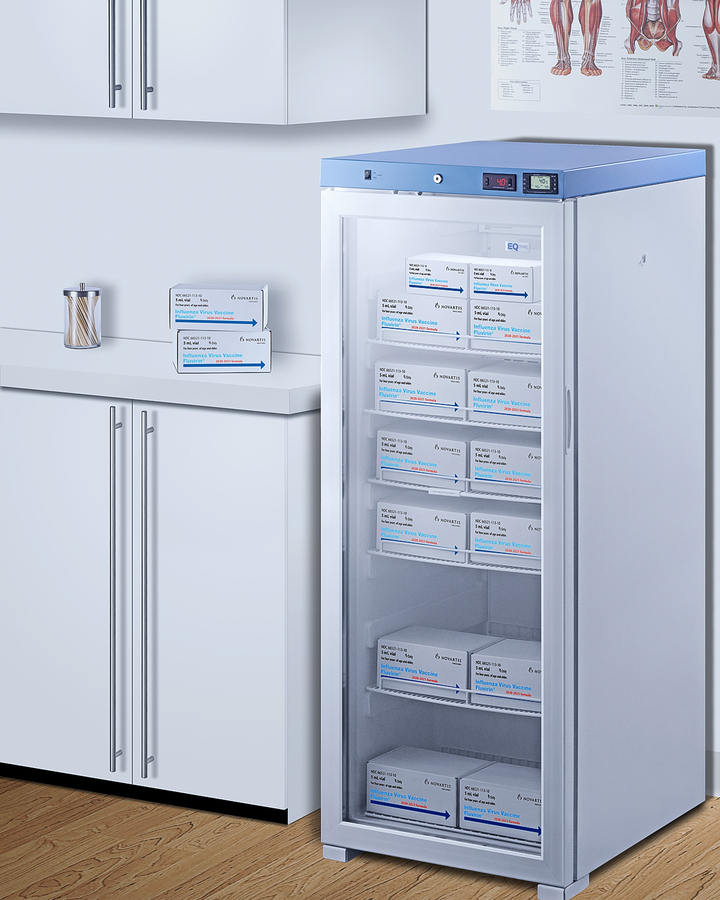

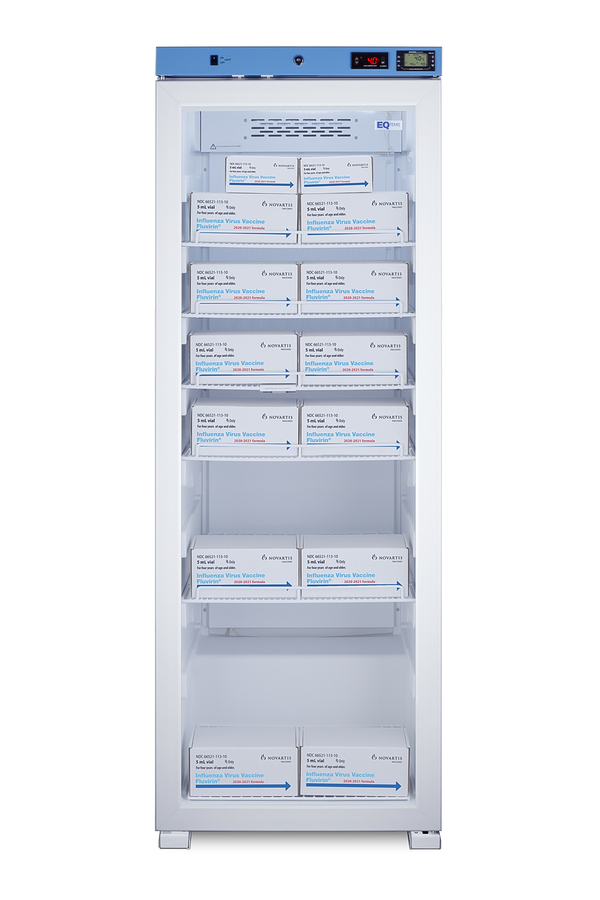

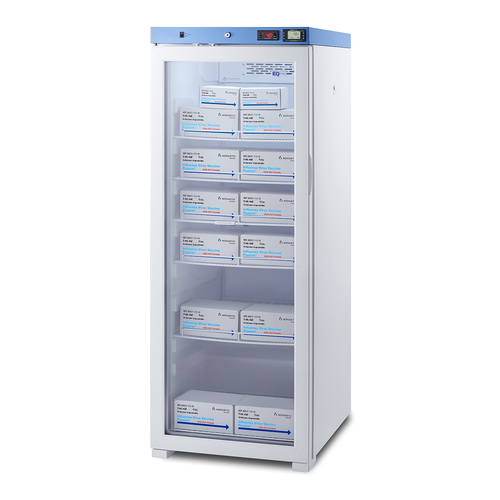

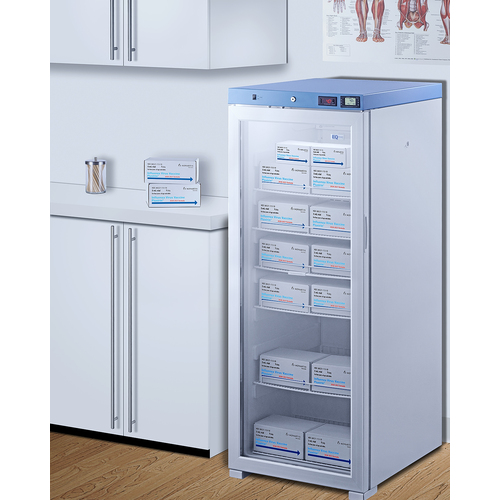

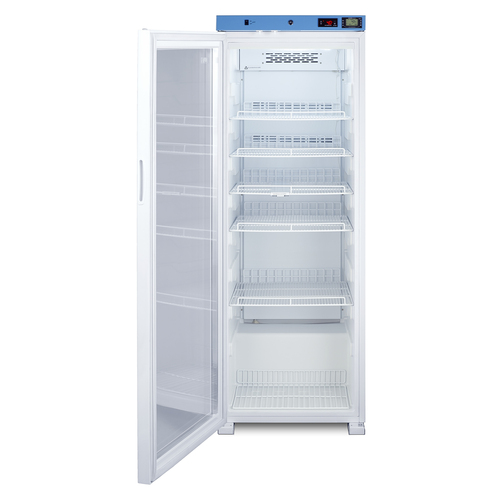

EQTemp introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage. Model ACR1322GLHD is an upright 12.71 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. The ACR1322GLHD includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings. This unit ships with a left-hand door swing (for a right-hand version, see model ACR1322G).This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1322GNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection. Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
