24" Wide Pharmacy Refrigerator

SKU: ACR1415LH
Stainless steel interior for improved sanitation and durable storage in busy settings
DISCONTINUED- REPLACED BY ARG12PV
66.75" H x 23.63" W x 24.25" D
(170cm H x 60cm W x 62cm D)

Overview
Height of Cabinet 66.0" (168 cm)
Height to Hinge Cap 66.75" (170 cm)
Width 23.63" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 26.5" (67 cm)
Depth with door at 90° 46.25" (117 cm)
Capacity 14.0 cu.ft. (396 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.5
Voltage/Frequency 115 V AC/60 Hz
Weight 170.0 lbs. (77 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101053653
Refrigerator Features
Door Swing LHD
Reversible No
Shelf Type Plastic
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R290
Refrigerant Amount 1.9oz.
High Side PSI 186.0
Low Side PSI 86.0
Interior Light Yes
Temperature Range 2° to 8°C
Dimensions
Interior Height 44.5" (113 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.5" (50 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Stainless steel interior and exterior finish

Cabinet and interior walls are constructed from stainless steel

Large capacity

14 cu.ft. interior for maximum storage convenience

LED lighting

Individual lights in door pane offer a full view of stored contents, with an off switch located inside

Automatic defrost

Reduced user maintenance with automatic defrost

Glass door

Tempered glass door provides heat-safe view of interior contents, with an argon gas-filled door pane to prevent condensation buildup

Factory installed lock

Keyed lock for a secure interior

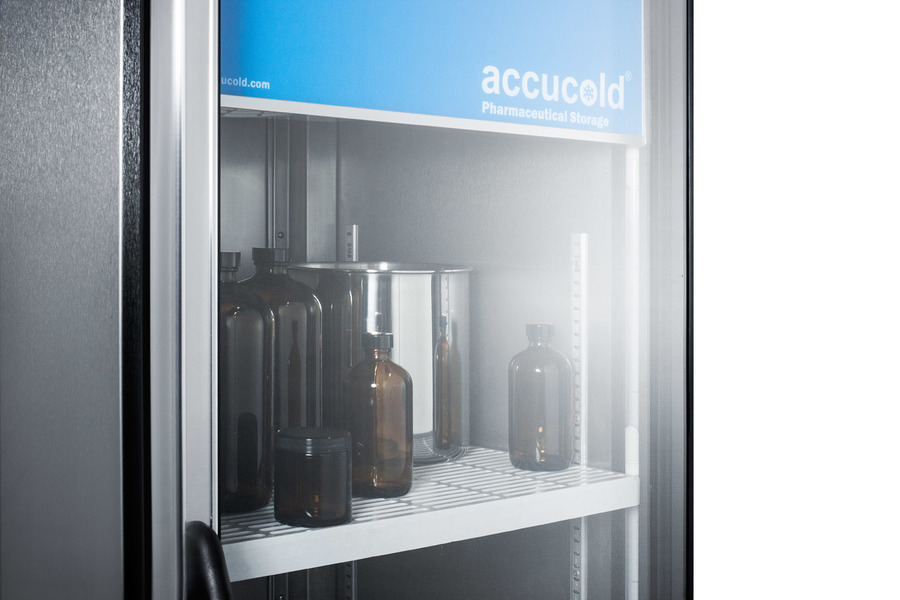

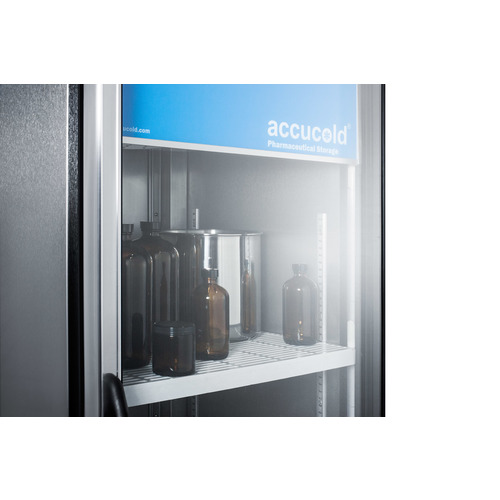

Adjustable cantilevered shelves

4 molded plastic shelves can be arranged in virtually any position to accommodate a variety of sizes

Self-closing door

Door automatically closes if left ajar

Fan-cooled interior

Interior fan-forced cooling ensures all items are kept cold

Danfoss compressor

1/4 horsepower high efficiency compressor for quality storage

Operates between 2º and 8ºC

Designed to maintain temperatures as recommended by the CDC

Left hand door swing

Door is not field reversible; for a right hand version, see the ACR1415RH

Easy grip handle

Solid handle offers a sturdy grip

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance carries a quality line of pharmaceutical refrigeration for temperature-safe storage of sensitive materials.

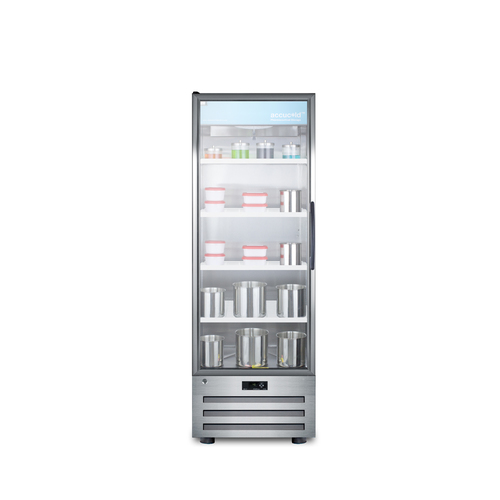

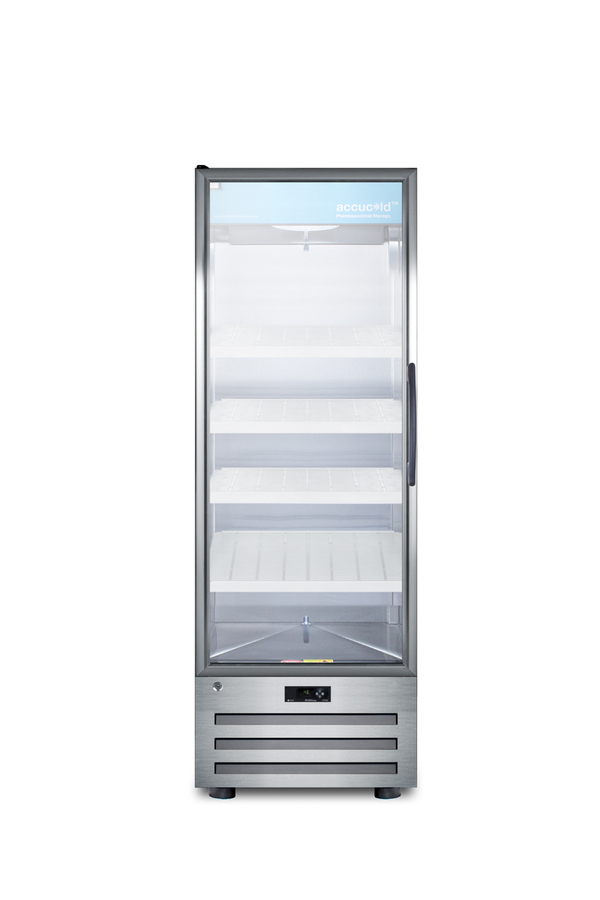

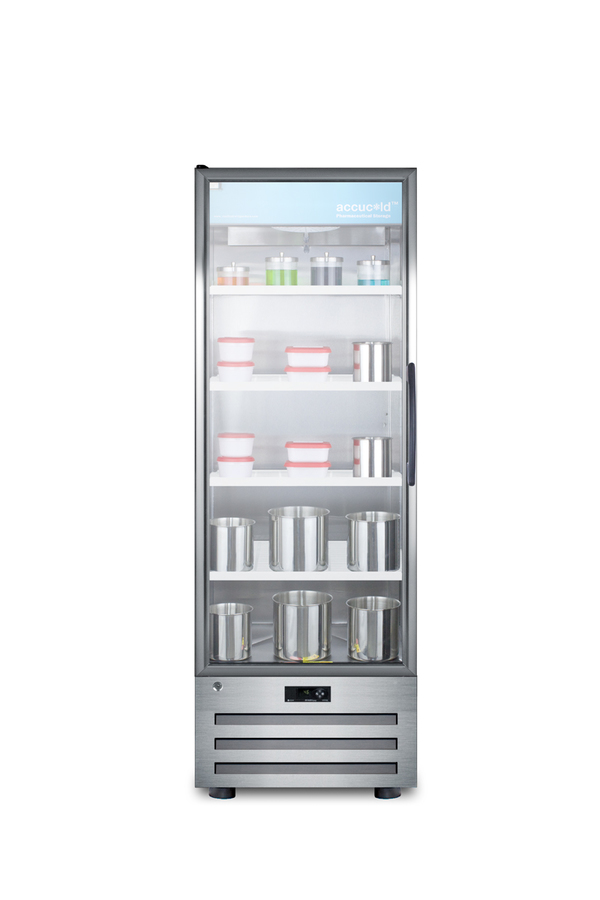

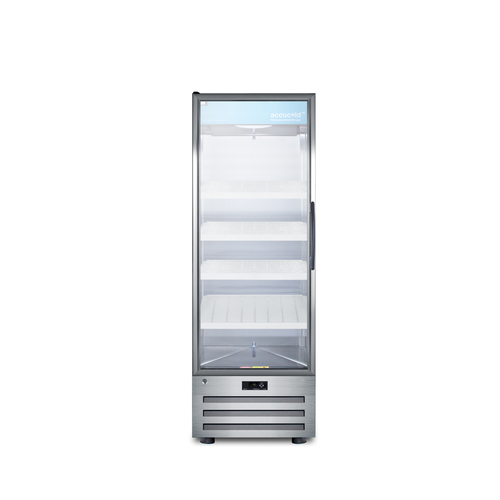

Made in North America, the ACR1415LH offers 14 cu.ft. of interior storage inside a conveniently sized footprint that's less than 25" wide and deep. Adjustable cantilevered shelving lets you accommodate a variety of sizes to maximize the interior space. The shelves are constructed from heavy duty recycled molded plastic for lasting durability. Fan-forced cooling ensures cold air is evenly distributed throughout the stainless steel interior. This model uses automatic defrost operation for easy user maintenance, with audible high/low temperature alarms to warn if the unit goes out of range. Designed for optimum pharmaceutical storage, the temperature range is 2ºC to 8ºC.

The ACR1415LH comes with a stainless steel cabinet with a self-closing  door, an ideal time-saving feature for busy staffs that helps to ensure items aren’t accidentally exposed to room temperature. A factory-installed front lock helps to secure items, with an easy grip handle designed to last. LED lighting in the door panel  offers an efficient presentation, while the tempered glass offers a heat-safe view. A hidden light switch is conveniently located towards the top of the unit, letting staff turn the lights off when needed. This unit features a high efficiency compressor and rear condenser.

NOTE: This unit has a left hand door swing and is not field reversible. For a right hand version, see the ACR1415RH.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
ACR1415LH.pdf
Download
TECHNICAL DRAWING (.dwg)
ACR1415LH_PHARMA._REF.__A-C_2018_..dwg
Download
ASSEMBLY DRAWING
ADR1415LH_ASS_Y.pdf
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
