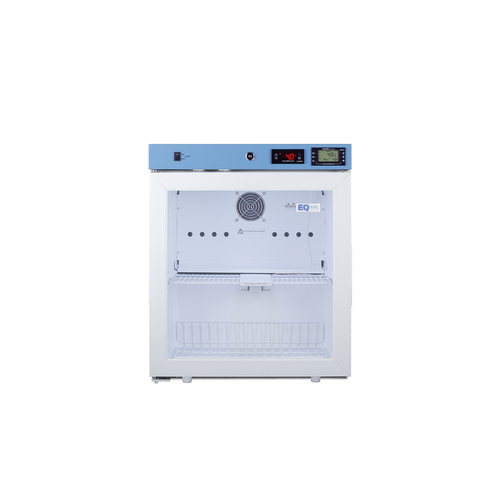

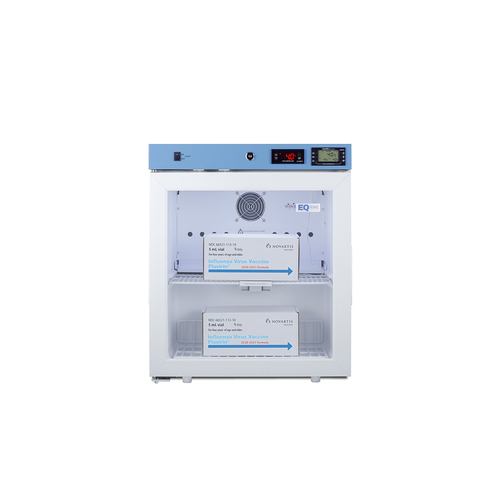

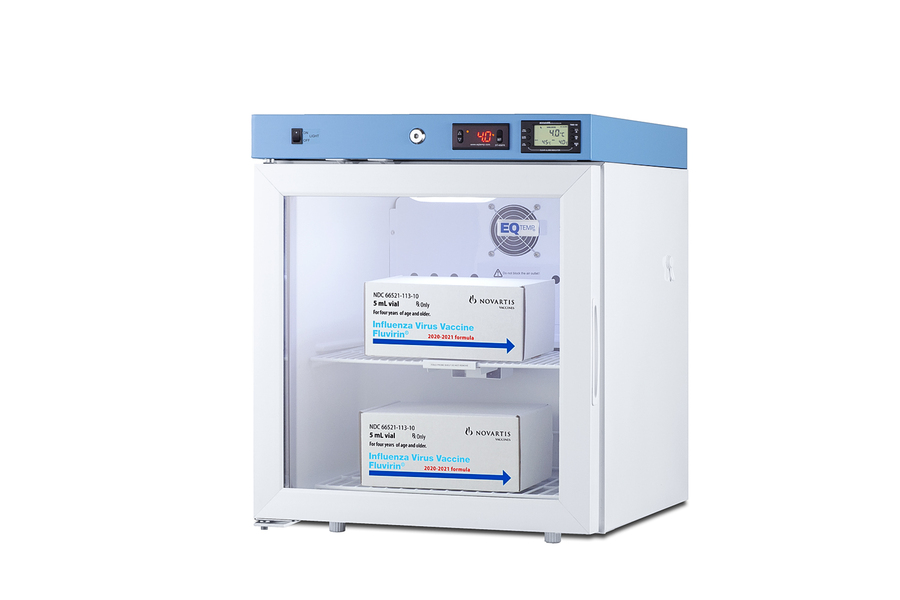

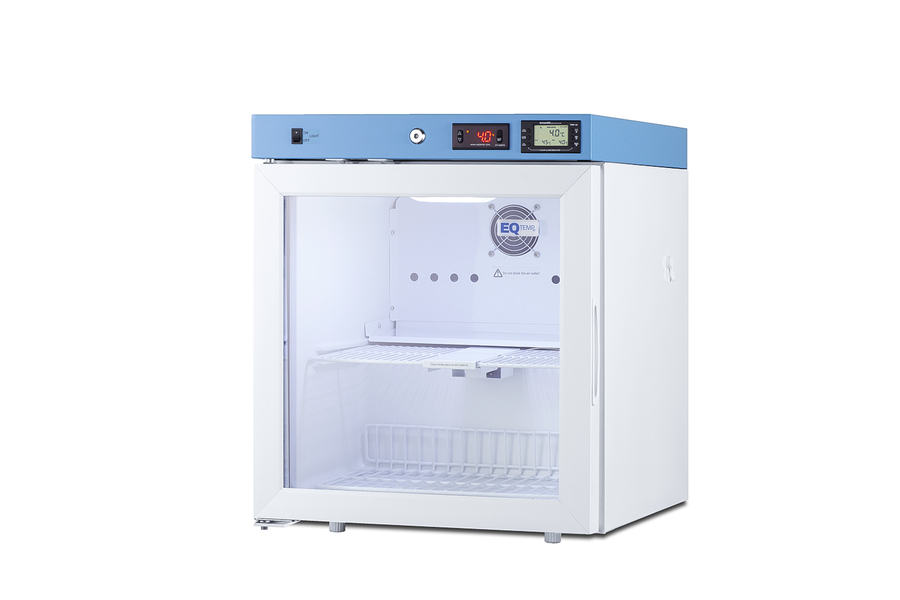

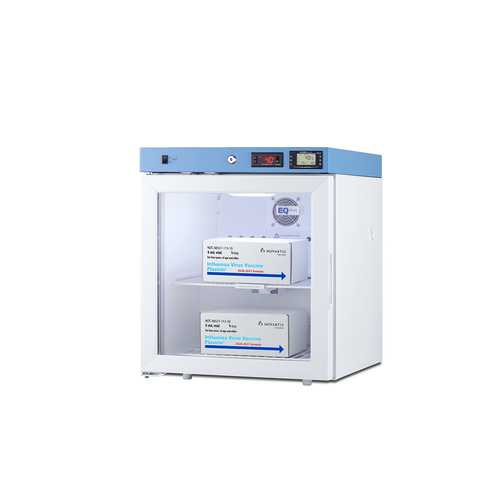

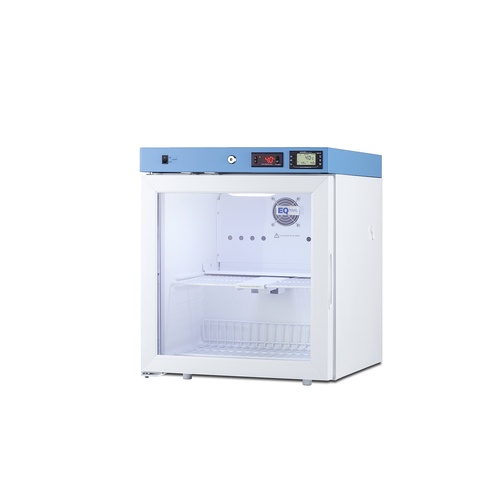

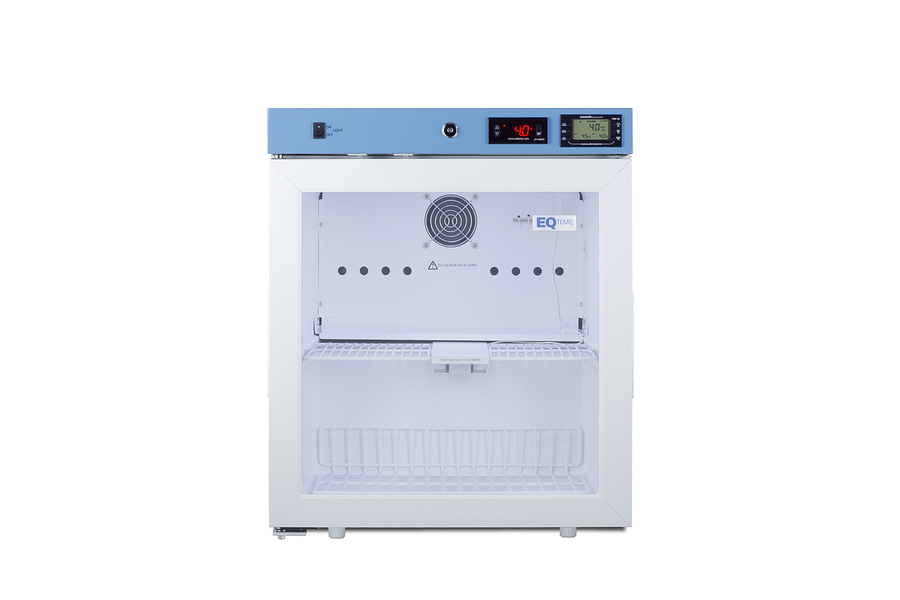

19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard

SKU: ACR22GNSF456LHD

Designed for convenient, reliable storage in healthcare facilities and certified to NSF/ANSI 456

Estimated Time to Ship:

2 to 3 days

How to Buy

23.13" H x 18.88" W x 21.0" D
(59cm H x 48cm W x 53cm D)

Overview
Nominal Height	24.0" (61 cm)
Height of Cabinet	23.13" (59 cm)
Nominal Width	19.0" (48 cm)
Width	18.88" (48 cm)
Width with Door Open	19.13" (49 cm)
Nominal Depth	21.0" (53 cm)
Depth	21.0" (53 cm)
Depth with door at 90°	38.38" (97 cm)
Capacity	1.94 cu.ft. (55 L)
Defrost Type	Automatic
Door	Glass
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S to NSF 456
Amps	0.9
Voltage/Frequency	115 V AC/60 Hz
Weight	52.9 lbs. (24 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101107745
Refrigerator Features
Door Swing	LHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.85oz.
High Side PSI	1.45
Low Side PSI	0.85
Level Legs Qty	2
Interior Light	Yes
Temperature Range	2º to 8ºC
Sound Level	37.3 dB
Dimensions
Interior Height	16.25" (41 cm)
Interior Width	15.5" (39 cm)
Interior Depth	14.5" (37 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	15.5" (39 cm)
Compressor Step Depth	5.5" (14 cm)

Exterior

RHD - Right hand door swing

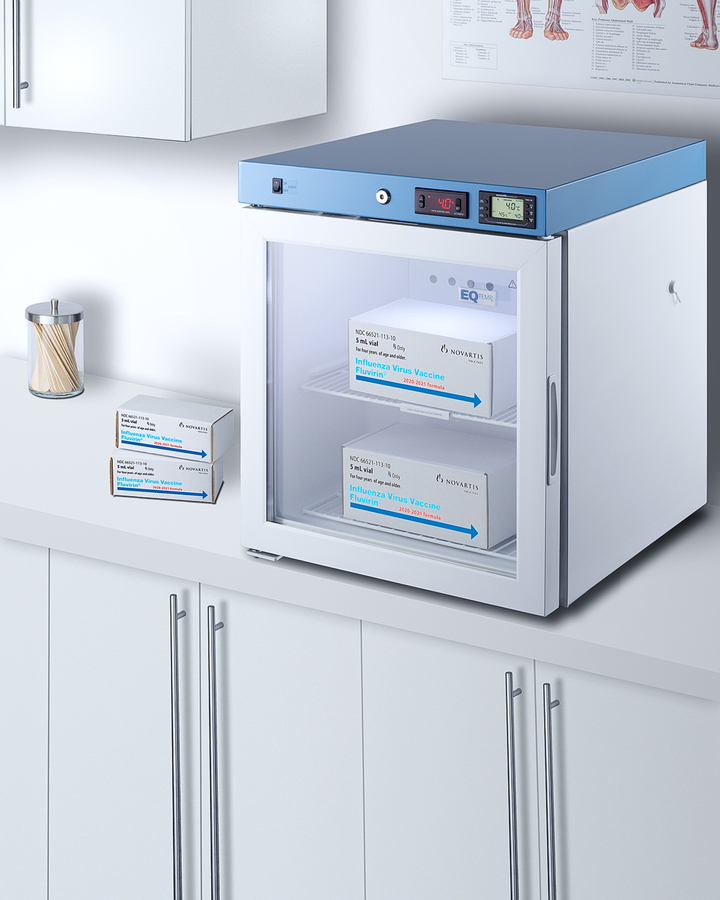

EQTemp Medical Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

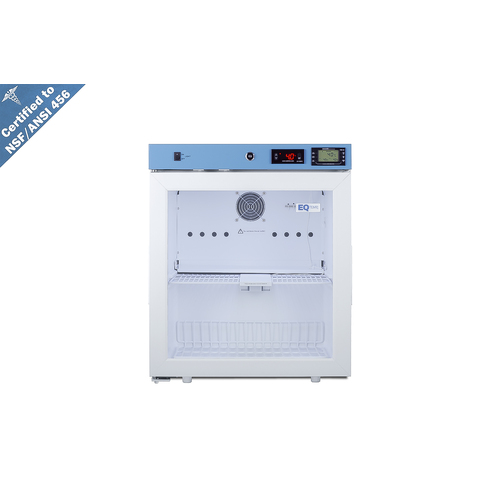

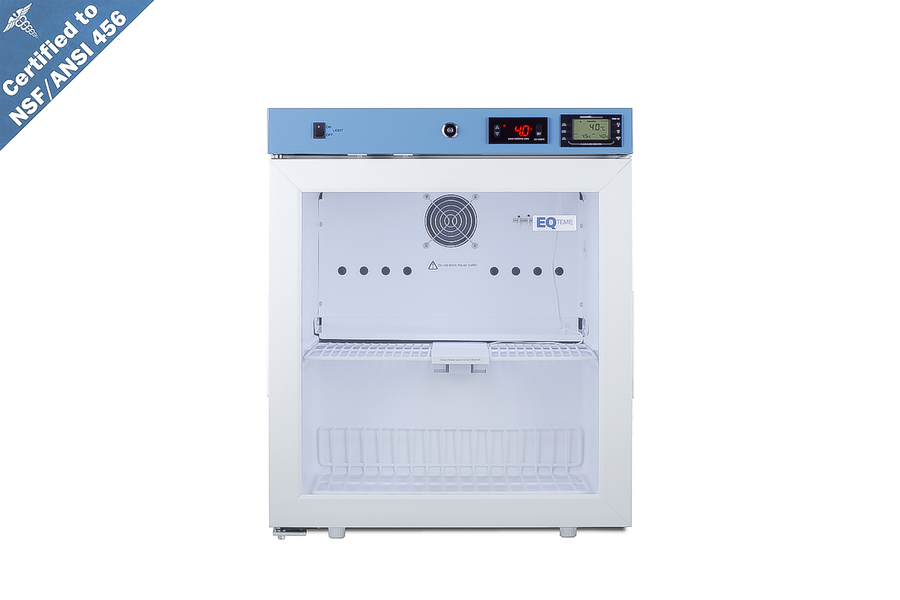

Certified to NSF/ANSI 456 Vaccine Storage Standard

Tested to comply with the latest standards

Certificate of calibration included

The temperature monitoring device (TMD) is calibrated to NIST standards in our ISO/IEC 17025:2017 certified calibration laboratory and ships with a 2-year certificate of calibration for your records

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

Compact size

Full 1.94 cu.ft. capacity inside conveniently slim footprint

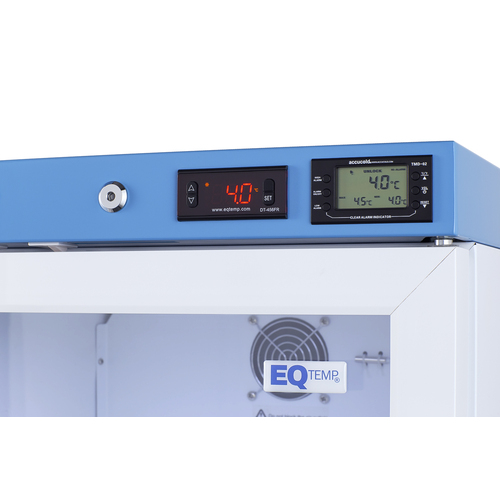

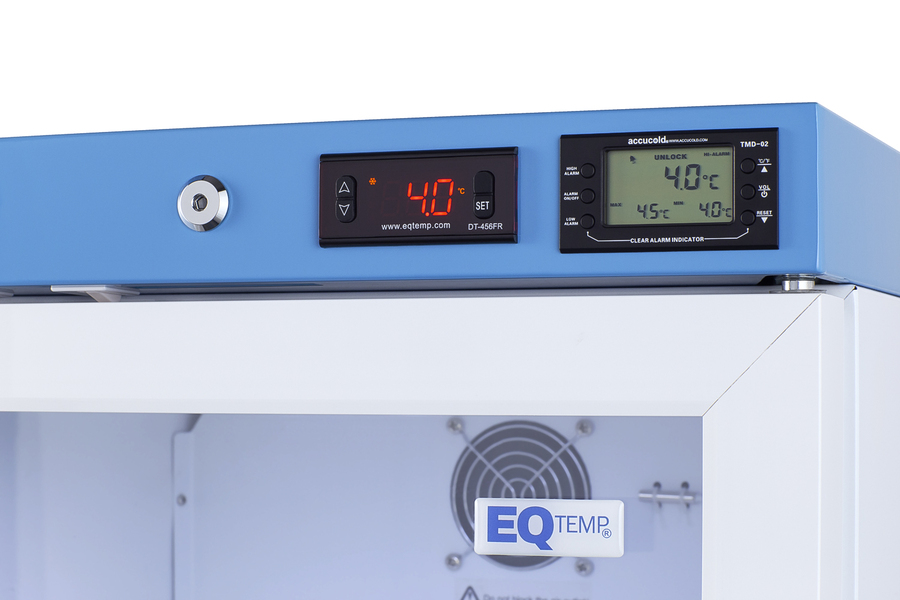

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

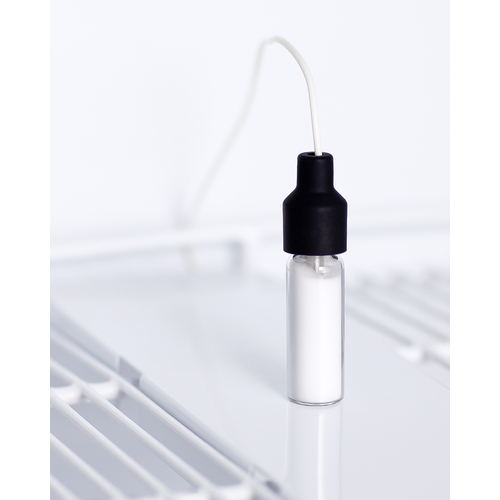

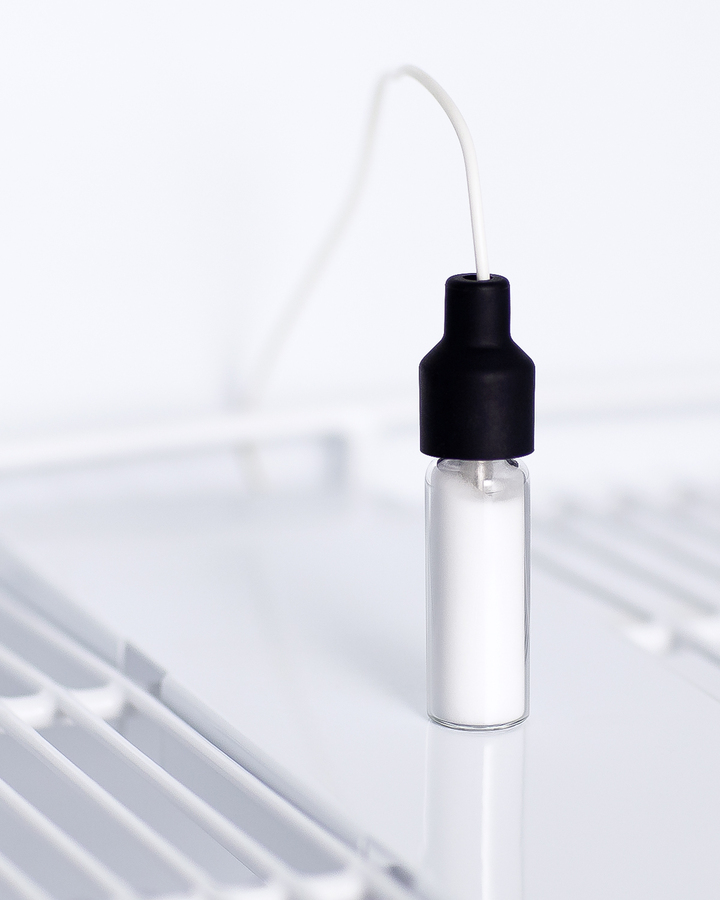

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

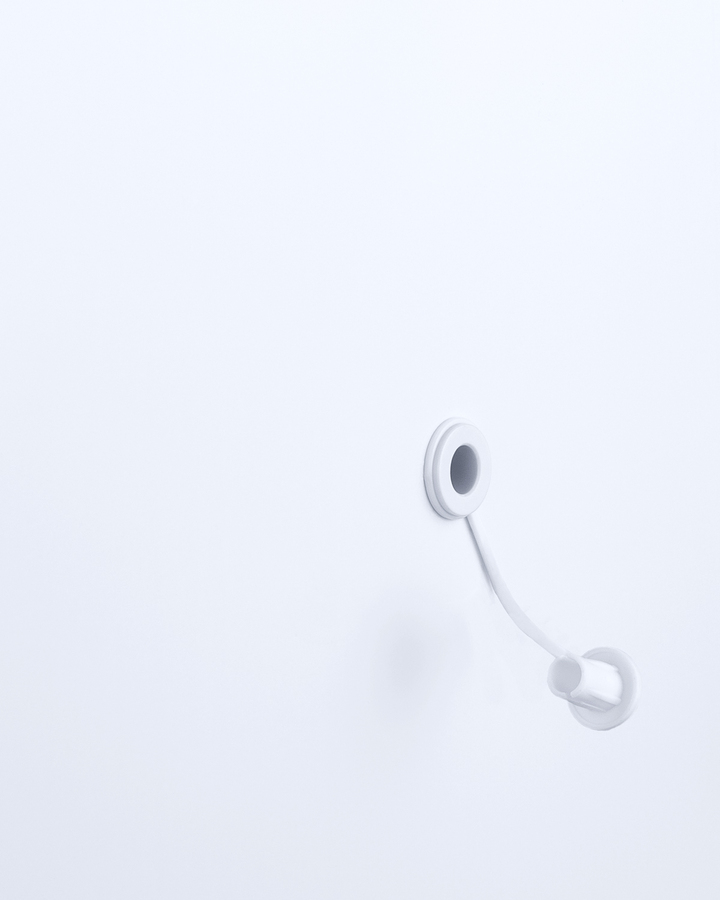

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

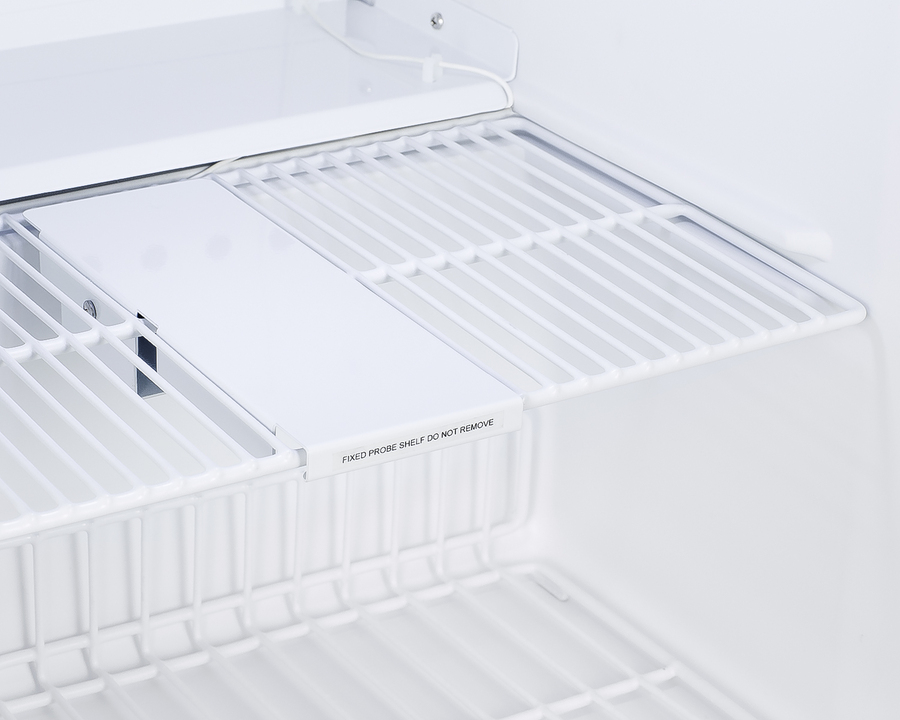

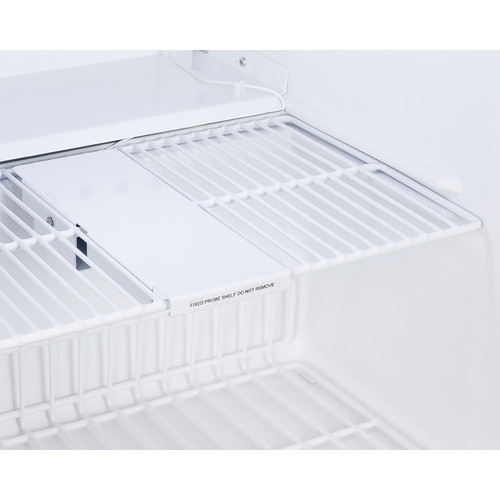

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

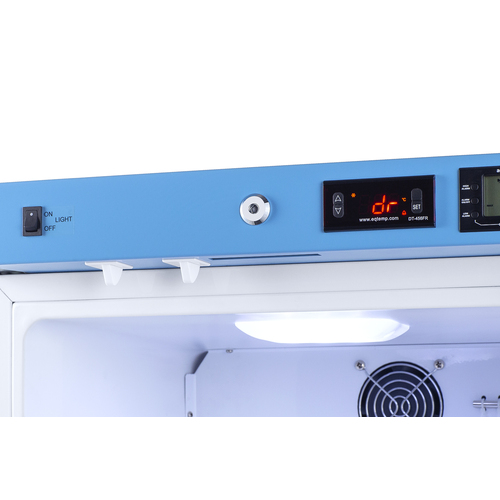

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

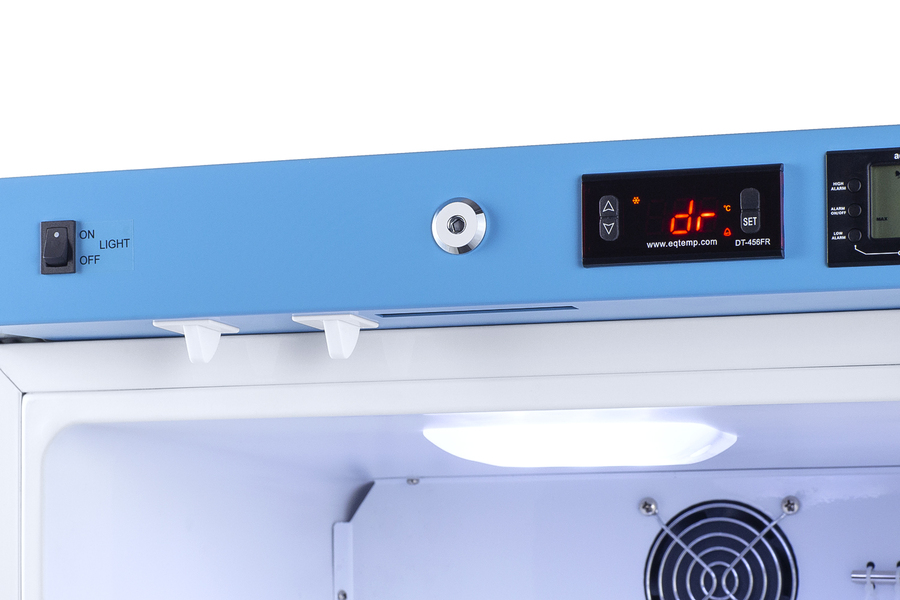

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

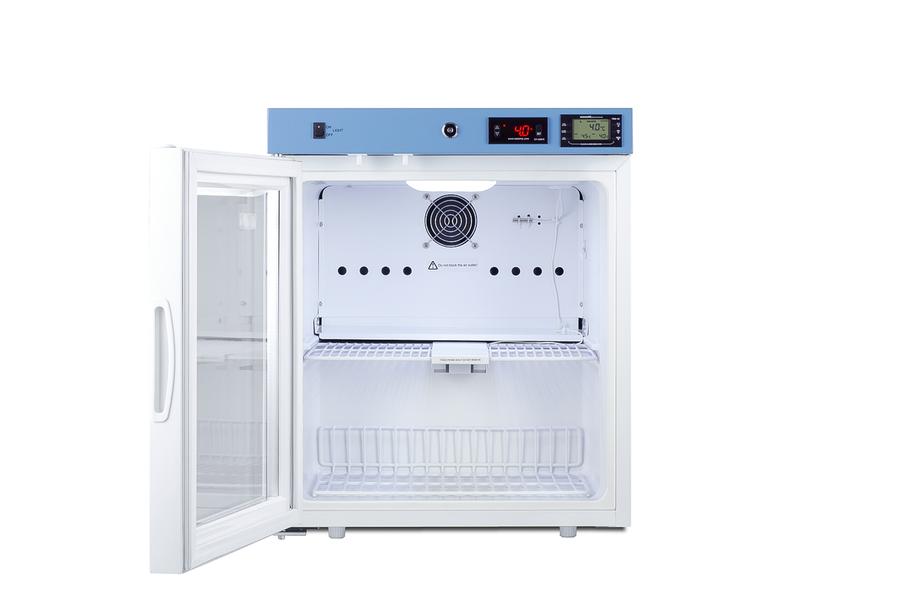

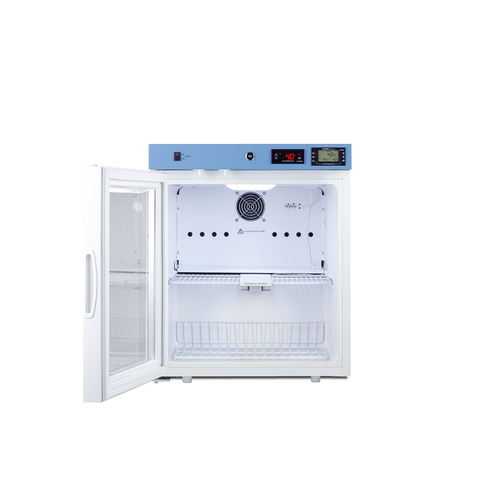

Left hand door swing

For this unit with a standard right hand door swing, see model ACR22GNSF456

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

EQTemp introduces a new series of NSF/ANSI 456 certified refrigeration designed to store a variety of materials in healthcare facilities.

Model ACR22GNSF456LHD is a compact 1.58 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

The ACR22GNSF456LHD includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings. This unit ships with a left-hand door swing (for a right-hand version, see model ACR22GNSF456).

EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection.

Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
ACR22GNSF456LHD.pdf

TECHNICAL DRAWING (.dwg)
ACR22G.dwg

ASSEMBLY DRAWING
ACR22G-Assembly.pdf

REVIT MODEL
QF_Summit_ACR22G_19_Wide_Healthcare_Regrigerator.rfa

USE & CARE
EQTemp_Vaccine_Refrigerator_User_Manual_6-12-23.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
