19" Wide Medical Refrigerator

SKU: ACR31W

Designed for convenient, affordable, and reliable cold storage in healthcare facilities

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

35.5" H x 18.88" W x 21.0" D
(90cm H x 48cm W x 53cm D)

Overview
Nominal Height	36.0" (91 cm)
Height of Cabinet	35.5" (90 cm)
Nominal Width	19.0" (48 cm)
Width	18.88" (48 cm)
Width with Door Open	19.25" (49 cm)
Nominal Depth	21.0" (53 cm)
Depth	21.0" (53 cm)
Depth with door at 90°	38.25" (97 cm)
Capacity	3.17 cu.ft. (90 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.9
Voltage/Frequency	115 V AC/60 Hz
Weight	57.3 lbs. (26 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082936
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible

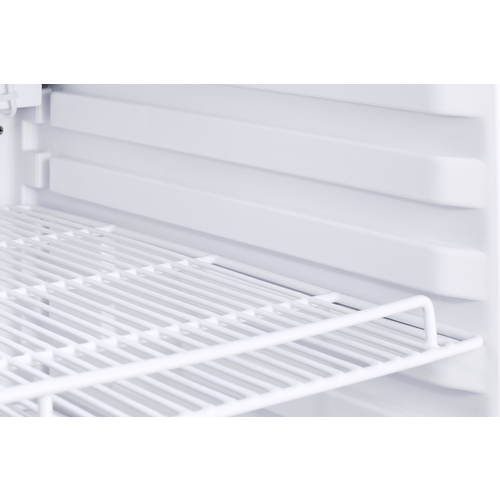

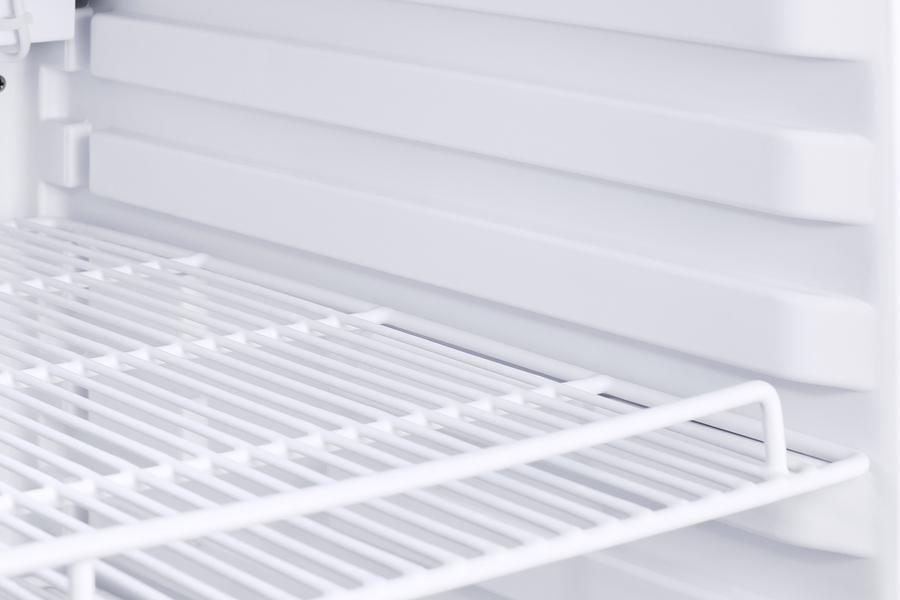

Shelf Type	Wire
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.27oz.
High Side PSI	1.45
Low Side PSI	0.8
Level Legs Qty	2
Interior Light	Yes
Temperature Range	2º to 8ºC
Sound Level	40.2 dB
Dimensions
Interior Height	28.75" (73 cm)
Interior Width	14.5" (37 cm)
Interior Depth	14.0" (36 cm)
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	14.5" (37 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

LHD - Left hand door swing

CAS1

EQTemp Medical Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

Slim 19" width

Full 3.17 cu.ft. capacity inside conveniently slim footprint

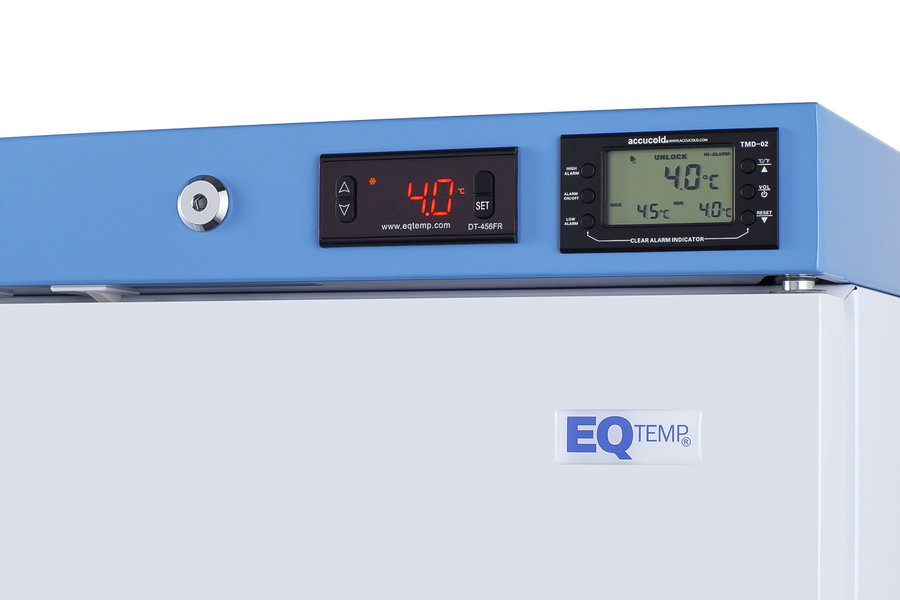

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

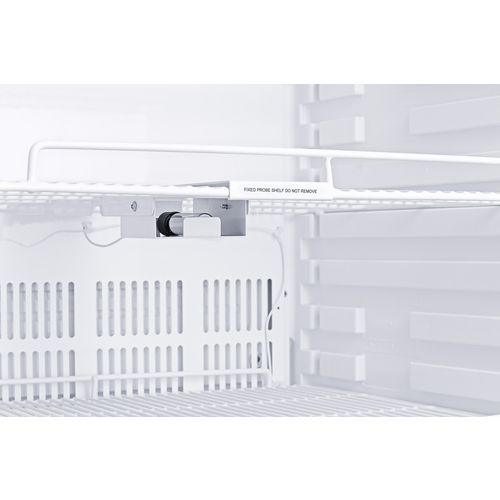

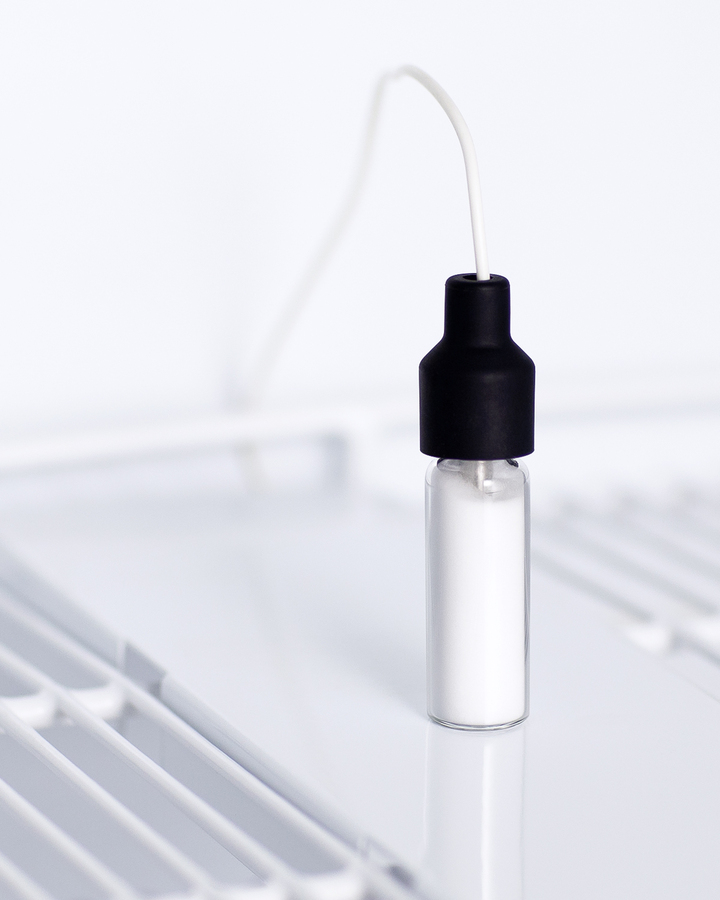

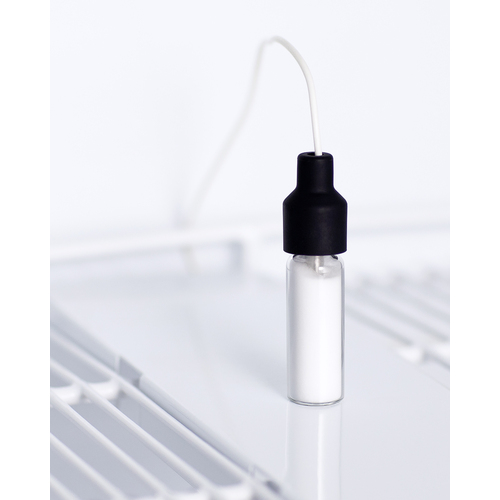

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

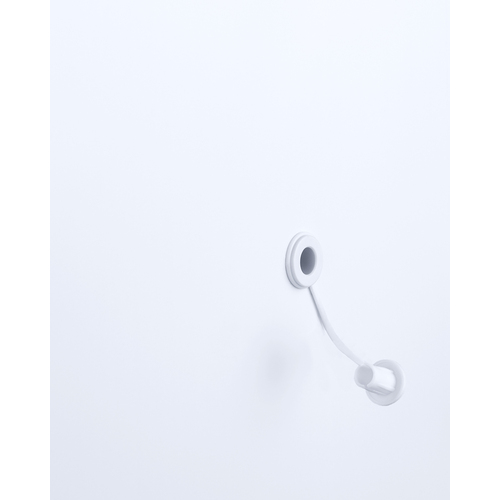

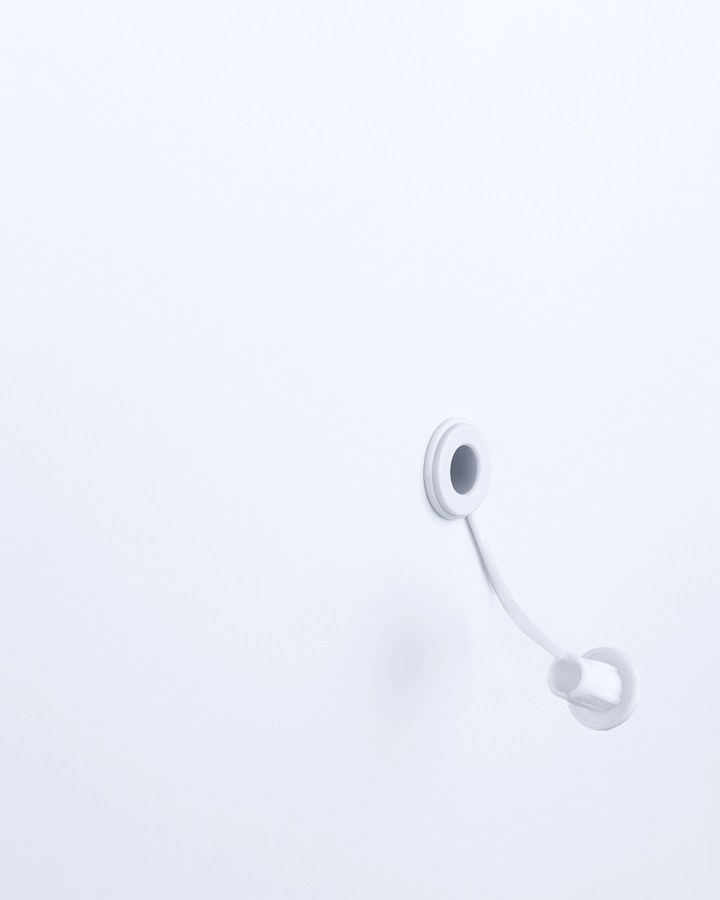

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

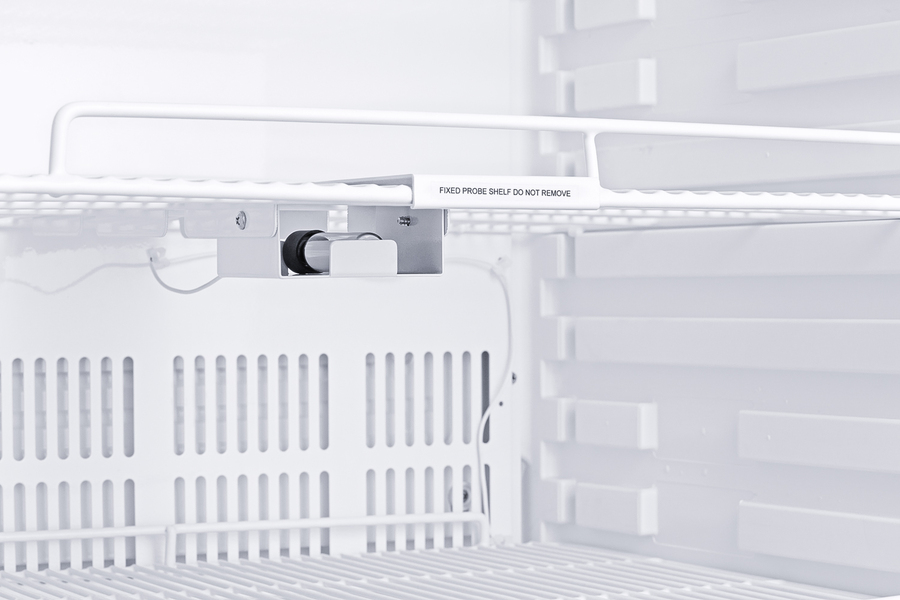

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

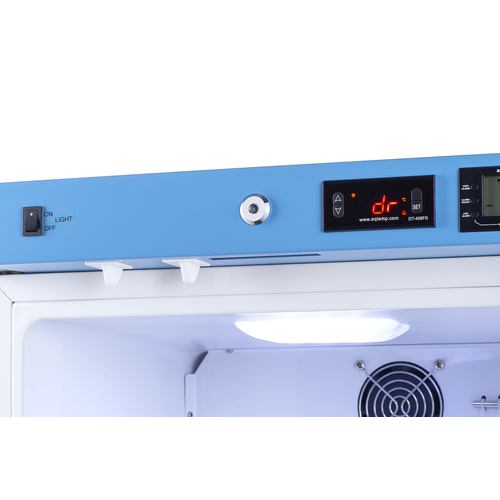

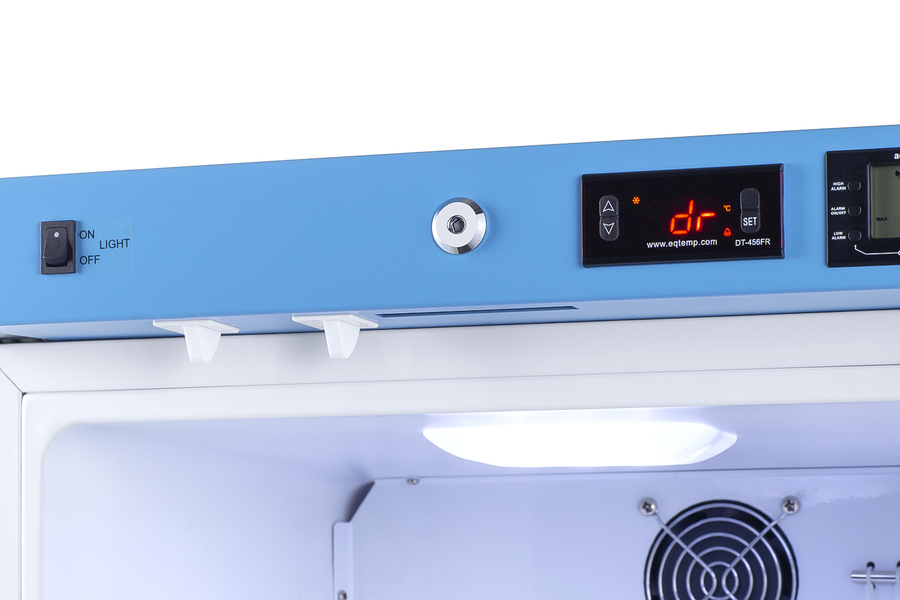

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

EQTemp introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

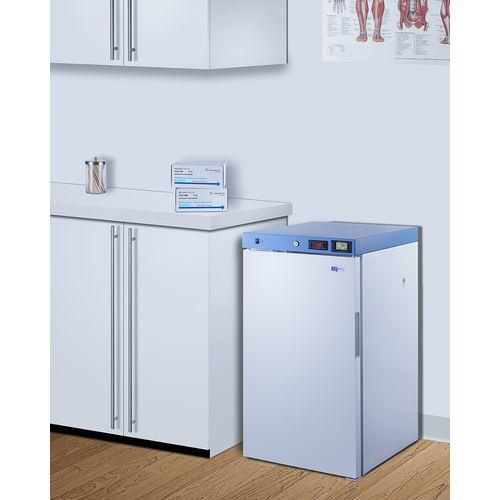

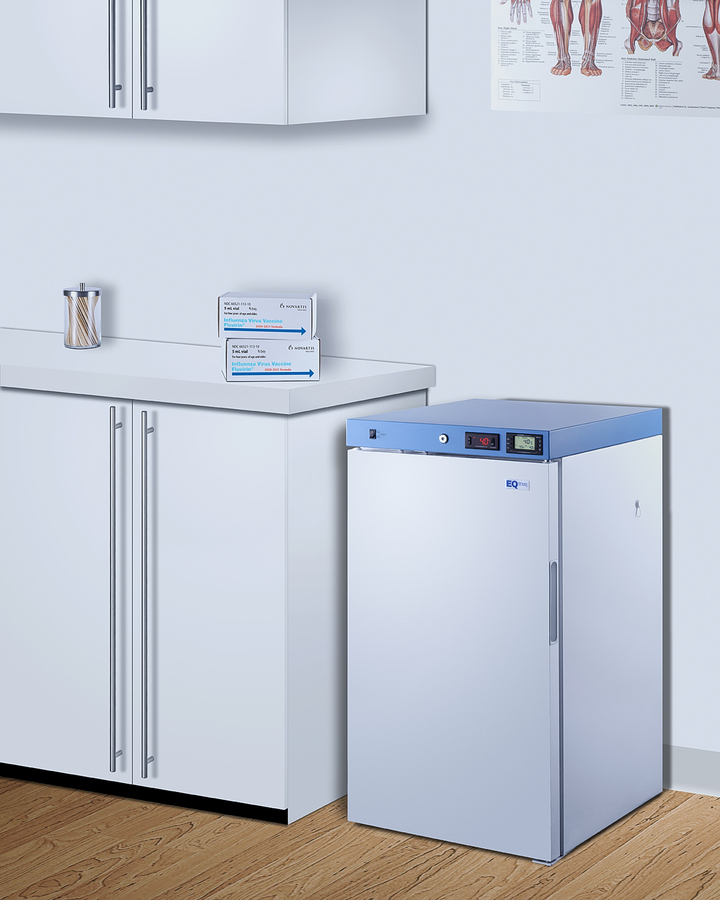

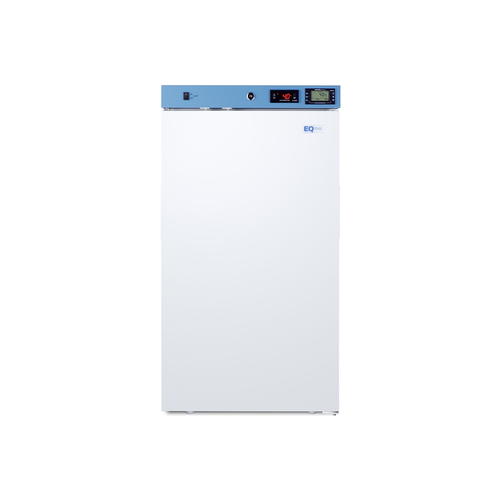

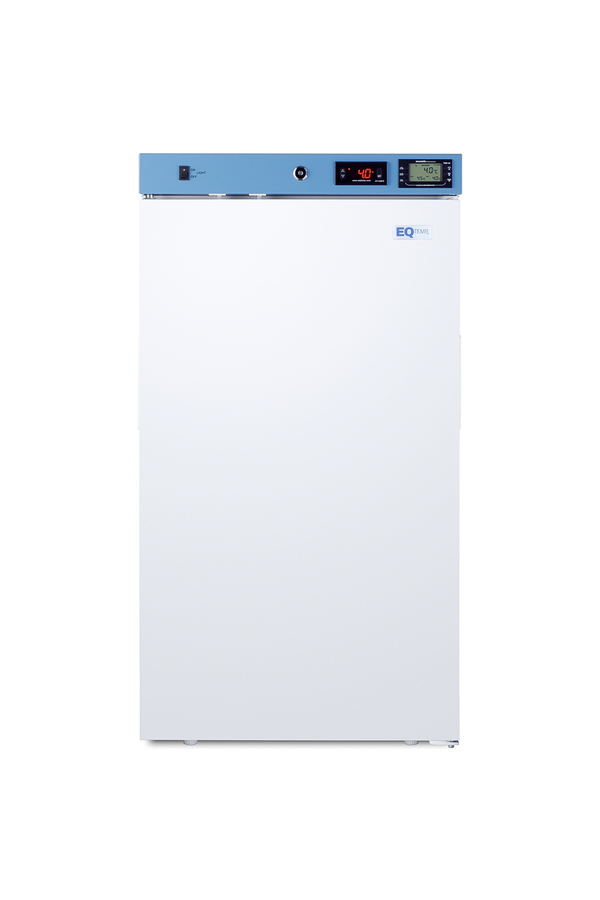

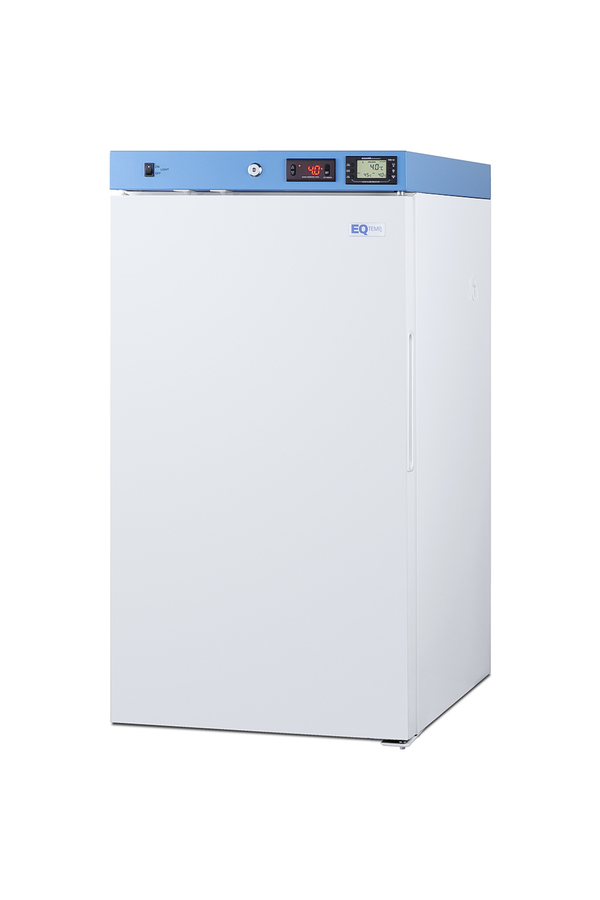

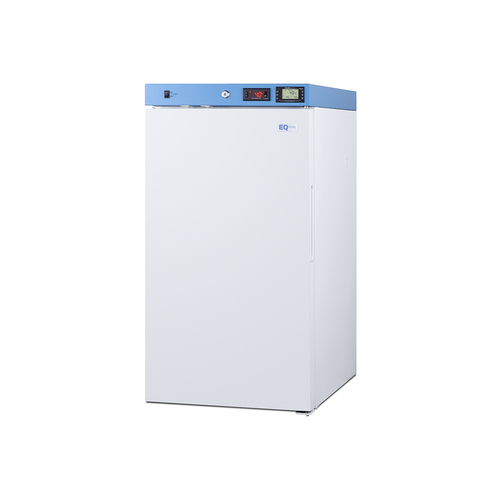

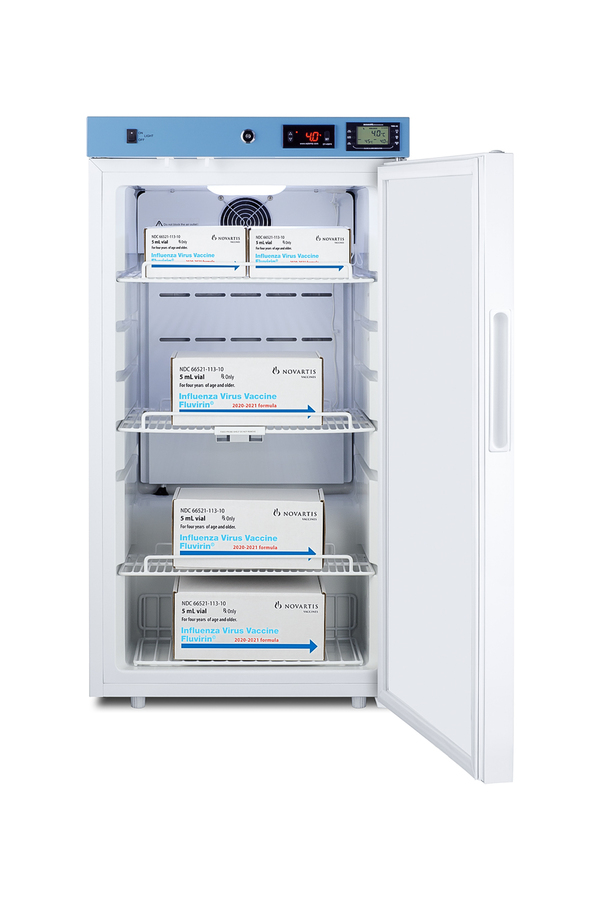

Model ACR31W is an upright 3.17 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

The ACR31W includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

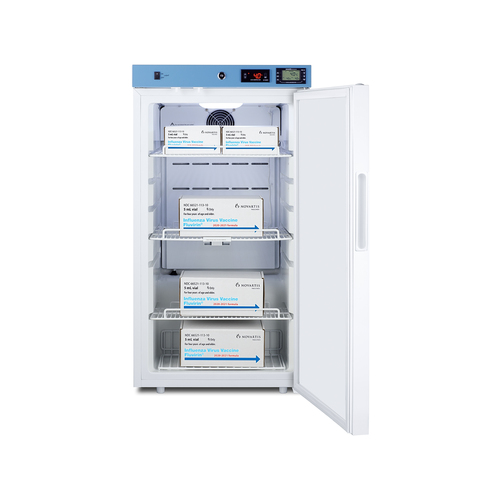

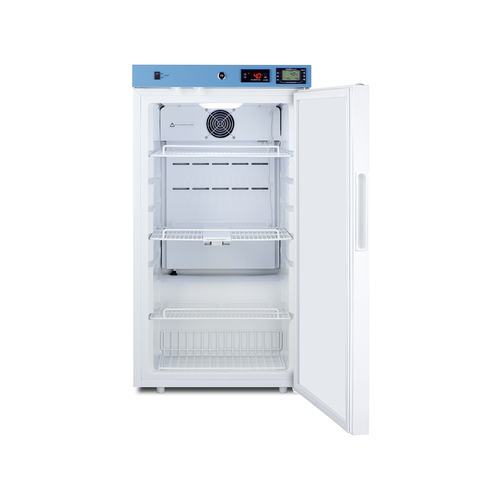

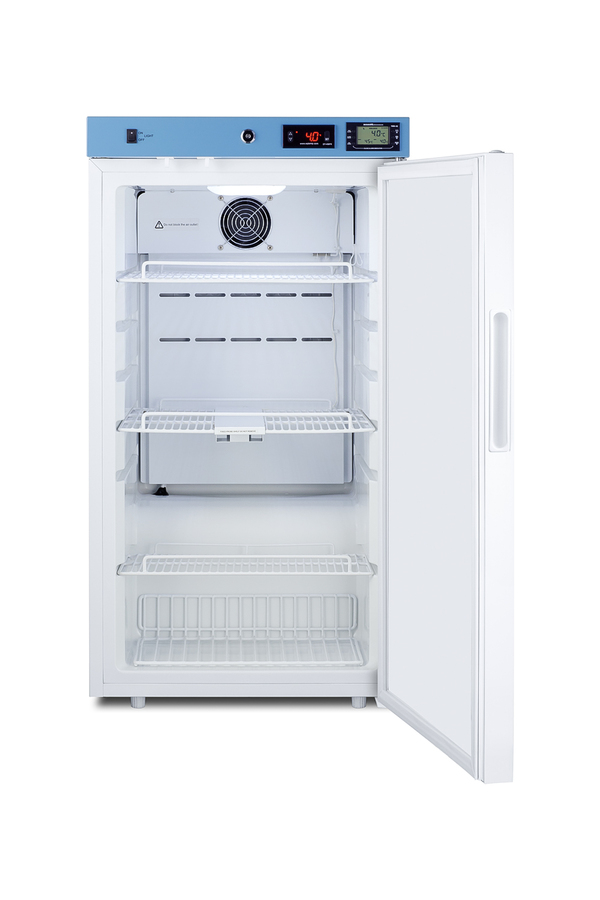

The interior includes one wire shelf in the center to hold the temperature probe, as well as two additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.

This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR31WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.

Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
ACR31W.pdf

TECHNICAL DRAWING (.dwg)
ACR31W.dwg

ASSEMBLY DRAWING
ACR31W-Assembly__2_.pdf

REVIT MODEL
QF_Summit_ACR31W_19_Wide_Healthcare_Refrigerator.rfa

USE & CARE
EQTemp_Vaccine_Refrigerator_User_Manual_6-12-23.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
