20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant

SKU: ACR45LCALSTO
Includes a NIST calibrated external temperature and a convenient hands-free door opener for added convenience in healthcare facilities
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
31.5" H x 19.5" W x 24.75" D
(80cm H x 50cm W x 63cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.5" (80 cm)
Nominal Width 20.0" (51 cm)
Width 19.5" (50 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.75" (63 cm)
Depth with Handle 23.63" (60 cm)
Depth with door at 90° 41.0" (104 cm)
Capacity 2.65 cu.ft. (75 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 79.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076119
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2º to 8ºC
Dimensions
Interior Height 21.25" (54 cm)
Interior Width 15.0" (38 cm)
Interior Depth 16.13" (41 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 15.0" (38 cm)
Compressor Step Depth 4.75" (12 cm)

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Vaccine refrigerator

Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage

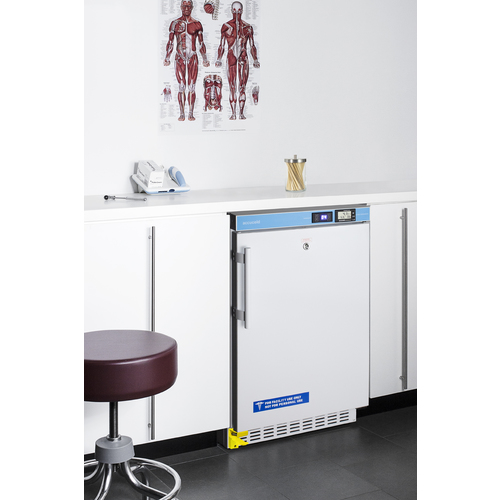

ADA compliant

Sized just under 32" high to allow installation under lower ADA compliant counters

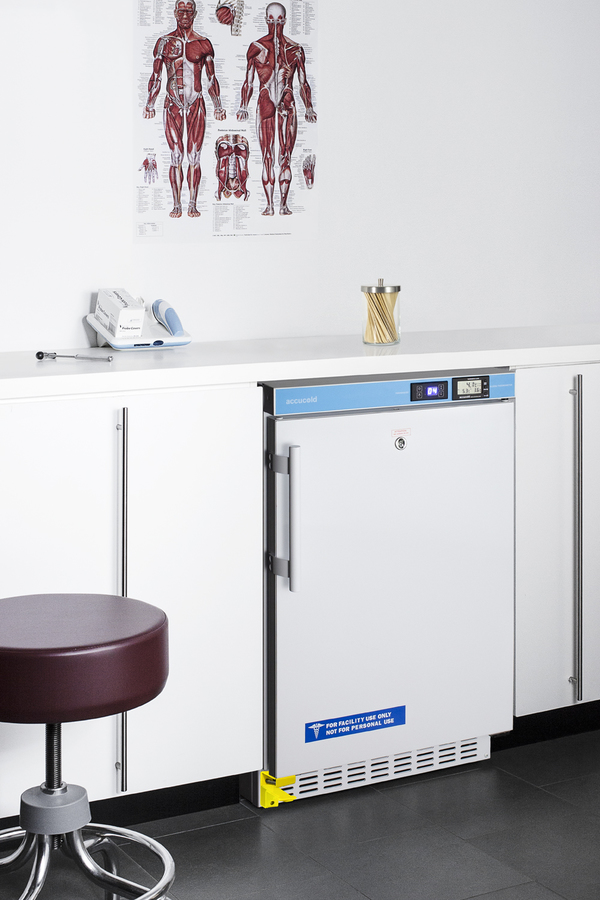

Built-in capable

Front-breathing system allows the unit to be installed under cabinets with minimum clearance

Slim 20" width

Full 2.65 cu.ft. capacity inside conveniently slim footprint

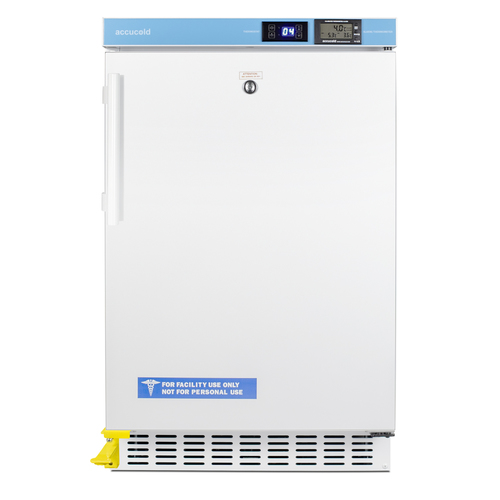

Step-to-open door pedal

Helps lessen germ spread by providing a more sanitary method of opening appliance doors, while allowing efficient access to the unit’s interior for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

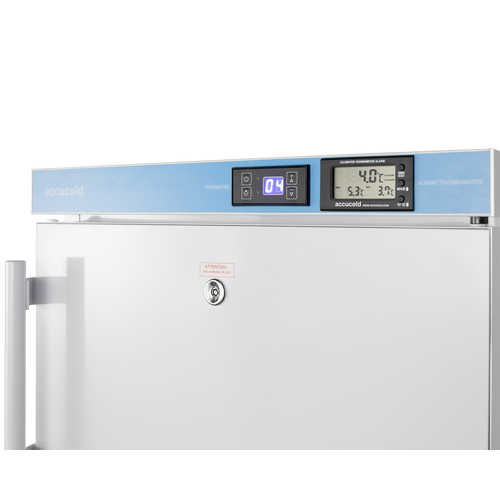

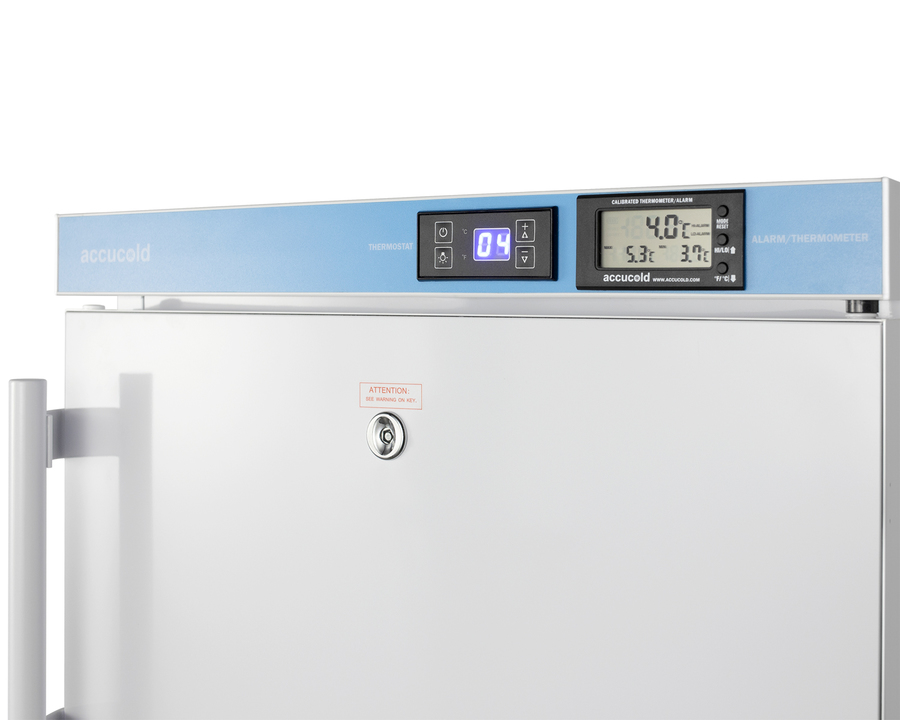

NIST calibrated external temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Certificate of calibration included

Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Frost-free

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Adjustable wire shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Right hand door swing

For this unit with a left hand door swing, add option "LHD"

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

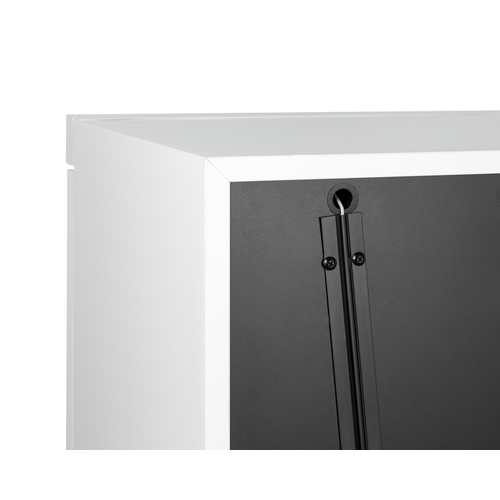

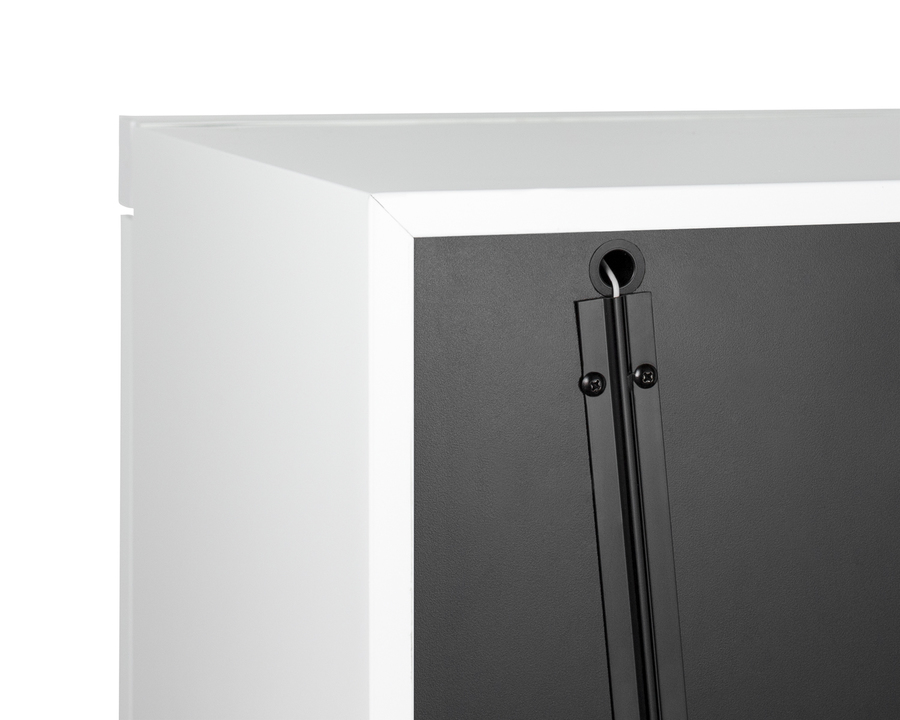

Sealed back

Space-saving convenience with easier cleanability

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Handle included

Side-mounted handle for user convenience (not required to operate the unit)

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

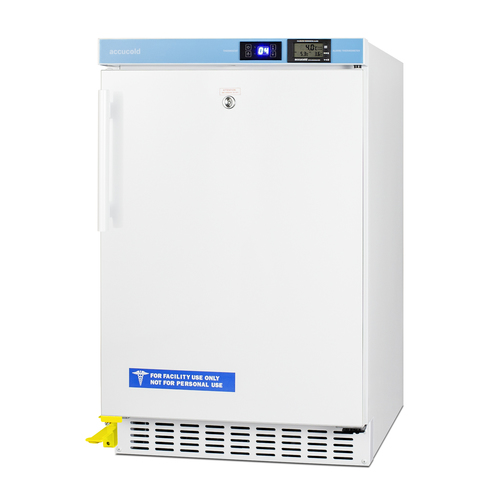

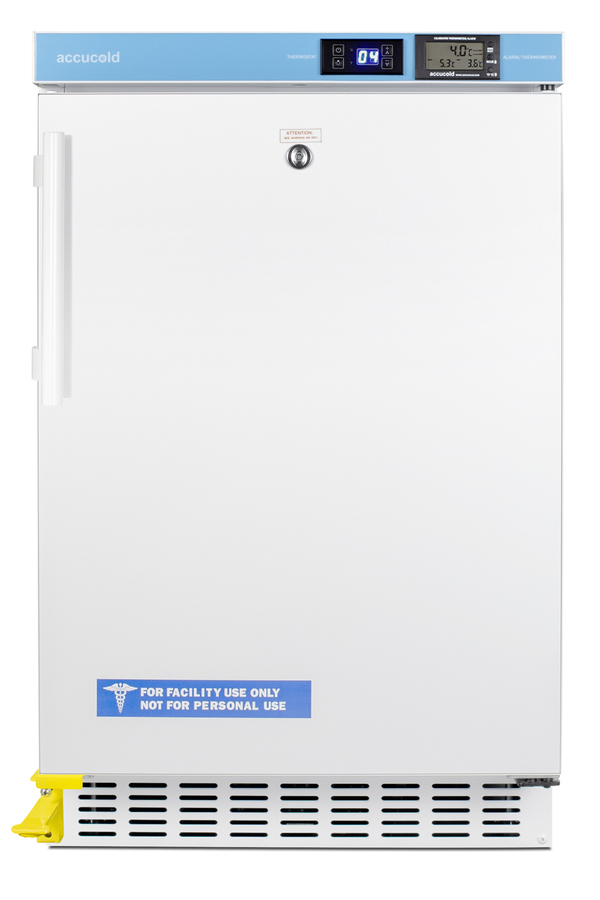

The ACR45LCALSTO is an all-refrigerator is sized at just under 32" high. It features a front-breathing design for built-in installation under lower ADA compliant counters, with a fully finished cabinet that also allows freestanding use. This unit is equipped with our step-to-open door pedal, allowing users to open the door without touching the handle for more hygienic use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

For optimum temperature management, the ACR45LSTO features an external control panel, allowing users to adjust and monitor the temperature without opening the door. A pre-installed NIST certified thermometer is calibrated in our own ISO/IEC 17025:2017 accredited laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC, VFC and VFA). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed and a certificate of calibration for your facility's records.

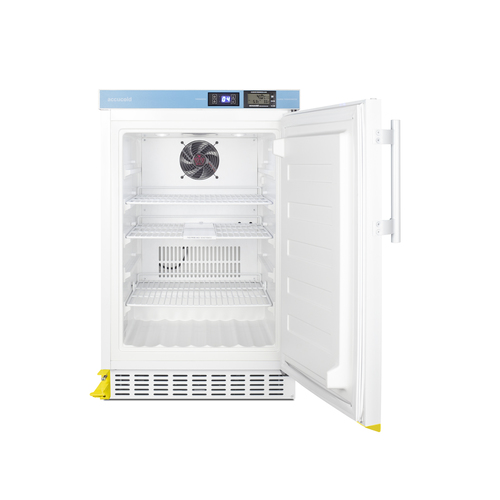

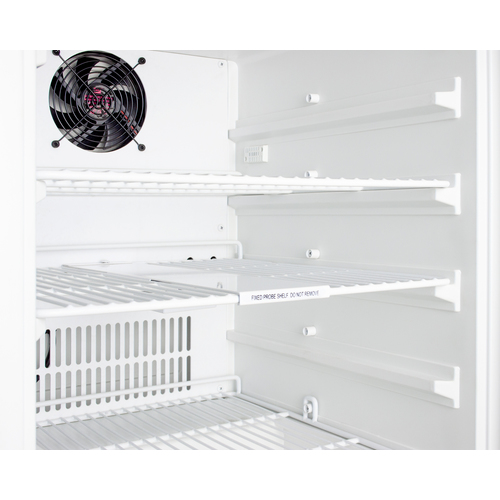

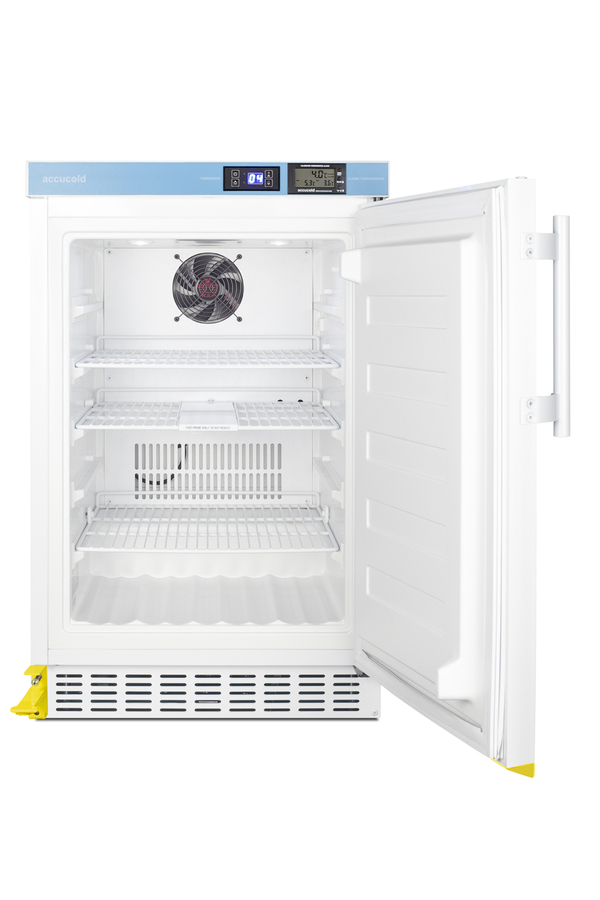

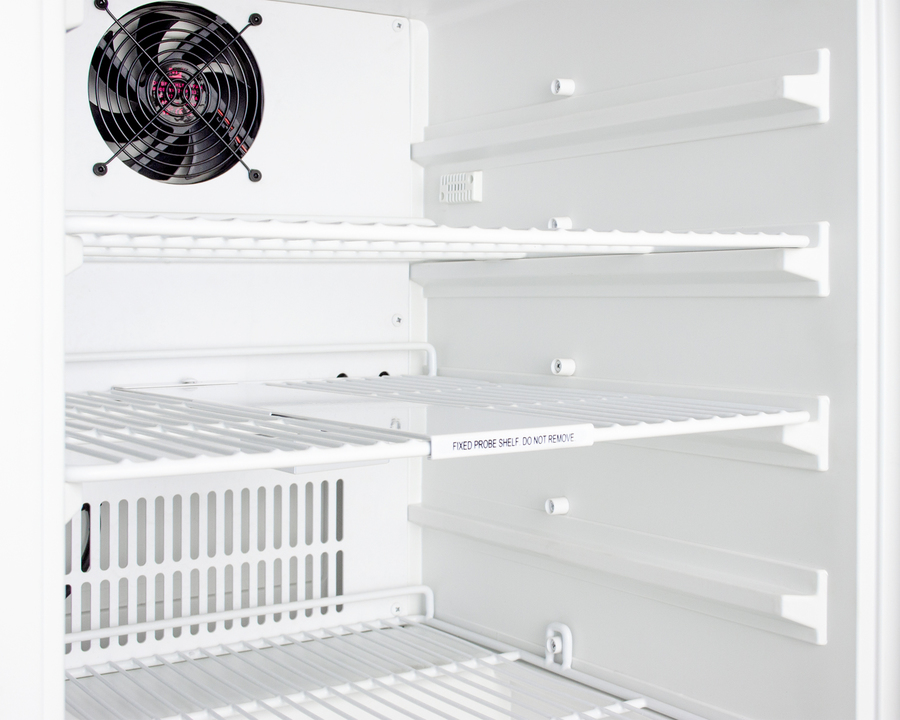

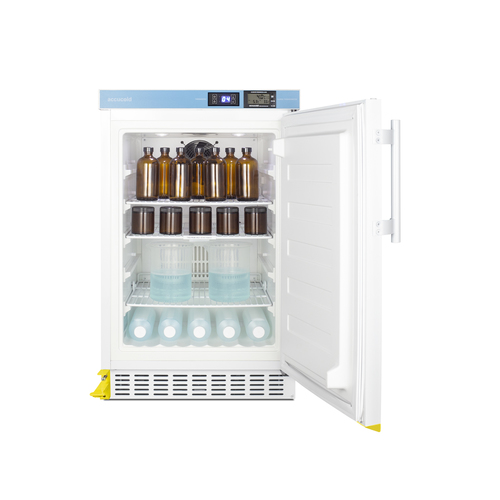

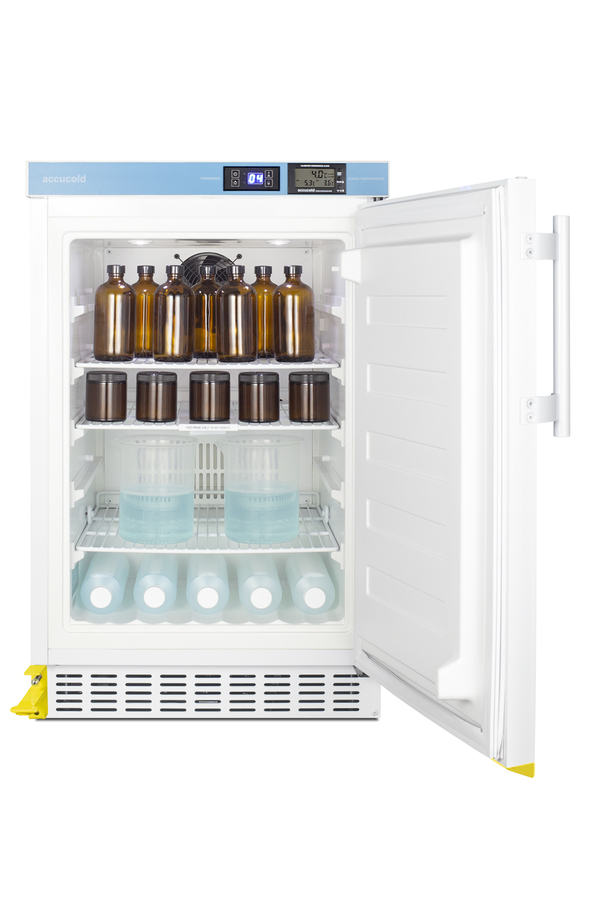

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.

At just under 20" wide, the ACR45LCALSTO is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line.

Note: Accucold's Pharmaceutical Series refrigerators have been tested to operate within 2.5ºC of the temperature set point and are intended for a wide variety of healthcare storage applications, including vaccines, specimens, pharmaceuticals, and other medical, biological, life science, and industrial materials. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For units with a +/-1ºC variation, see Accucold’s Performance Series.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
