24" Wide Built-In Medical Refrigerator

SKU: ACR51WLHD
Designed for convenient, affordable, and reliable cold storage in healthcare facilities
Estimated Time to Ship:

1 to 2 days

34.0" H x 23.5" W x 21.88" D
(86cm H x 60cm W x 56cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Width with Door Open 23.75" (60 cm)
Nominal Depth 22.0" (56 cm)
Depth 21.88" (56 cm)
Depth with door at 90° 43.63" (111 cm)
Capacity 3.88 cu.ft. (110 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 81.6 lbs. (37 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101107554
Refrigerator Features
Door Swing LHD
Reversible Factory Reversible

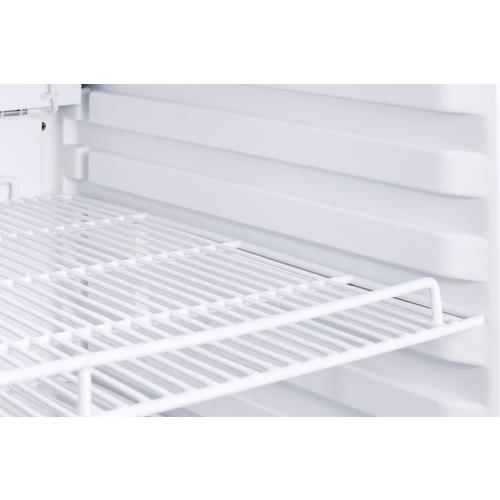

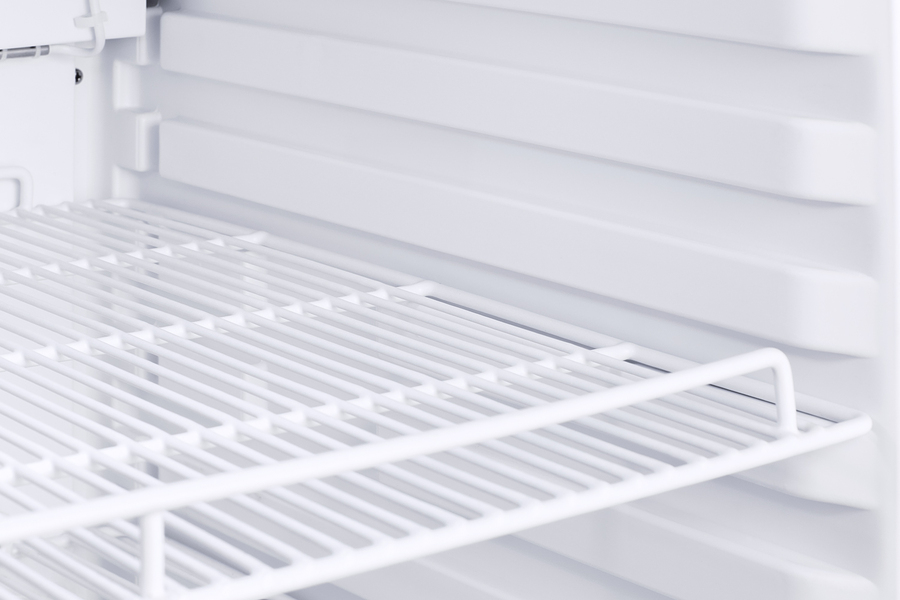

Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 1.45
Low Side PSI 0.8
Level Legs Qty 2
Interior Light Yes
Temperature Range 2º to 8ºC
Sound Level 40.9 dB
Dimensions
Interior Height 25.88" (66 cm)
Interior Width 18.75" (48 cm)
Interior Depth 16.5" (42 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 11.5" (29 cm)

EQTemp Medical Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

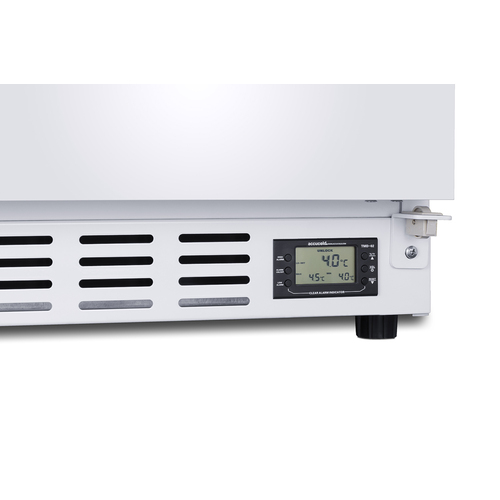

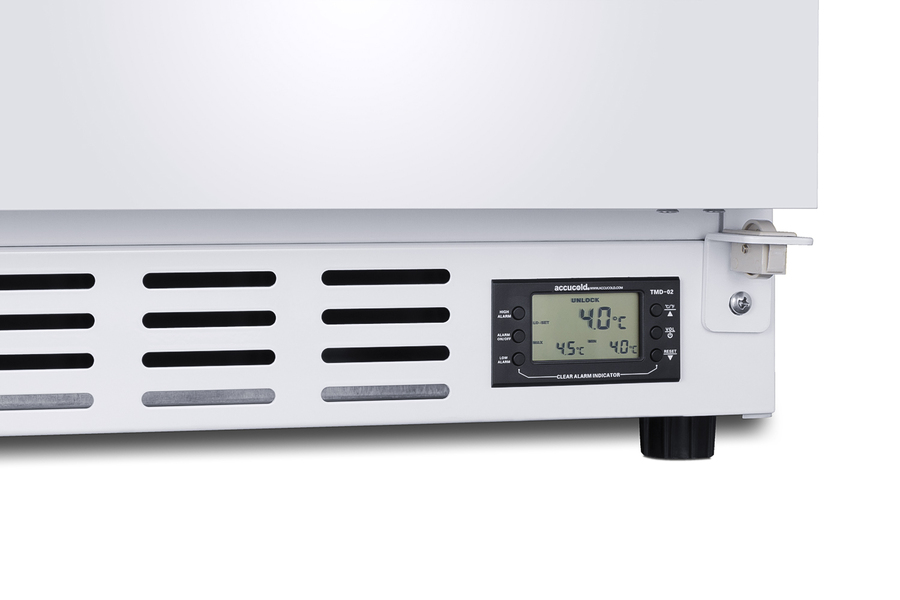

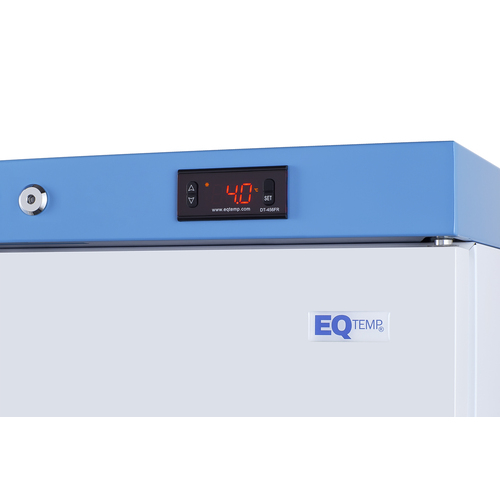

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

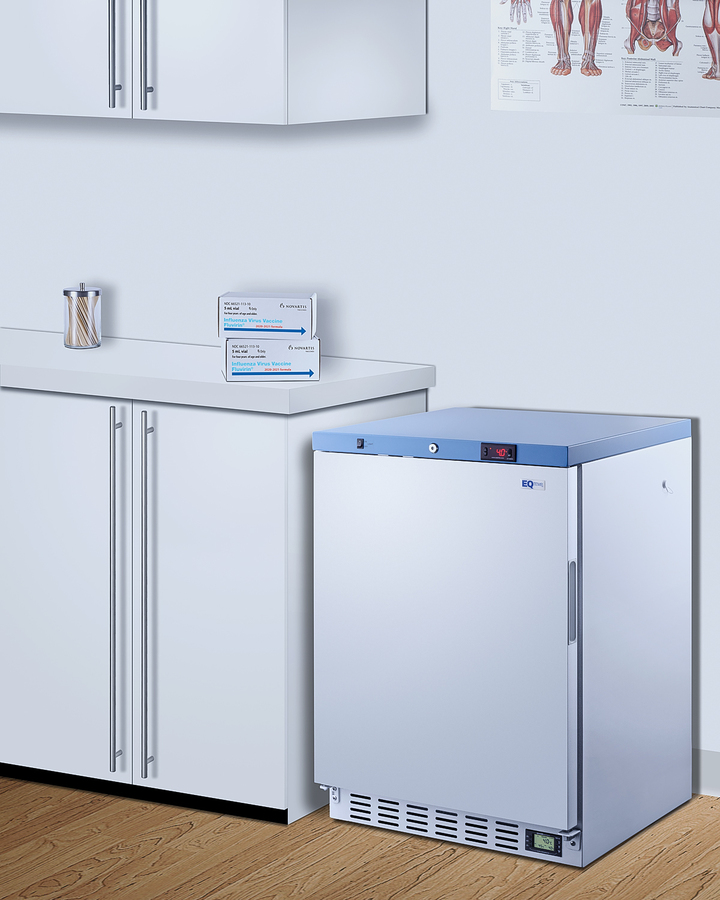

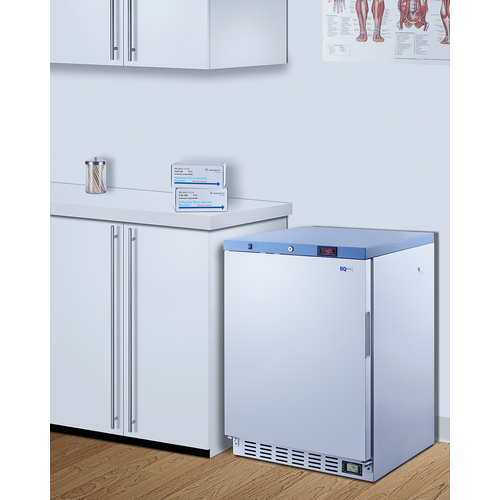

Built-In capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

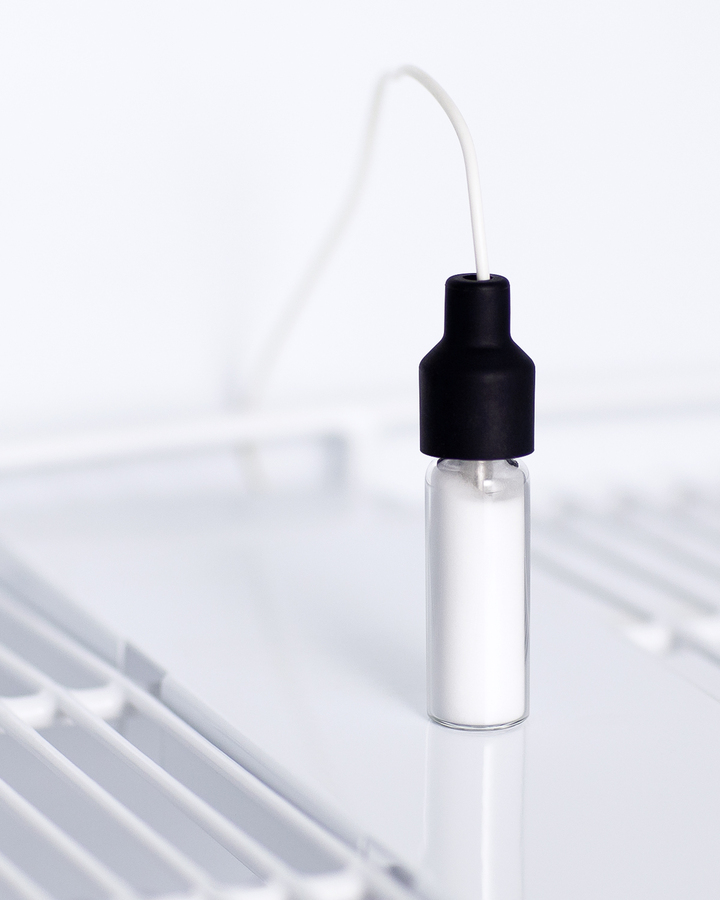

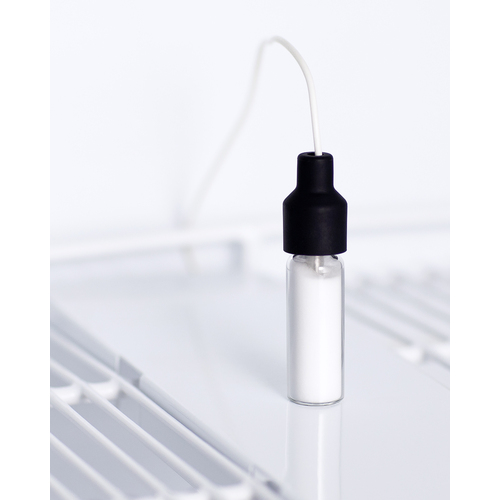

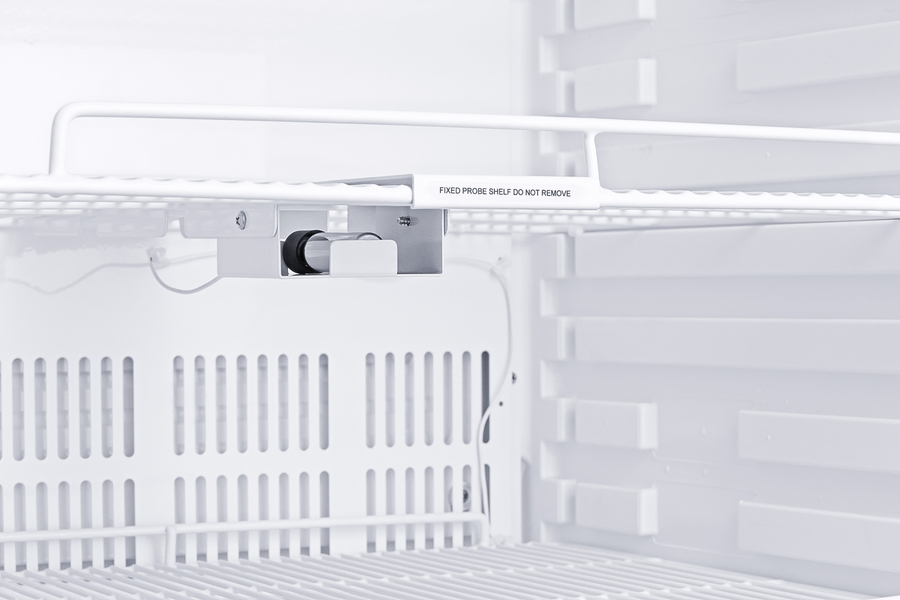

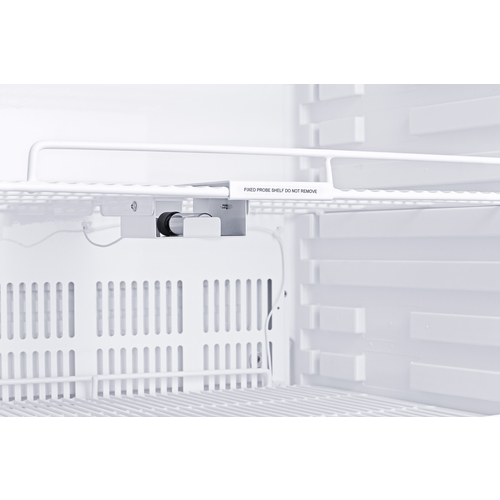

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

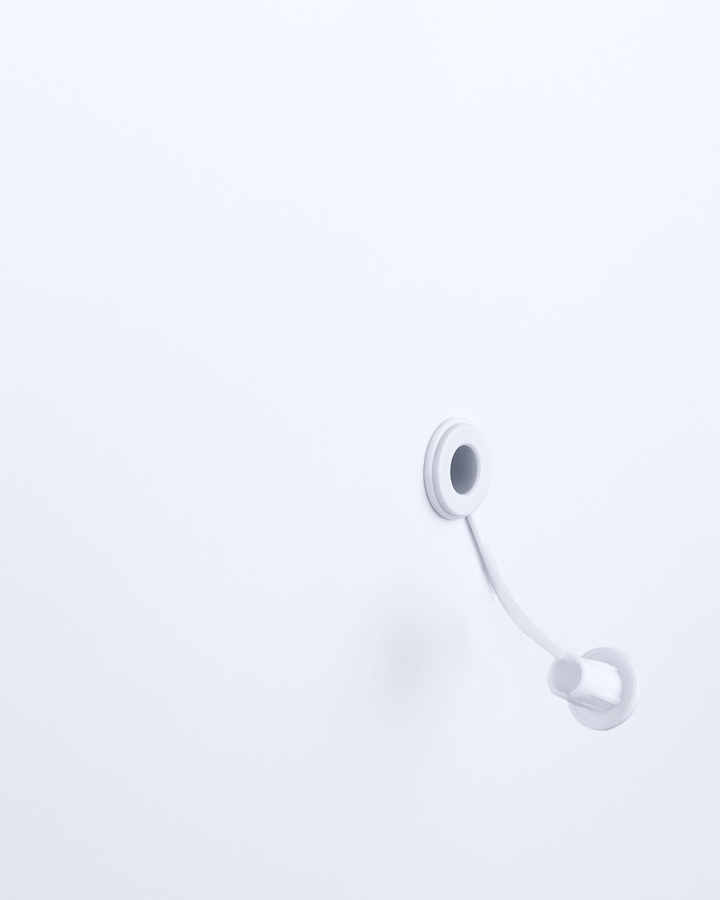

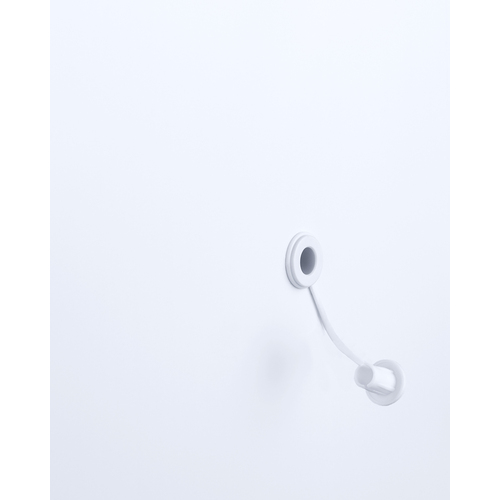

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

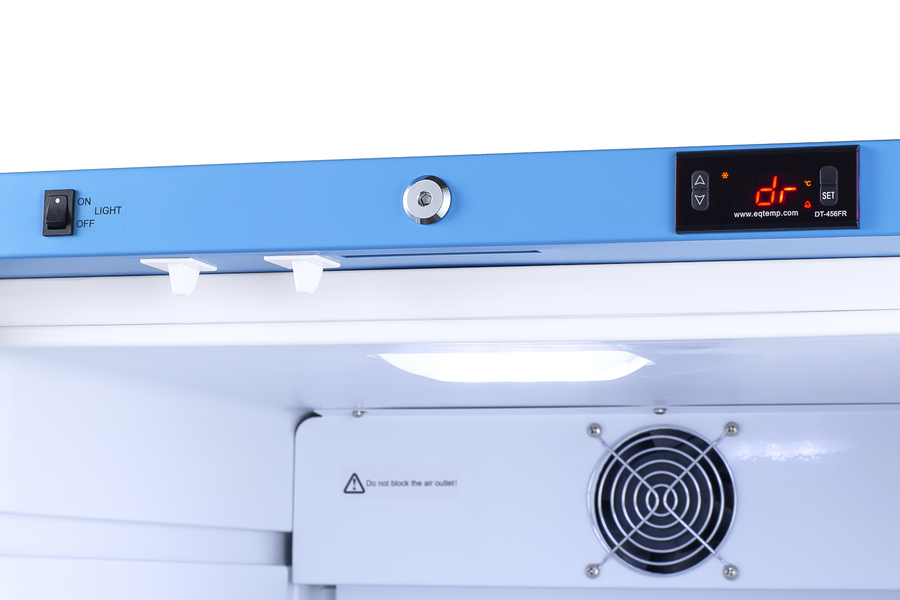

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

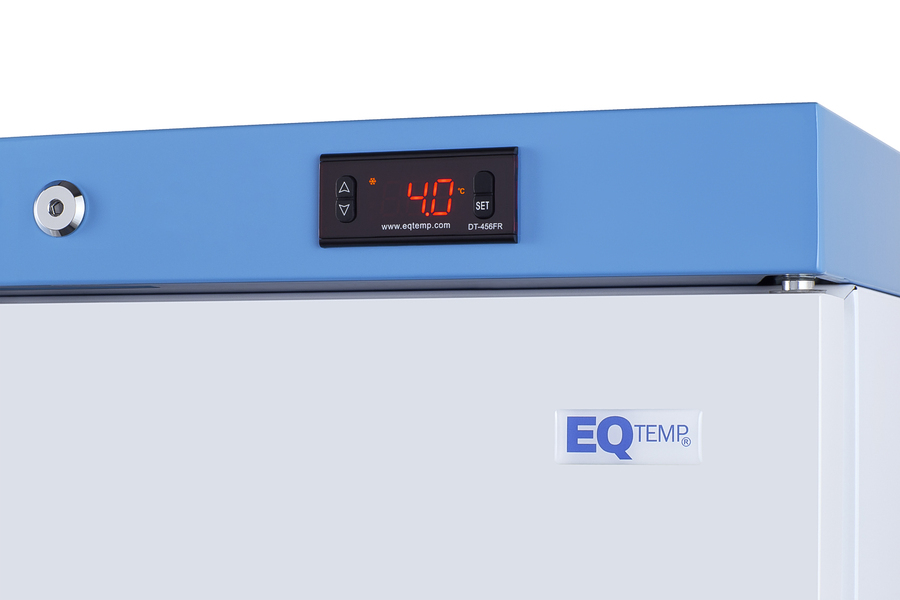

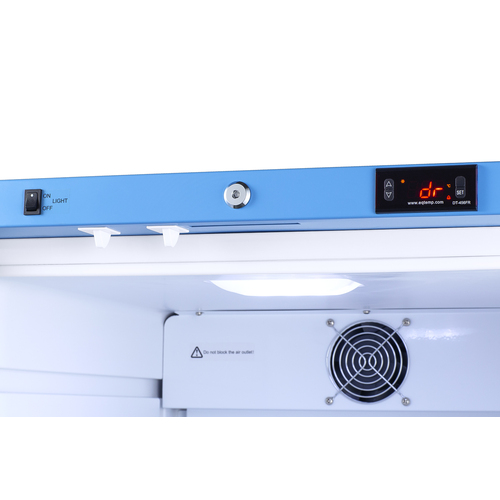

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

Fully finished white cabinet

Allows the unit to be used freestanding

Left hand door swing

For this unit with a standard right hand door swing, see model ACR51W

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

EQTemp introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

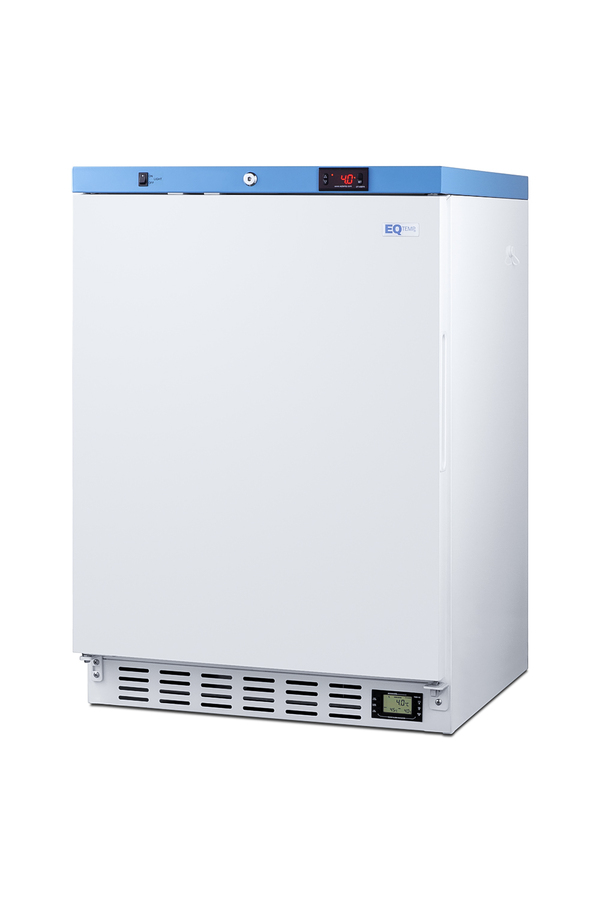

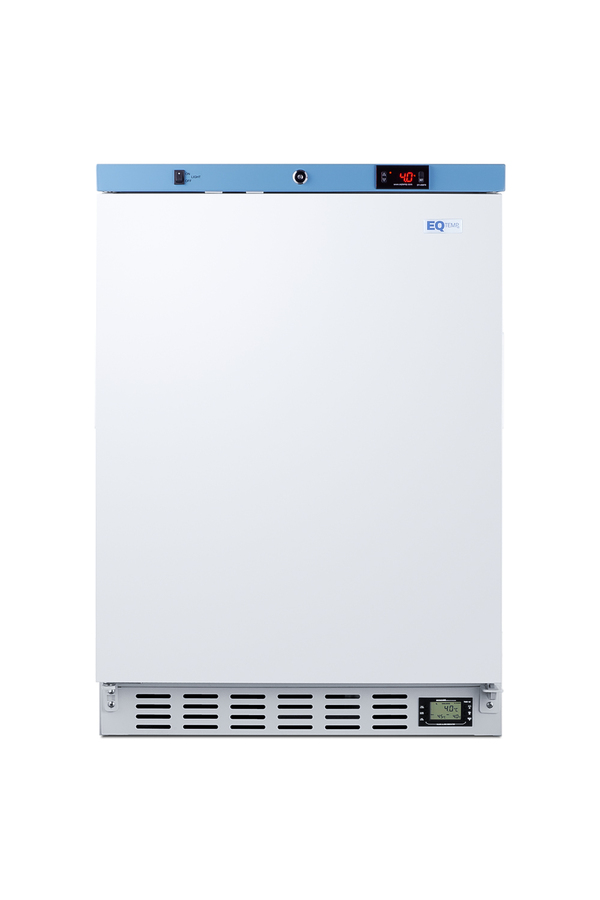

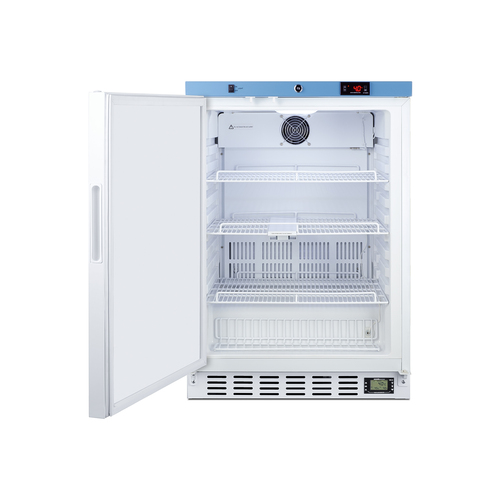

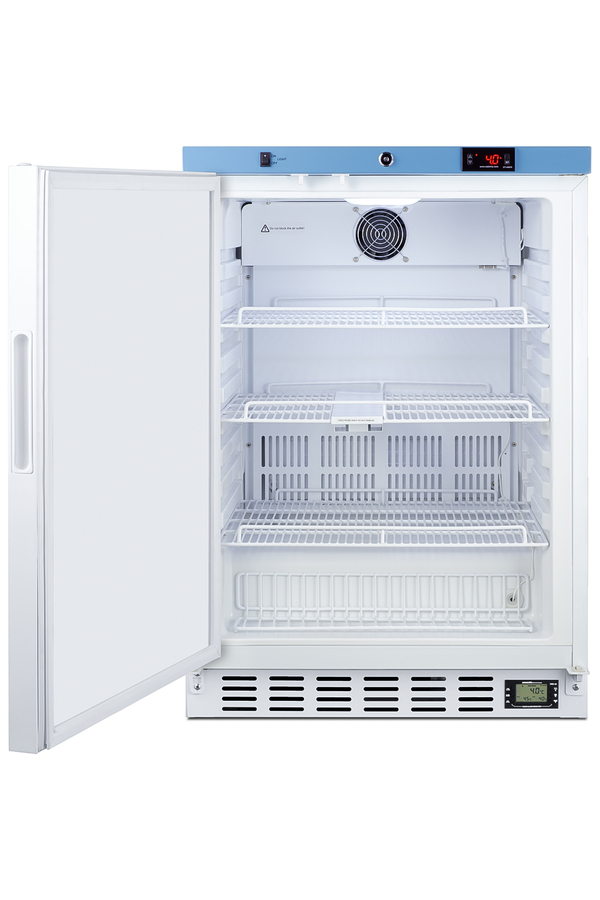

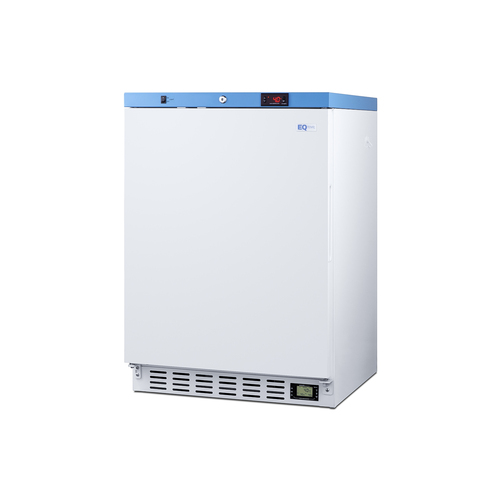

Model ACR51WLHD is an upright 3.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. This unit features a front-breathing design for safe built-in installation under counters. The fully finished cabinet also allows freestanding use.

The ACR51WLHD includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

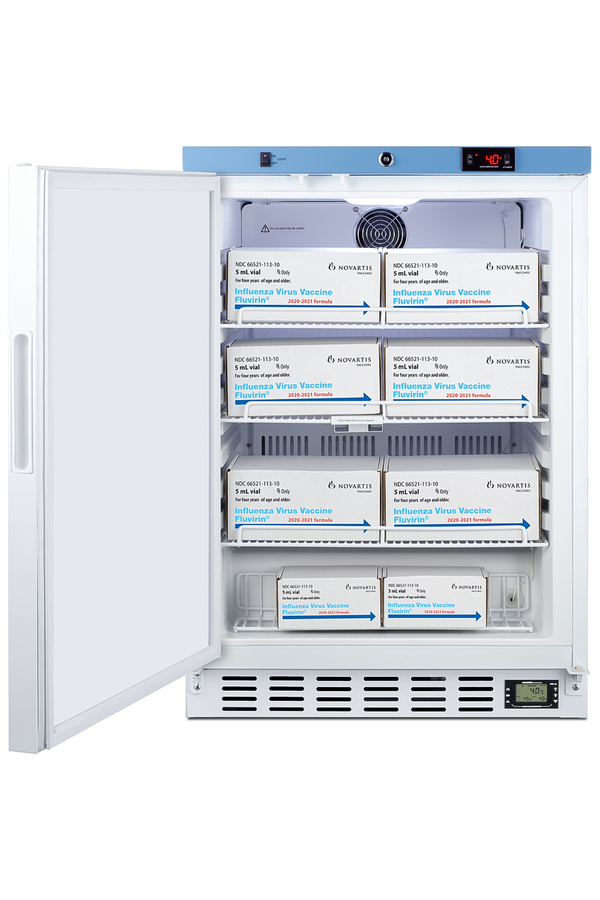

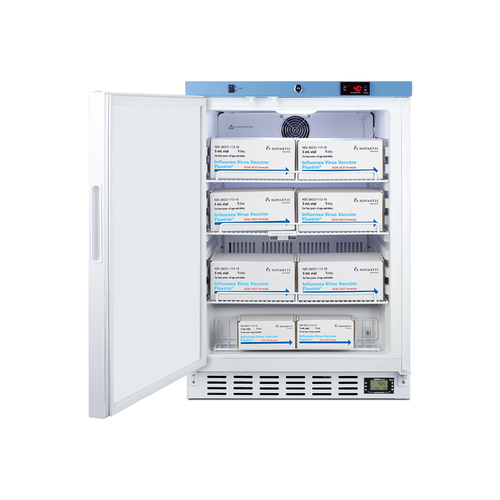

The interior includes one wire shelf in the center to hold the temperature probe, as well as two additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.

This unit ships with a left-hand door swing (for a right-hand version, see model ACR51W). The ACR series is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST-calibrated temperature readout (see model ACR51WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.

Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
