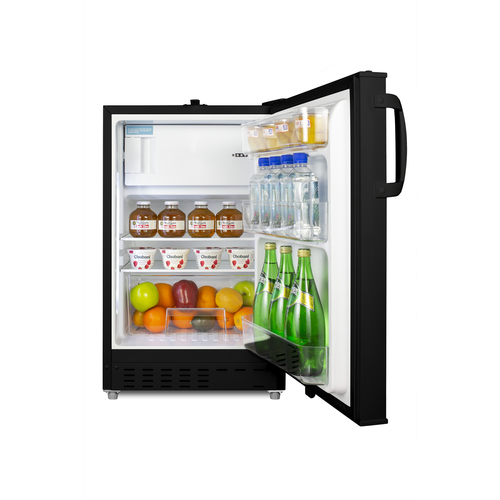

20" Wide Built-in Refrigerator-Freezer, ADA Compliant
1 to 2 days
(81cm H x 50cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076881 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 17.5" (44 cm) |
| Refrigerator - Interior Width | 16.25" (41 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Refrigerator - Temperature Range | 35-46º F |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 0.92 oz. |
| Freezer - Interior Height | 5.75" (15 cm) |
| Freezer - Interior Width | 16.25" (41 cm) |
| Freezer - Interior Depth | 11.25" (29 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Lock | ||
|---|---|---|
|
||
| Exterior | ||
|
FEATURES
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter

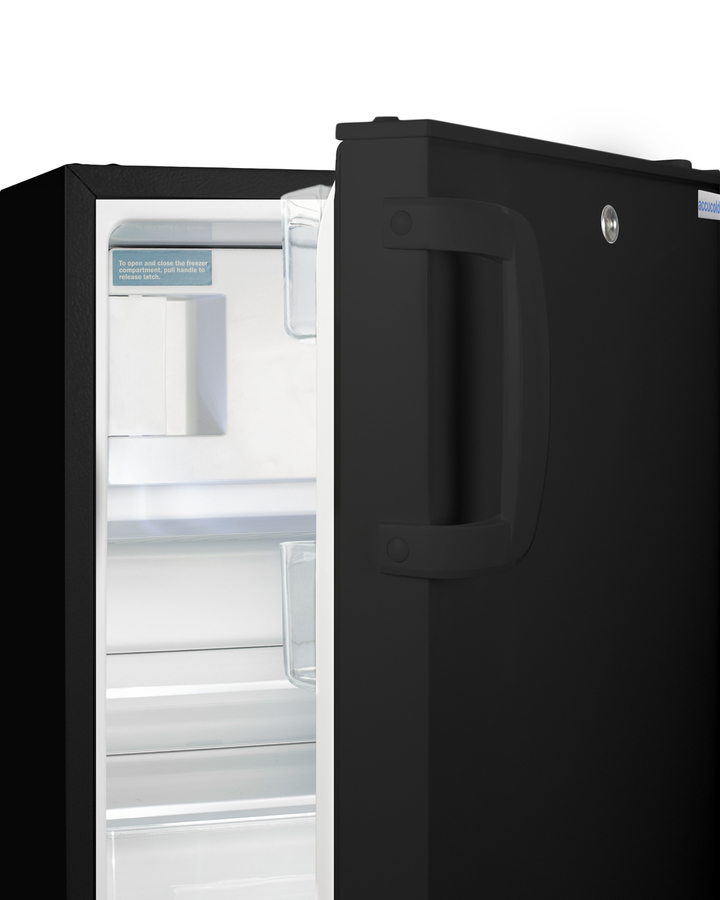

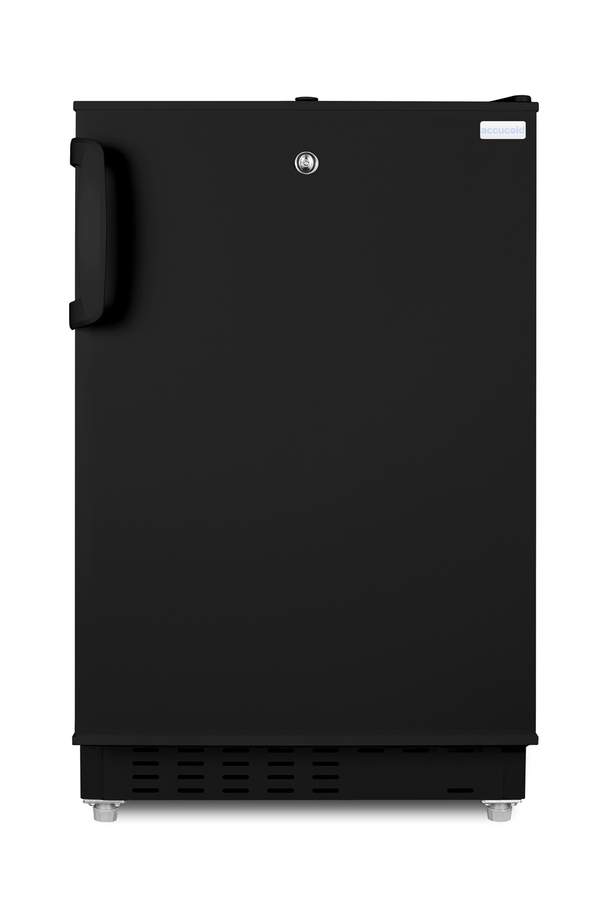

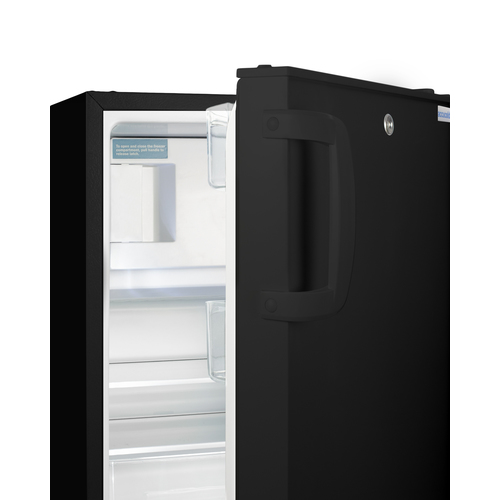

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

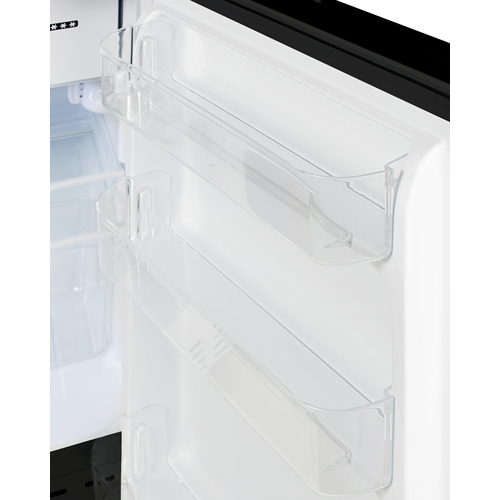

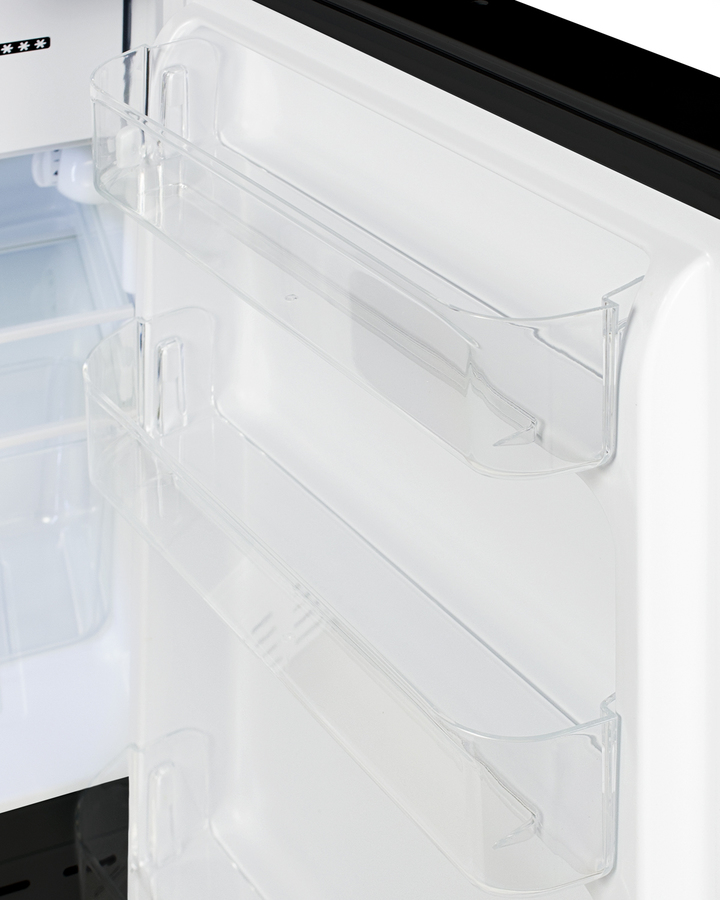

Three removable door racks for additional storage of bottles and other taller items
Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

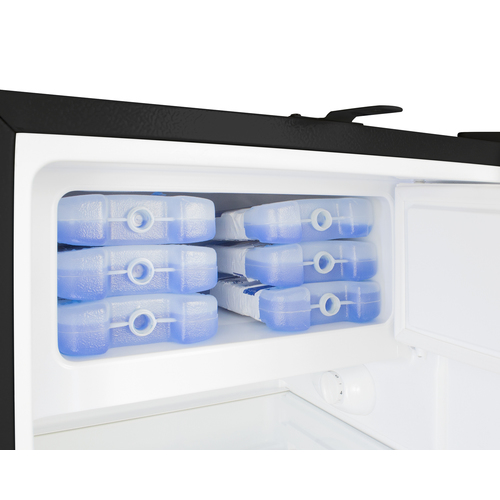

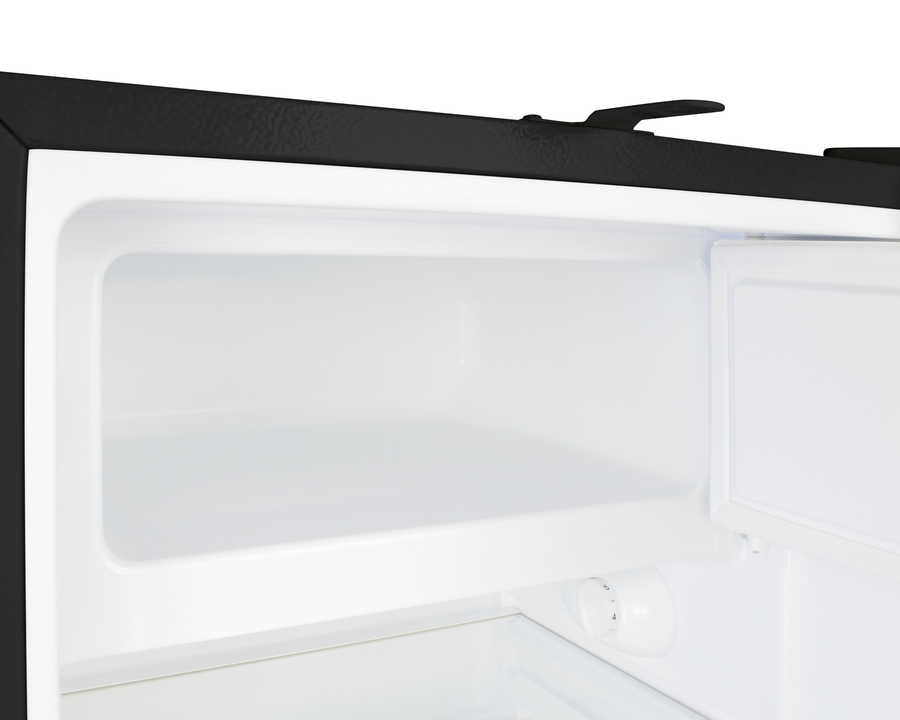

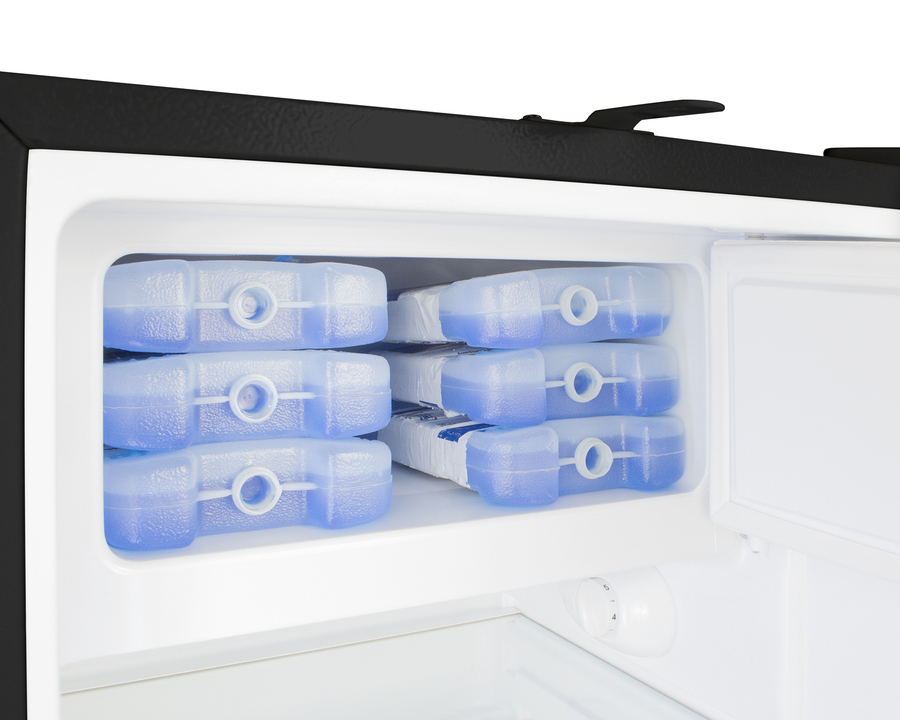

Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies
Static cooling system for added efficiency
Dial thermostat located inside for easy temperature management
Removable clear crisper drawer
User-reversible door swing for added flexibility to best accommodate your setting
Space-saving design that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Front-located LED light ensures entire interior is lit when door opens
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

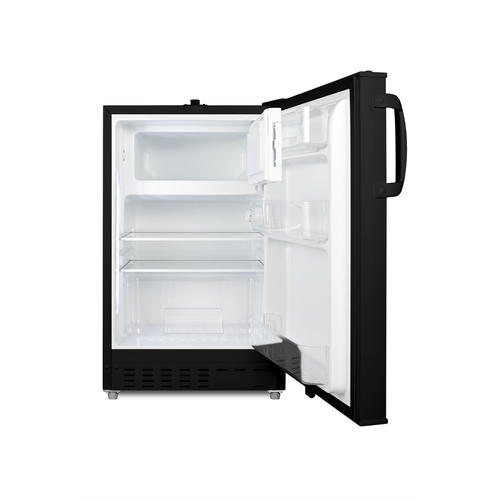

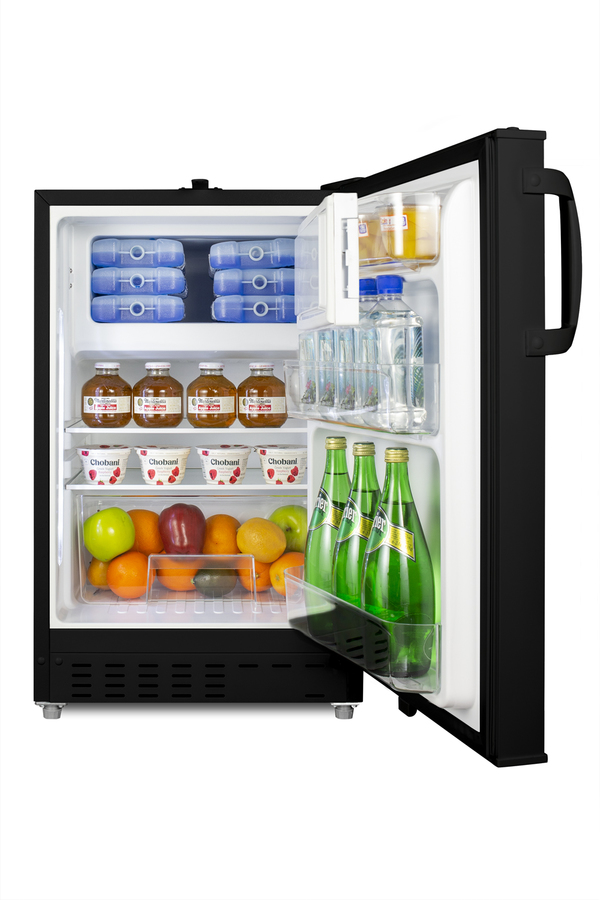

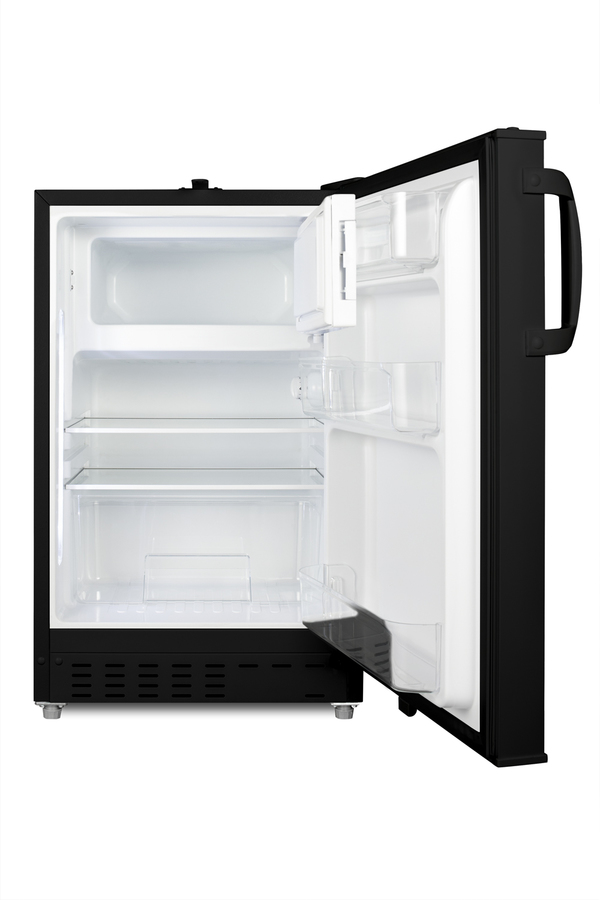

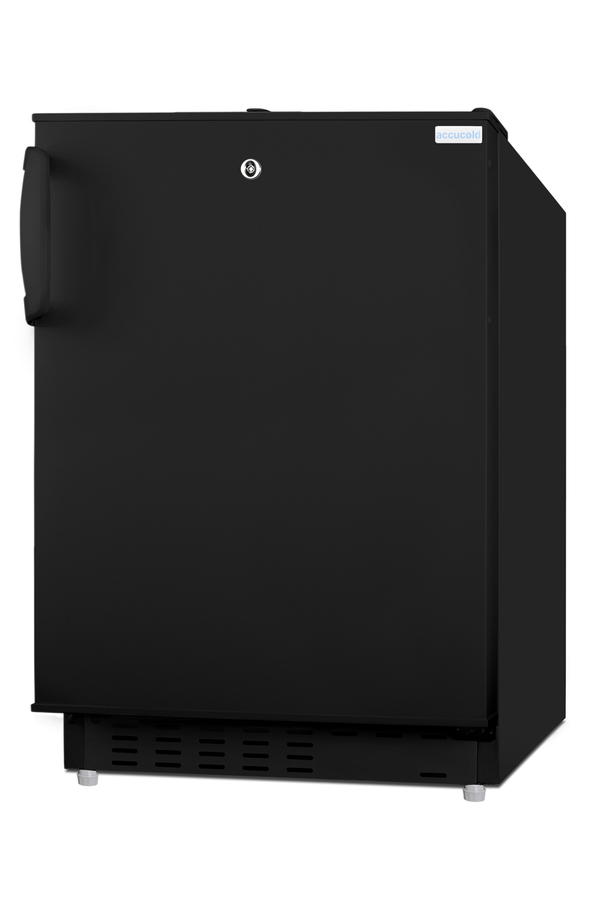

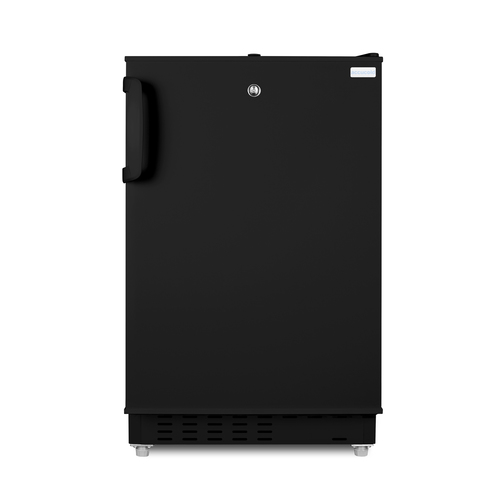

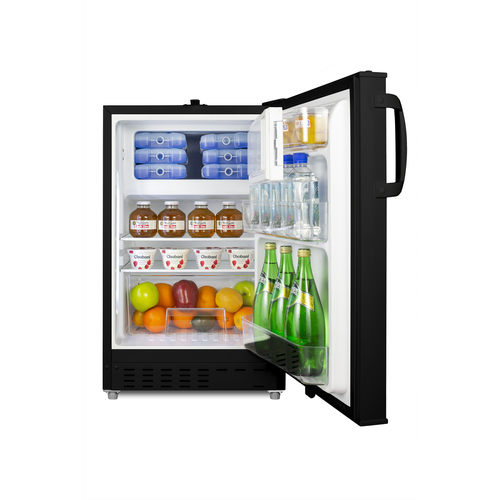

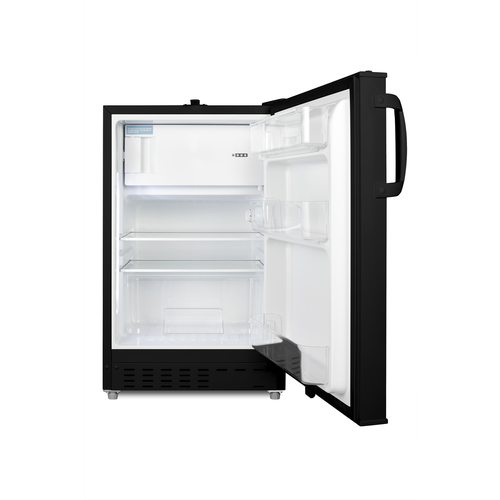

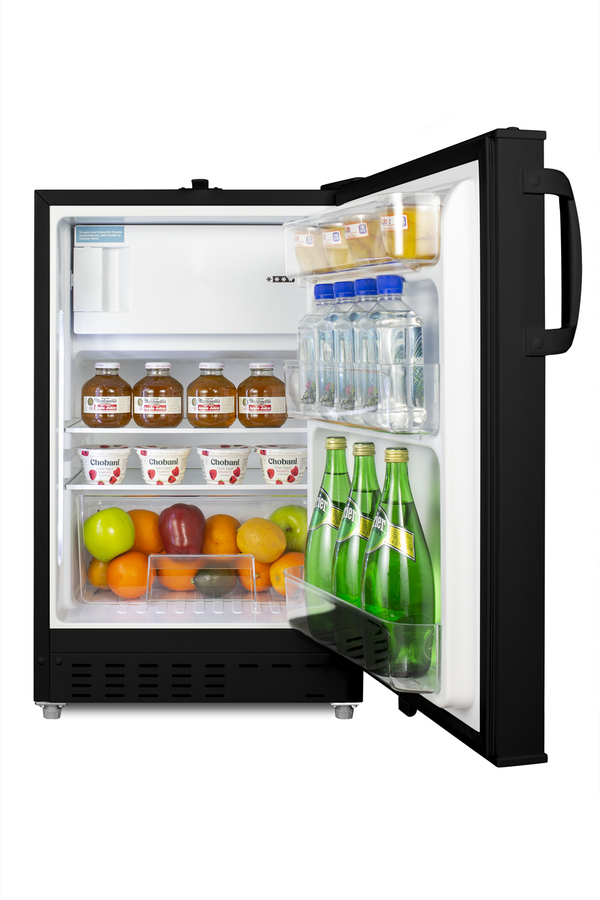

Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302BRFZ is a refrigerator-freezer designed for use in settings complying with ADA guidelines. The ADA302BRFZ is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The user-reversible door is 3" thick to ensure proper insulation and unit efficiency, with a handle included for added convenience. This unit comes with a right angle cord to allow for added placement options without added depth. Inside, the ADA302BRFZ features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing. With its compact size and convenient features, the ADA302BRFZ is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer. Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
