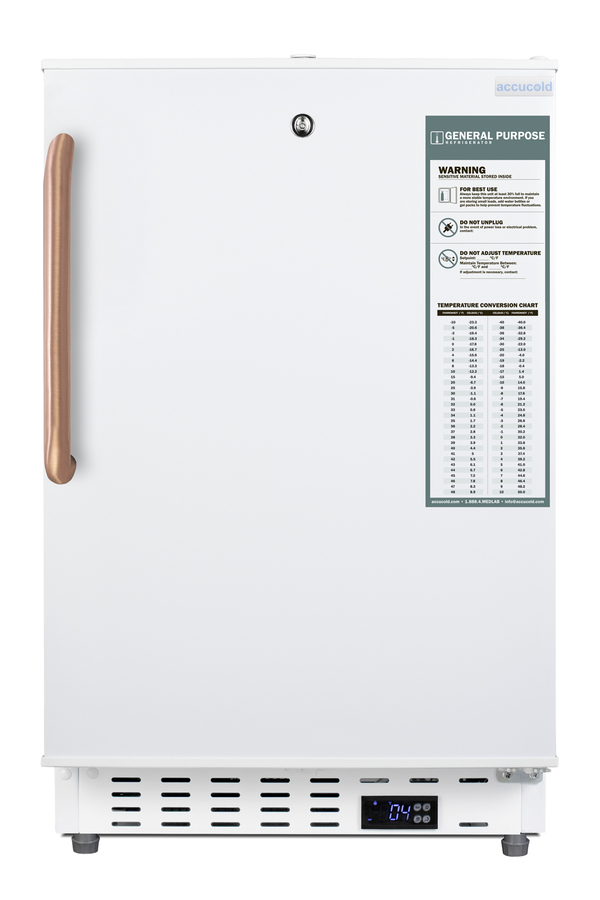

20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
3 to 5 days
(81cm H x 50cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077765 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2 to 8°C |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
||||
| Lock | ||||
|
FEATURES
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter

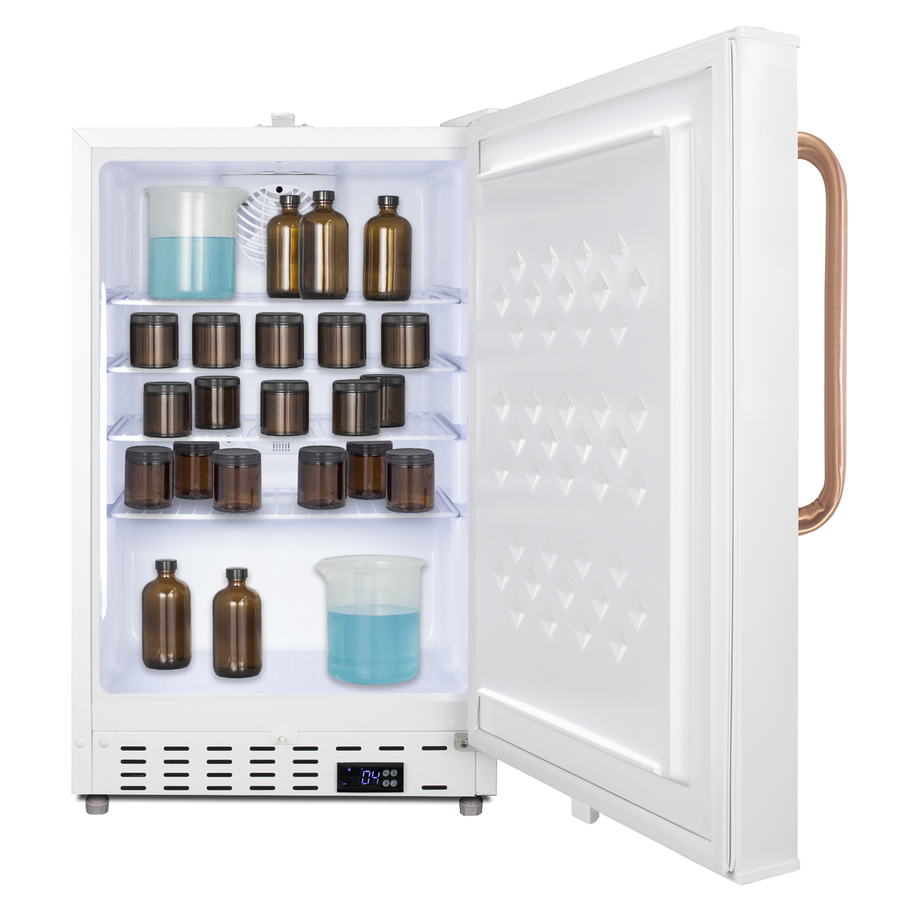

Designed to safely store select pharmaceuticals and other materials with strict temperature requirements

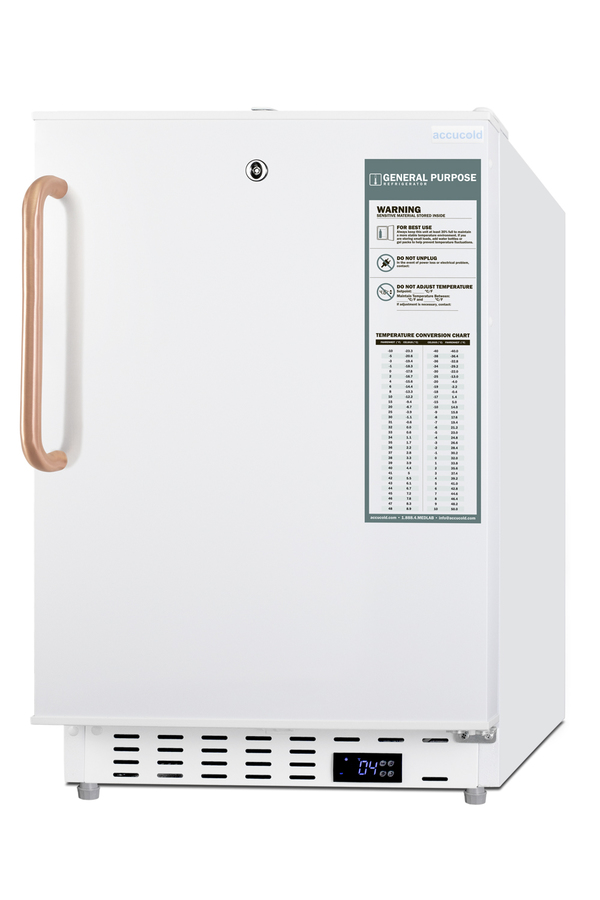

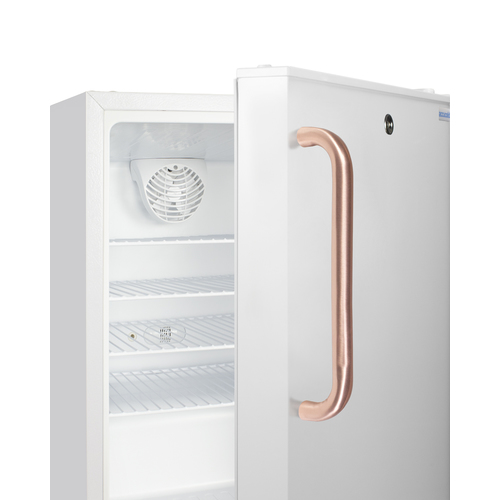

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

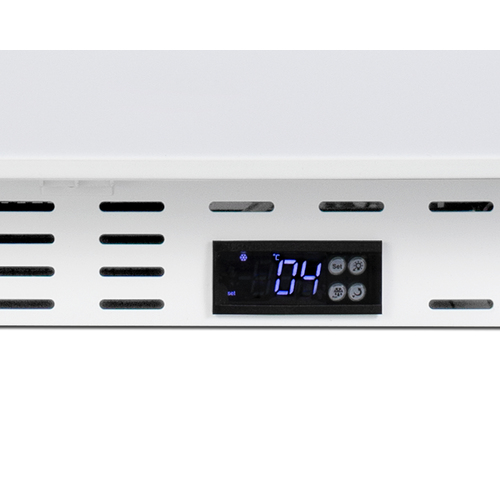

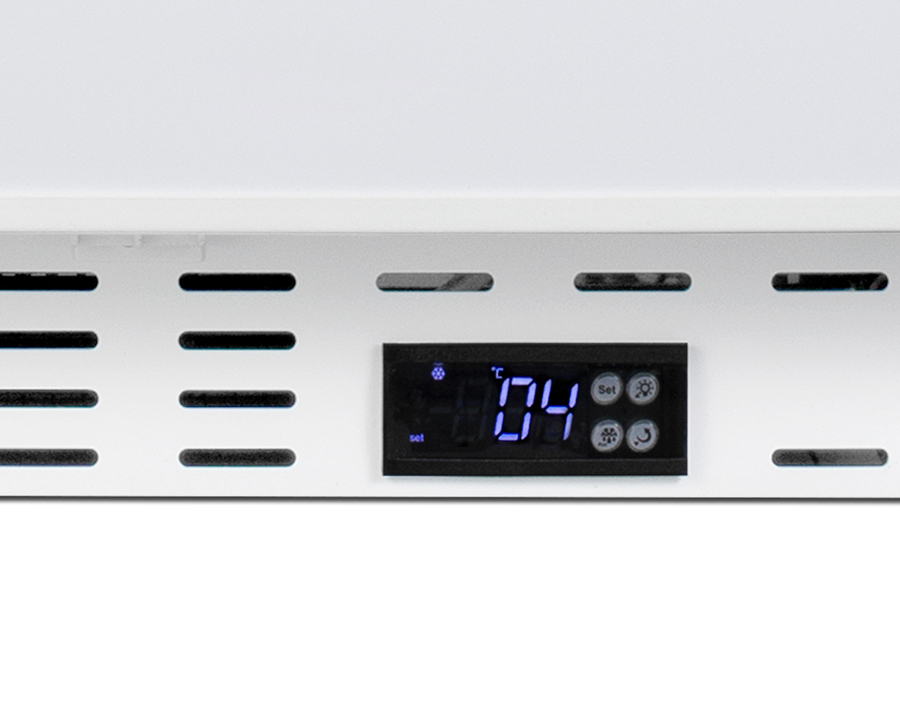

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

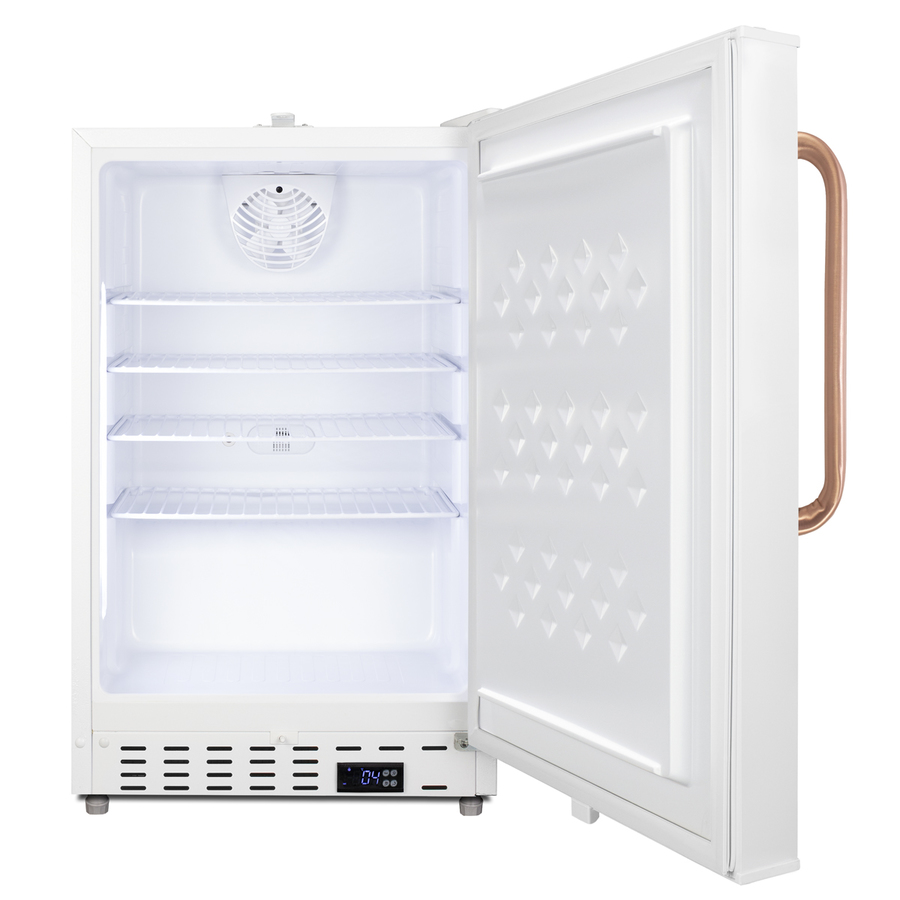

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute

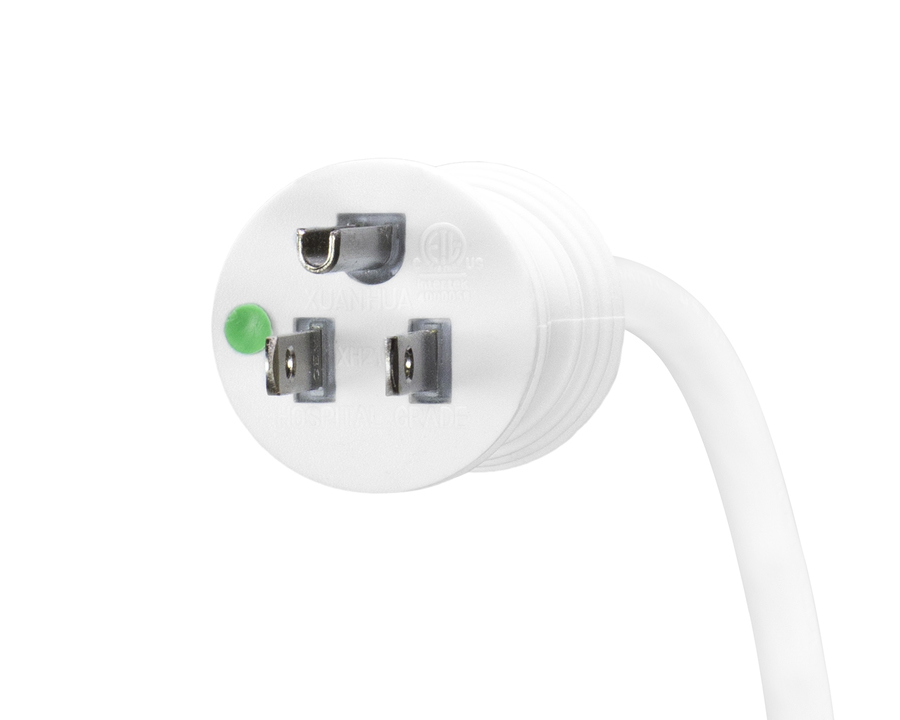

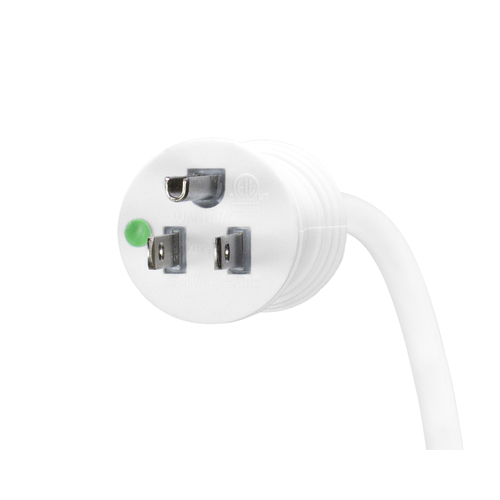

Secure three-pronged cord for added unit safety
Reduced user maintenance with an auto defrost system
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Space-saving design that offers easier cleanability

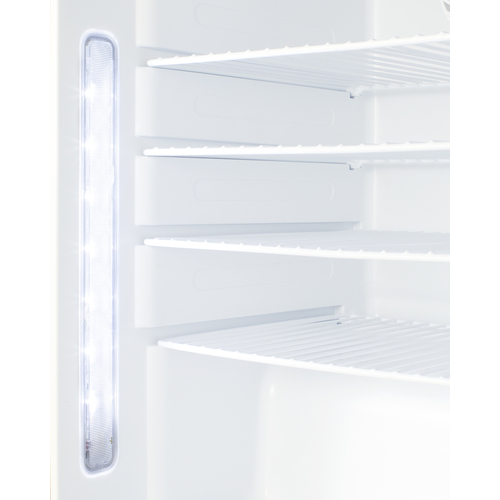

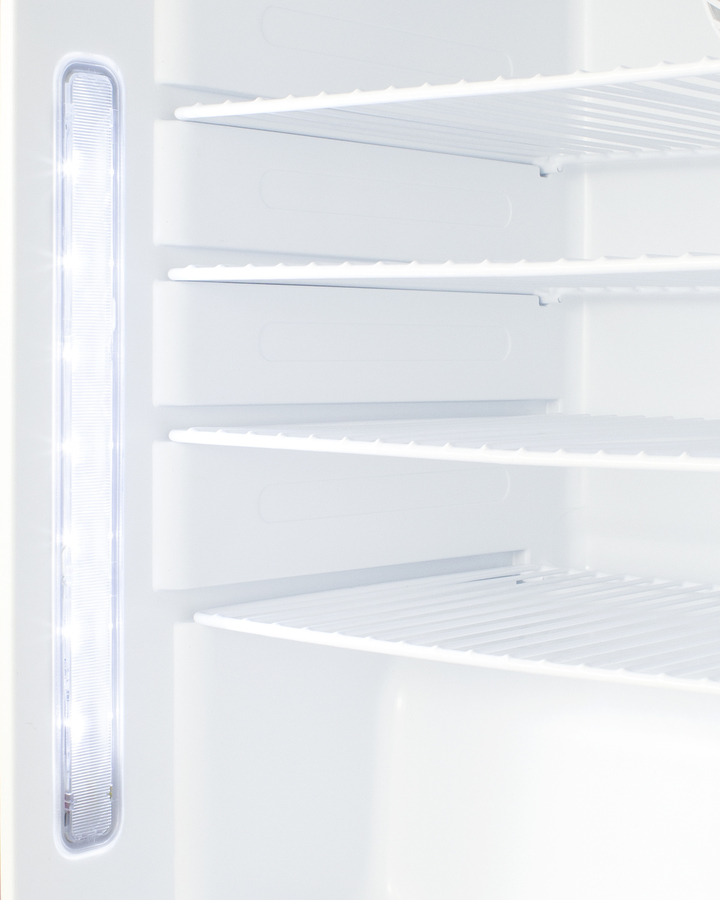

Front-located LED light ensures entire interior is lit when door opens
Quality door gaskets ensure a tight seal for energy savings and improved performance
This unit can be paired with the ADA305AFTBC all-freezer for a complete set
Allows the unit to be freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ADA404REFTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal. The ADA404REFTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience. Inside, the ADA404REFTBC is designed to operate between +2°C and +8°C as recommended for the storage of select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA4040REFTBC makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AFTBC all-freezer.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
