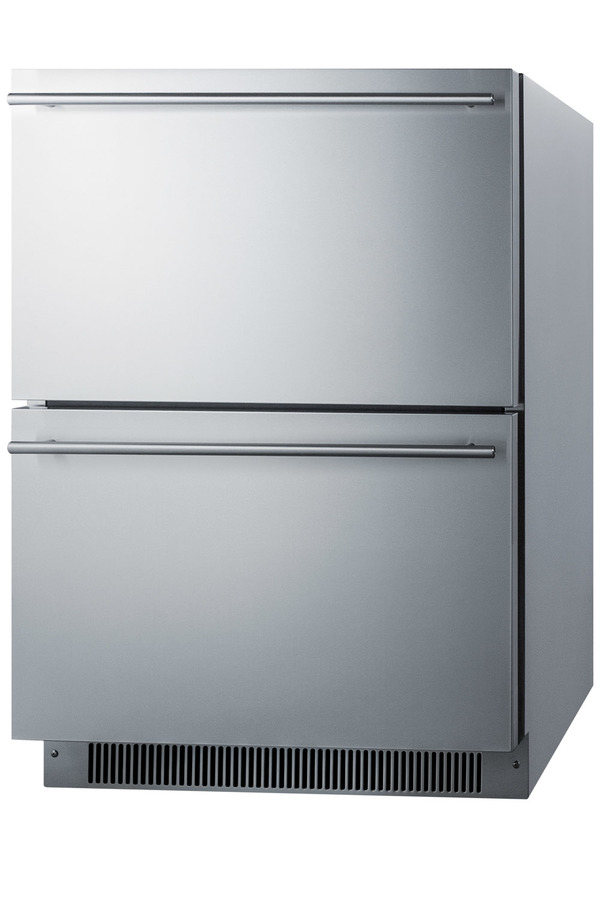

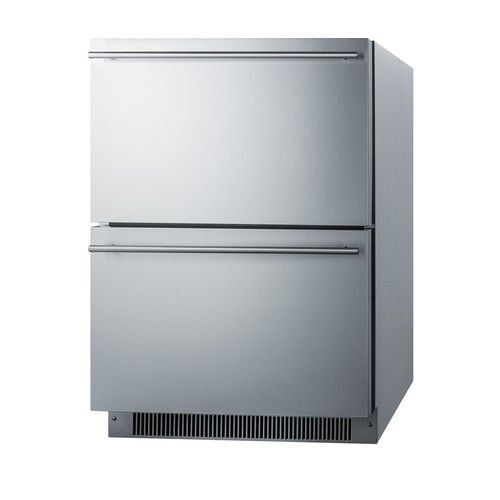

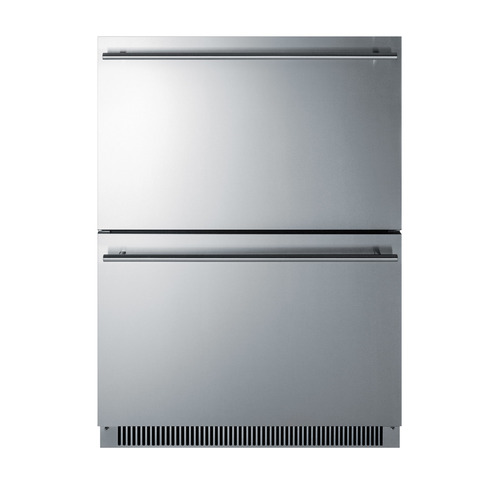

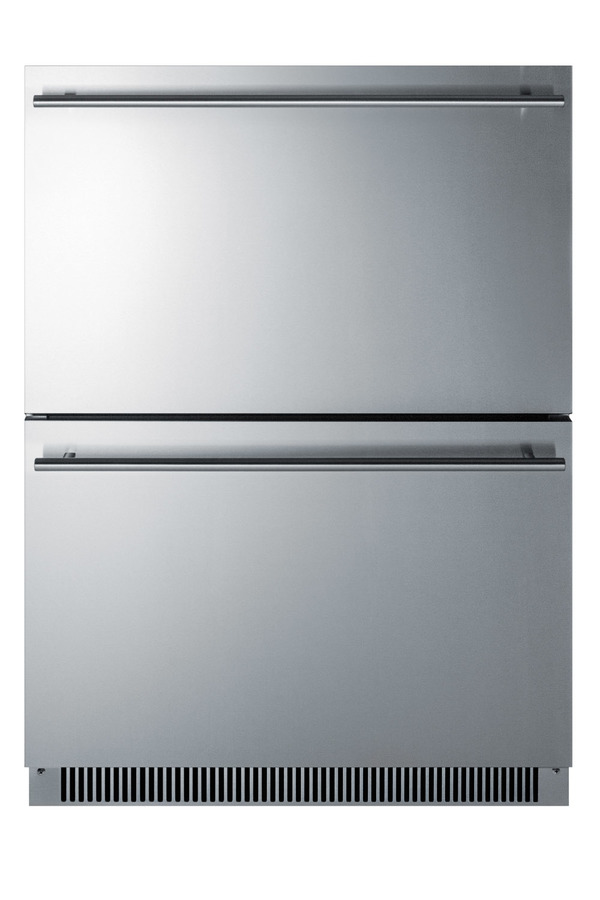

24" Wide 2-Drawer All-Refrigerator, ADA Compliant
Next day shipping
(81cm H x 59cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 4.8 cu.ft. (136 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 262.0kWh/year |
| Amps | 0.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101064949 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.09oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 43ºF |
| Sound Level | 34.3 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 9.63" (24 cm) |
| Interior Width 1 | 16.75" (43 cm) |
| Interior Depth 1 | 15.25" (39 cm) |
| Interior Height 2 | 10.75" (27 cm) |
| Interior Width 2 | 16.75" (43 cm) |
| Interior Depth 2 | 15.25" (39 cm) |
|
Dimensions
|
|
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 16.75" (43 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
24" wide all-refrigerator for built-in undercounter use in indoor or outdoor kitchens
Ensures unit runs efficiently with an environmentally friendly performance
ETL-S listed to NSF-7 standards for commercial use
32” height allows for installation within ADA-compliant spaces

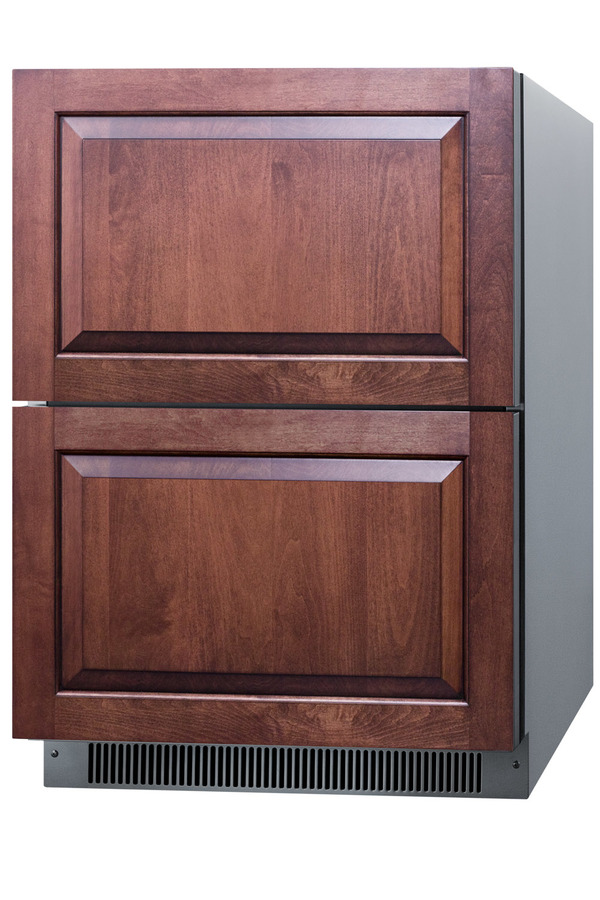

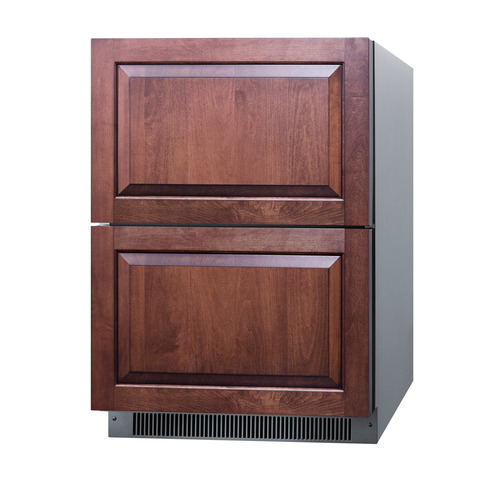

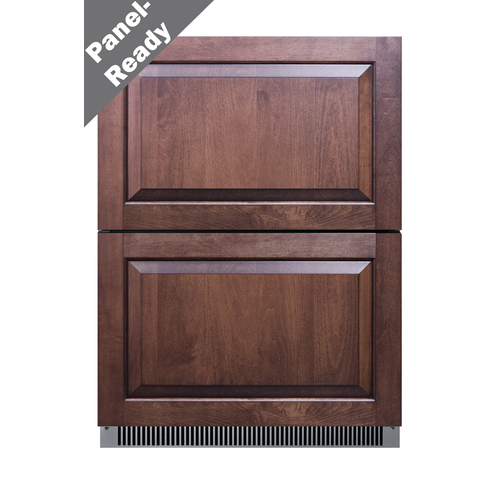

Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry
Unit can be raised to 34.25", with a taller kickplate included for a seamless look
Front-breathing design allows the unit to be built-in under counters
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
Durable, weatherproof construction designed to hold up to the elements
Stainless steel handles add style to any setting
No-frost operation for minimal user maintenance
Soft LED lighting makes for easy viewing of each drawer’s contents
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Large display allows for easy readability and unit control

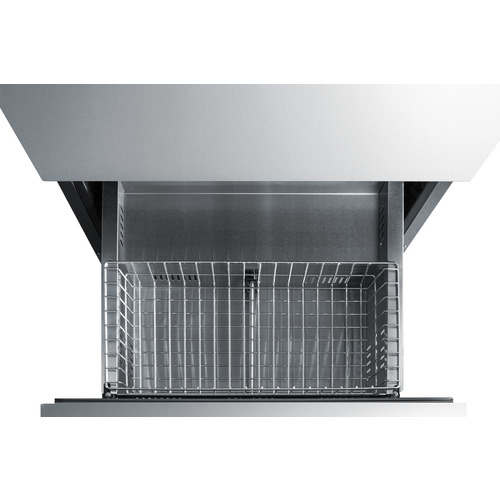

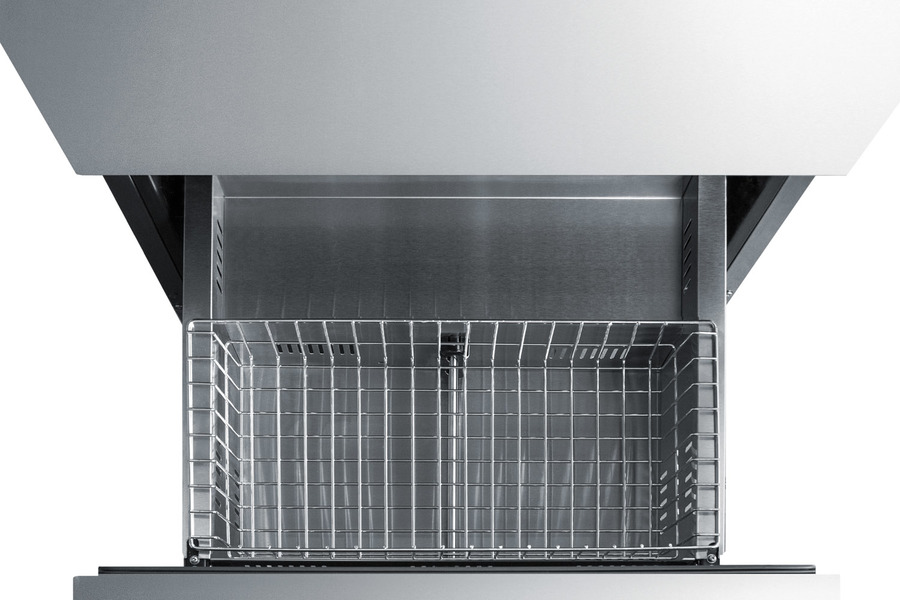

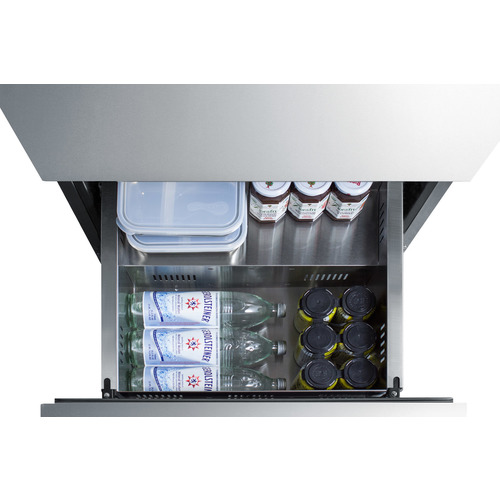

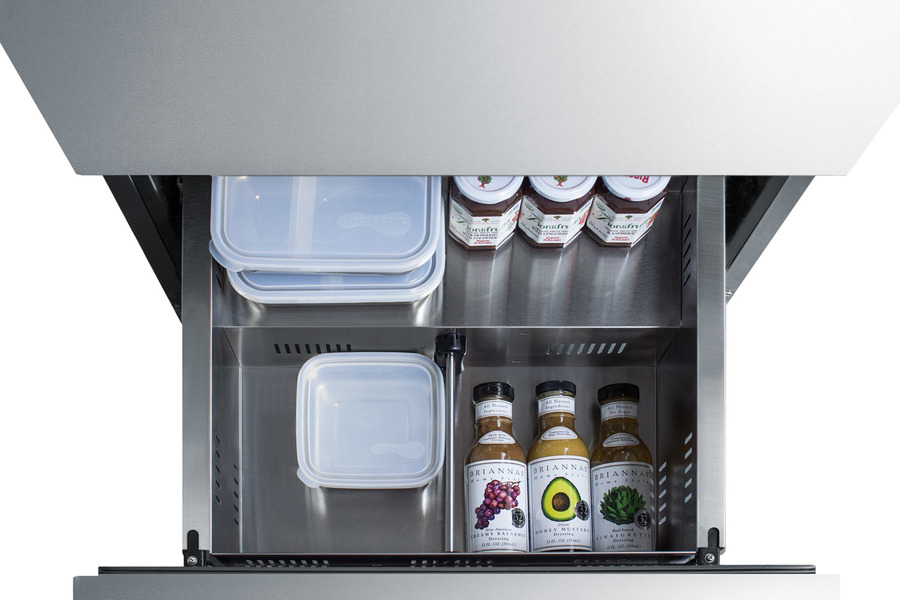

Removable basket included for additional storage convenience

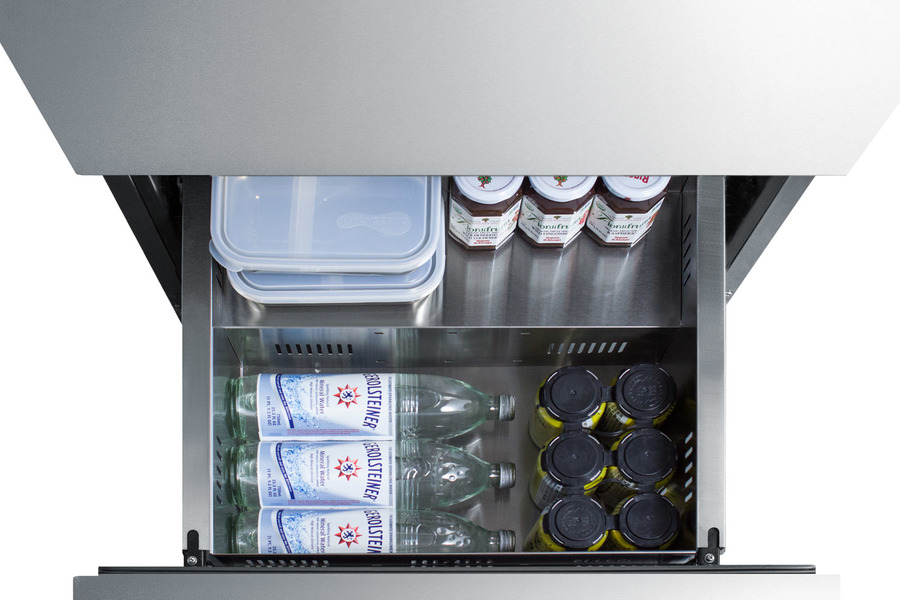

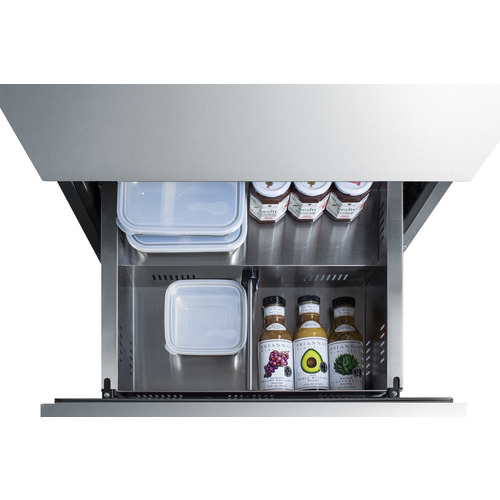

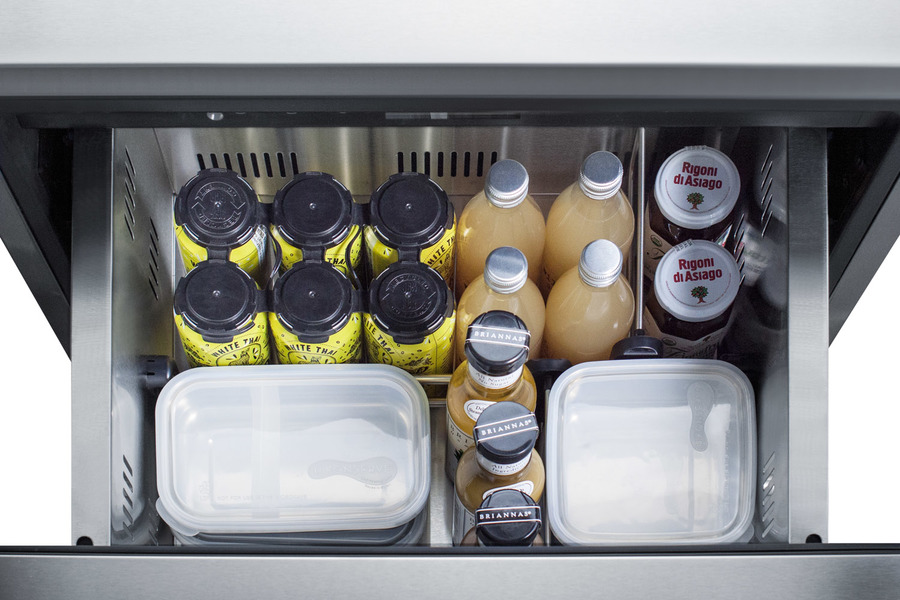

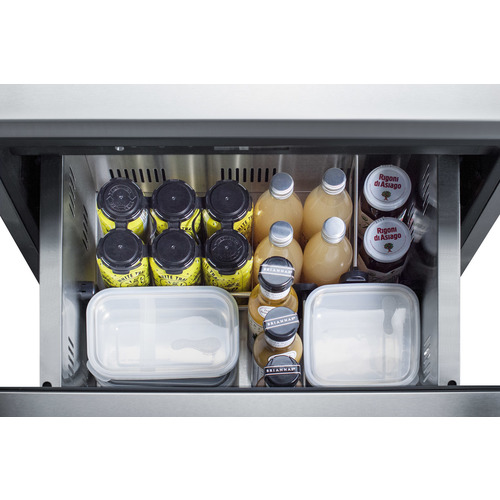

Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior
Allows for easy cleaning and organization within the interior of the unit
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Audible alarm sounds if the drawers are left open for more than five minutes
Optional feature disables alarms, interior light, and displays for up to 96 hours
Space-saving plug allows unit to sit flush against the wall
Space-saving and makes for quick cleaning of the unit’s exterior
Provides for efficient, even cooling of the entire unit
Unit will retain temperature settings after losing power
Soft-close glides prevent drawers from slamming shut for additional durability and safety
Bracket (included) helps prevent tipping for added safety
Allows the unit to be used freestanding
Pair with Summit's frost-free ADFD2D24 to create a matching side-by-side set
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs. The ADRD24 is a two-drawer all-refrigerator sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look. Frost-free operation ensures minimum user maintenance inside the 4.8 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer. Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance. The ADRD24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching frost-free freezer, see model ADFD2D24.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
