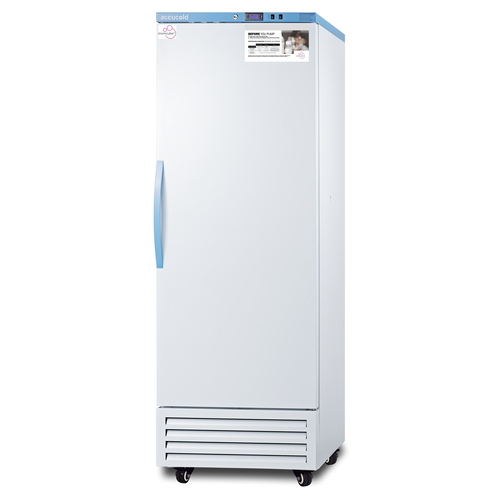

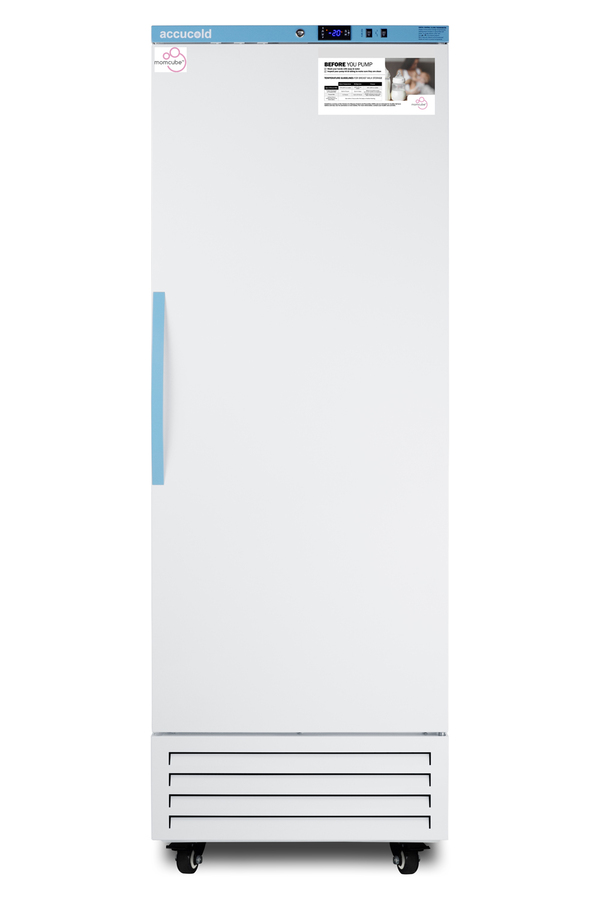

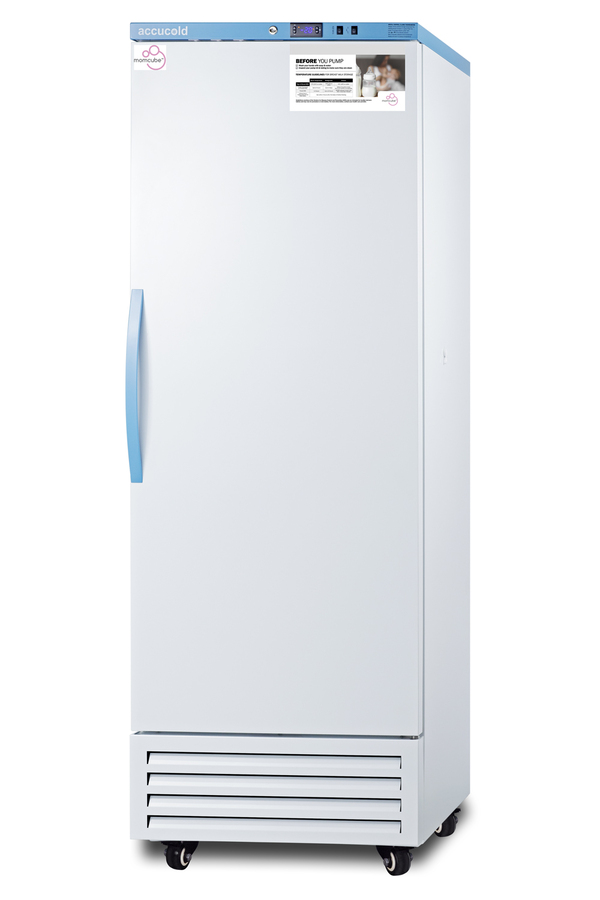

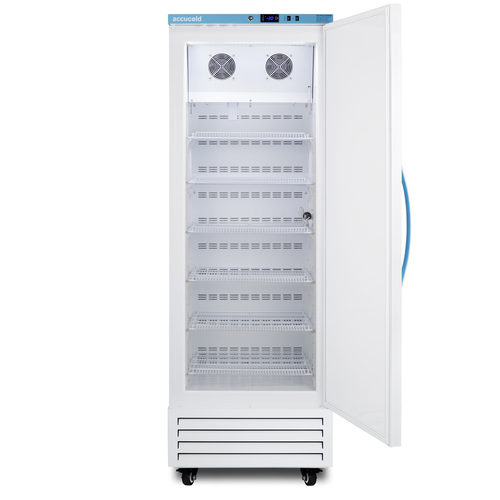

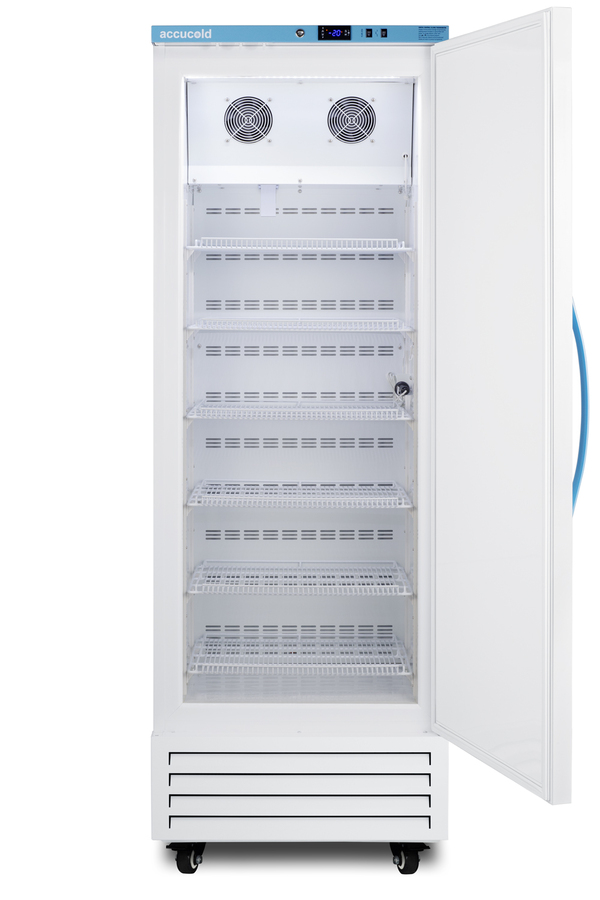

14.83 Cu. Ft. Upright MOMCUBE® Breast Milk All-Freezer
Next day shipping
(202cm H x 70cm W x 68cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 80.0" (203 cm) |
| Height of Cabinet | 79.5" (202 cm) |
| Nominal Width | 28.0" (71 cm) |
| Width | 27.5" (70 cm) |
| Width with Door Open | 27.75" (70 cm) |
| Nominal Depth | 27.0" (69 cm) |
| Depth | 26.63" (68 cm) |
| Depth with Handle | 28.13" (71 cm) |
| Depth with door at 90° | 54.75" (139 cm) |
| Capacity | 14.83 cu.ft. (420 L) |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 4.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101152363 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 49.0" (124 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 18.0" (46 cm) |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R290a |
| Refrigerant Amount | 3.27 oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 130.0 |

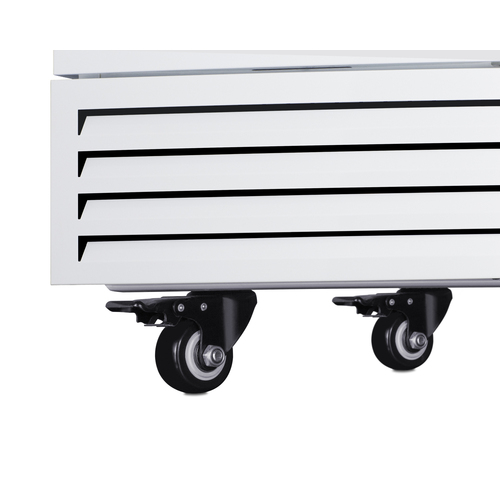

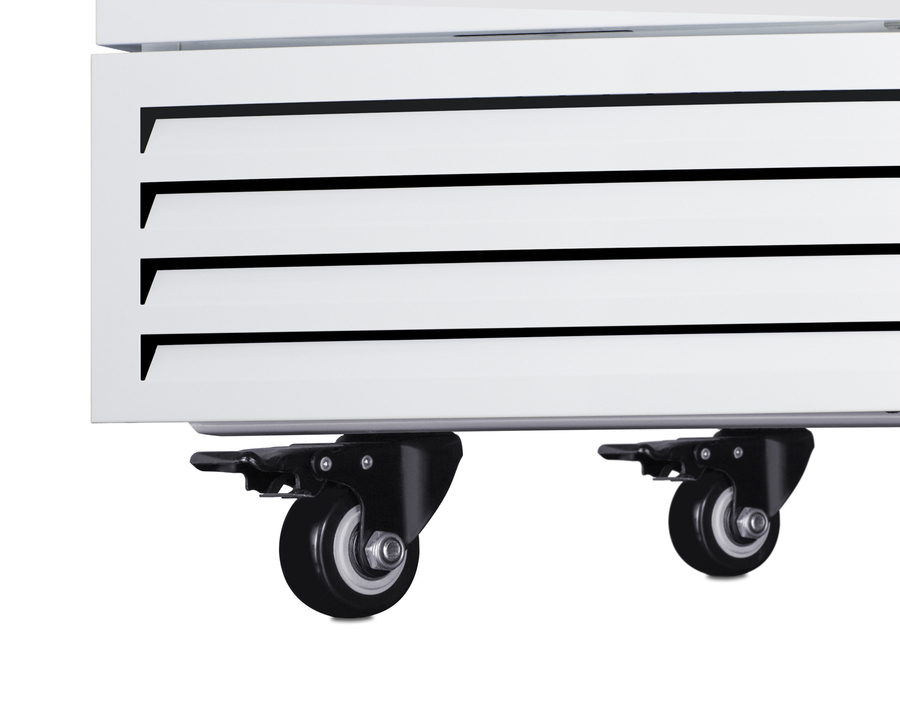

| Wheels | 4 |
| Compressor Step Height | 10.0" (25 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 16.0" (41 cm) |
| Temperature Range | -30 to -10ºC |
AVAILABLE UPGRADES
| Exterior | |||
|---|---|---|---|
|
|||
| Lock | |||
|
FEATURES
Purpose-built Performance Series freezer for the long-term storage of breast milk
Designed and purpose-built for breast milk storage in accordance with the CDC's guidelines
Over 14.5 cu.ft. of storage inside
No-frost operation for minimal user maintenance
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

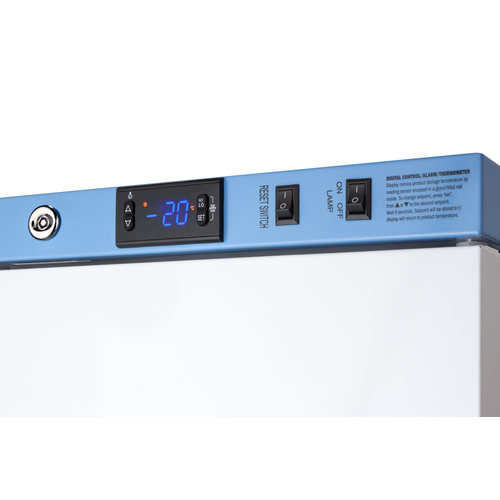

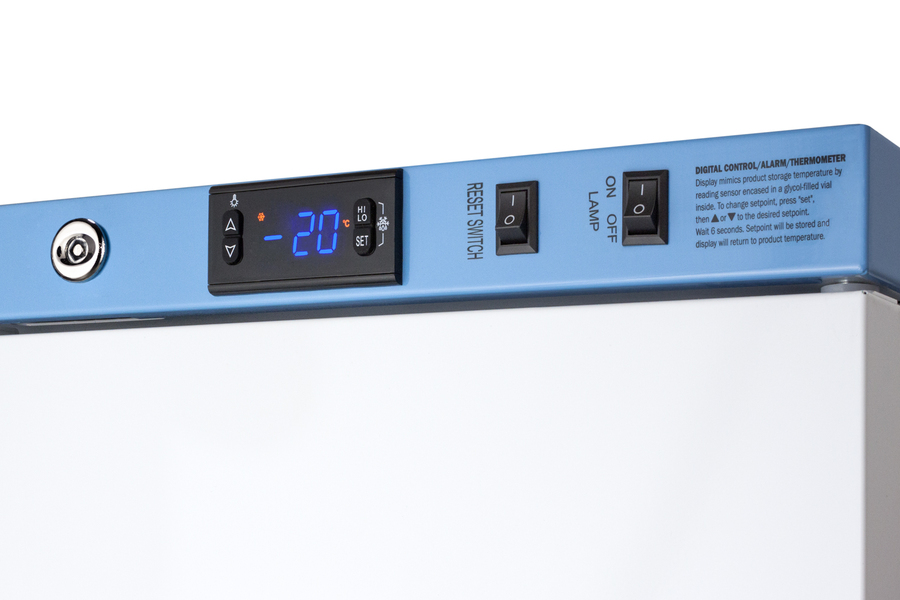

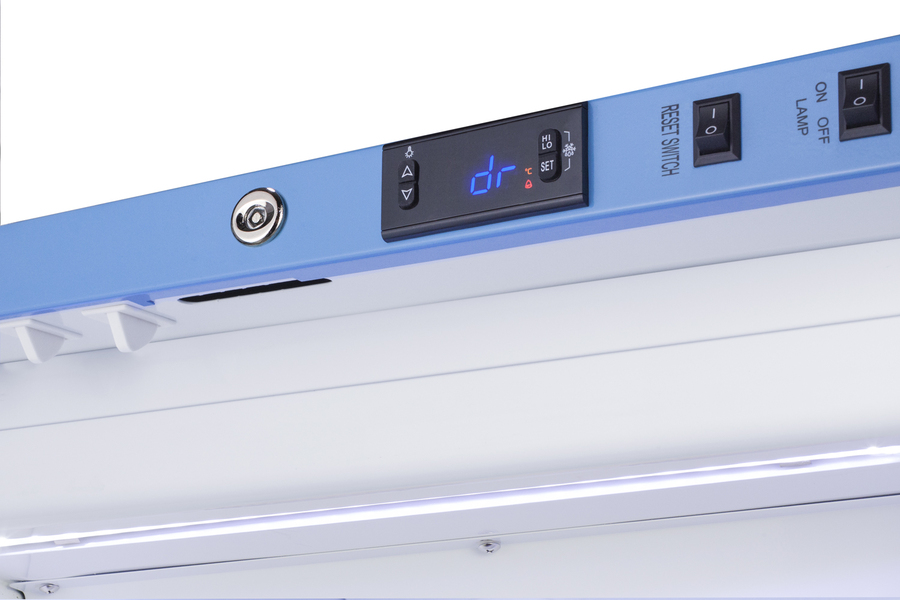

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Intuitive controls let you adjust the interior temperature between -30°C to -10ºC

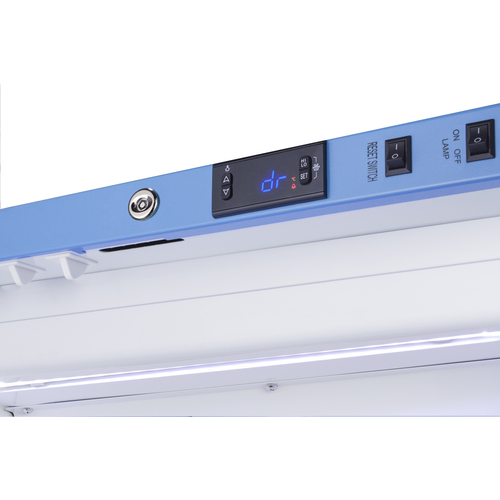

Visual and audible alarms alert if the interior temperature rises or falls out of set range

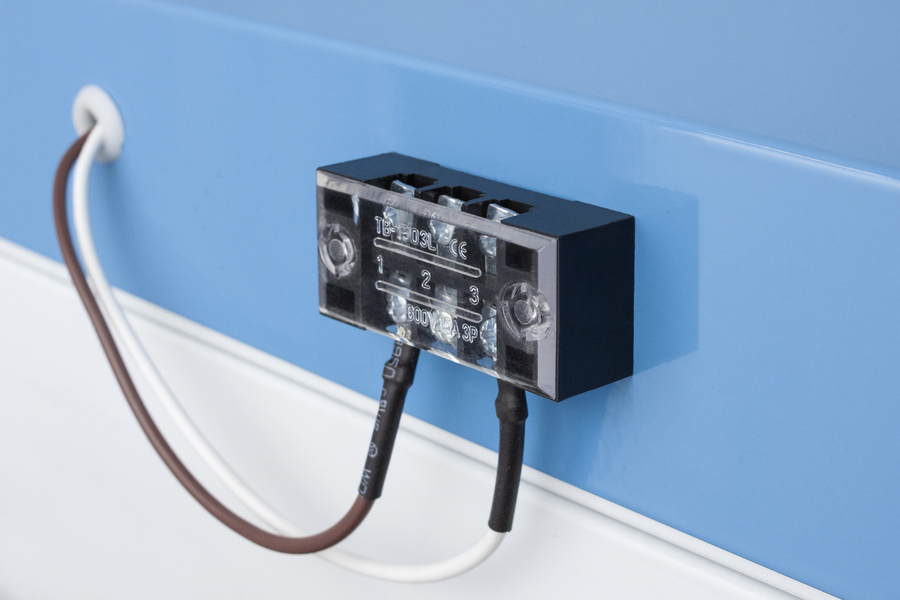

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

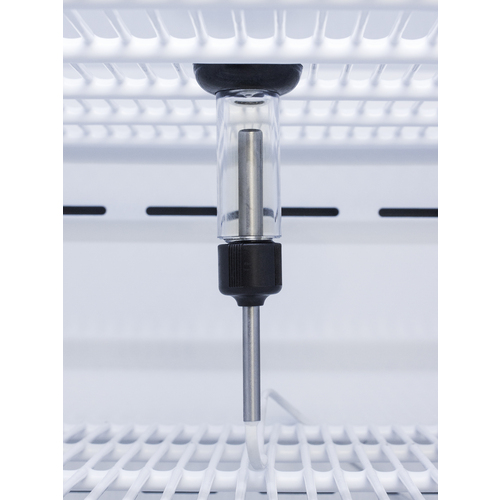

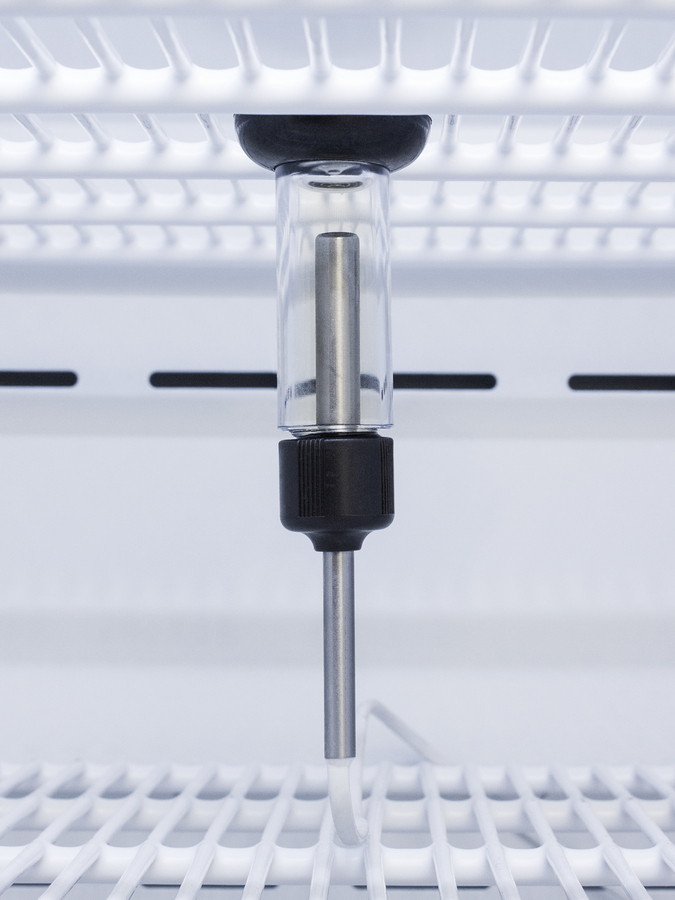

Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted

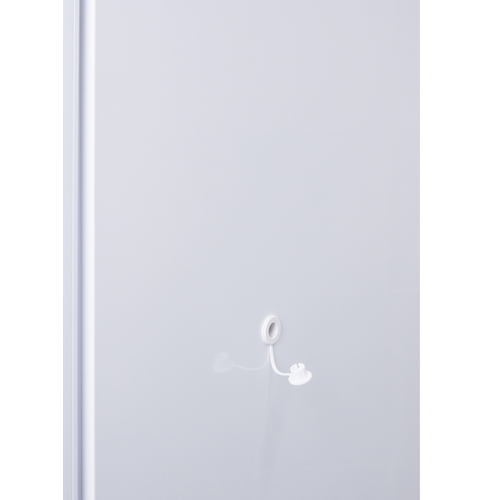

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Control panel requires password entry to adjust the parameters beyond the set point
Control panel provides a readout of the low and high temperatures in 15 minute increments
Energy efficient LED lighting with internal on/off switch
Walls are constructed from white powder coated metal for added strength and improved temperature retention

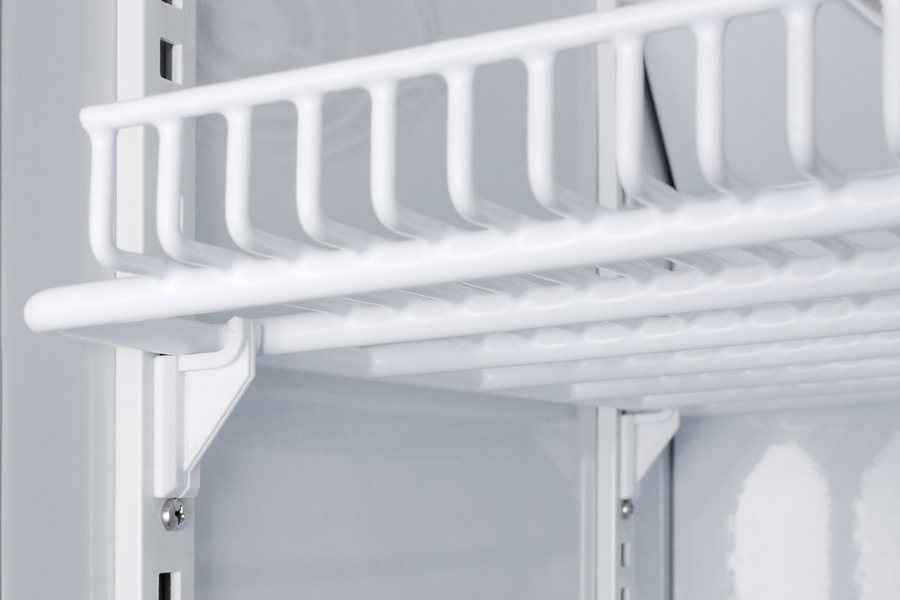

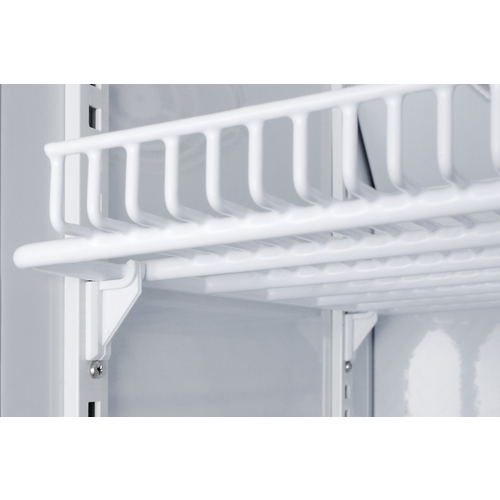

Unit's six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
No door storage to allow for the interior to accommodate deeper trays
Added protection in busy settings
User-reversible door swing for added flexibility to best accommodate your setting
Quality door gaskets ensure a tight seal for energy savings and improved performance
Conveniently located towards the top of the door for easier user access (2 keys included)

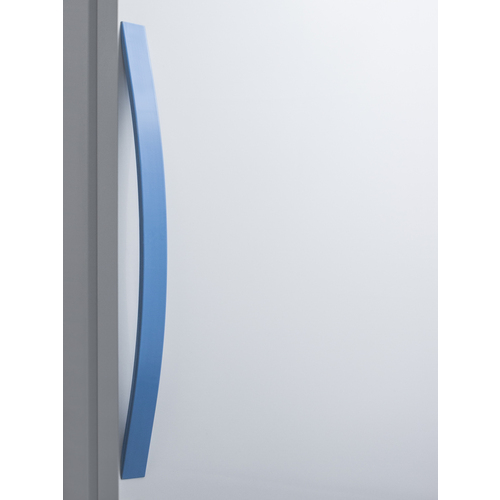

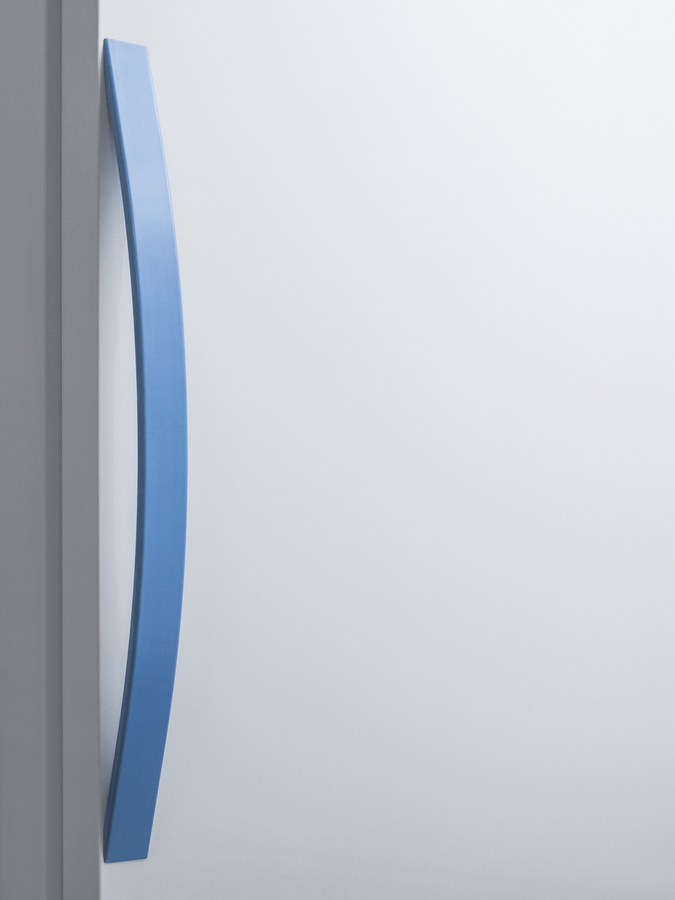

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Secure three-pronged cord for added unit safety
2 years parts and labor/5 years compressor
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS", as well as breast milk storage guidelines
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold's MOMCUBE freezers are designed and purpose-built for breast milk storage. All MOMCUBE® units are laboratory-tested to maintain proper breast milk temperature, as recommended by the CDC and ideal for maternity wards, hospitals, NICUs, employee wellness rooms complying with Section 4207 of the Patient Protection and Affordable Care Act, and other facilities. The AFS17PVMC is an upright frost-free all-freezer with a temperature range of -30°C to -10°C. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a 'green dot' plug is also included for added safety in high-traffic areas. Inside, this freezer has 14.83 cu. ft of storage space and features six adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention. The AFS17PVMC comes in a white exterior finish with a blue accented control panel and user-reversible door. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 4" high casters with brakes make it easier to move as needed. Designed with hydrocarbon refrigerant, all Accucold Performance Series MOMCUBE freezers provide an energy efficient solution to breast milk storage. Additional sizes, as well as matching refrigerators, are also available. Explore the full MOMCUBE series at accucold.com/momcube.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
