(57cm H x 47cm W x 59cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 23.0" (58 cm) |
Height of Cabinet | 22.25" (57 cm) |
Nominal Width | 19.0" (48 cm) |
Width | 18.5" (47 cm) |
Width with Door Open | 18.88" (48 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.25" (59 cm) |
Depth with Handle | 24.75" (63 cm) |
Depth with door at 90° | 42.5" (108 cm) |
Capacity | 1.4 cu.ft. (40 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 73.0 lbs. (33 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101107073 |
Freezer
|
|
Door Swing | LHD |
Reversible | Yes |
Interior Height | 16.5" (42 cm) |
Interior Width | 15.25" (39 cm) |
Interior Depth | 15.75" (40 cm) |
Shelf Type | Wire |
Shelf Qty | 2 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Interior Light | Yes |
Refrigerant Type | R290 |
Refrigerant Amount | 0.85 oz. |
High Side PSI | 280.0 |
Low Side PSI | 130.0 |
Compressor Step Height | 8.25" (21 cm) |
Compressor Step Width | 15.25" (39 cm) |
Compressor Step Depth | 4.25" (11 cm) |
Temperature Range | -30 to -10ºC |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
||
Lock | ||
|
FEATURES
Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Intuitive controls let you adjust the interior temperature between -30°C to -10ºC

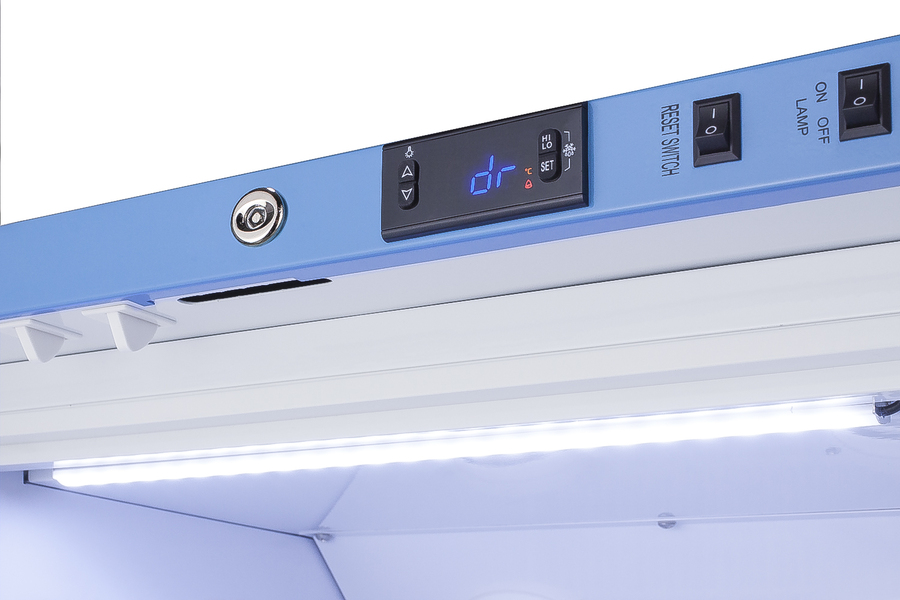

Visual and audible alarms alert if the interior temperature rises or falls out of set range

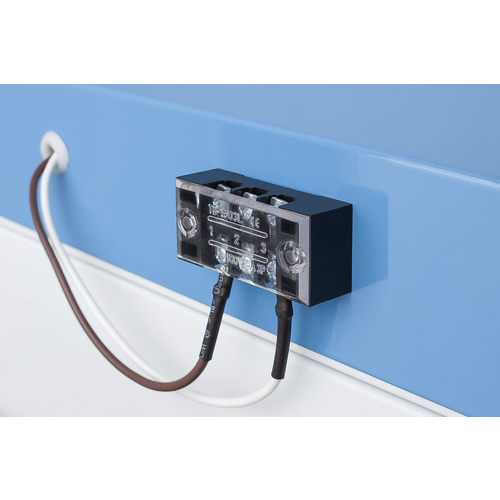

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Static cooling system for an efficient and stable interior

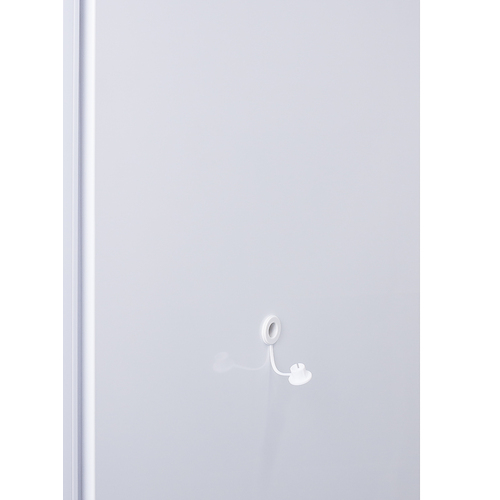

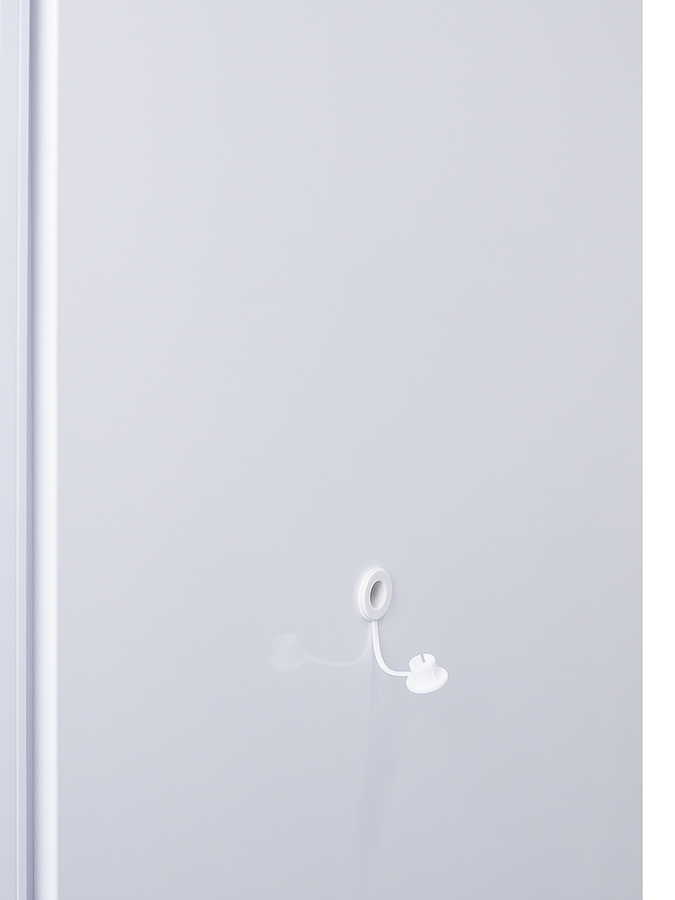

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point

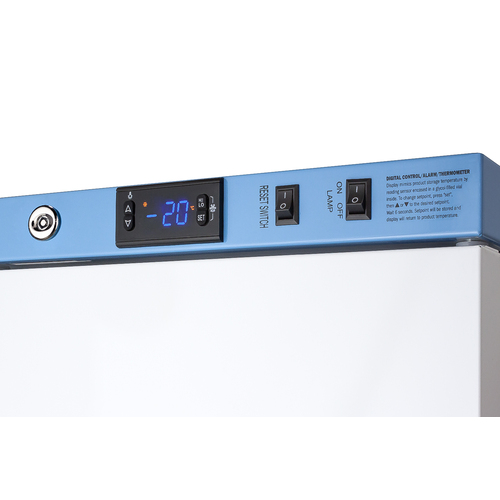

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
Added protection in busy settings
For this unit with the door opening from the other side, see model AFZ1PV
Quality door gaskets ensure a tight seal for energy savings and improved performance
Allows the unit to be used freestanding
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Pair with Accucold ARS2PV (solid door) or ARG2PV (glass door) as a stackable or side-by-side set
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

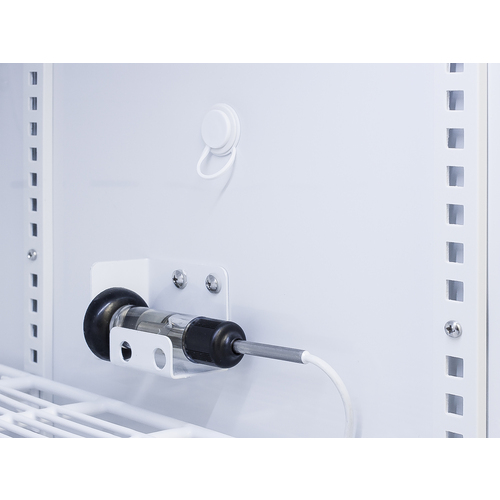

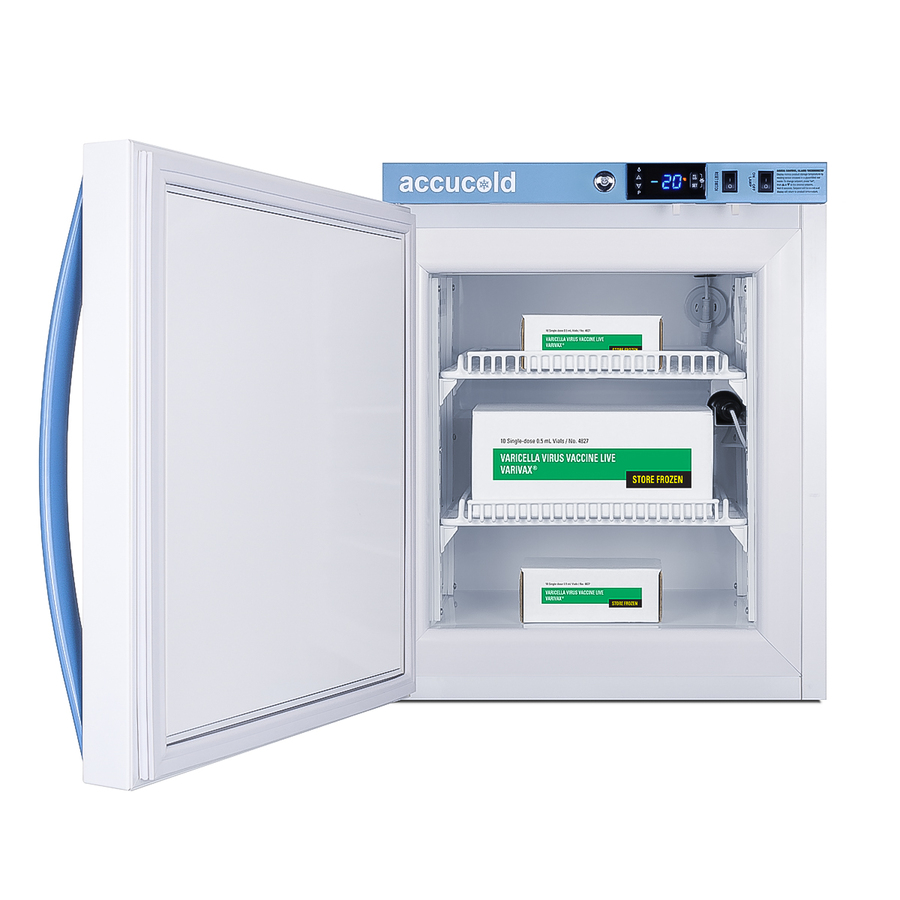

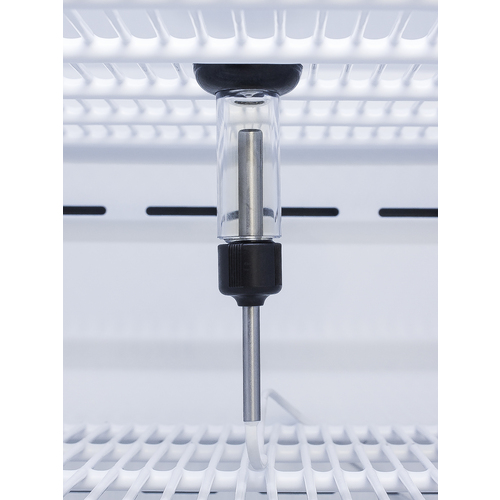

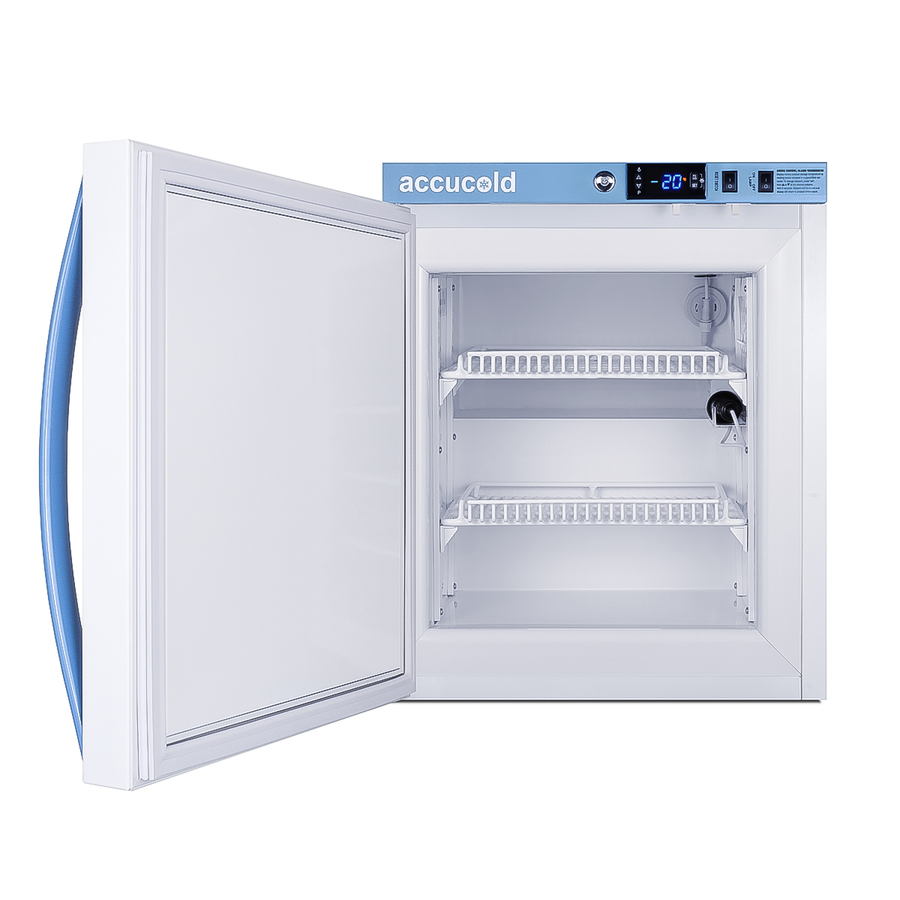

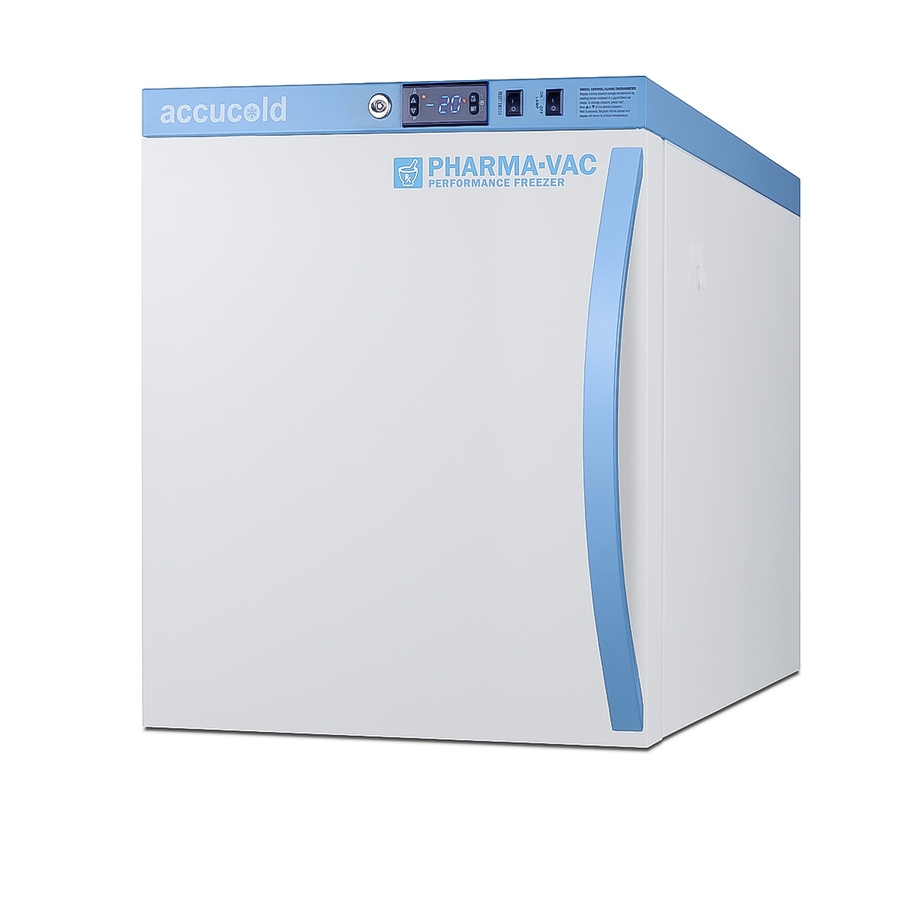

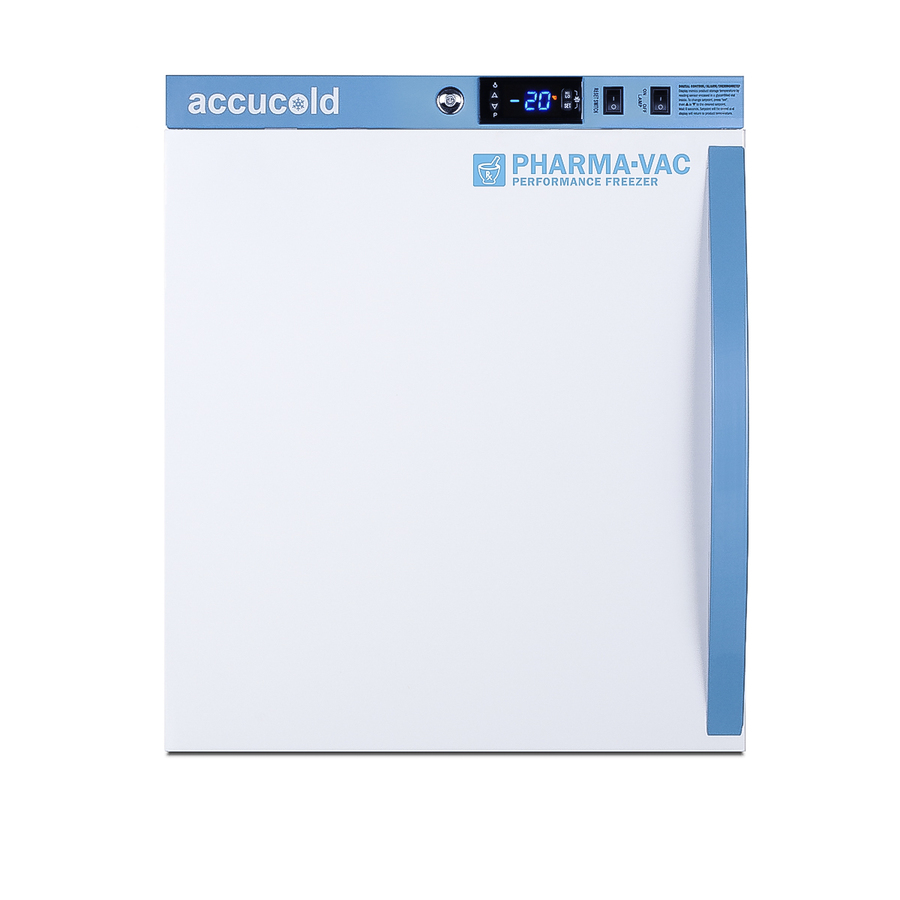

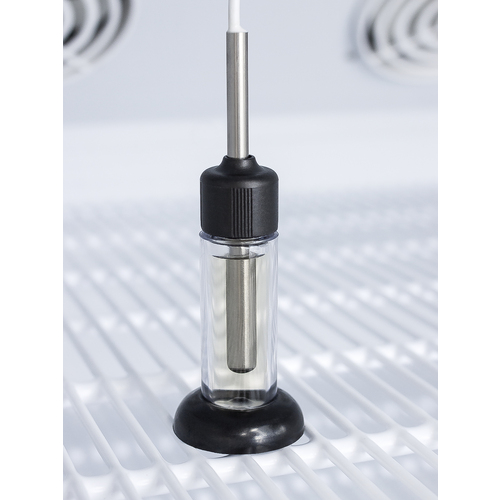

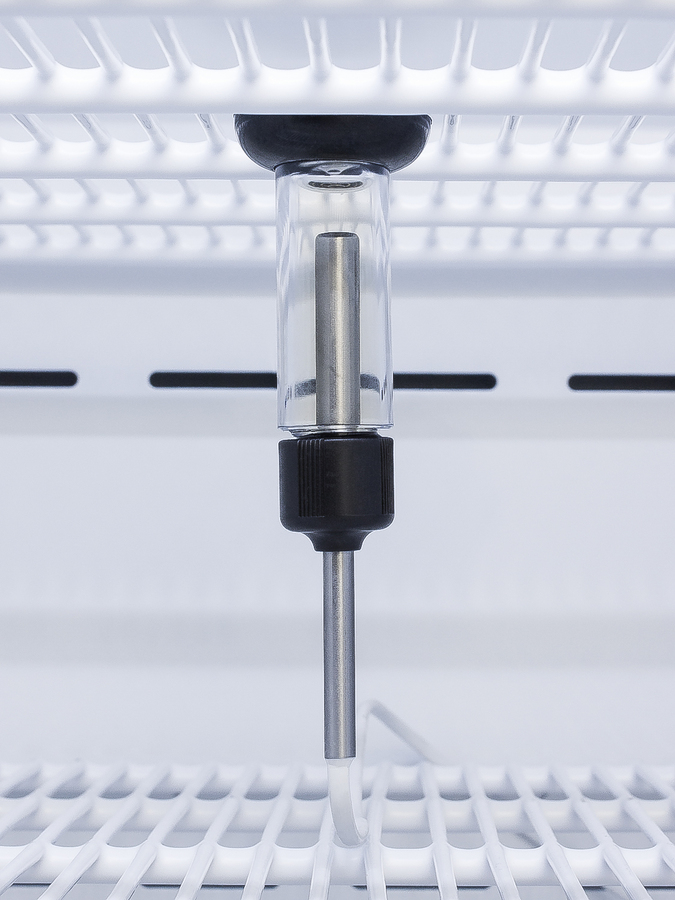

Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines. The AFZ1PVLHD is a 1.4 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions. The AFZ1PVLHD comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The ships with a left hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
