19" Wide General Purpose Refrigerator-Freezer, ADA Height

SKU: AGP34RFLCALADA
Digital controls for the refrigerator section with a 2 to 8ºC temperature range and front combination lock to secure both compartments
Estimated Time to Ship:

7 to 10 days

32.75" H x 19.0" W x 19.75" D
(83cm H x 48cm W x 50cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 32.75" (83 cm)
Nominal Width 19.0" (48 cm)
Width 19.0" (48 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.75" (50 cm)
Depth with door at 90° 36.75" (93 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086033
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 18.5" (47 cm)
Refrigerator - Interior Width 15.75" (40 cm)
Refrigerator - Interior Depth 15.0" (38 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 2
Refrigerator - Temperature Range 2 to 8ºC
Freezer - Interior Height 7.5" (19 cm)
Freezer - Interior Width 14.0" (36 cm)
Freezer - Interior Depth 14.0" (36 cm)
Freezer - Full Door Shelves 1
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.16 oz.
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 15.75" (40 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
LHD - Left hand door swing
Door reversal to left hand swing

Refrigerator-freezer combination

2 to 8ºC refrigerator section for basic storage applications, with an upper freezer compartment ideal for ice packs

Combination lock

Factory-installed front lock secures both compartments with a user-set code. Two keys are included to override the combination as needed

Digital thermostat (refrigerator)

Easy operation with a factory-installed digital thermostat that allows you to manage the refrigerator temperature between 2 and 8ºF (NOTE: the freezer temperature will self-adjust based on the refrigerator setting)

Alarm/thermometer included

Temperature monitoring device (TMD) displays the current and min/max temperature of the refrigerator interior, with an audible alarm to alert if the unit goes out of range

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature

NIST calibrated external temperature readout

Thermometer is NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory and ships with a 2-year certificate of calibration for your records

Fan-forced cooling

Refrigerator section includes a factory-installed fan to help ensure a more evenly cooled interior

Automatic defrost refrigerator

Lower refrigerated section does not require manual defrosting

Manual defrost freezer

Static cooling system in the upper freezer compartment

Thin-line design

Slim width and shallow depth offers an easy fit in facilities with space constraints

Adjustable wire shelves

Flexible design to make the most of your interior

Door storage

3 full racks ideal for water bottles or other non-sensitive items

Interior light

Automatically illuminates when you open the door

Sealed back

Space-saving design that offers easier cleanability

Reversible doors

User-reversible door swing for added flexibility to best accommodate your setting

White exterior finish

Cabinet and doors come in a clean white finish

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's general purpose refrigeration series offers cold storage solutions to meet a variety of facility needs.

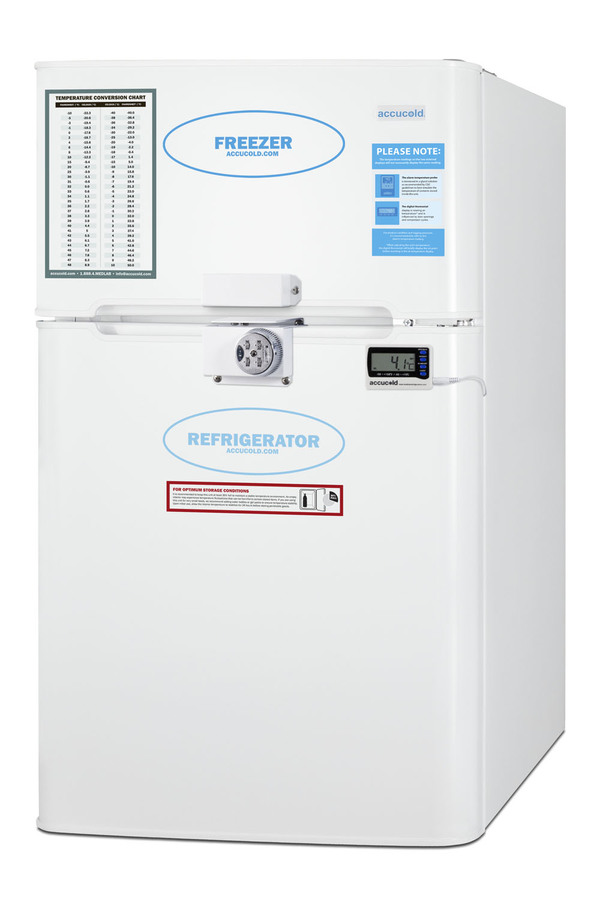

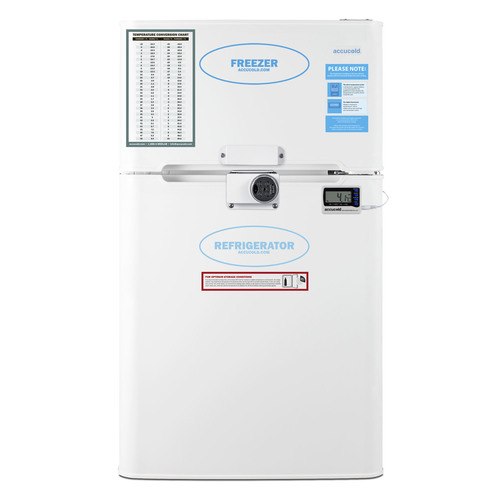

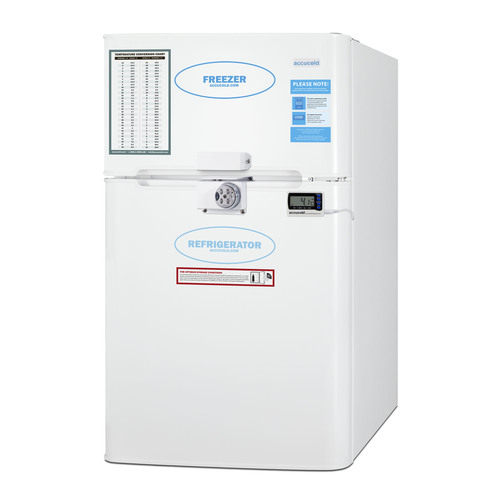

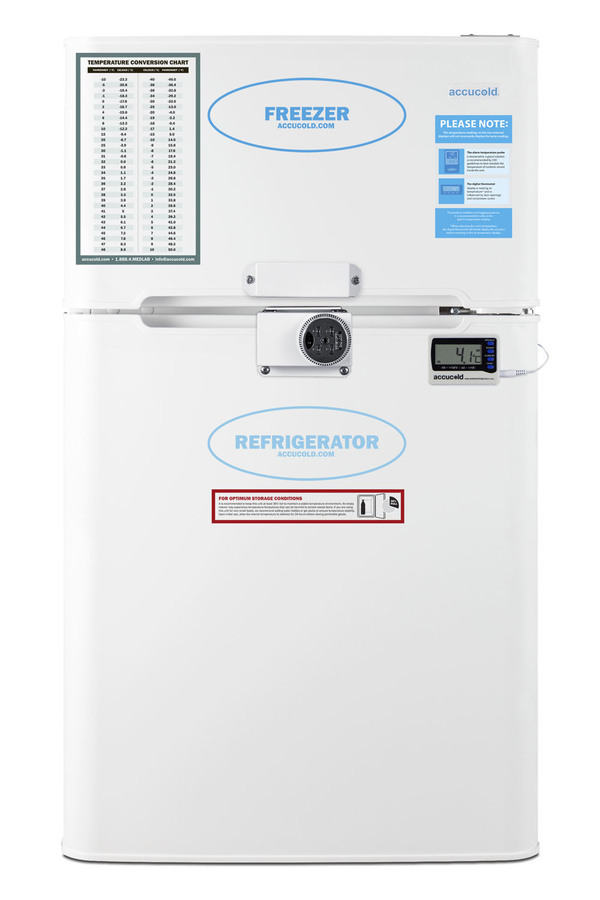

The AGP34RFLCALADA is a two-door freestanding refrigerator-freezer in a slim 19 inch footprint, ideal for offices and institutions with limited floor space. The cabinet is 32 5/8" high, with an additional 1/8" hinge cover for use in ADA compliant applications with lower counter height requirements. A factory-installed lock secures both sections with a user-set combination, with two keys included to override the combination if needed. The lower refrigerator compartment is designed to operate between 2 and 8ºC, with a digital thermostat that allows you to control the temperature without opening the door. We include an alarm/thermometer that users can easily install to monitor the refrigerator temperature. This temperature monitoring device is calibrated to NIST standards in our ISO/IEC 17025:2017 accredited calibration laboratory and ships with a 2-year certificate for your records. The thermometer displays the current and high/low temperatures to the nearest tenth of a degree in a readout switchable from Celsius to Fahrenheit. The temperature probe is encased in a glycol-filled bottle to help simulate the temperature of stored materials, rather than the refrigerator air temperature. An audible alarm warns if the unit has gone out of the recommended range.

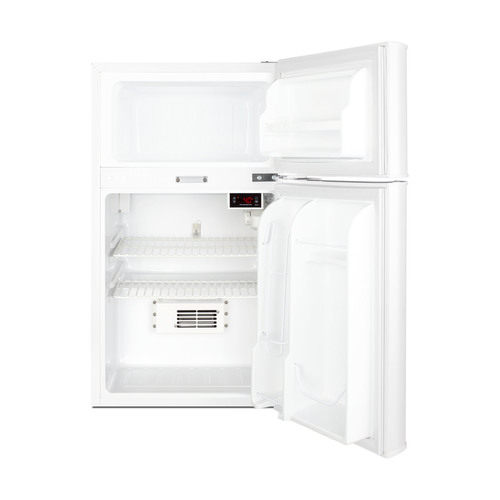

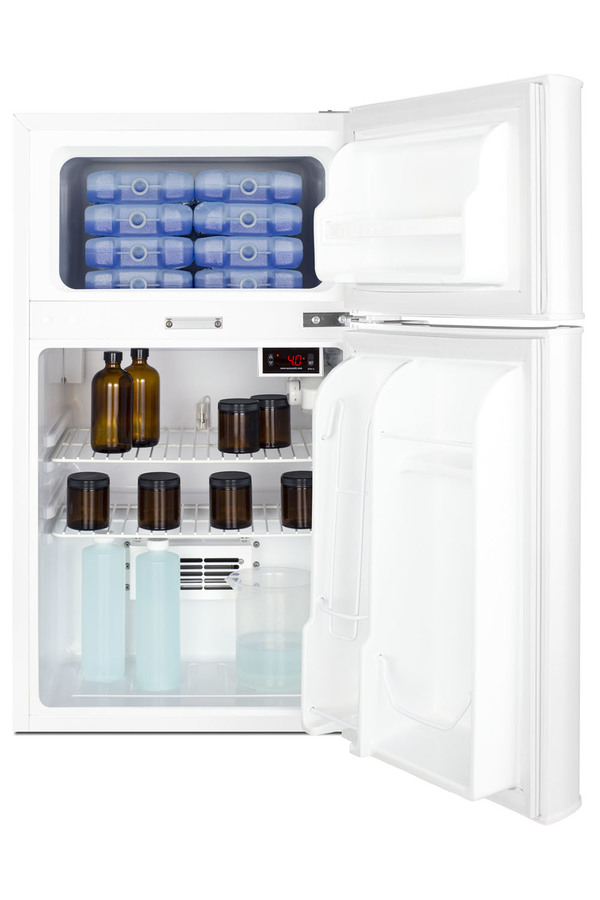

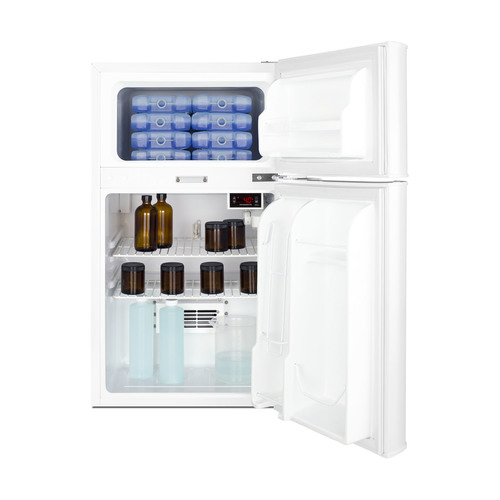

Inside the refrigerator section, the AGP34RFLCALADA features fan-forced cooling to for even temperature distribution, with adjustable wire shelves to help promote proper circulation. Door racks are included to hold non-temperature sensitive items. The refrigerator utilizes automatic defrost to reduce user maintenance, while the upper freezer compartment comes with a static manual defrost system. The freezer also includes door storage. It is best suited for storing ice packs and other items without strict temperature requirements. (NOTE: the freezer temperature is based off the refrigerator setting and cannot be adjusted independently.) Additional features include a user-reversible door swing, sealed back for easier cleaning, and interior refrigerator light.

With its slim fit and user-friendly design, the AGP34RFLCALADA is a smart solution for facilities seeking an upgraded general purpose refrigerator-freezer. For more advanced temperature uniformity, explore Accucold's purpose built series, including stacked refrigerator-freezer combinations with independent cooling systems.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

Download
BROCHURE w/ DRAWINGS
AGP34RFLCALADA.pdf
Download
TECHNICAL DRAWING (.dwg)
AGP34RFLCALADA_REF._FREEZER__A-C_.dwg
Download
ASSEMBLY DRAWING
AGP34RFLCALADA_ASS_Y.pdf
Download
MSDS INFORMATION
R600a_AO.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
