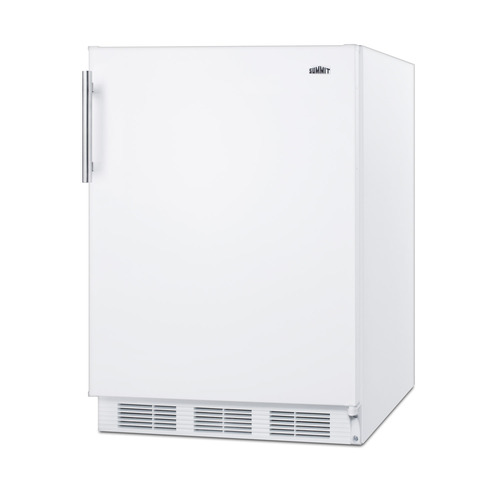

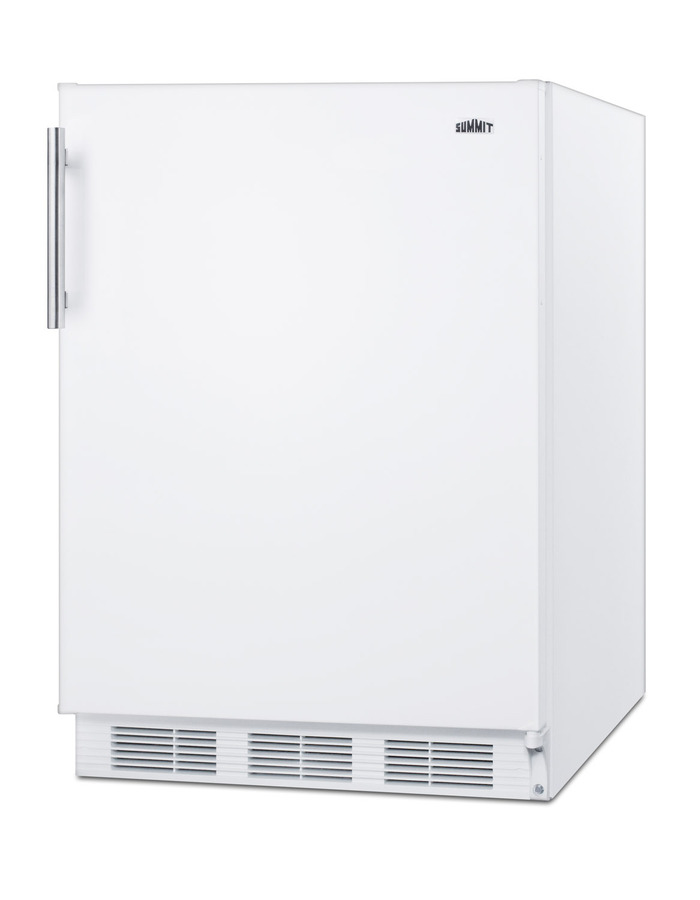

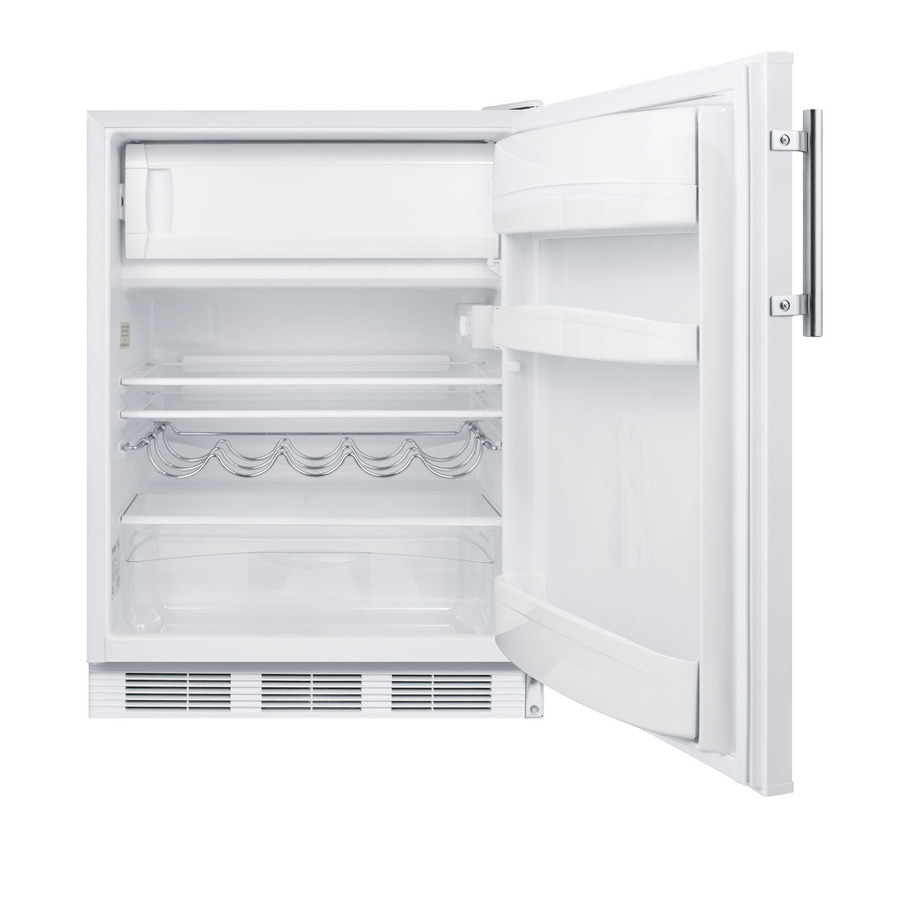

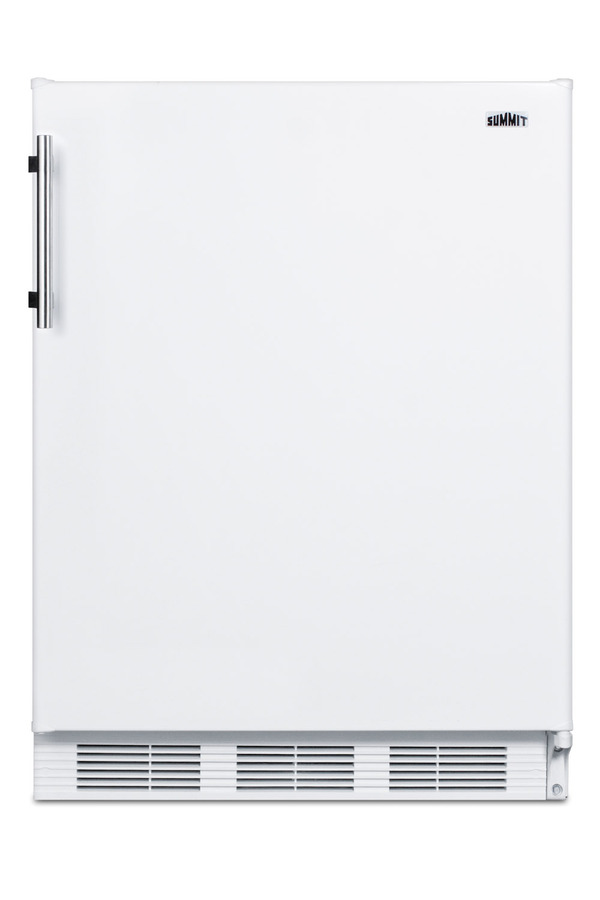

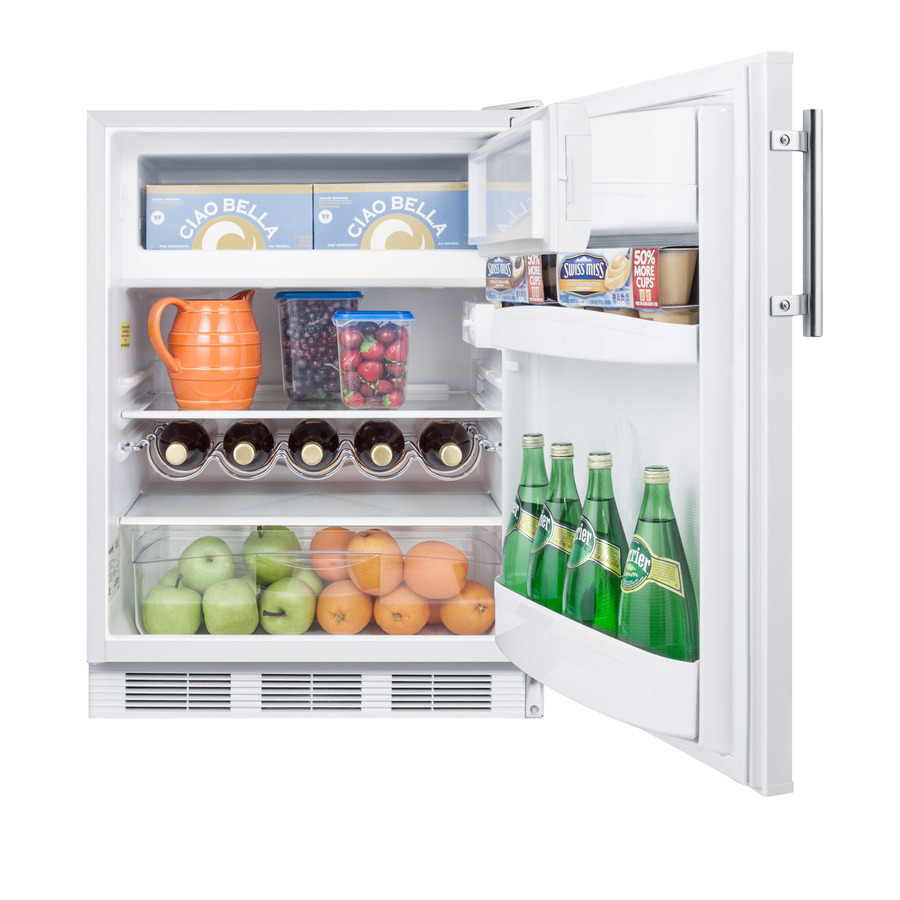

24" Wide Refrigerator-Freezer, ADA Compliant

SKU: AL650W

Made in Europe and sized for use in ADA compliant settings

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101068206
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Refrigerator - Interior Height	19.5" (50 cm)
Refrigerator - Interior Width	20.5" (52 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.0" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	SS Hinges Stainless steel top and bottom hinges
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Interior

FCGP internal fan with gel packs

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees	CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate	CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

Undercounter Refrigerator-Freezer

24" wide refrigerator with freezer compartment sized to fit under ADA compliant counters

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

ADA compliant

32" height for use in settings complying with ADA guidelines for lower counter height

Fully finished white cabinet

Allows the unit to be used freestanding

Dual evaporator

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Reversible door

User-reversible door swing for added flexibility

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage

Store large bottles right on the door for easy access

Clear crisper

Get the longest life and best taste out of produce by storing in a convenient slide drawer

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The AL650 Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.

At 32" high, the AL650W is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a white exterior finish and a user-reversible door swing.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The AL650W has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650 Series. For built-in undercounter applications, see the AL650WBI.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
AL650W.pdf

TECHNICAL DRAWING (.dwg)
AL650REFRIGERATOR-FREEZERA-C2000.dwg

USE & CARE
CT66W_CT66BK__User_Manual_51220.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
