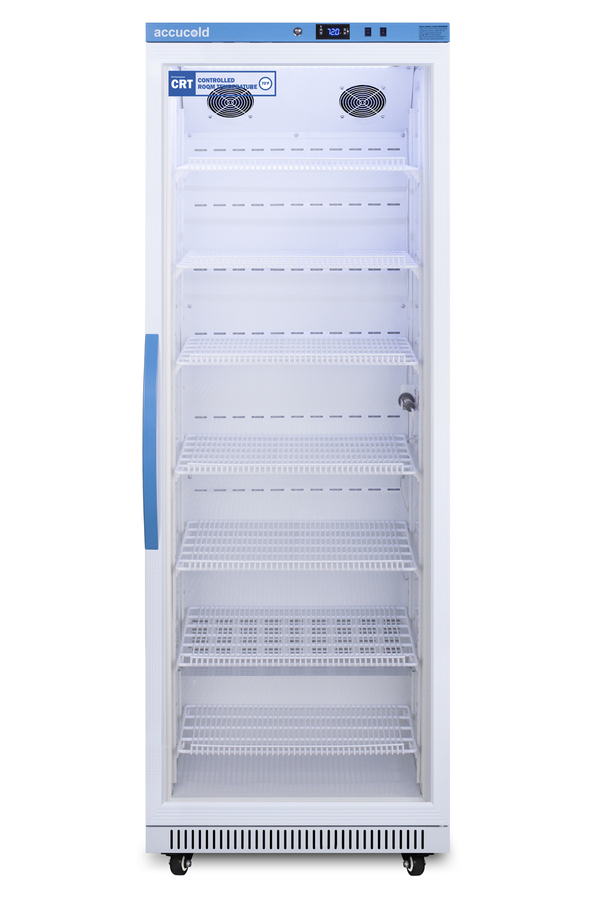

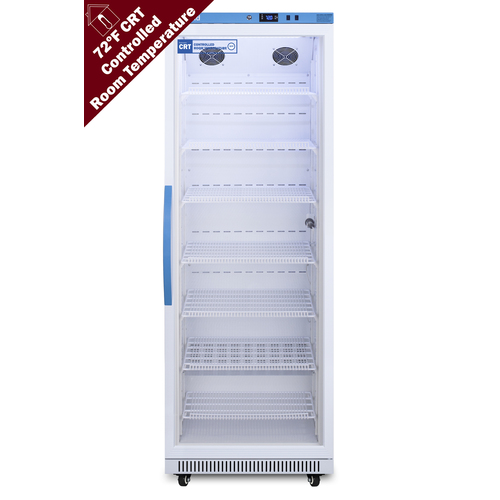

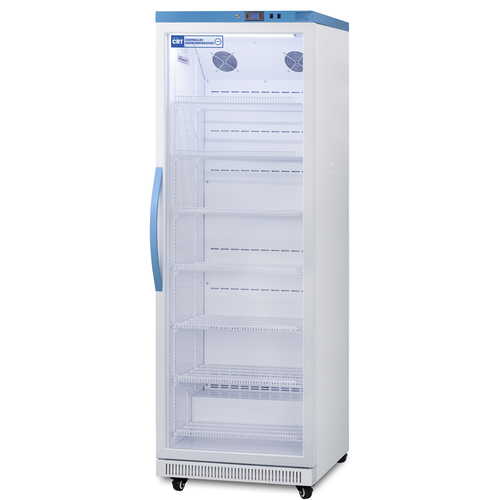

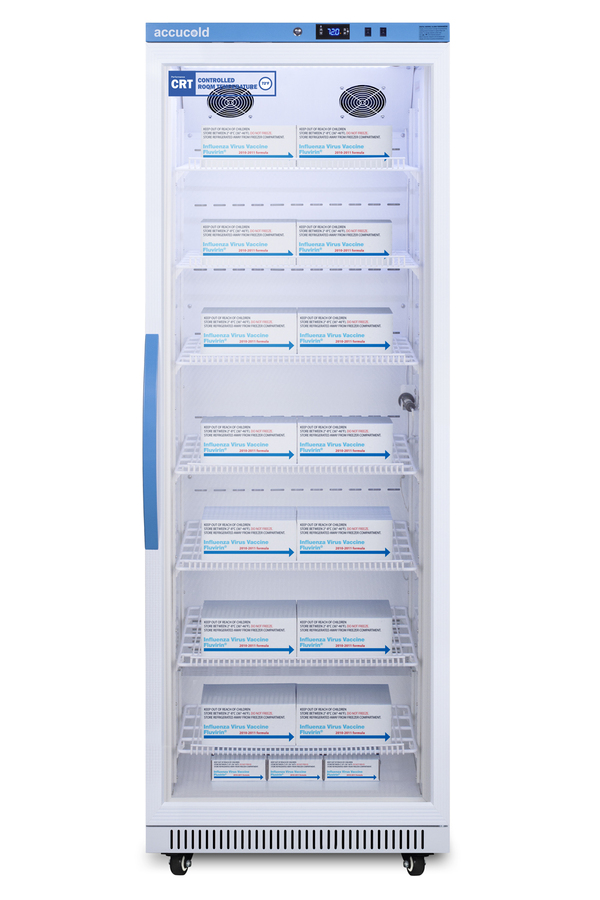

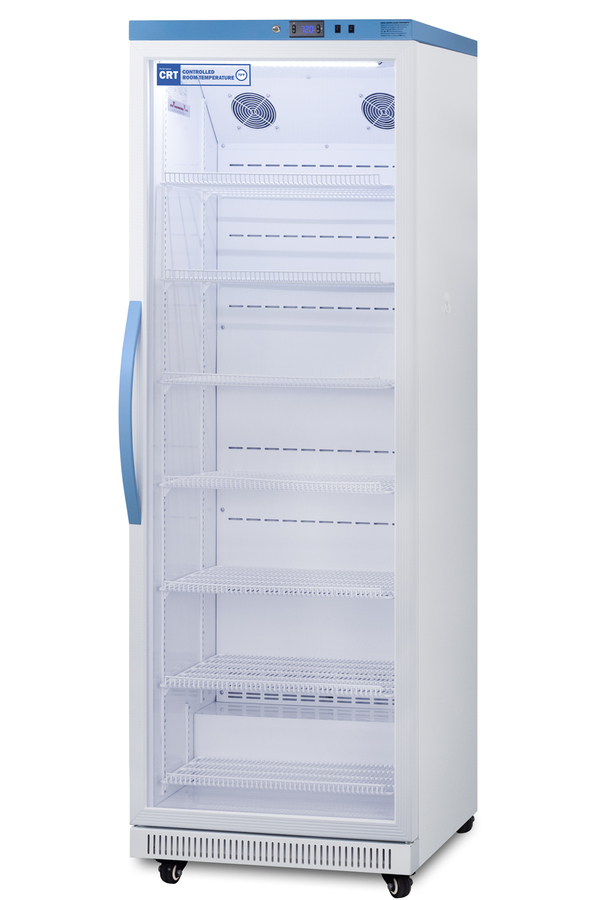

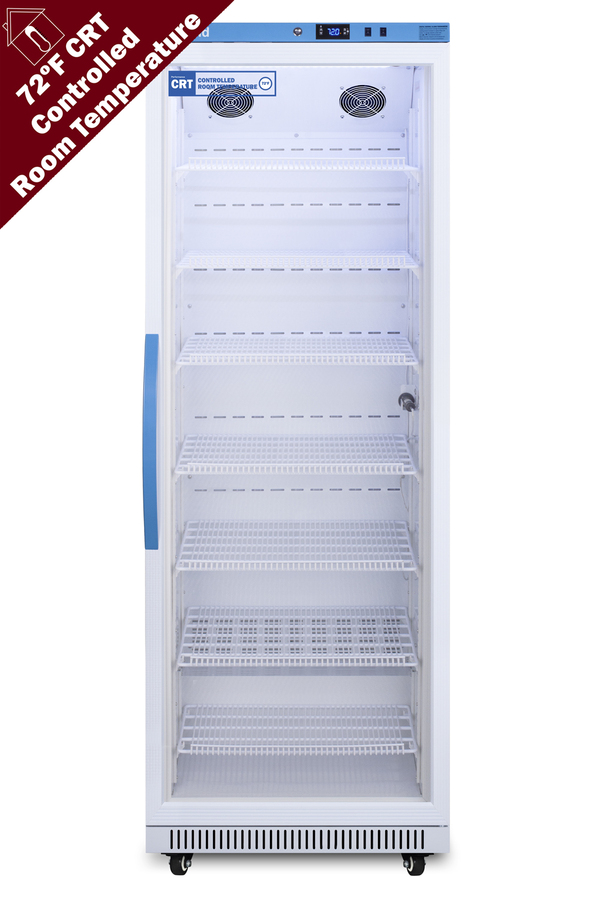

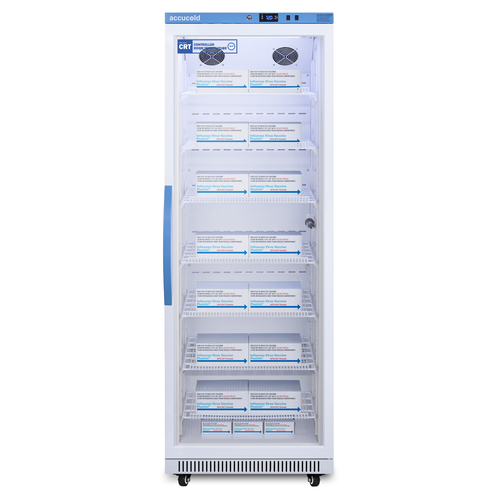

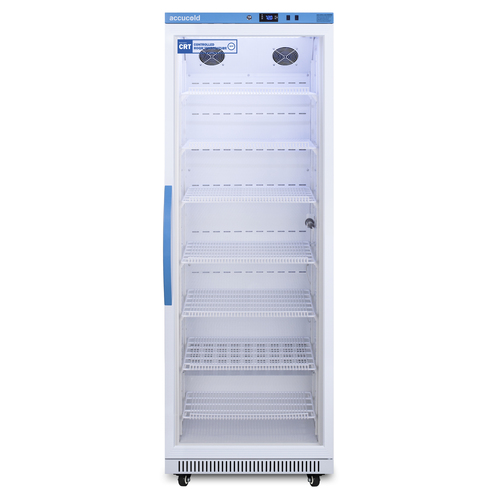

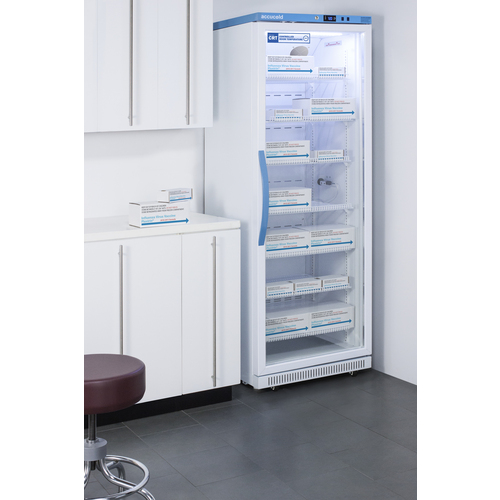

18 Cu.Ft. Upright Controlled Room Temperature Cabinet
2 to 3 days
(199cm H x 70cm W x 66cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 79.0" (201 cm) |
| Height of Cabinet | 78.5" (199 cm) |
| Nominal Width | 28.0" (71 cm) |
| Width | 27.5" (70 cm) |
| Width with Door Open | 28.0" (71 cm) |
| Nominal Depth | 26.0" (66 cm) |
| Depth | 26.0" (66 cm) |
| Depth with Handle | 27.75" (70 cm) |
| Depth with door at 90° | 52.0" (132 cm) |
| Capacity | 18.0 cu.ft. (510 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 275.0 lbs. (125 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101090412 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 7 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.75oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 90.0 |
| Wheel Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 68 to 77ºF (preset to 72ºF) |
|
Dimensions
|
|
| Interior Height | 68.5" (174 cm) |
| Interior Width | 24.13" (61 cm) |
| Interior Depth | 18.75" (48 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 24.13" (61 cm) |
| Compressor Step Depth | 6.5" (17 cm) |
AVAILABLE UPGRADES
| Exterior | |||
|---|---|---|---|
|
|||
| Lock | |||
|
|||
| Interior | |||
|
FEATURES
Purpose-built design to store medication, pharmaceuticals, and other sensitive materials at 72ºF
Designed and purpose-built to support manufacturer recommendations for storage of pharmacy, medication, and vaccines within 20° - 25°C (68° - 77°F) as defined by USP <1079> Good Storage and Distribution Practices for Drug Products
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Designed to maintain a set temperature, even when ambient room temperature is as cold as 68ºF or as high as 86ºF

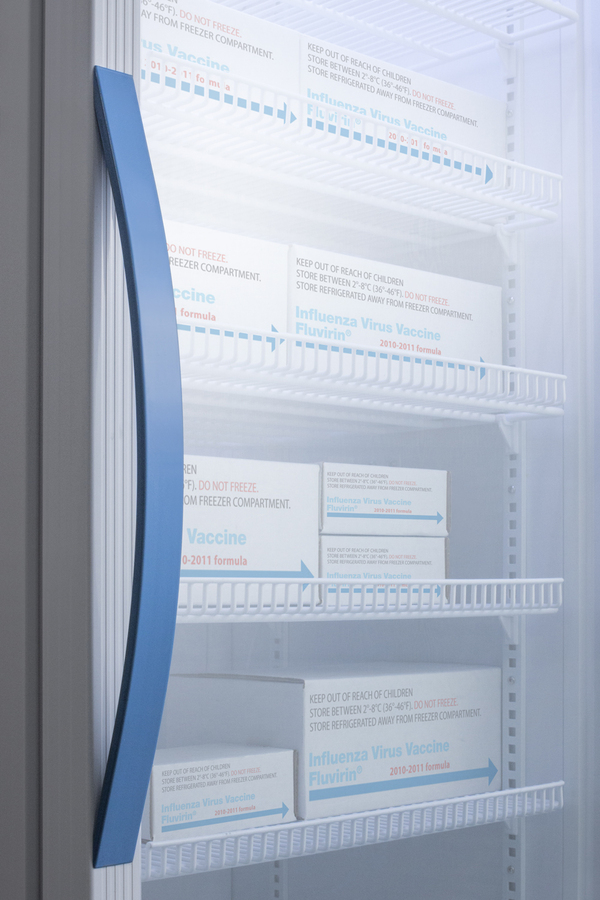

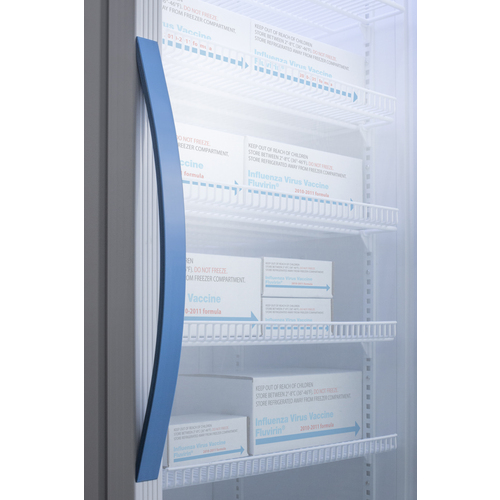

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +68 to +77ºF
Visual and audible alarms alert if the interior temperature rises or falls out of set range

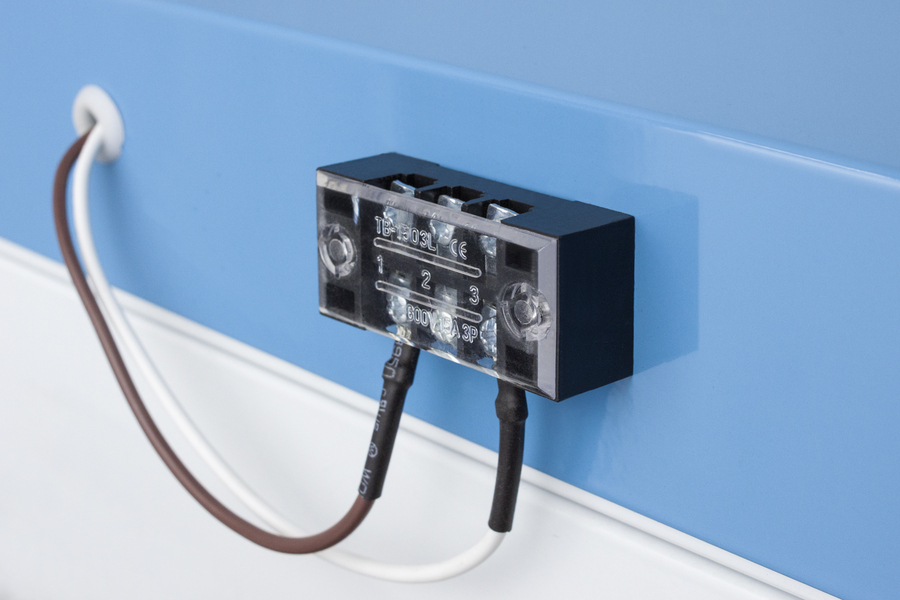

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

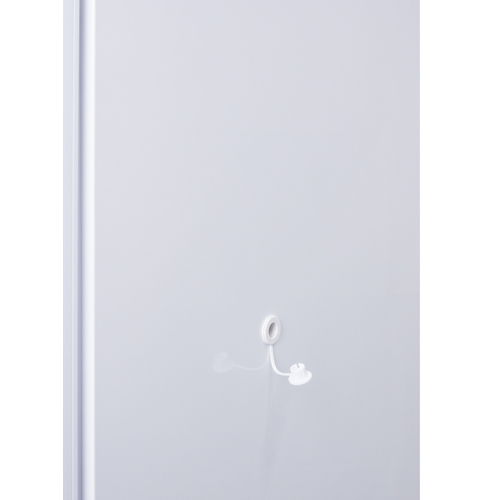

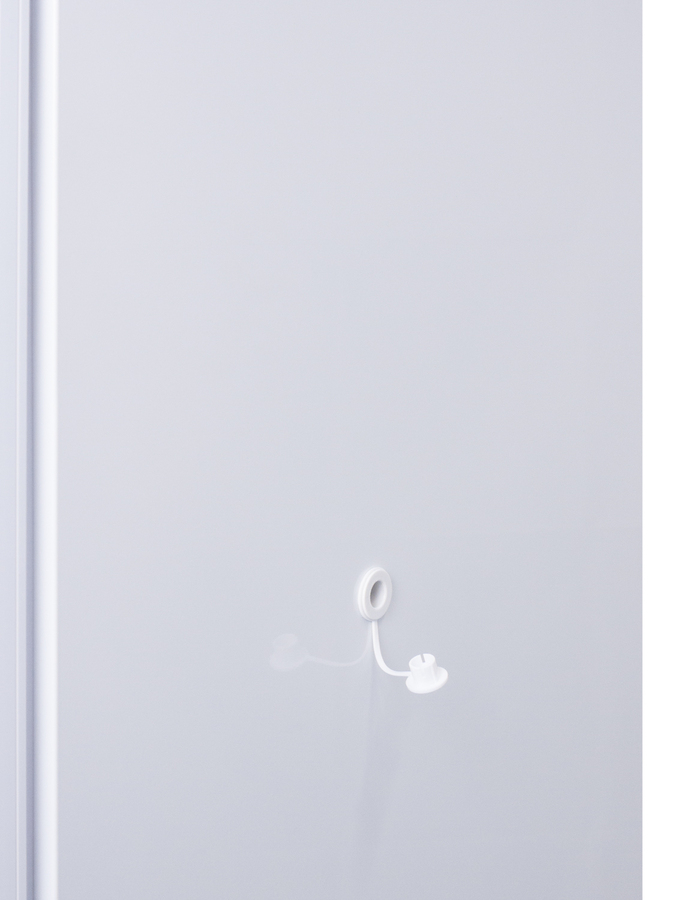

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point

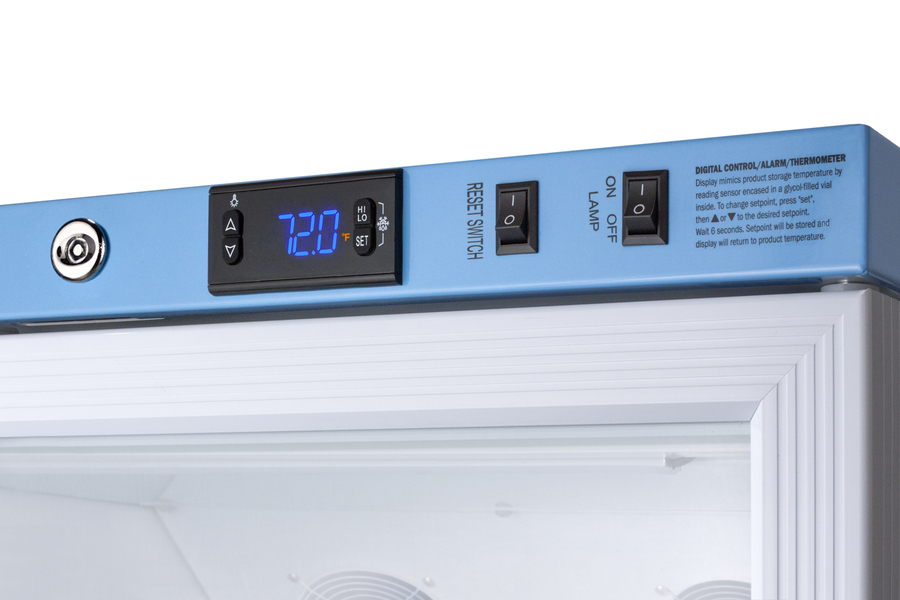

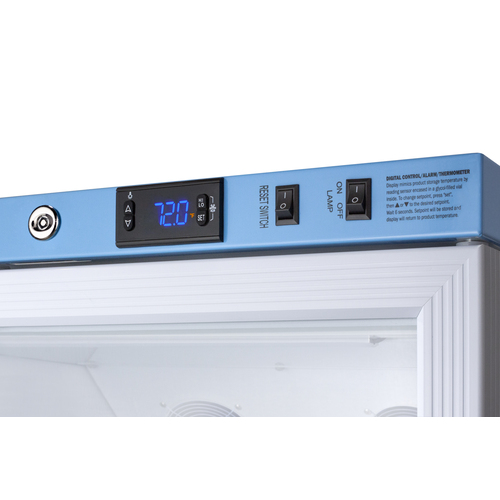

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
Provides a full display of stored contents
User-reversible door swing for added flexibility
Quality door gaskets ensure a tight seal for energy savings and improved performance

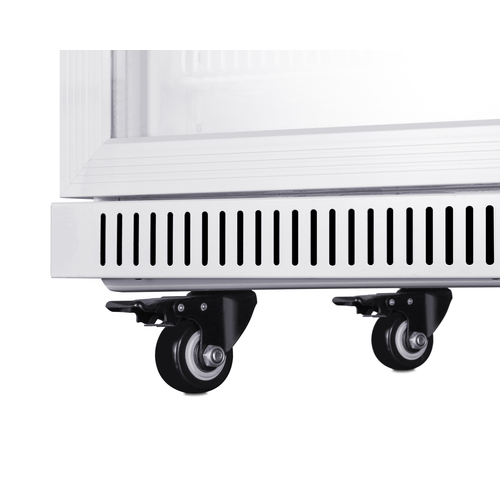

Four pre-installed 3" wheels with brakes ensure smooth mobility, making it easier to clean around and underneath the unit as needed
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 18 cu.ft. Browse the CRT series for more information
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

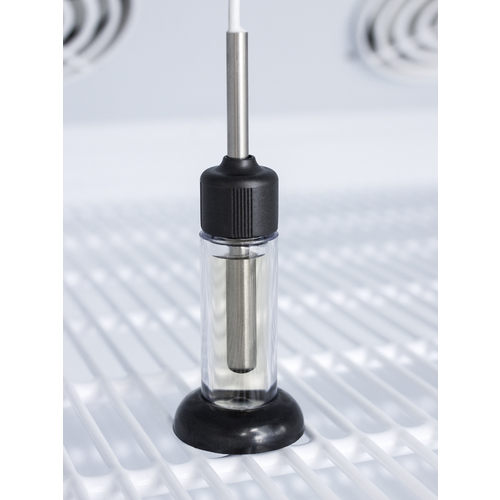

Accucold's Performance Series Controlled Room Temperature Cabinets offer purpose-built storage solutions for medication requiring a stable room temperature environment. The ARG18PV-CRT is an upright 18 cuf.ft. unit pre-set to 72ºF, with an adjustable range from 68º to 77ºF. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARG18PV-CRT utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The ARG18PV-CRT comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The double pane tempered glass door provides a full view of the interior. The user-reversible door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 3" high casters with brakes make it easier to move as needed. Designed with hydrocarbon refrigerant, the ARG18PV-CRT provides an energy efficient solution to stabilized room temperature storage, even when ambient temperatures can reach temperatures as cold as 68ºF or warm as 86ºF. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
