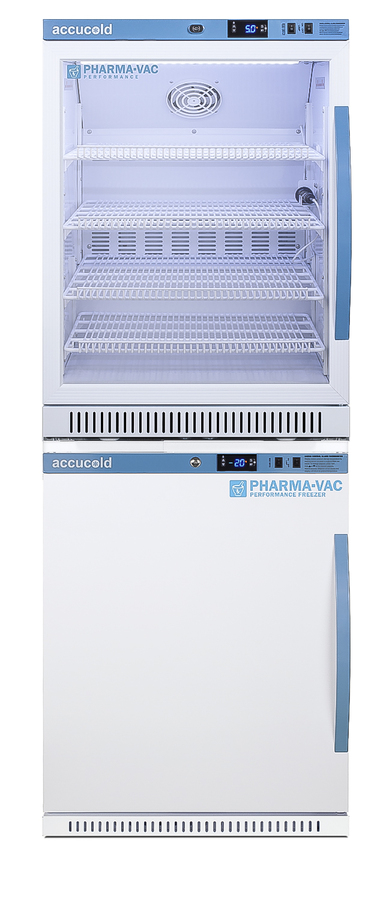

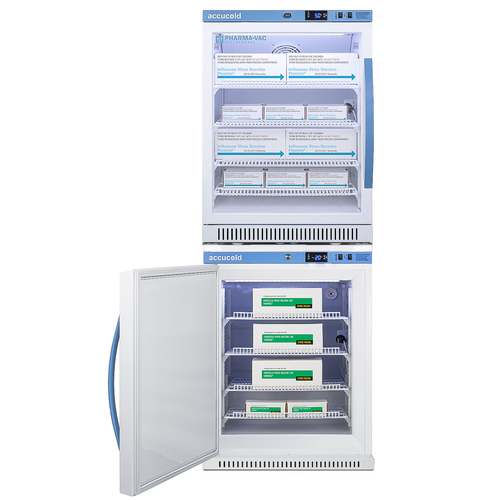

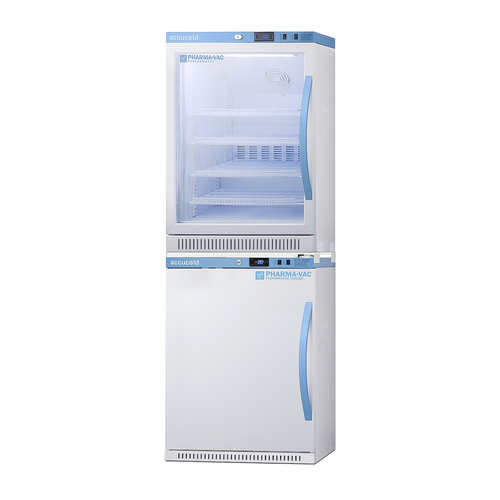

24" Wide Performance Series All-Refrigerator/All-Freezer Combination
2 to 3 days
(163cm H x 59cm W x 64cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 64.0" (163 cm) |
Height of Cabinet | 64.0" (163 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Width with Door Open | 23.88" (61 cm) |
Nominal Depth | 25.0" (64 cm) |
Depth | 25.0" (64 cm) |
Depth with Handle | 26.75" (68 cm) |
Depth with door at 90° | 47.0" (119 cm) |
Capacity | 9.88 cu.ft. (280 L) |
Door | Glass |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Voltage/Frequency | 115 V AC/60 Hz |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101104164 |
Refrigerator-Freezer
|
|
Door Swing | LHD |
Reversible | No |
Adjustable Shelves | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 24.5" (62 cm) |
Refrigerator - Interior Width | 20.0" (51 cm) |
Refrigerator - Interior Depth | 17.0" (43 cm) |
Refrigerator - Capacity | 6.0 cu.ft |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 4 |
Refrigerator - Temperature Range | 2 to 8ºC |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 1.66 oz. |
Freezer - Interior Height | 22.5" (57 cm) |
Freezer - Interior Width | 18.0" (46 cm) |
Freezer - Interior Depth | 18.0" (46 cm) |
Freezer - Capacity | 3.88 cu.ft |
Freezer - Shelf Type | Wire |
Freezer - Shelf Qty | 4 |
Thermostat Type | Digital |
Fan Type | Interior |
Freezer - Temperature Range | -30 to -10ºC |
Freezer - Refrigerant Type | R290a |
Freezer - Refrigerant Amount | 1.73 oz. |
AVAILABLE UPGRADES
Interior | ||
---|---|---|
|
||
Exterior | ||
|
FEATURES
Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)

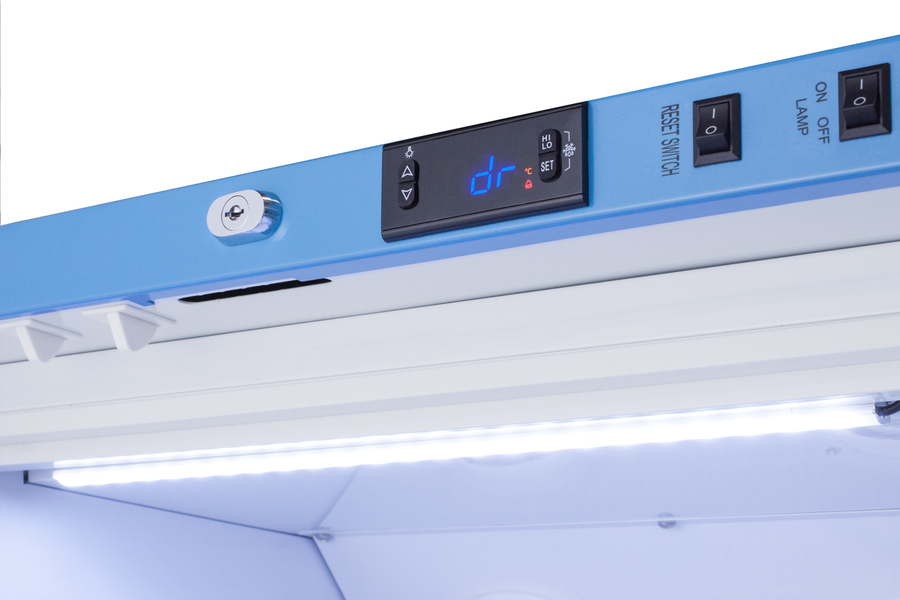

Visual and audible alarms alert if the interior temperature rises or falls out of set range

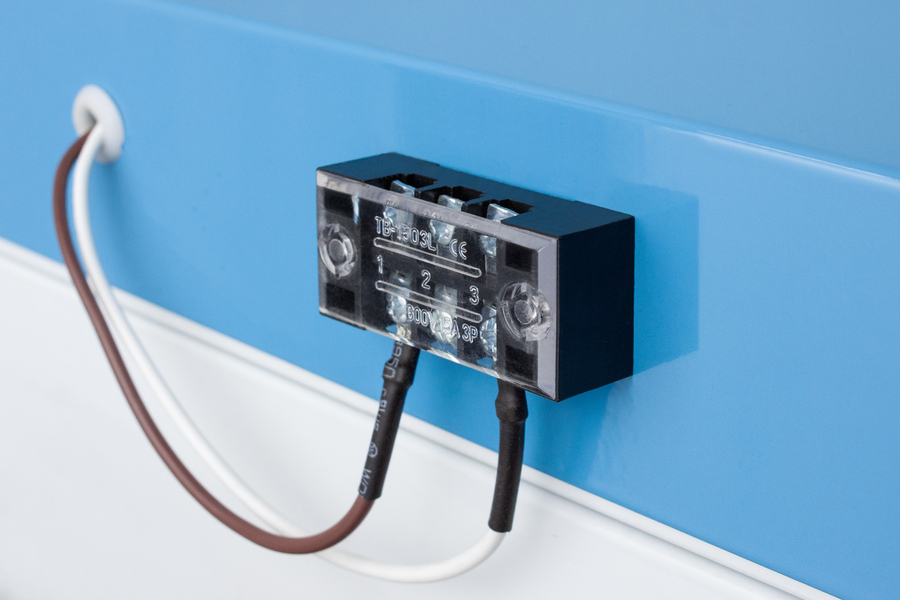

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Static cooling system for reduced temperature fluctuations

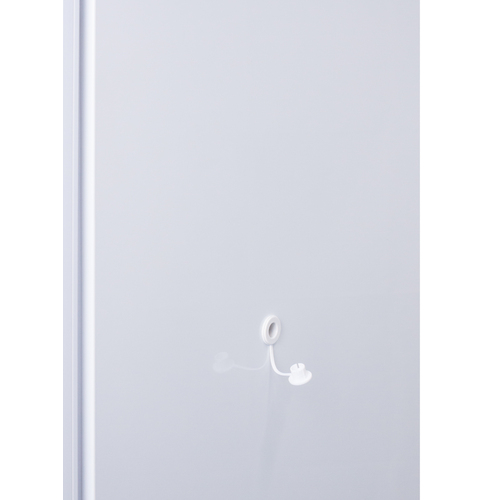

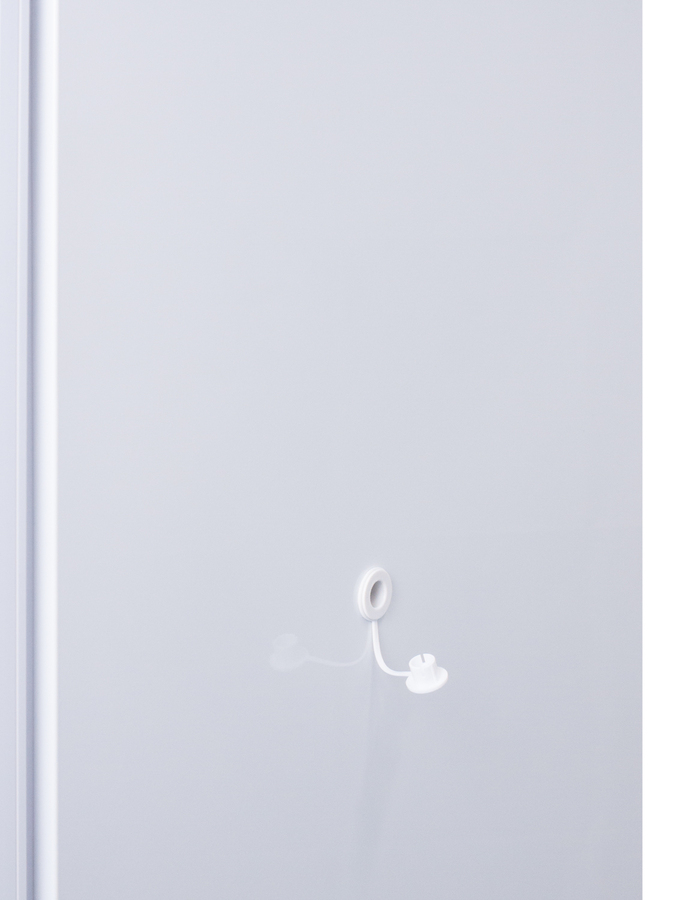

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarms sound if the power connection is interrupted
Audible and visual alarms warn if the sensor is disrupted
Control panels require password entry to adjust the parameters beyond the set point

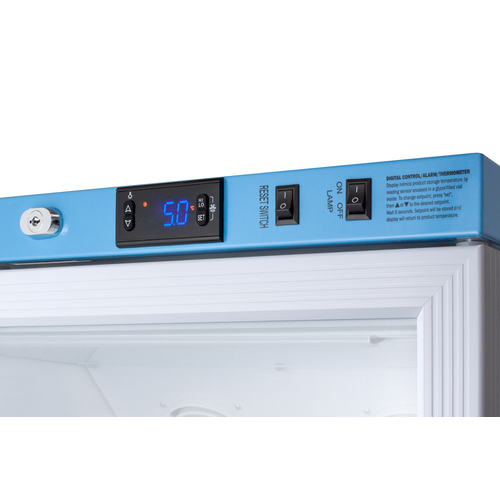

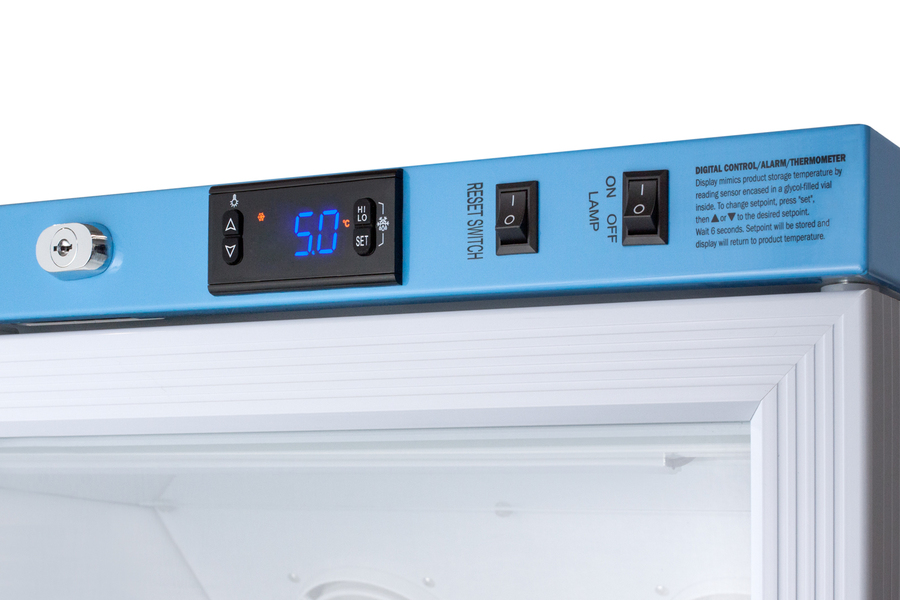

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panels provide a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
Designed to accommodate a variety of sizes for flexible storage
Secure three-pronged cord for added unit safety
Energy efficient LED lighting with internal on/off switch
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

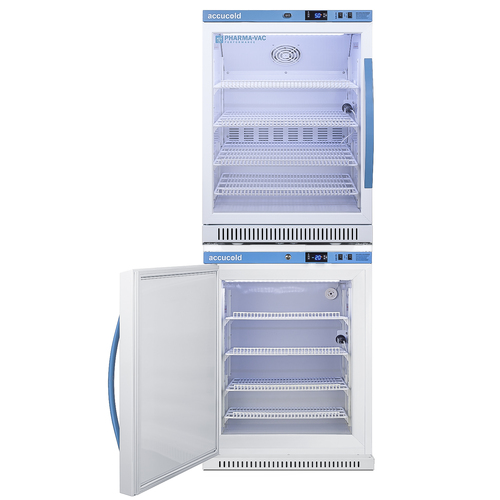

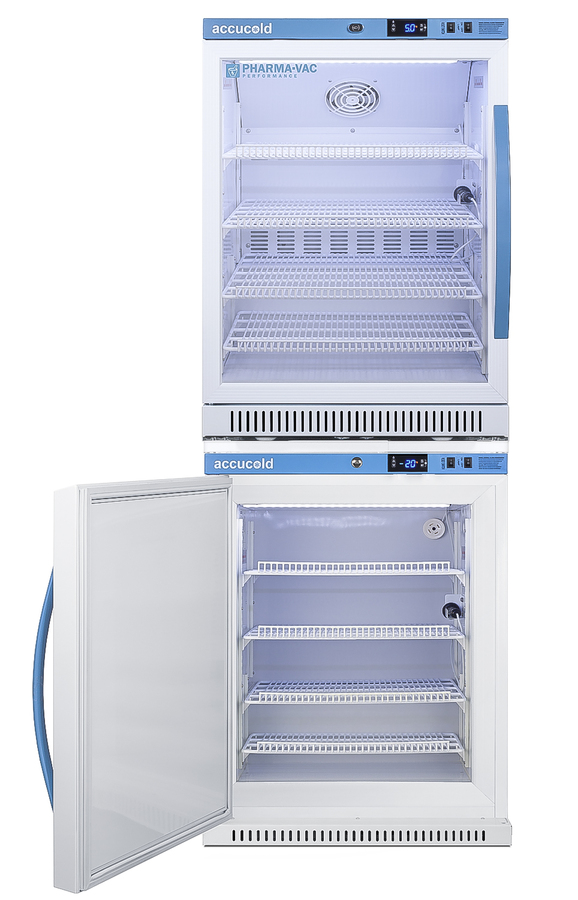

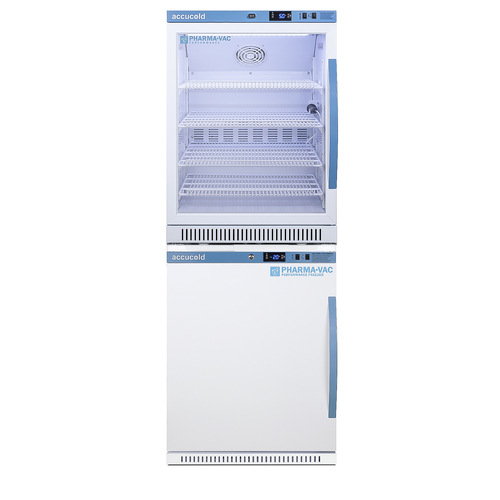

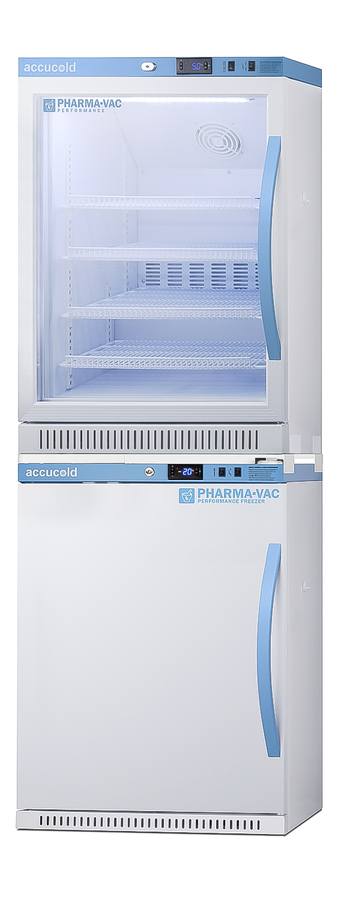

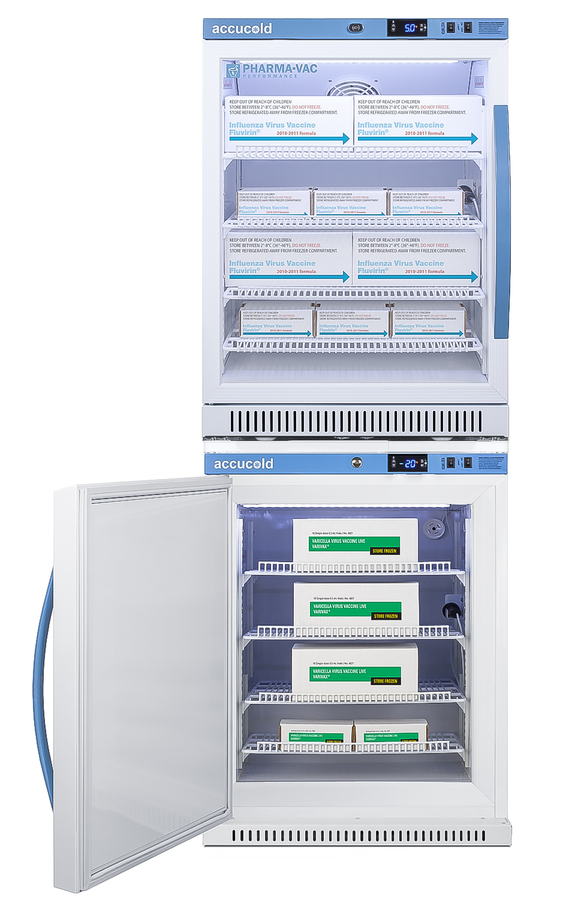

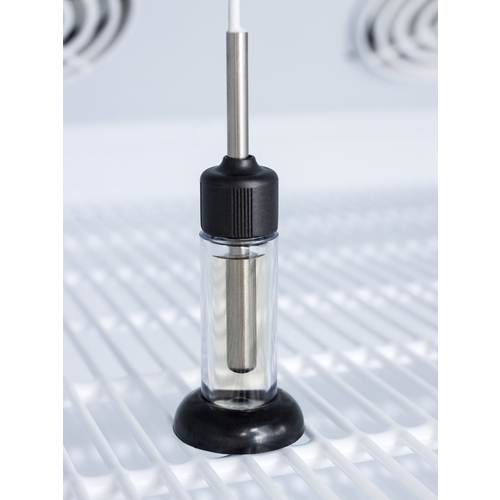

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC guidelines. Sized just under 24" wide, the ARG6PV-AFZ5PVBIADASTACKLHD combines the 6 cu.ft. ARG6PV auto defrost all-refrigerator with AFZ5PVBIADA all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. Both units feature left hand door swings. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units' interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARG6PV refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the AFZ5PVBIADA, our Performance Series 3.88 cu.ft. all-freezer that utilizes static manual defrost operation. The freezer includes four adjustable plastic-coated wire shelves for flexible storage. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
