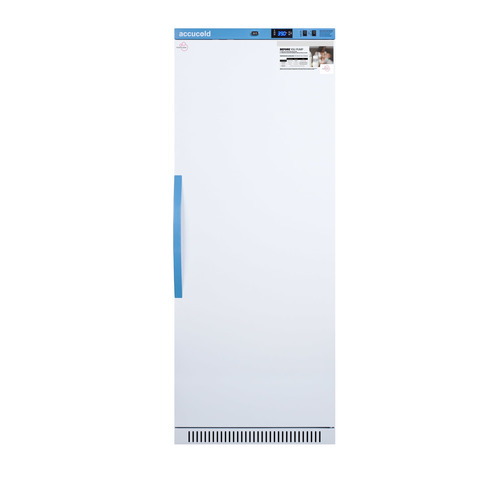

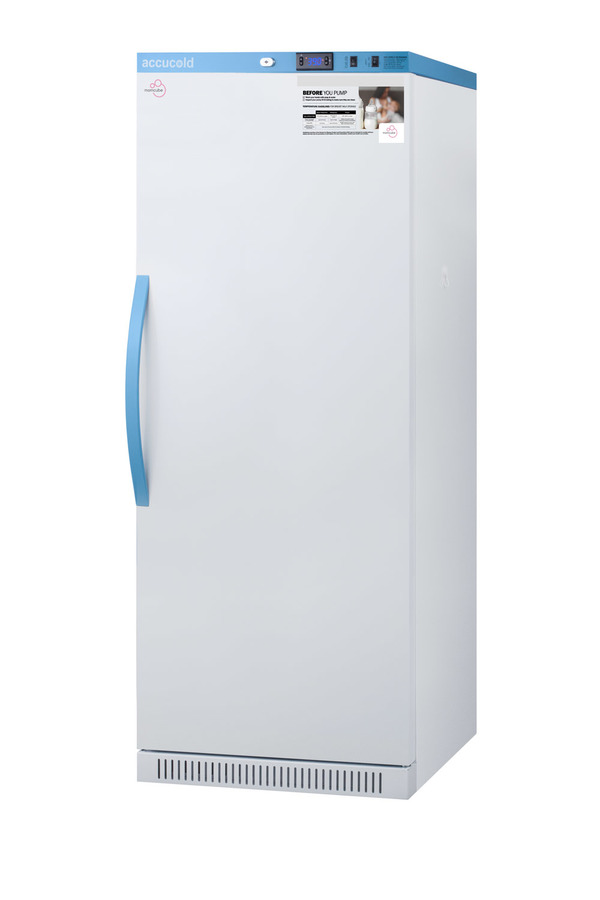

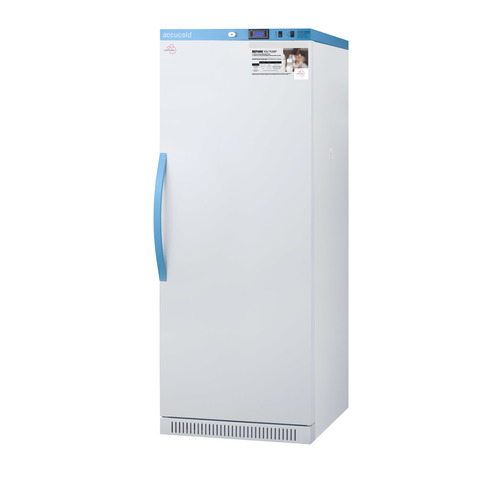

12 Cu.Ft. MOMCUBE® Breast Milk Refrigerator
5 to 7 days
(157cm H x 59cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 62.0" (157 cm) |
| Height of Cabinet | 61.75" (157 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.38" (62 cm) |
| Depth with Handle | 26.13" (66 cm) |
| Depth with door at 90° | 46.5" (118 cm) |
| Capacity | 12.0 cu.ft. (340 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 215.0 lbs. (98 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101066578 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Lockers |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 2.11oz. |
| Interior Light | Yes |
| Temperature Range | 33 to 40ºF |
|
Dimensions
|
|
| Interior Height | 53.0" (135 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
||
| Lock | ||
|
FEATURES
Designed and purpose-built for breast milk storage

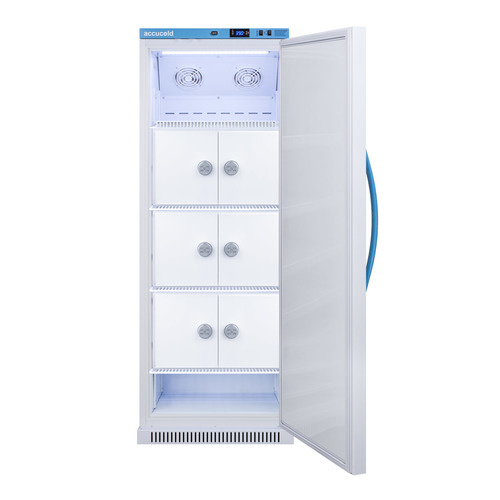

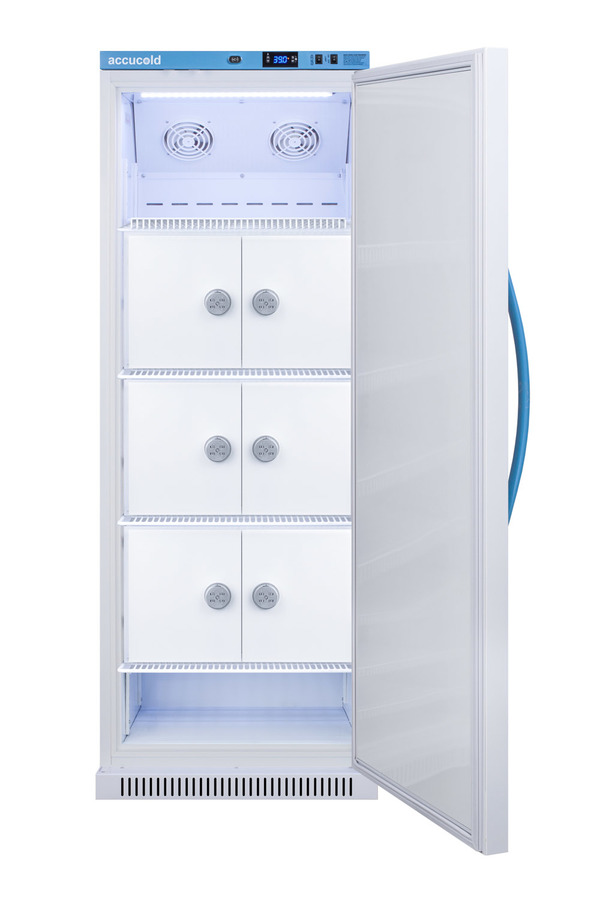

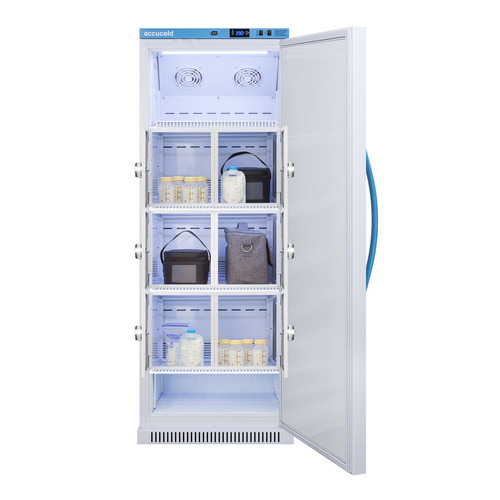

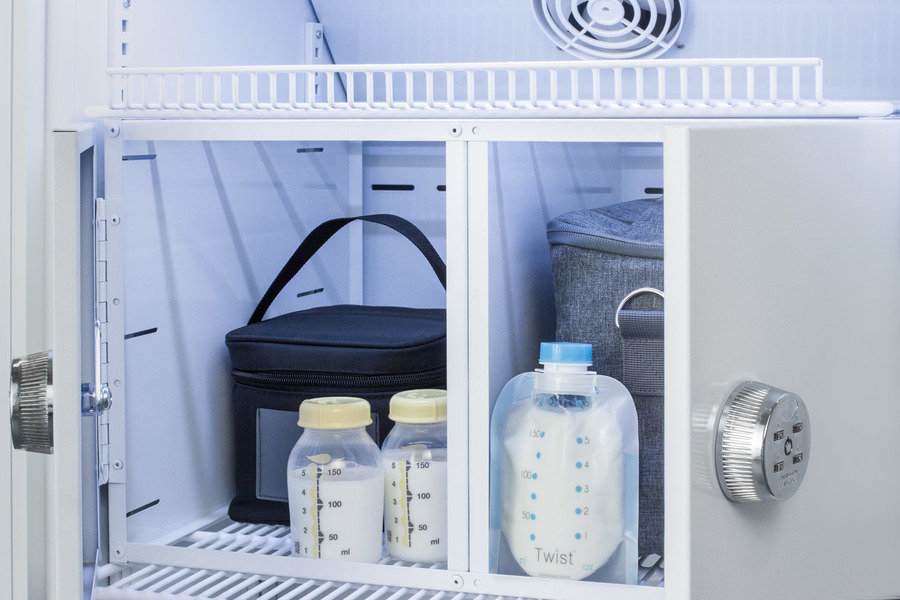

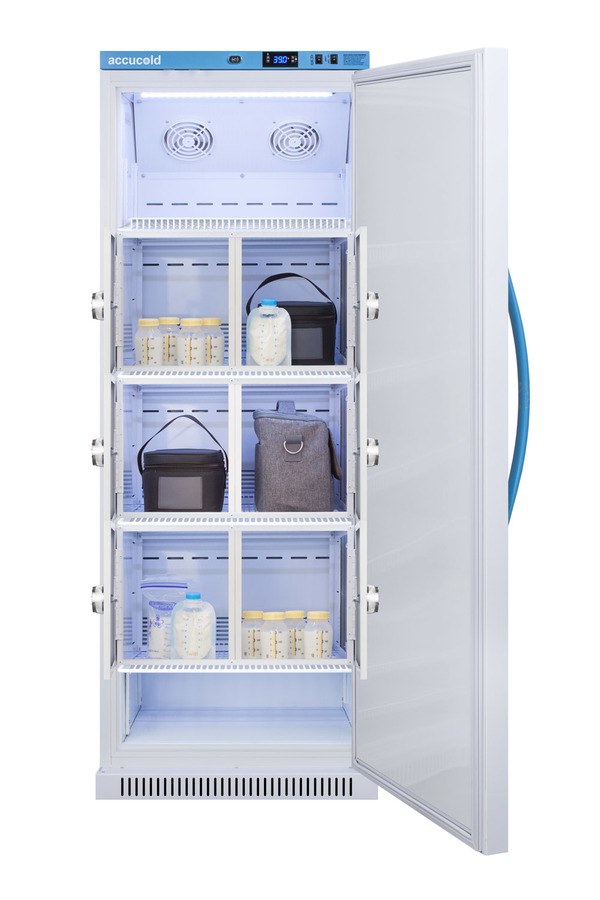

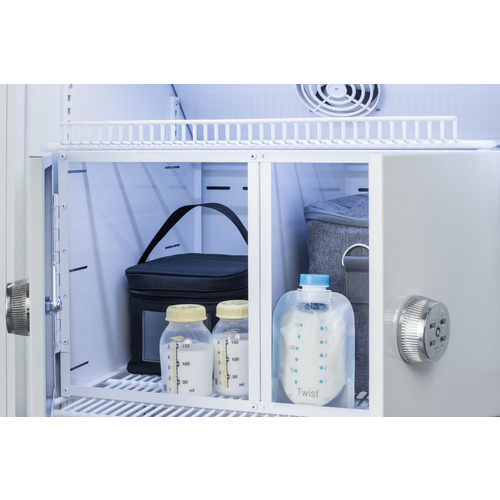

Six interior lockers sized at 11" H x 9 3/8" W x 15 1/4" D accommodate standard and oversized nursing bottles and travel bags for individual privacy
Allows each mother her own access system for added security
Locks can be reset or accessed by staff/managers as needed (2 keys included)
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between 33 to 40ºF

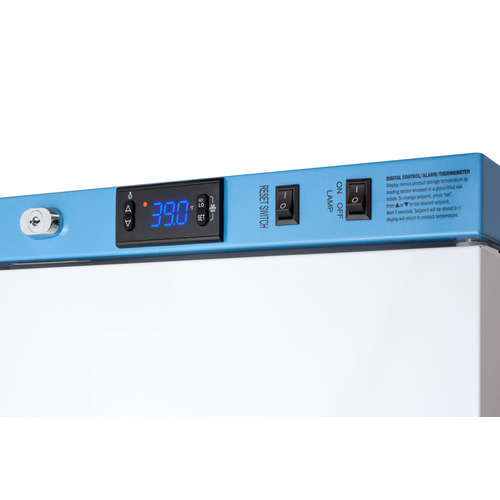

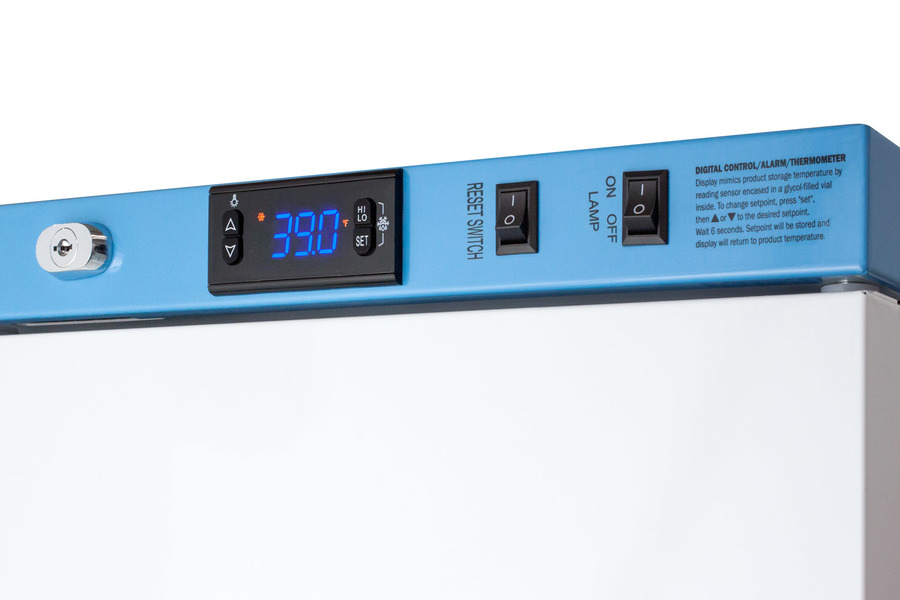

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Keyed locked near top of door for added security (2 keys included)

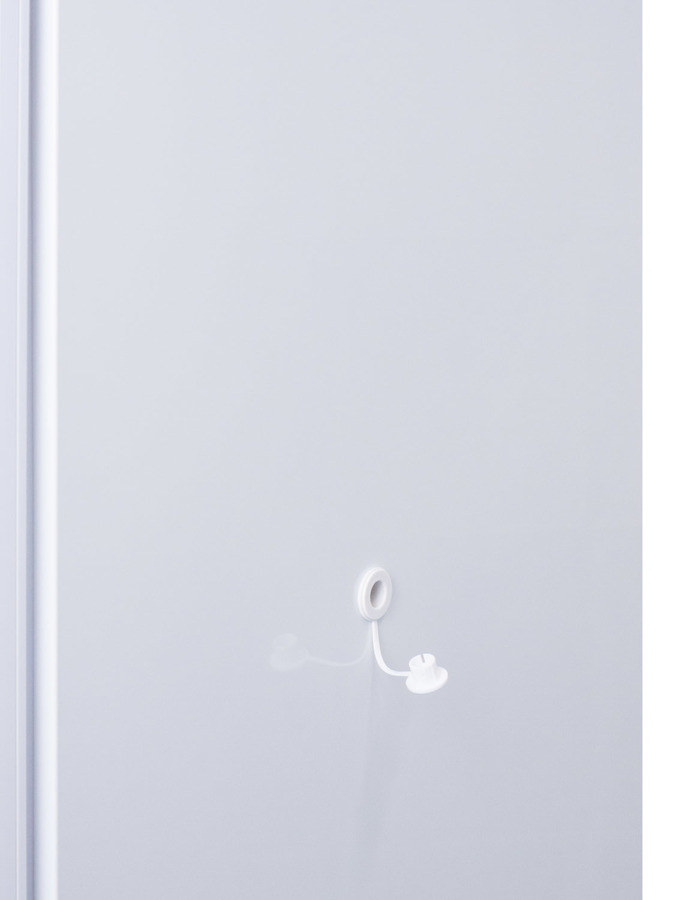

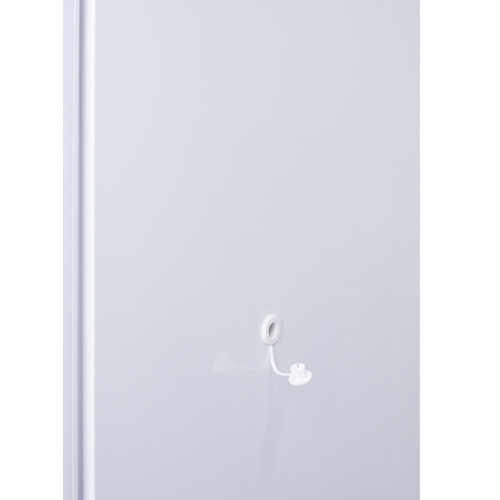

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Display provides a readout of unit’s high and low temperatures updated in 15 minute increments
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Sounds when electrical power is lost; NOTE: Alarm is battery-powered and has a limited time to alarm
Audible alarm sounds if door is left open for more than 3 minutes
Alarm alerts if the unit’s temperature goes beyond recommended high and low temperature ranges
Alarm sounds if sensor is disrupted
Provides for modification of controls beyond setpoint
Allows for temperature stability and uniformity
Ensures a tight seal for energy savings and improved performance
Adjustable defrost operation avoids temperatures spikes and ice buildup common in residential and dorm-style refrigerators.
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Secure three-pronged cord for added unit safety
Soft LED light illuminates interior with internal on/off switch
Allows for unit to be freestanding
Uses environmentally friendly hydrocarbons refrigerants for a greener footprint
2-year parts and labor / 5-year compressor
Environmentally friendly design without ozone-damaging chemicals
Units of various capacities, heights, and interiors are available. Browse the MOMCUBE Series for more information
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold's MOMCUBE® upright all-refrigerators are designed and purpose-built for breast milk storage. All MOMCUBE® units are laboratory-tested to maintain temperature between 33-40°F, as recommended by the CDC and ideal for maternity wards, hospitals, NICUs, employee wellness rooms complying with Section 4207 of the Patient Protection and Affordable Care Act, and other facilities. The ARS12MLMCLK is a 12 cu.ft. all-refrigerator. The microprocessor digital thermostat is located in the top control panel, with an LED display of the interior temperature. The buffered temperature probe is encased in glycol to simulate the temperature of the interior's contents, while a second sensor measures interior air temperature for added control. Audible and visual alarms alert you to temperature fluctuations. Additional alarms include an open door alarm, power failure alarm, sensor alarm, and remote alarm contacts in the rear, which allow for alarm forwarding to an external remote alarm system. The pre-installed ½ inch probe hole is located in the right interior wall to allow for additional user-supplied monitoring devices. The digital display provides the min/max temperature in Fahrenheit to the nearest tenth of a degree. Users can switch to Celsius in a few simple steps. Temperature parameters are password protected but can be adjusted aftermarket. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Inside, the ARS12MLMCLK boasts six locking compartments, each with a combination lock to ensure added privacy for mothers storing their breast milk. Combination locks can be reset or overridden as needed with included master keys. The locker doors are constructed from galvanized steel, while the wire shelving and forced air cooling system with two internal fans helps to provide temperature uniformity, stability, and quick recovery from door openings. An adjustable cycle defrost system helps to avoid temperature spikes and ice build-up. A soft LED light is included with this unit with an option to turn on/off with a rocker switch. The interior is constructed from white powder coated metal providing added durability and improved temperature retention. The MOMCUBE® comes in a white cabinet with blue display panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-friendly reversible door comes standard in a right-hand swing. Magnetic gaskets ensure a sight seal for improved performance. The factory-installed lock offers additional security. The MOMCUBE is an eco-friendly solution to breast milk storage. Units of various capacity, heights, and interiors are available. Explore the entire MOMCUBE® Series on our website or contact our sales team at 718-893-3900 ext. 509 for more options.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
