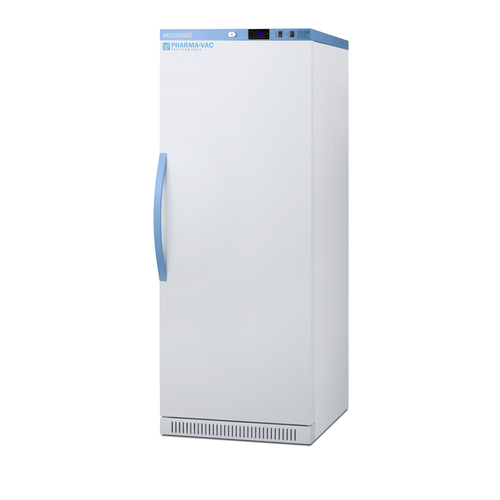

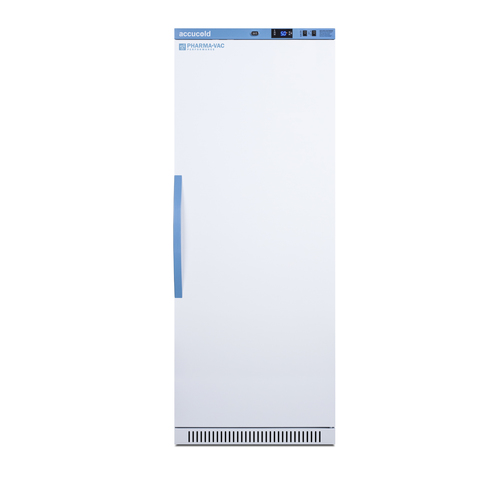

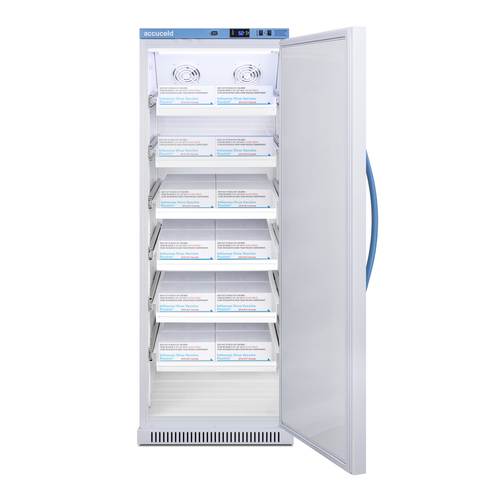

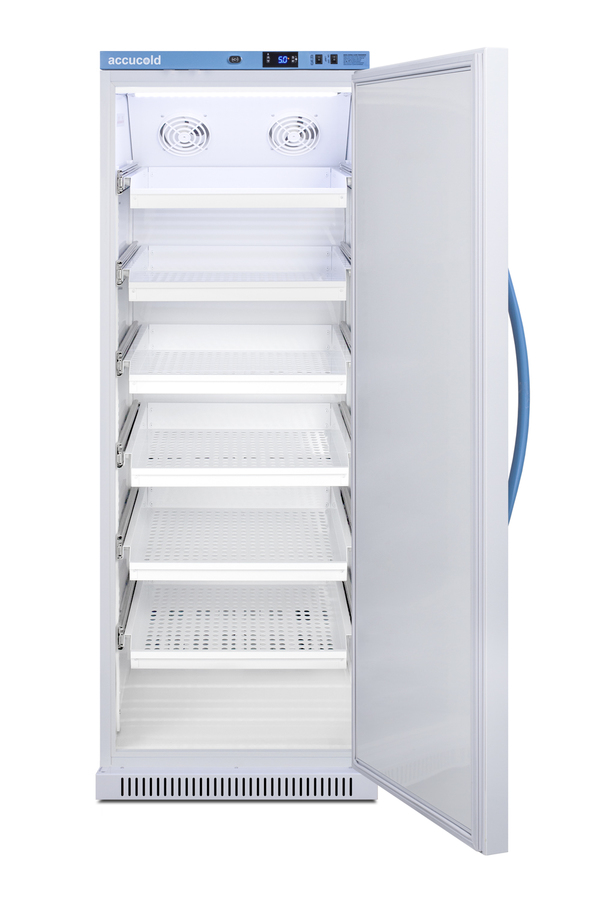

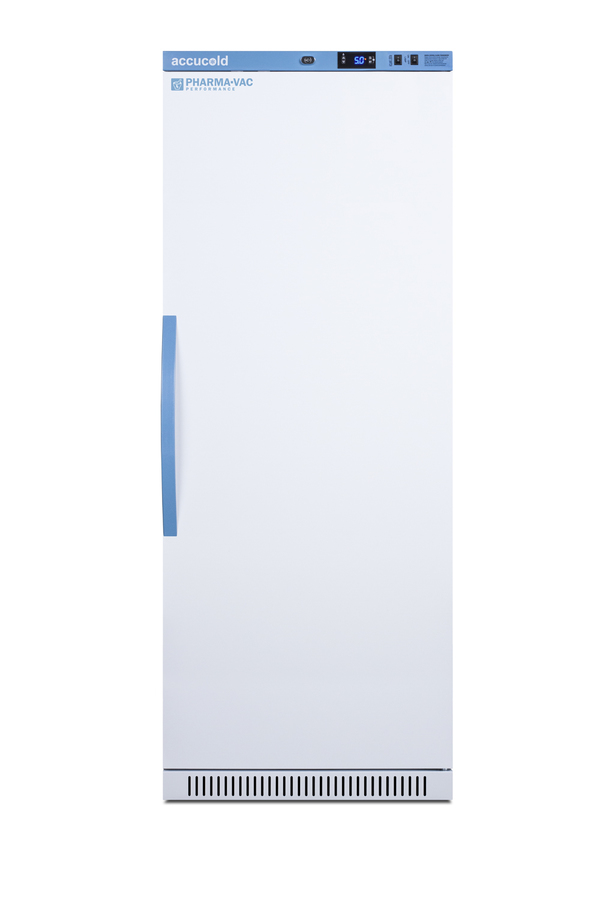

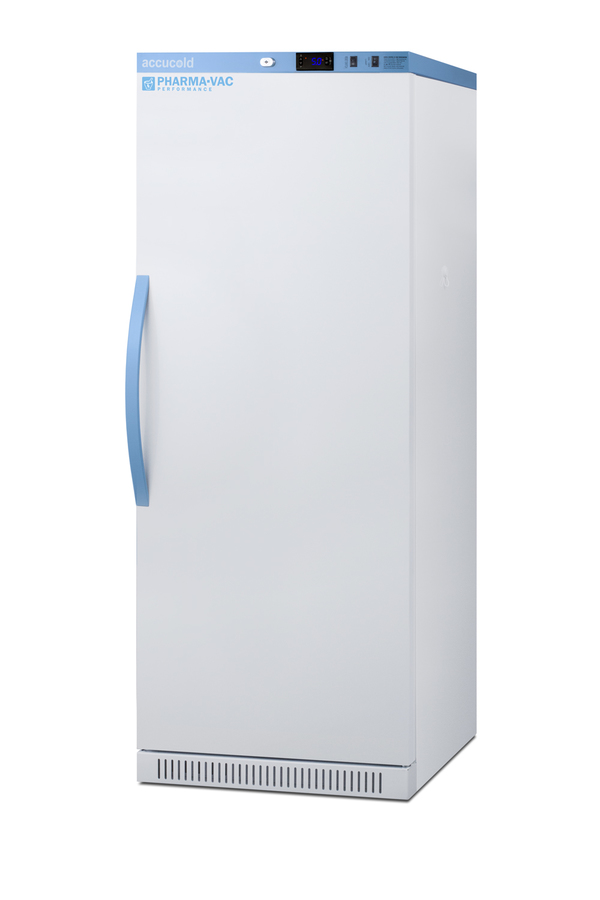

12 Cu.Ft. Upright Vaccine Refrigerator with Removable Drawers
02/09/2025
(157cm H x 59cm W x 62cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 62.0" (157 cm) |
Height of Cabinet | 61.75" (157 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Width with Door Open | 23.88" (61 cm) |
Nominal Depth | 25.0" (64 cm) |
Depth | 24.38" (62 cm) |
Depth with Handle | 26.13" (66 cm) |
Depth with door at 90° | 46.5" (118 cm) |
Capacity | 12.0 cu.ft. (340 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 214.0 lbs. (97 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101075198 |
Refrigerator Features
|
|
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Drawers |
Shelf Qty | 6 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 2.11oz. |
Interior Light | Yes |
Temperature Range | 2 to 8ºC |
Dimensions
|
|
Interior Height | 53.0" (135 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 17.0" (43 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
Interior | |||
---|---|---|---|
|
|||
Exterior | |||
|
|||
Lock | |||
|
FEATURES
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +2 to +8ºC

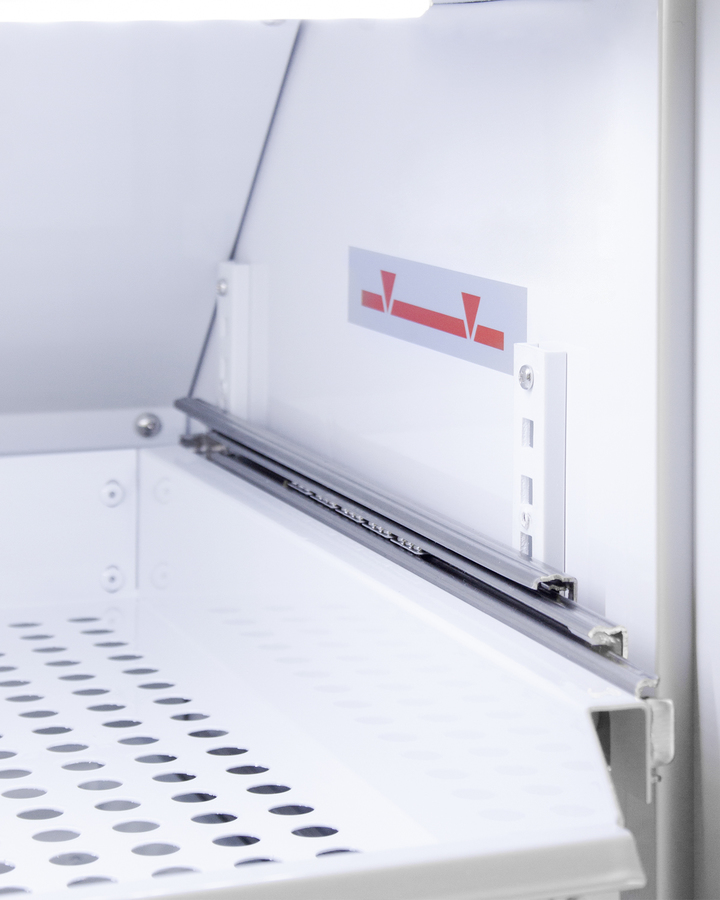

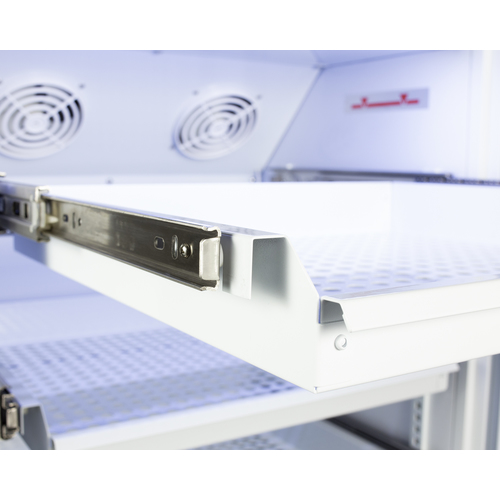

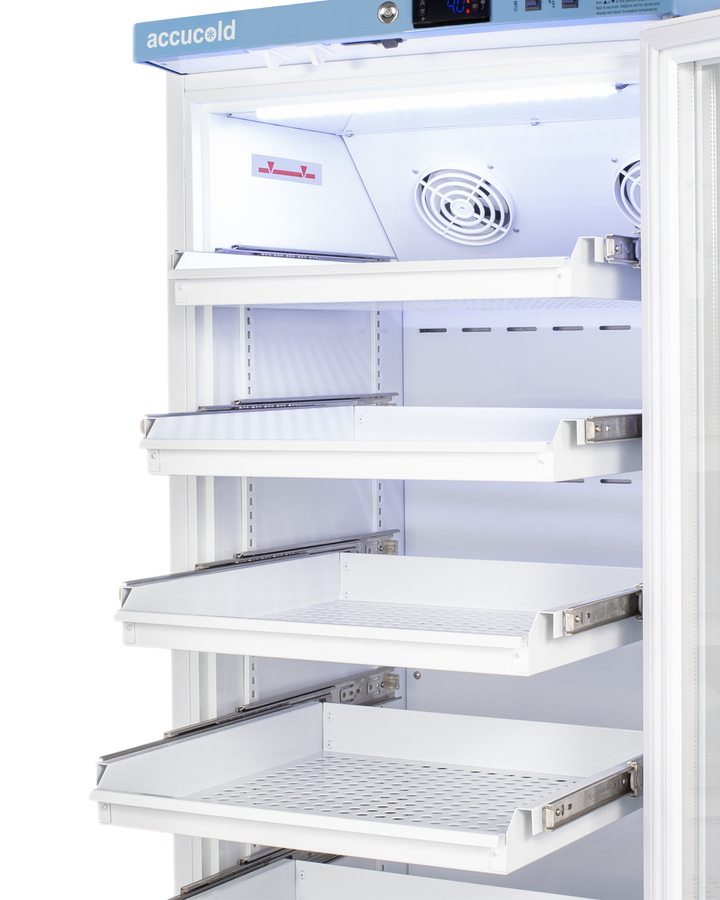

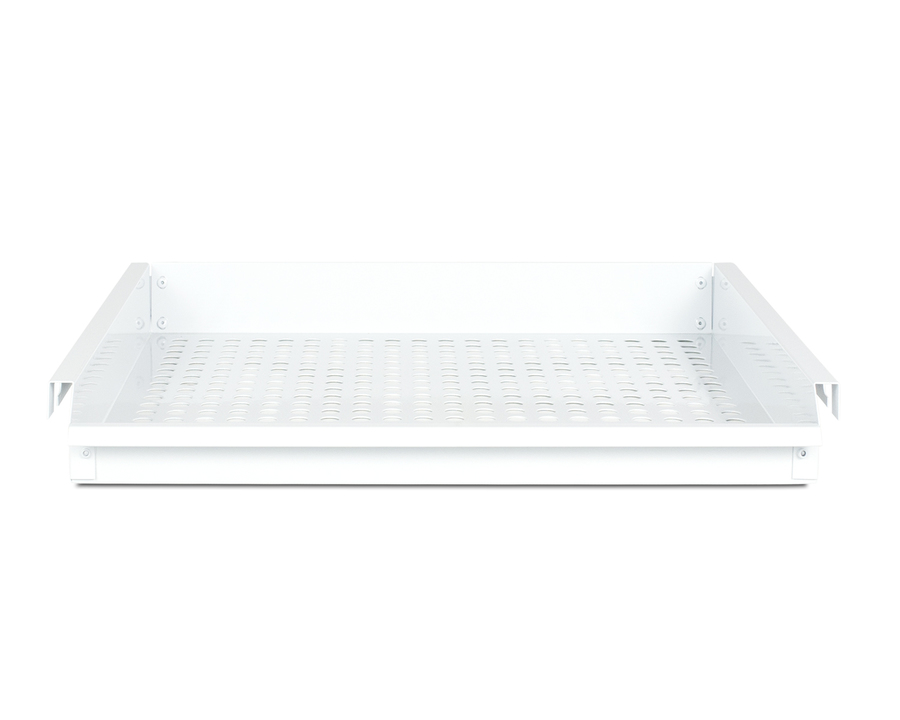

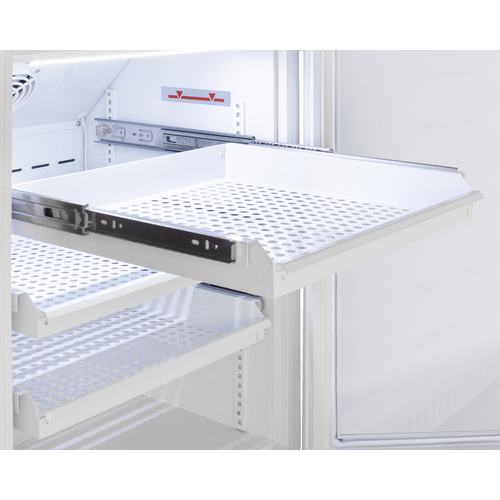

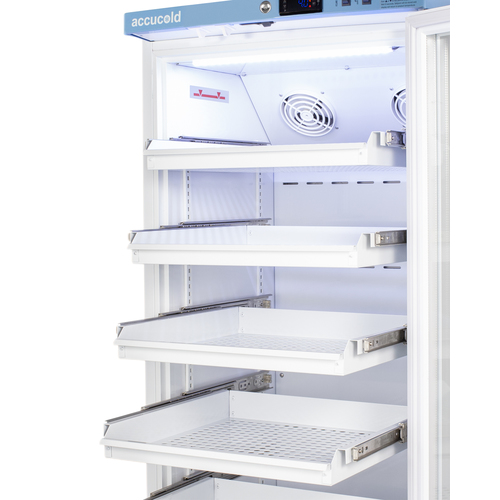

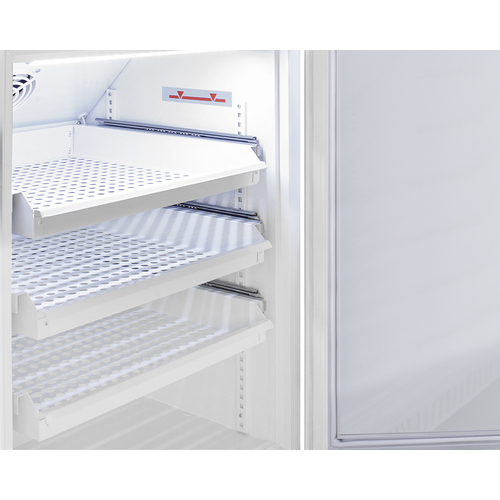

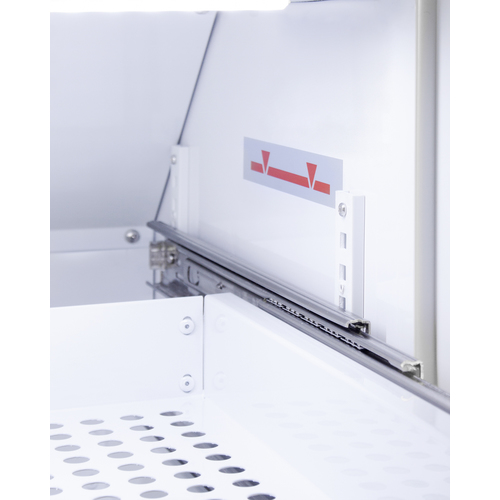

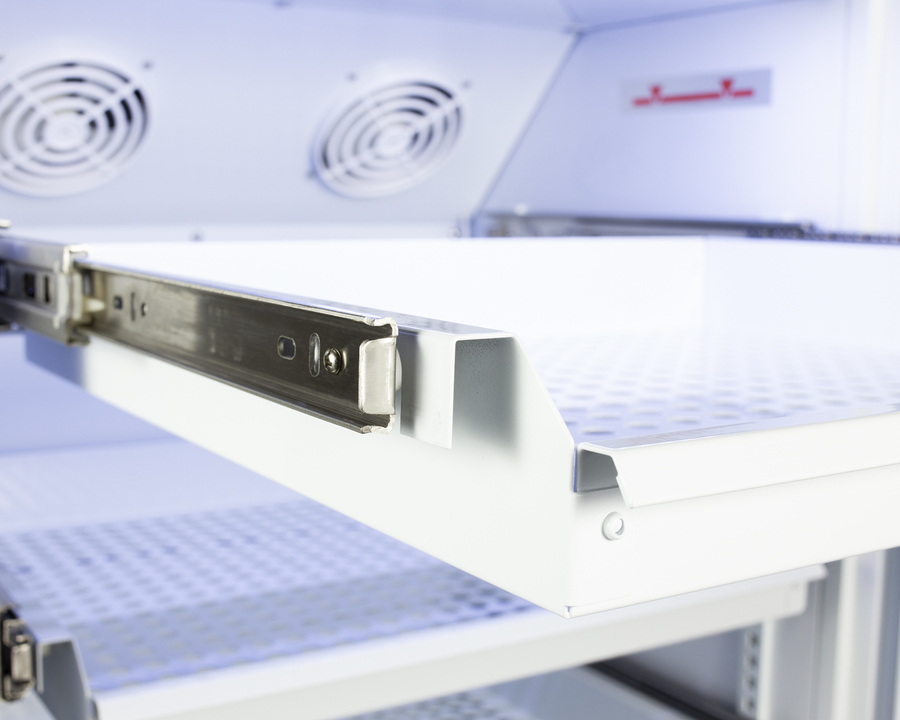

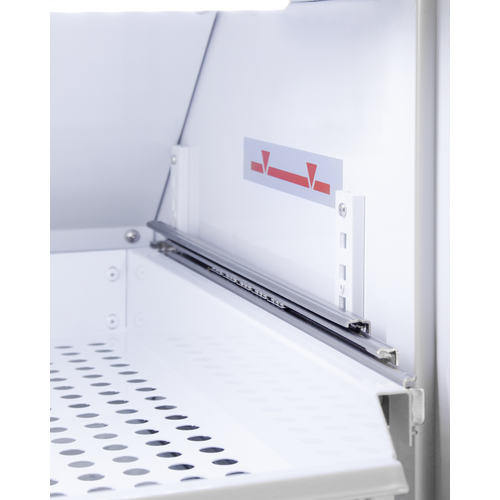

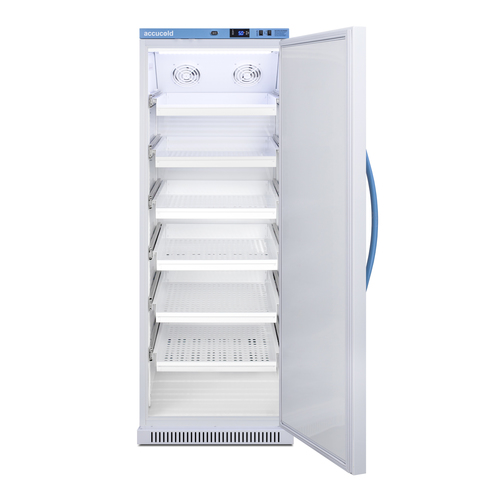

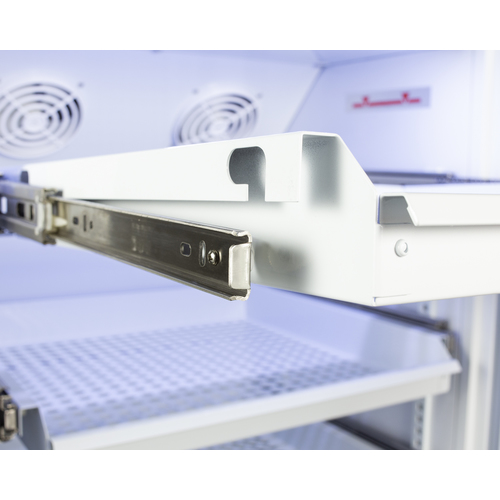

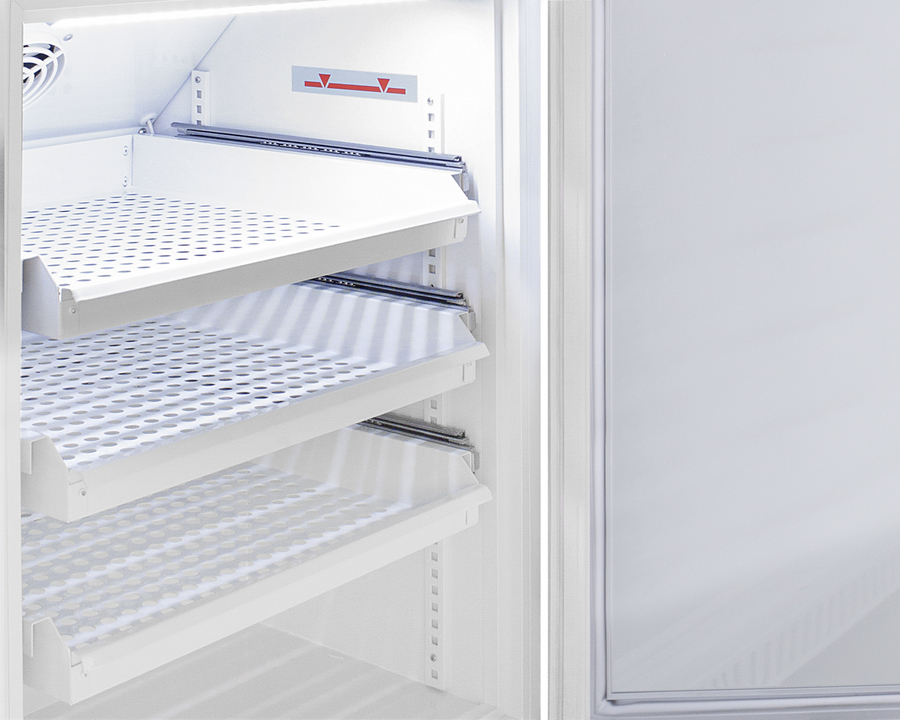

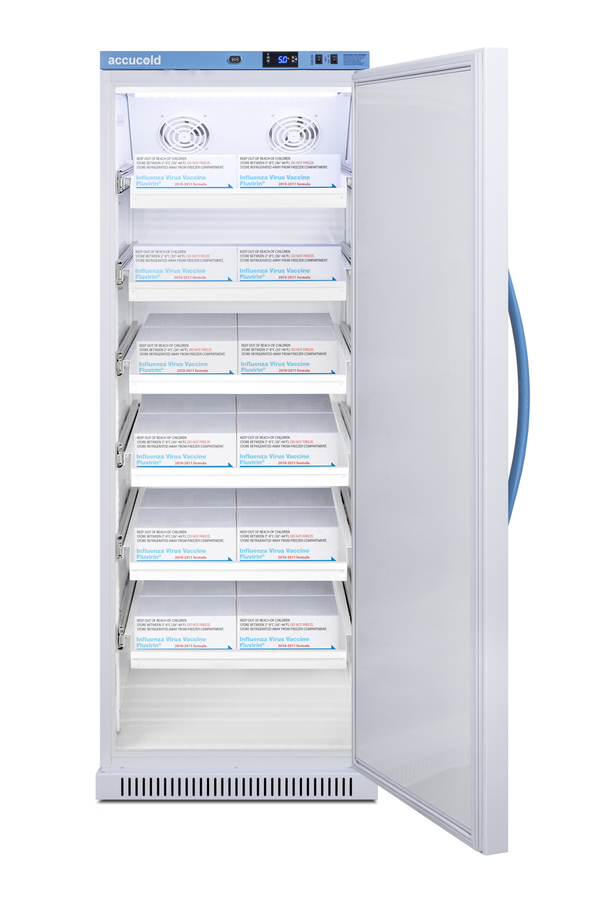

Six drawers made from powder-coated aluminum glide out smoothly for convenient storage, with perforated bottoms to ensure proper air circulation

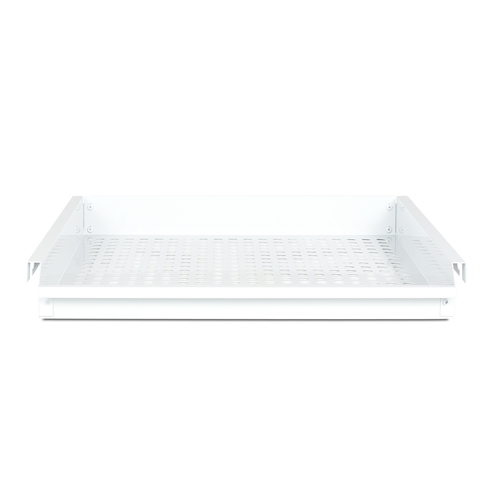

Drawers can be easily removed for convenient transporting of contents to a lab counter or work station

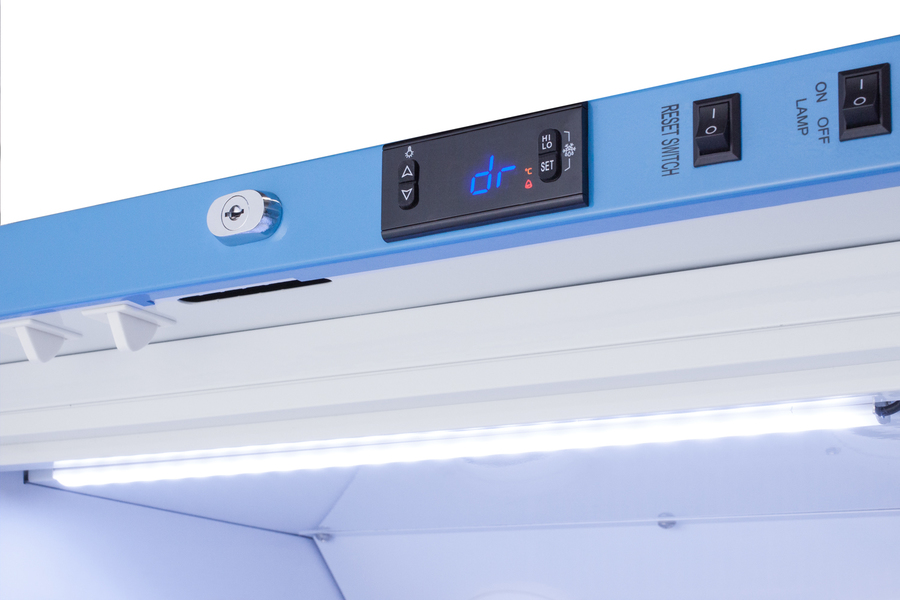

Visual and audible alarms alert if the interior temperature rises or falls out of set range
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

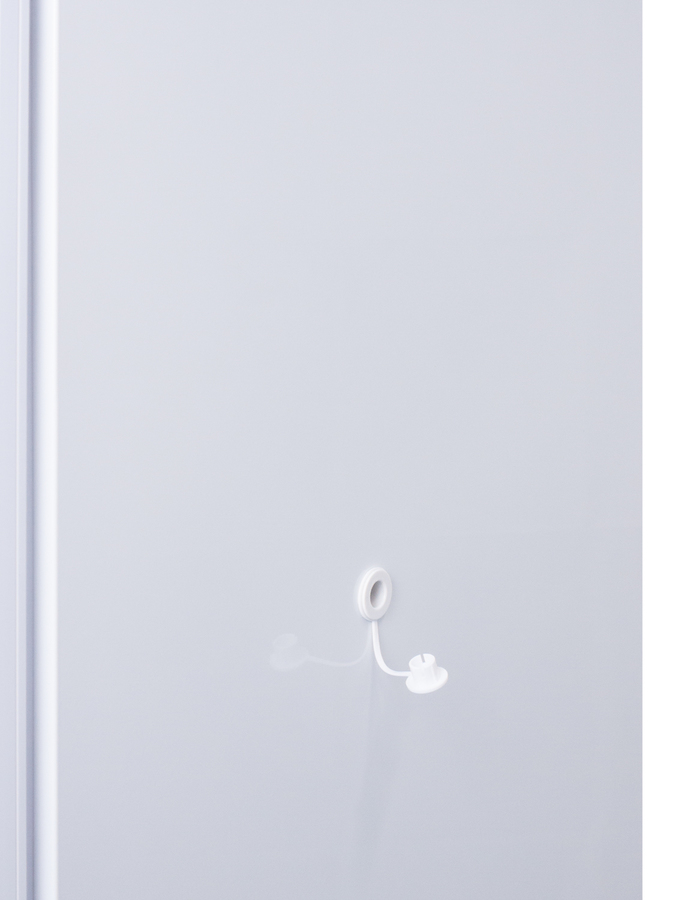

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
User-reversible door swing for added flexibility
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a powder-coated silver ion handle that helps prevent germ spread. The ARS12PVDR is a 12 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARS12PVDR utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. Six white powder-coated aluminum drawers provide ample storage and easy organization. Positioned on ball-bearing glides, the drawers offer full-extension for complete product access. Additionally, each drawer is removable allowing for transport of contents as needed. The drawers also lock into place for added security, while the perforated bottom ensures proper ventilation throughout the unit. LED internal lighting with an on/off rocker switch attractively illuminates the interior for easy viewing. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The ARS12PVDR comes in a white cabinet finish with a blue accented control panel. The user-reversible door comes with a factory-installed antimicrobial handle that is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model also includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARS12PVDR provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, door options, and units with a combination of standard shelving and drawers are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. Units that end in suffix "456" have been certified to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
