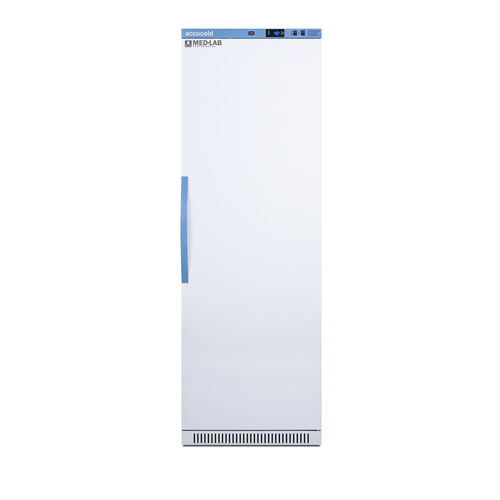

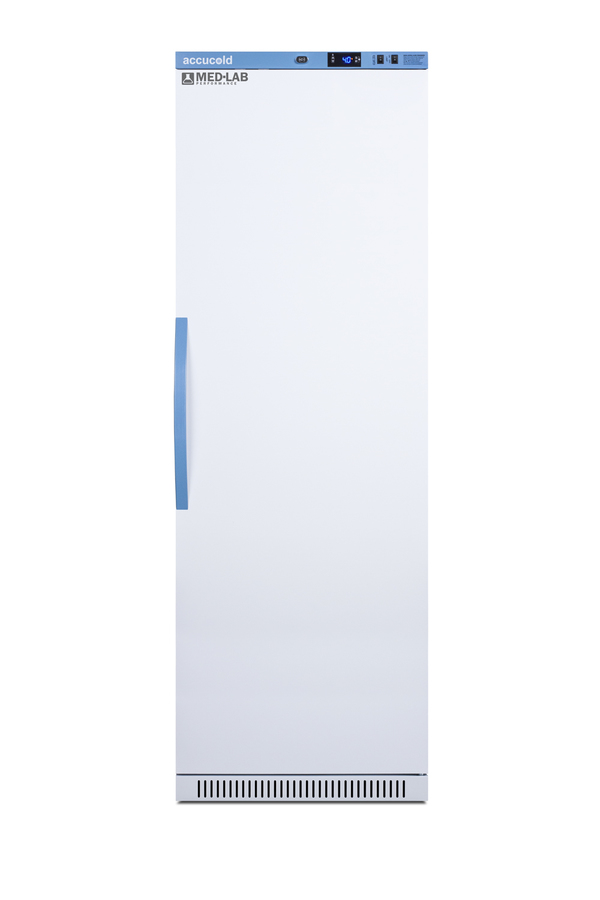

15 Cu.Ft. Upright Laboratory Refrigerator with Interior Lockers
5 to 7 days
(183cm H x 59cm W x 62cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 72.0" (183 cm) |
Height of Cabinet | 72.0" (183 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Width with Door Open | 23.88" (61 cm) |
Nominal Depth | 25.0" (64 cm) |
Depth | 24.38" (62 cm) |
Depth with Handle | 26.13" (66 cm) |
Depth with door at 90° | 46.5" (118 cm) |
Capacity | 15.0 cu.ft. (425 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 240.0 lbs. (109 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101074979 |
Refrigerator Features
|
|
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Lockers |
Shelf Qty | 8 |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 2.65oz. |
Interior Light | Yes |
Temperature Range | 2 to 10ºC |
Sound Level | 37.5 dB |
Dimensions
|
|
Interior Height | 63.25" (161 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 17.0" (43 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
Exterior | |||
---|---|---|---|
|
|||
Lock | |||
|
FEATURES
Designed and purpose-built to meet the demanding needs of scientific, life science, laboratory, and medical cold storage applications
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +2 to +10ºC
Visual and audible alarms alert if the interior temperature rises or falls out of set range

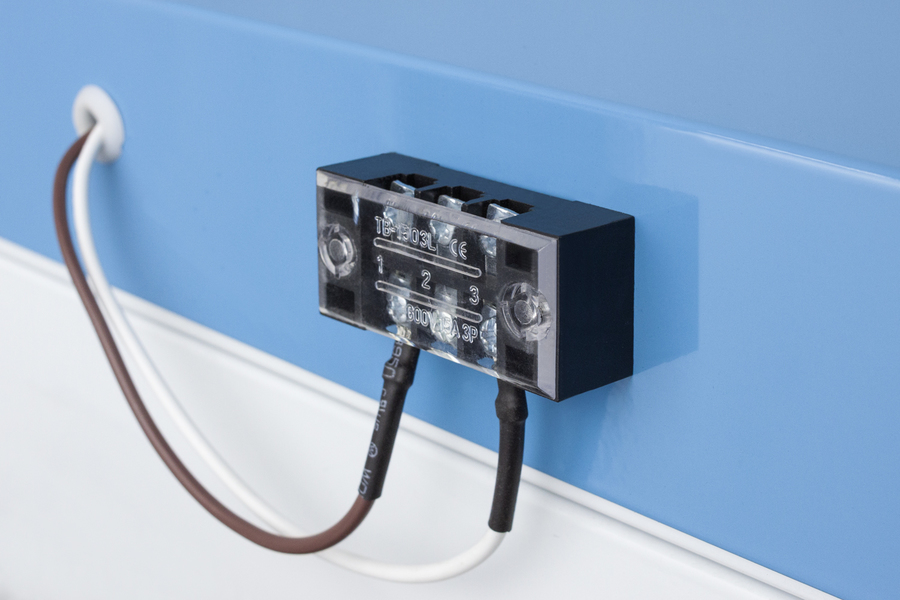

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

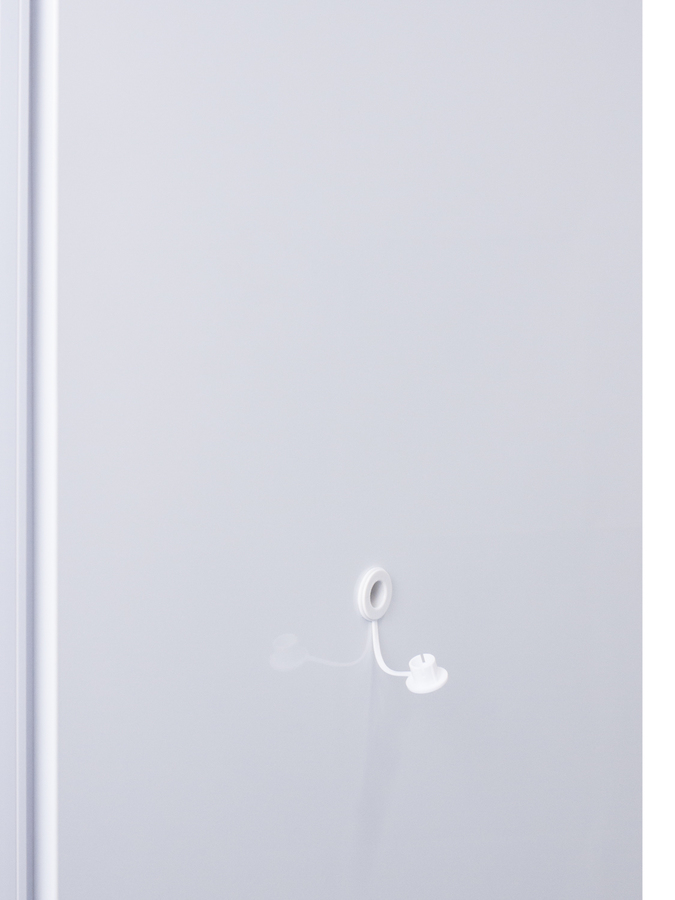

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

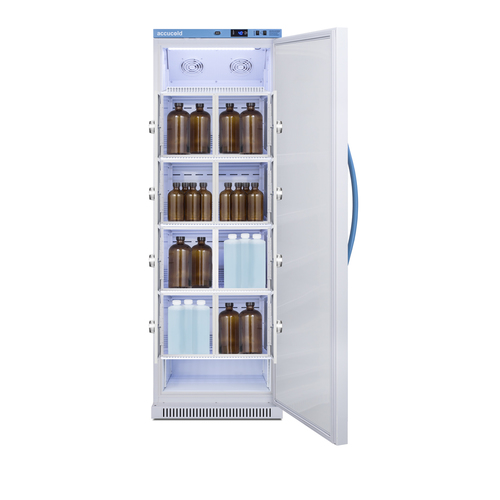

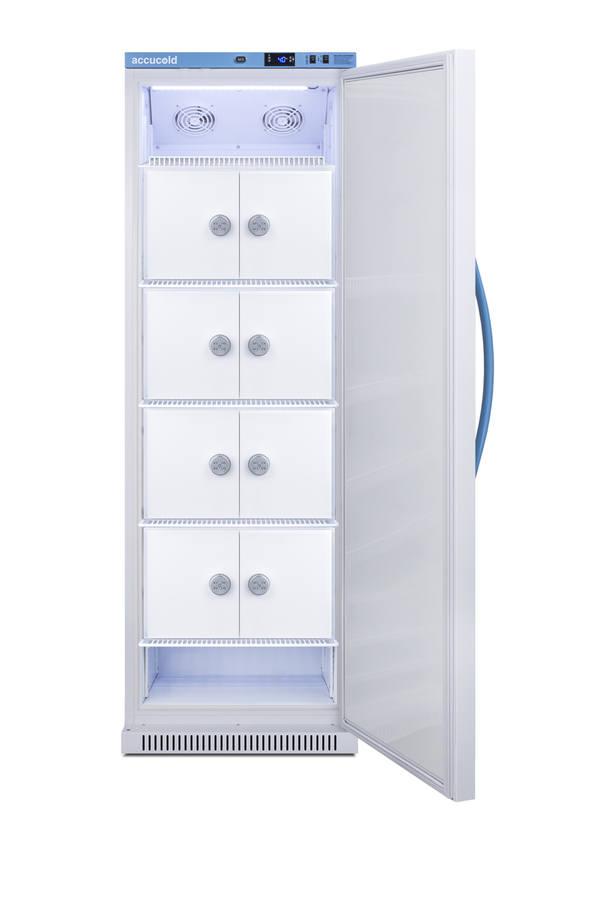

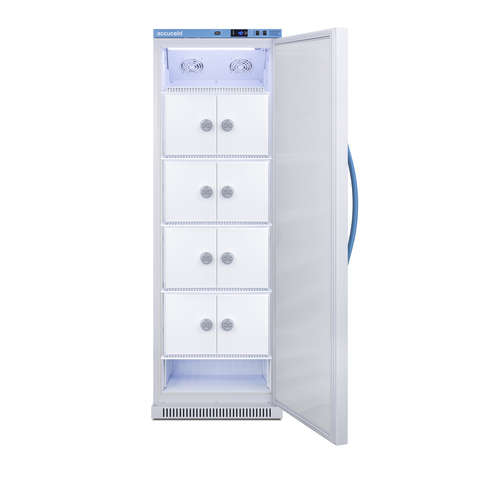

Eight lockers sized at 11" H x 9 3/8" W x 15 1/4" D provide secure medical and general purpose storage

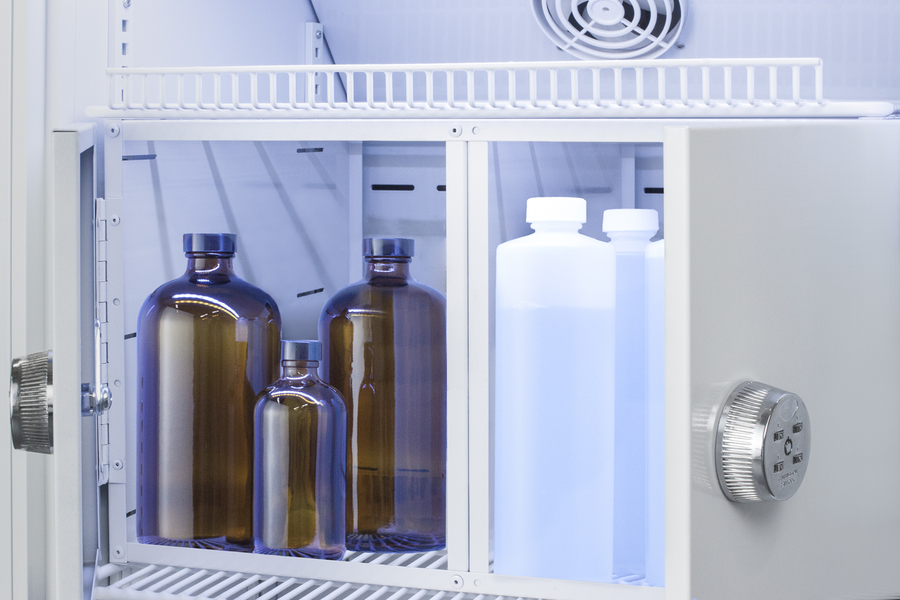

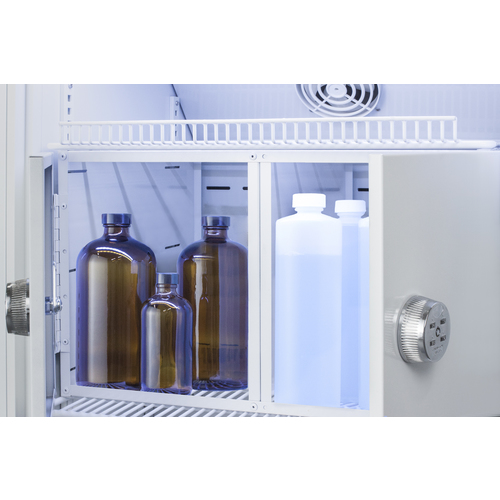

User-set combination locks ensure separate locker access for added security, with two keys included to override the combination as needed
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Secure three-pronged cord for added unit safety
Energy efficient LED lighting with internal on/off switch
Provides a full display of stored contents
User-reversible door swing for added flexibility
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Med-Lab series for more information
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

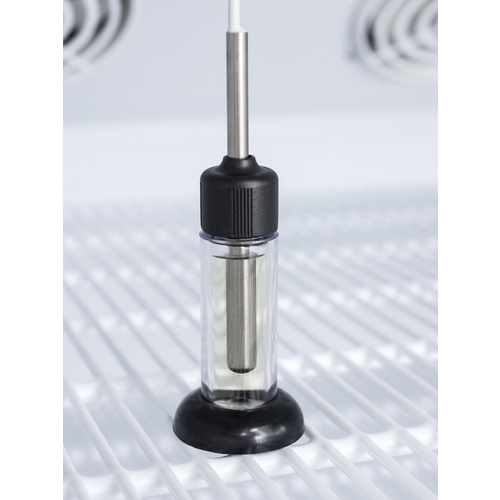

Accucold's Med-Lab Performance Series all-refrigerators are designed and purpose-built to meet the demanding needs of life science, laboratory, and medical cold storage applications, with a powder-coated silver ion handle that helps prevent germ spread. The ARS15MLLOCKER is a 15 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARS15MLLOCKER has eight lockers, each with a combination lock to ensure appropriate security for secure medical or general-purpose storage, which can be reset or overridden as needed with included master keys. The adjustable cycle defrost operation helps to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention. The ARS15MLLOCKER comes in a white cabinet finish with a blue accented control panel and user-reversible door. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARS15MLLOCKER provides an energy-efficient solution to laboratory and life science storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes are available. Explore the full Med-Lab series at accucold.com/medlab. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
