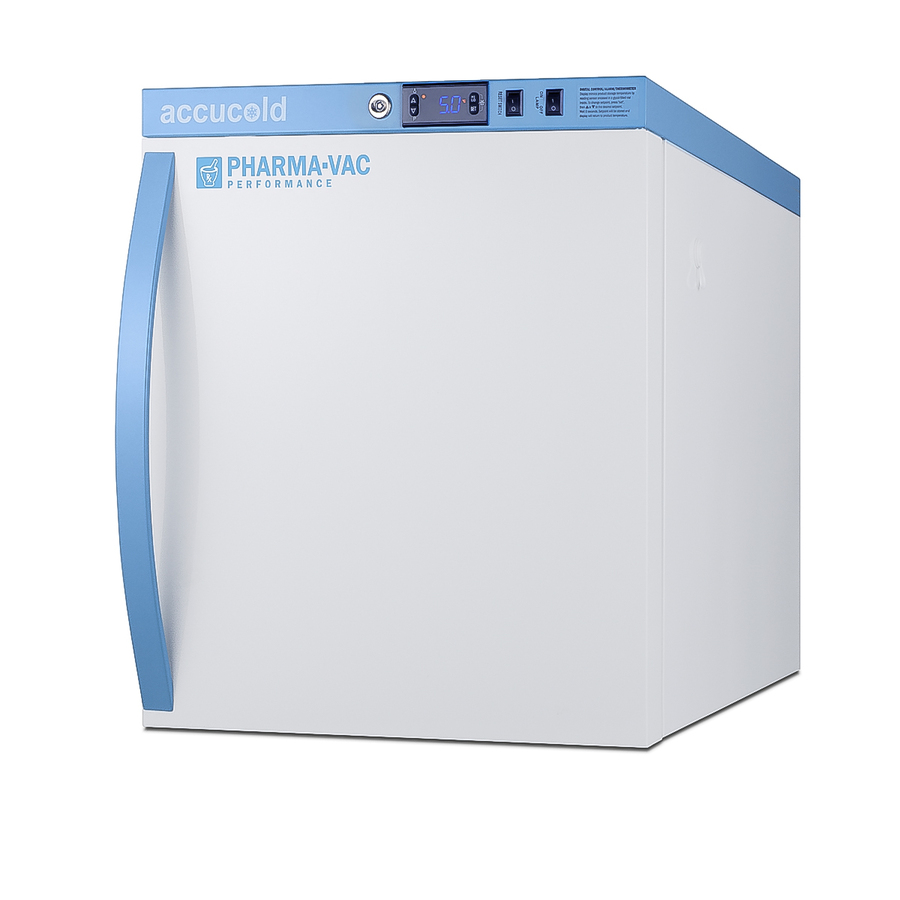

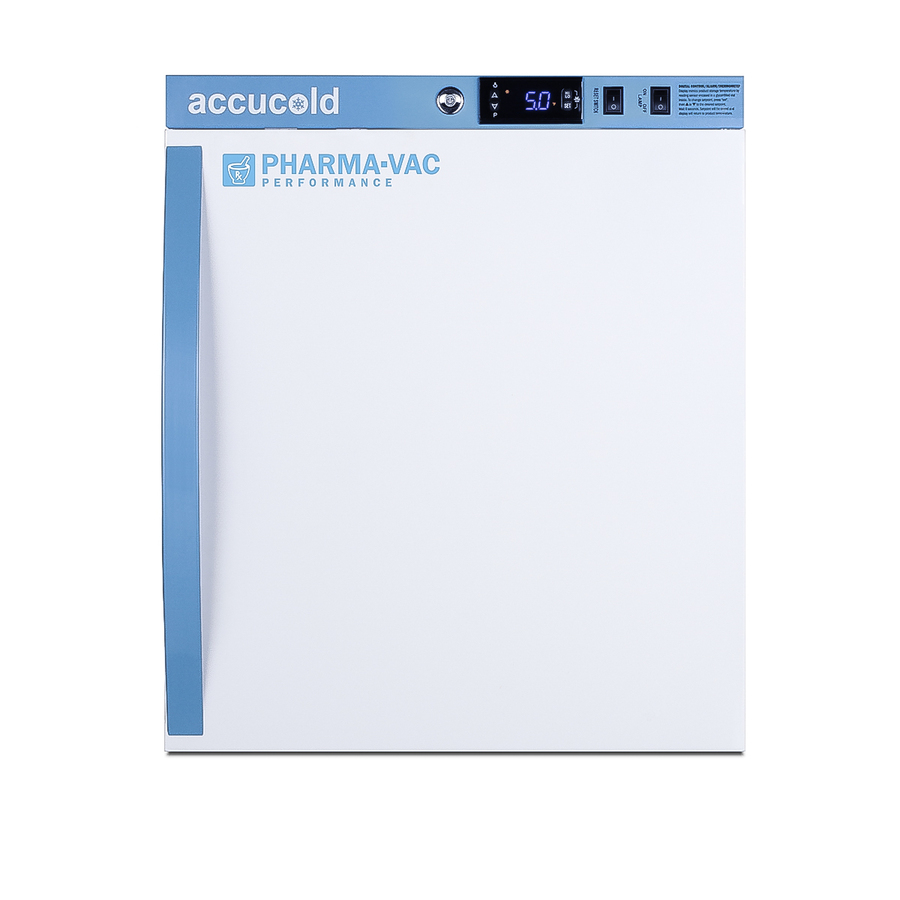

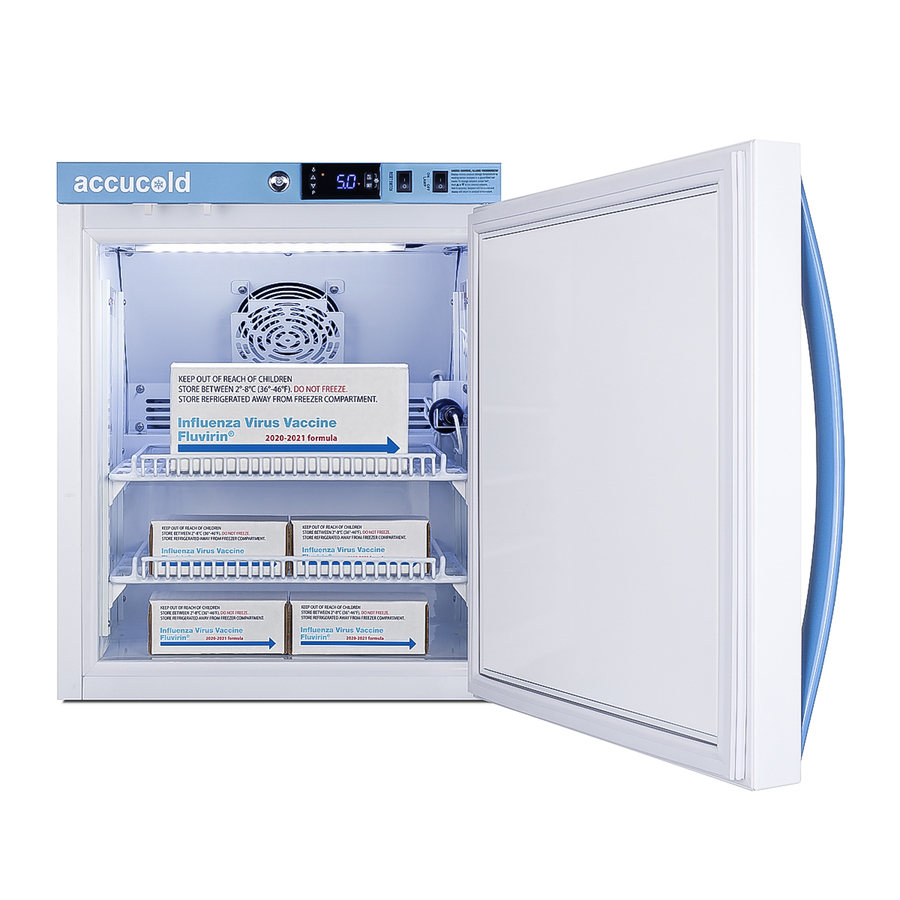

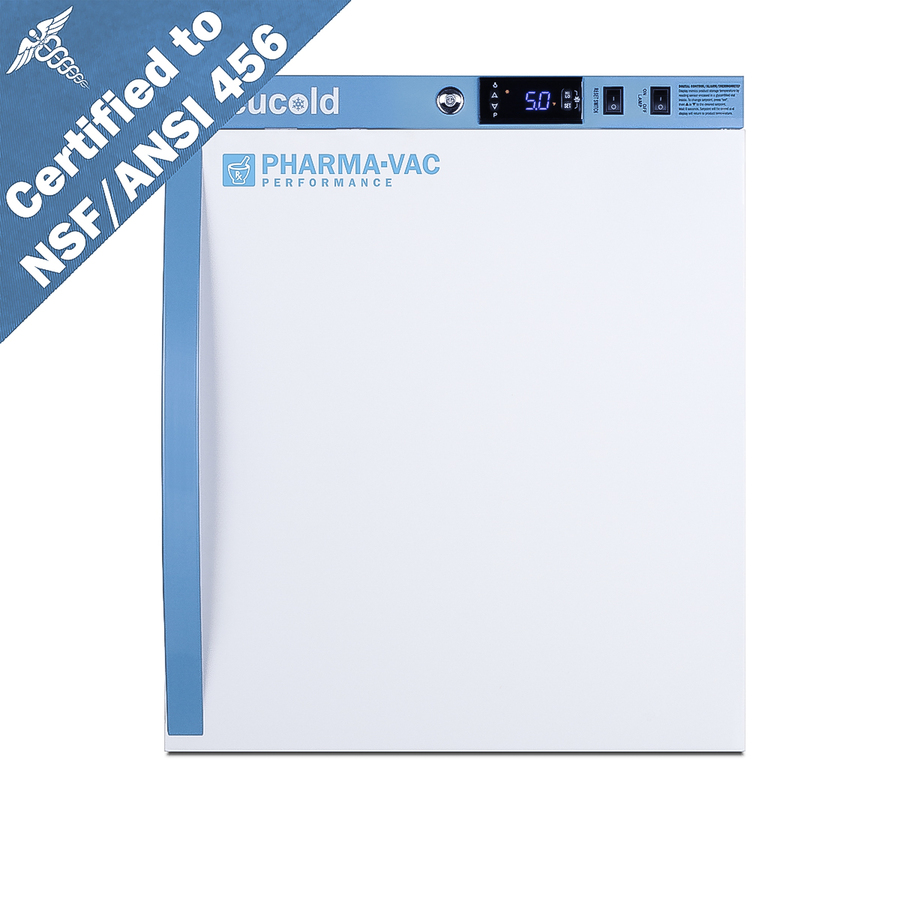

2 Cu.Ft. Compact Vaccine Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard
1 to 2 days
(57cm H x 47cm W x 59cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 23.0" (58 cm) |
Height of Cabinet | 22.25" (57 cm) |
Nominal Width | 19.0" (48 cm) |
Width | 18.5" (47 cm) |
Width with Door Open | 18.88" (48 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.25" (59 cm) |
Depth with Handle | 24.75" (63 cm) |
Depth with door at 90° | 42.5" (108 cm) |
Capacity | 1.94 cu.ft. (55 L) |
Defrost Type | Automatic |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S to NSF 456 |
Amps | 0.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 80.0 lbs. (36 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101106922 |
Refrigerator Features
|
|
Door Swing | RHD |
Reversible | Yes |

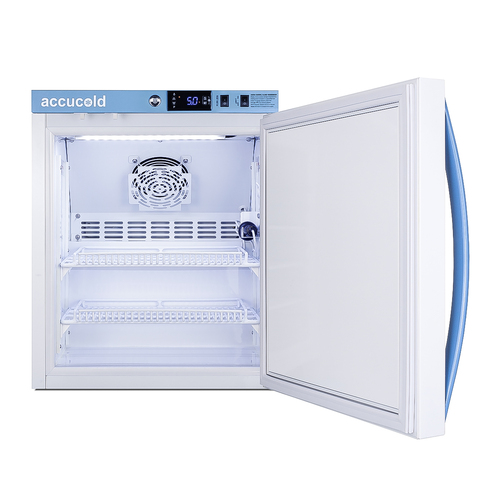

Shelf Type | Wire |
Shelf Qty | 2 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.84oz. |
High Side PSI | 280.0 |
Low Side PSI | 90.0 |
Interior Light | Yes |
Temperature Range | 2 to 8ºC |
Sound Level | 44.2 dB |
Dimensions
|
|
Interior Height | 16.5" (42 cm) |
Interior Width | 15.25" (39 cm) |
Interior Depth | 15.75" (40 cm) |
Compressor Step Height | 8.25" (21 cm) |
Compressor Step Width | 15.25" (39 cm) |
Compressor Step Depth | 4.25" (11 cm) |
AVAILABLE UPGRADES
Exterior | |||
---|---|---|---|
|
|||
Lock | |||
|
FEATURES
Designed and tested to comply with the new NSF Vaccine Storage Standard
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
2-year calibration certificate included for your records
Intuitive controls let you adjust the interior temperature between +2 to +8ºC

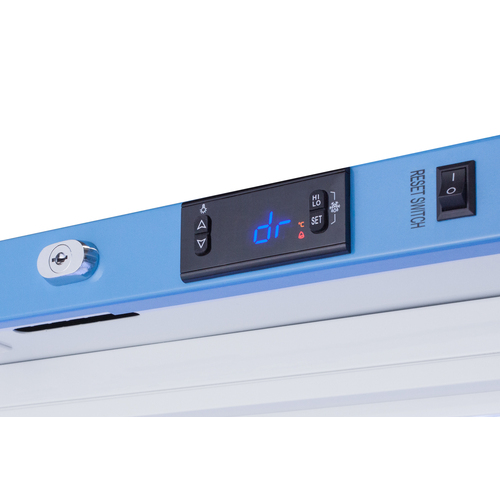

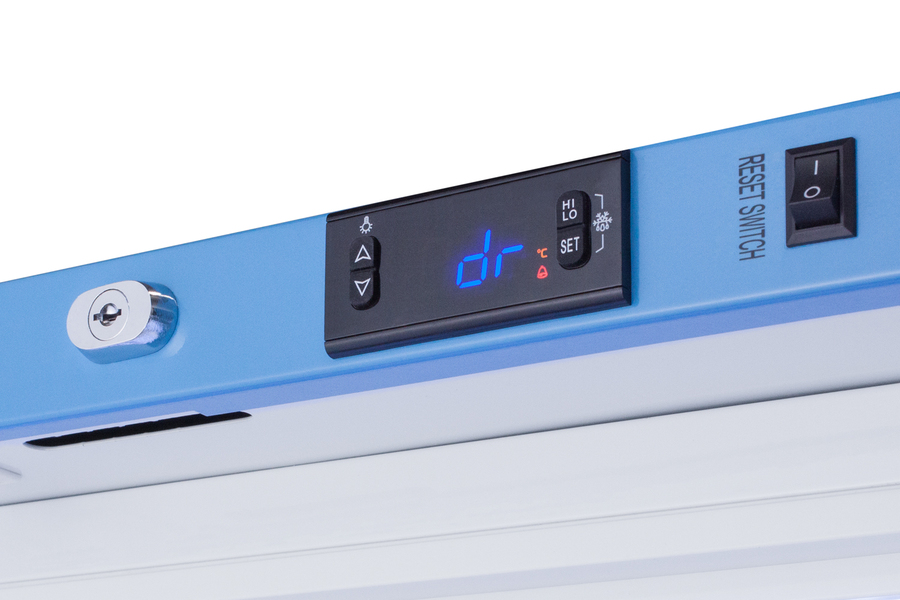

Visual and audible alarms alert if the interior temperature rises or falls out of set range

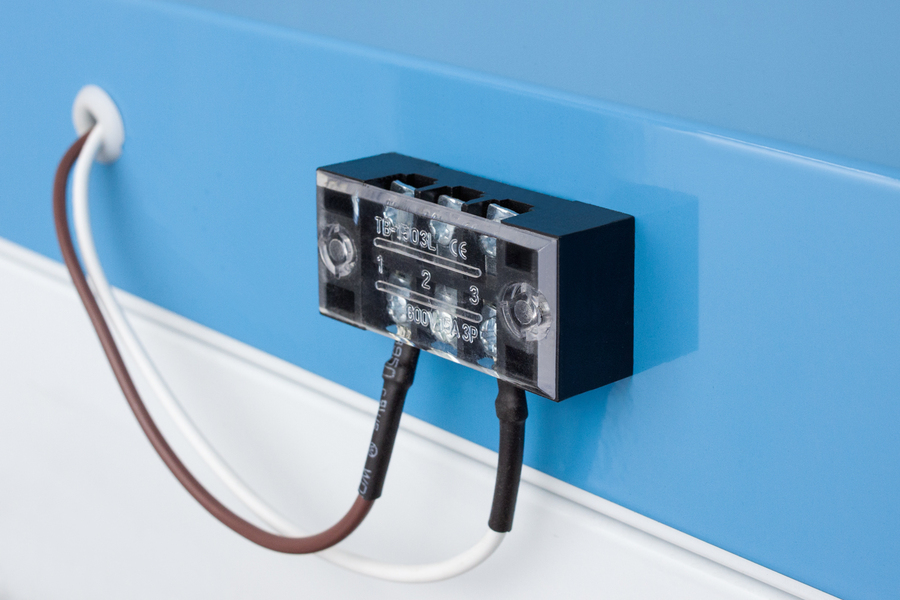

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

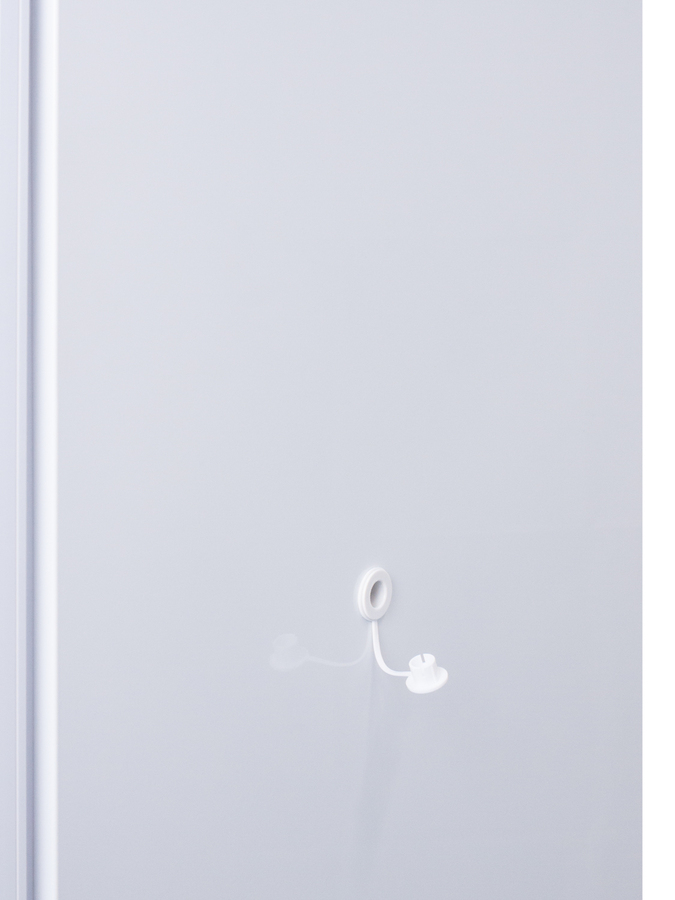

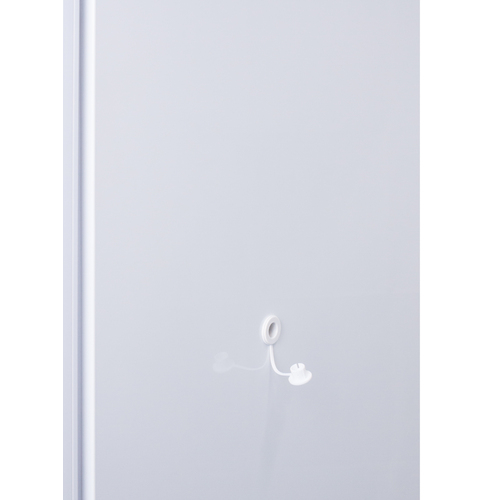

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point

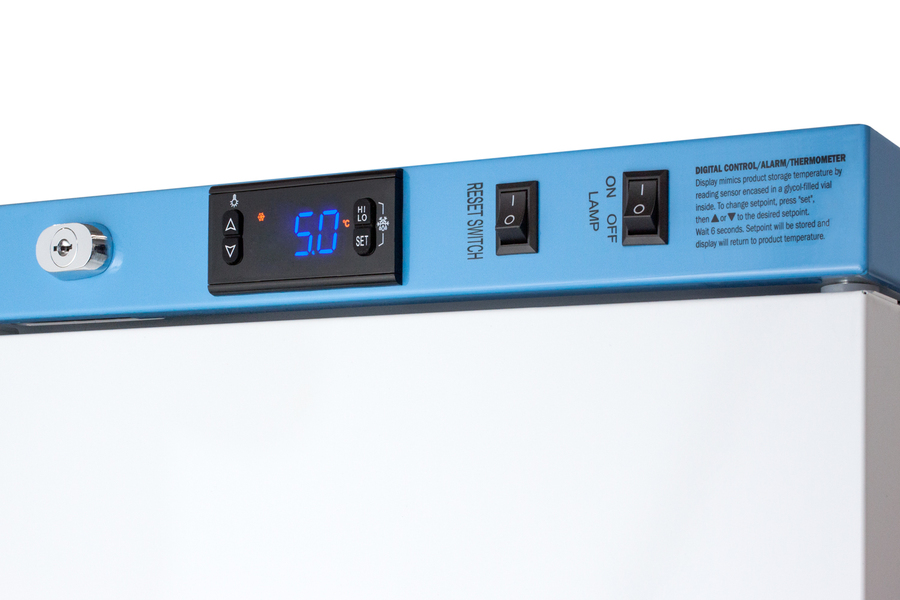

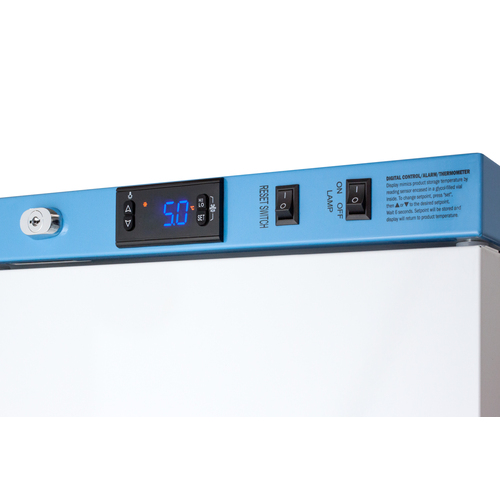

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

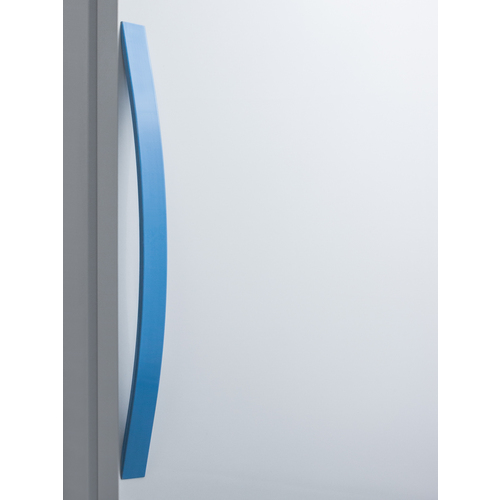

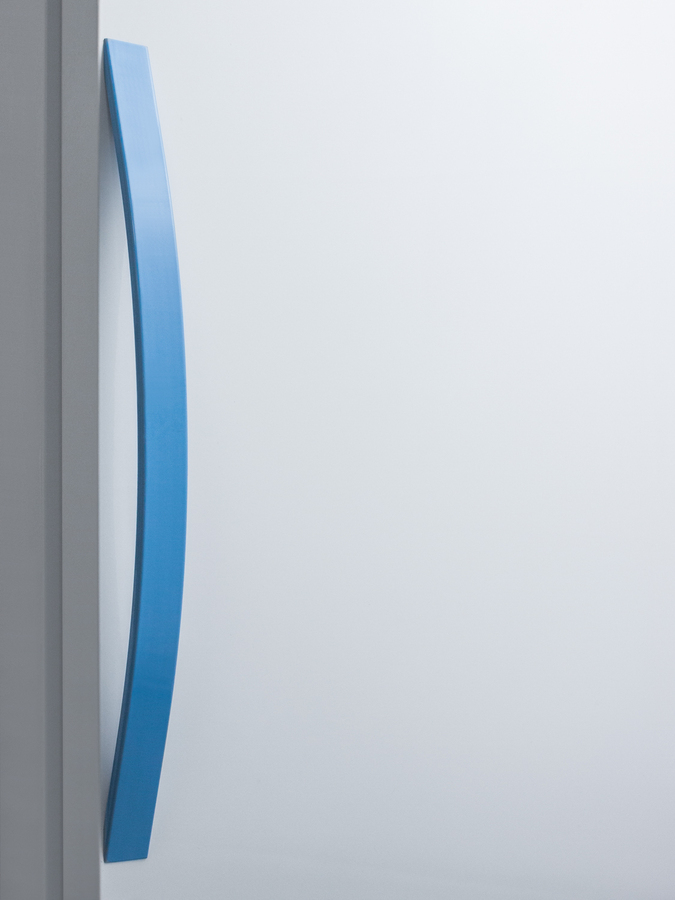

Powder-coated handle with naturally occurring silver ions to help reduce germ spread
Multiple shelf positions spaced at 1/2" to accommodate virtually any size
Walls are constructed from white powder coated metal for added strength and improved temperature retention

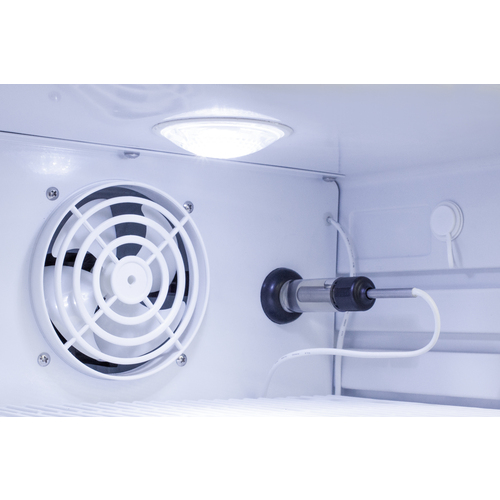

Energy efficient LED lighting with internal on/off switch
Secure three-pronged cord for added unit safety
Added protection in busy settings
For this unit with the door opening from the other side, order with option "LHD" or as SKU ARS2PV456LHD
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 18 cu.ft. Browse the Pharma-Vac series for more information
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Pair with Accucold AFZ1PV to create a matching set
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

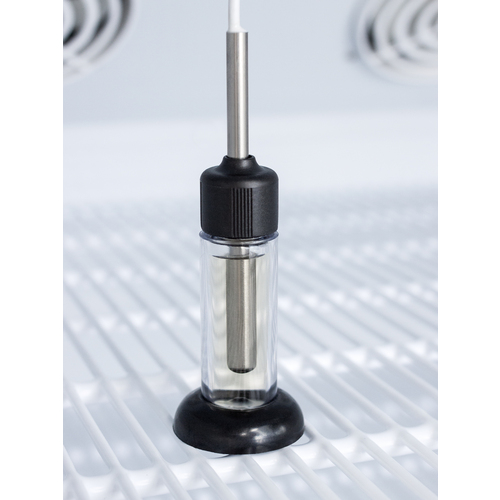

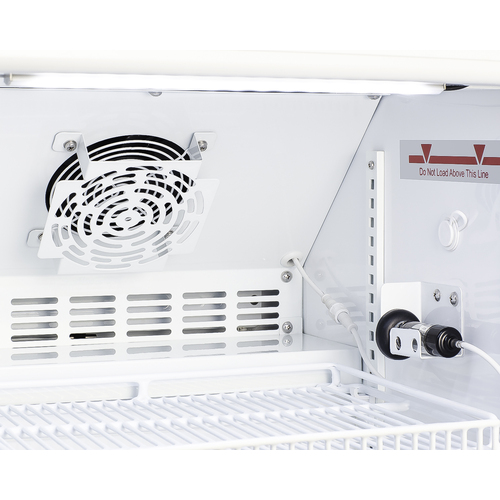

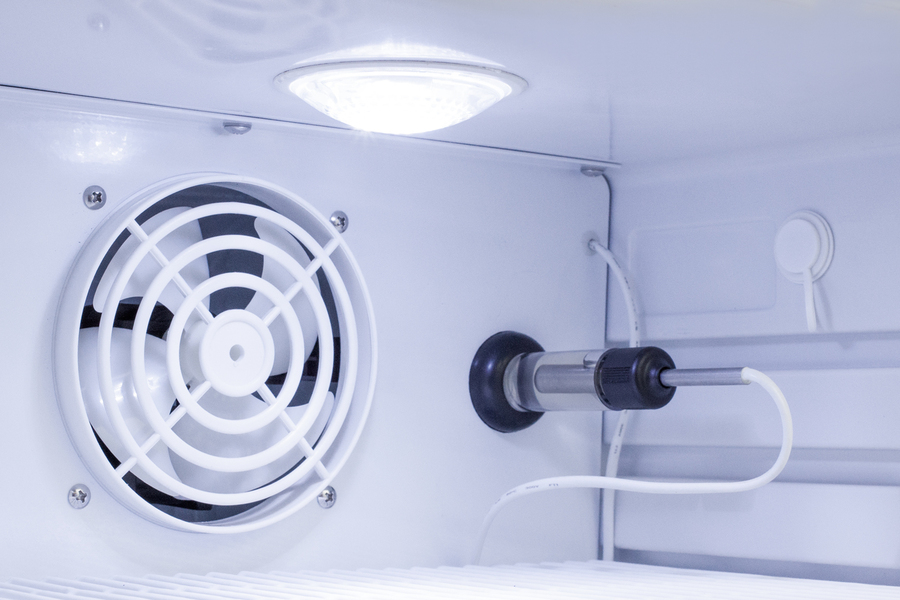

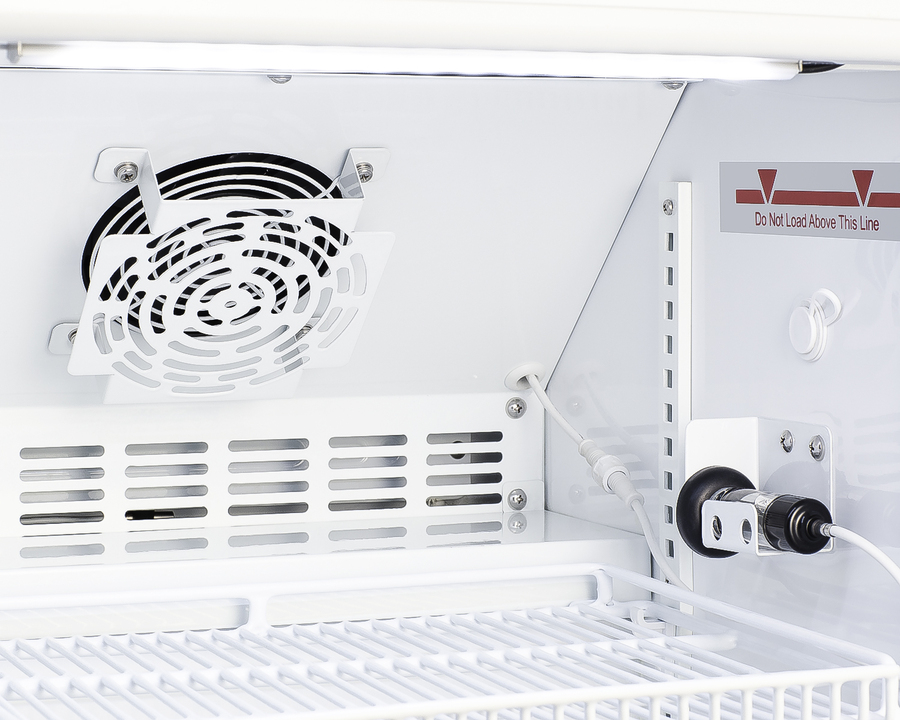

Accucold is proud to lead the industry with the largest line of cold storage product sizes certified to NSF/ANSI 456 Vaccine Storage Standard. The Pharma-Vac Performance Series supports meeting regulations and guidelines from the CDC, State Agencies, World Health Organization, and other Health Ministries on vaccine storage and handling. The ARS2PV456 is a 1.94 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Inside, the ARGSPV456 utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The ARS2PV456 comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, this unit provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac NSF 456 series at accucold.com/pharmavac. ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
