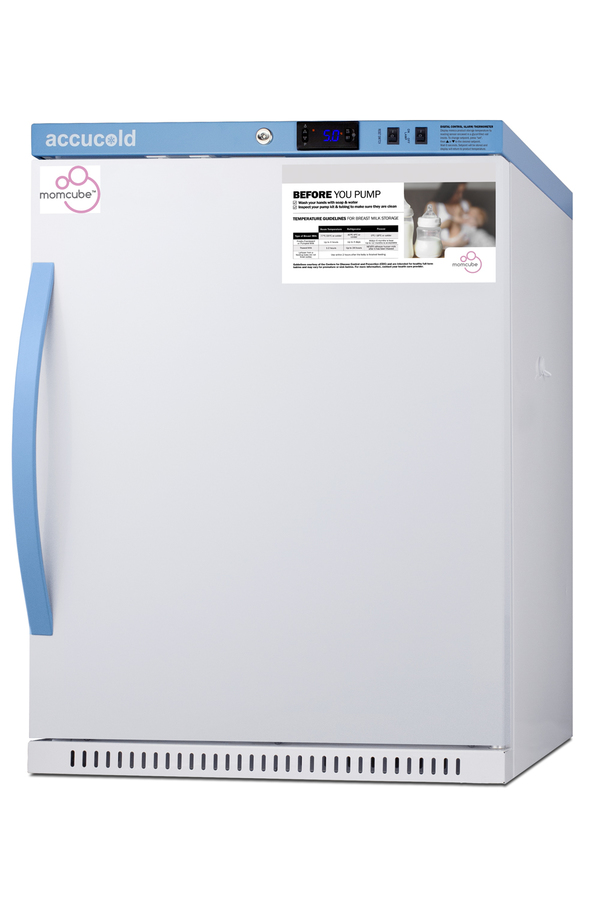

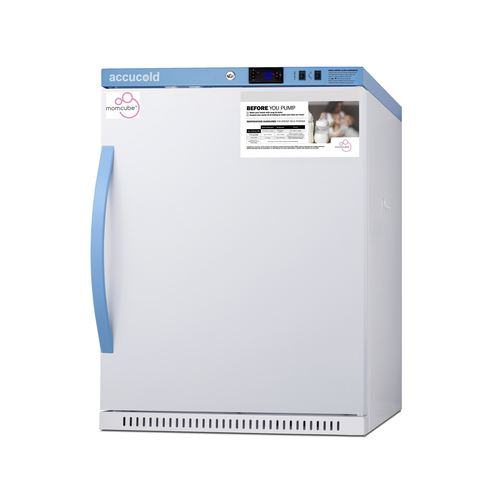

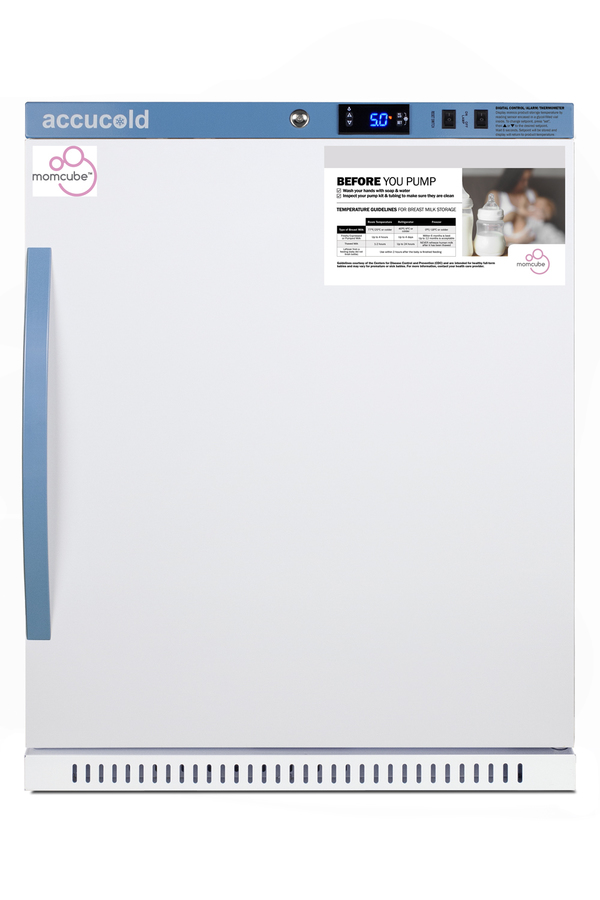

6 Cu.Ft. MOMCUBE® Breast Milk Refrigerator, ADA Height

SKU: ARS62MLMCBIADA
Purpose-built all-refrigerator for breast milk storage with 4 adjustable shelves, with antimicrobial handle
Estimated Time to Ship:

1 to 2 days

31.75" H x 23.38" W x 25.0" D
(81cm H x 59cm W x 64cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Nominal Depth 25.0" (64 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.75" (68 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 6.0 cu.ft. (170 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101078694
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
High Side PSI 280.0
Low Side PSI 90.0
Interior Light Yes
Temperature Range 33°F to 40°F
Dimensions
Interior Height 24.5" (62 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
Interior
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS units
LockBoxW - Interior locking compartment with window
Interior drop-down locking compartment with combination lock and two windows for use in 24" wide Pharma-Vac and Med-Lab units (prefix "ARG" or "ARS"), SCR610BL, SCR1156, SCR1401, FFAR12W, or FFAR121SS

Purpose-built design

Designed and purpose-built for breast milk storage

ADA compliant

Just under 32" tall designed to fit under ADA compliant counters

Recessed or freestanding use

Versatile design allows recessed installation under counters or freestanding use

Fully finished white cabinet

Allows the unit to be used freestanding

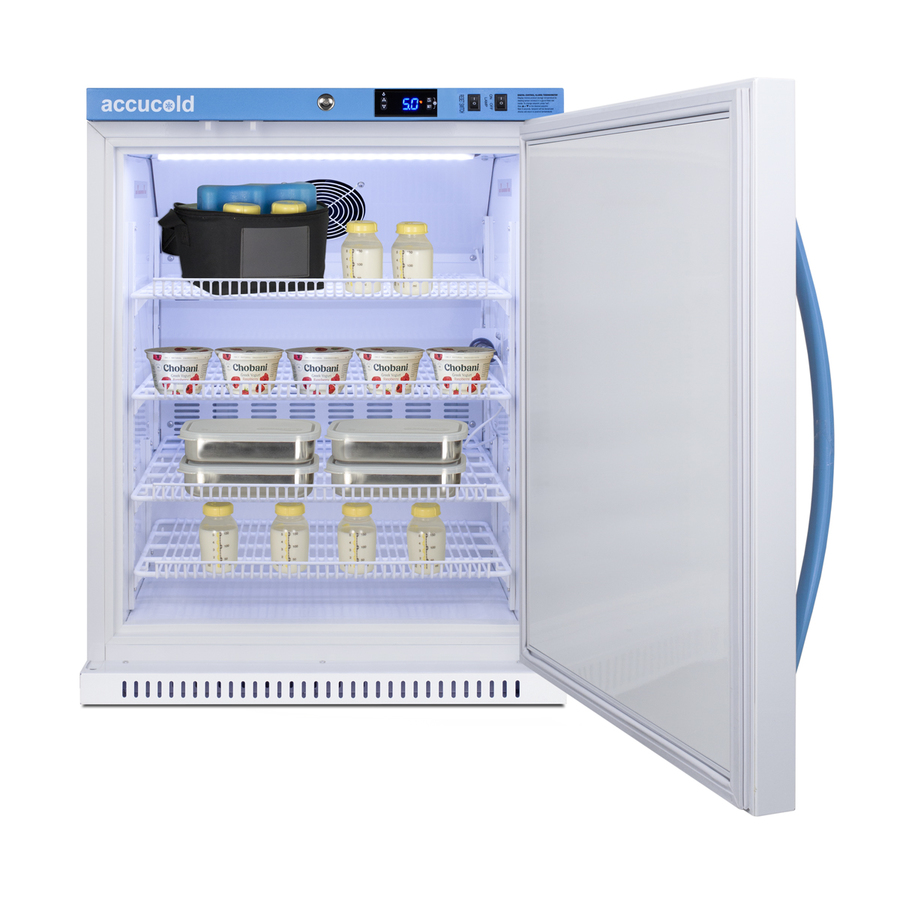

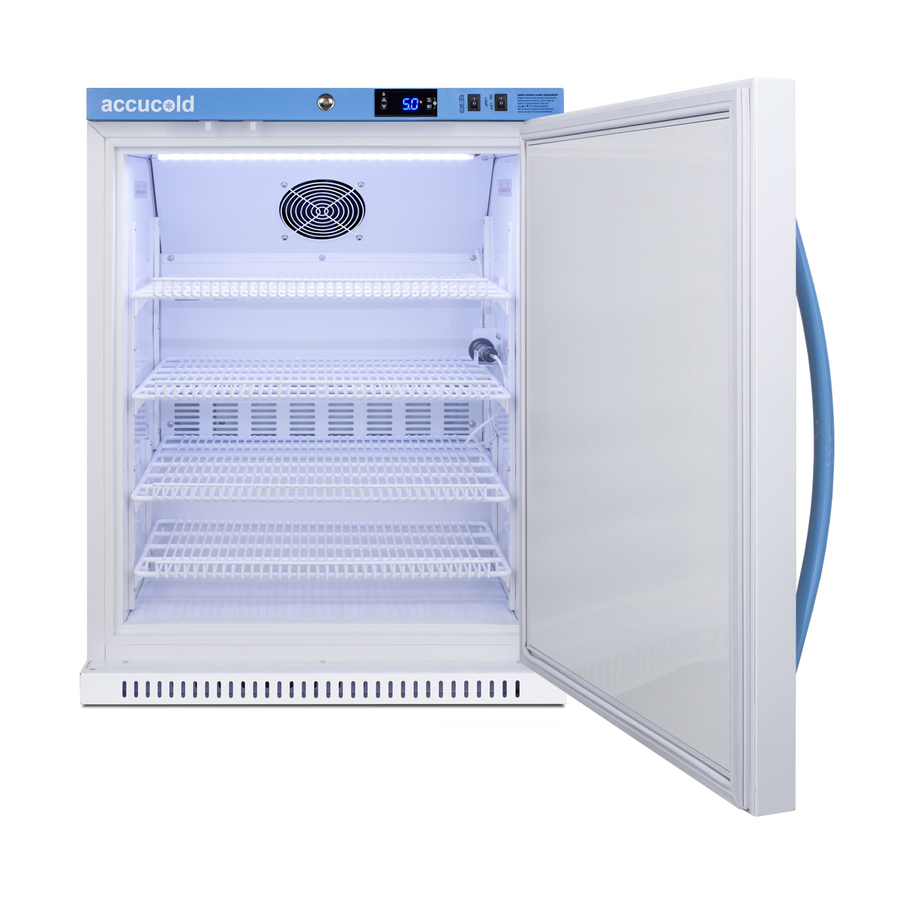

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

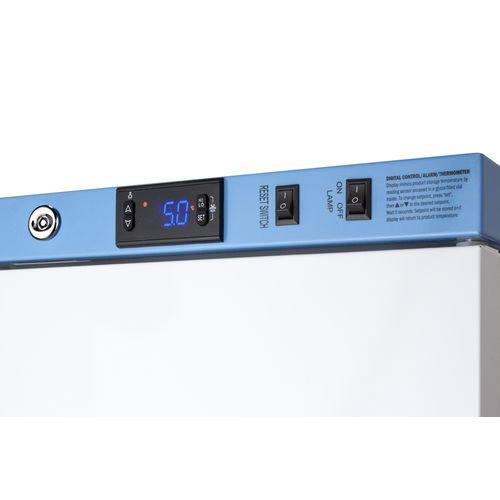

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Reversible door

User-reversible door swing for added flexibility

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

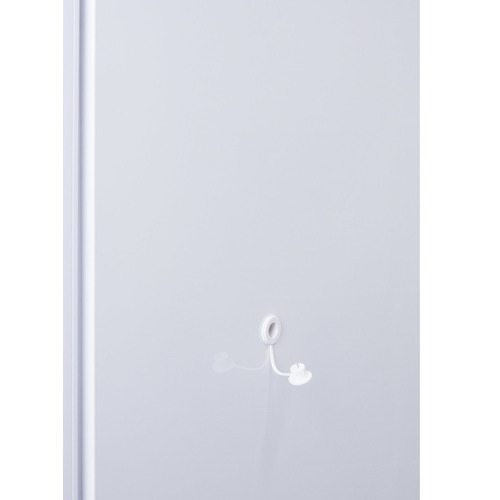

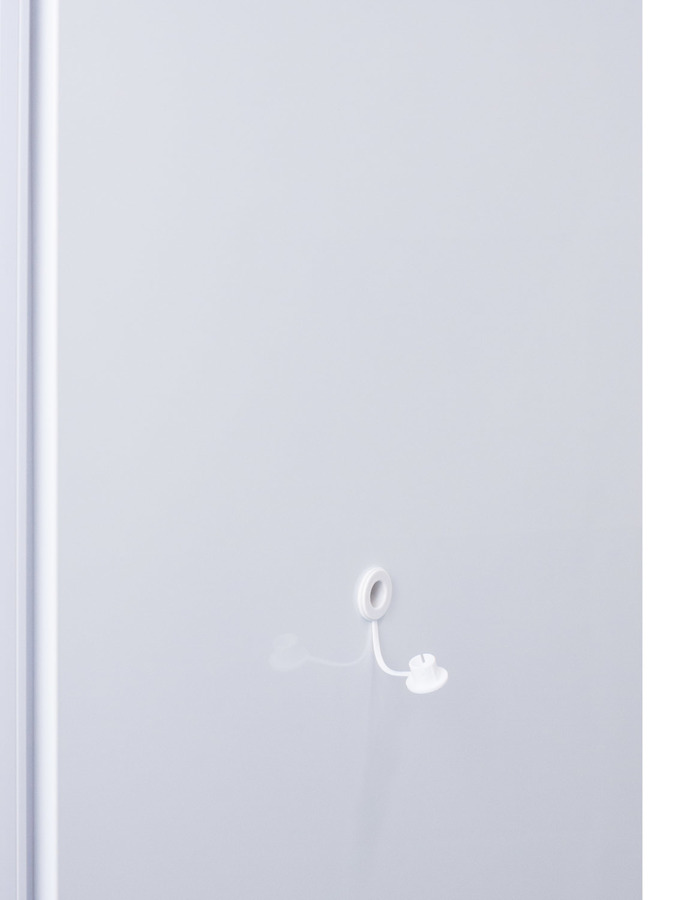

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Self-closing door

Added protection in busy settings

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

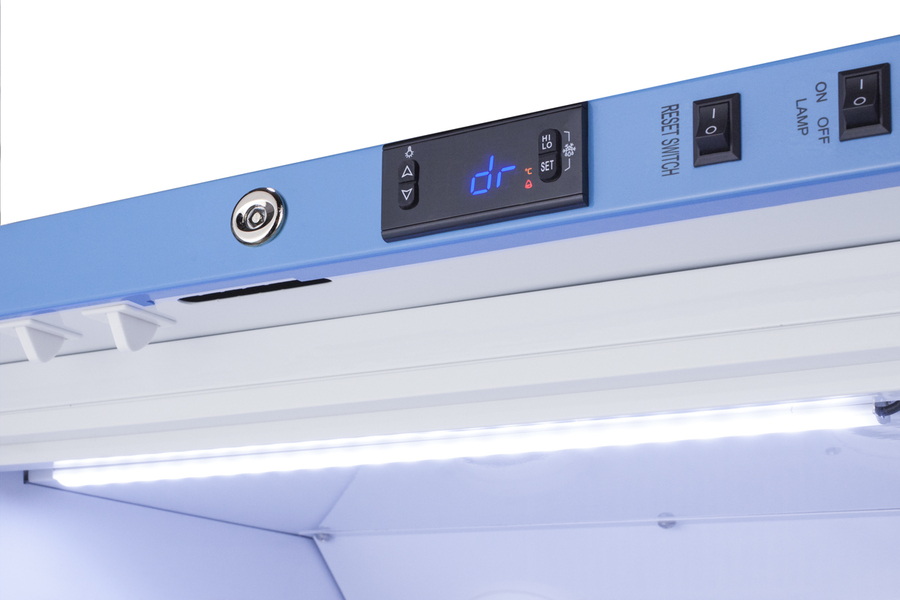

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Interior light

Energy efficient LED lighting with internal on/off switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Extended warranty

2 years parts and labor/5 years compressor

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Additional choices

Units of various capacities, heights, and interiors are available. Browse the MOMCUBE Series for more information

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's MOMCUBE® upright all-refrigerators are designed and purpose-built for breast milk storage. All MOMCUBE® units are laboratory-tested to maintain temperature between 33-40°F, as recommended by the CDC and ideal for maternity wards, hospitals, NICUs, employee wellness rooms complying with Section 4207 of the Patient Protection and Affordable Care Act, and other facilities.

The ARS62MLMCBIADA is a 6 cu.ft. all-refrigerator. Sized at just under 32" high to fit under lower counters complying with ADA guidelines for accessibility. It is designed for freestanding or recessed installation. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

Inside, the ARS62MLMCBIADA utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS62MLMCBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

The MOMCUBE® is an eco-friendly solution to breast milk storage. Units of various capacity, heights, and interiors are available. Explore the entire MOMCUBE® Series on our website or contact our sales team at 718-893-3900 ext. 509 for more options.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
