24" Wide Performance Series All-Refrigerator/All-Freezer Combination

SKU: ARS6PV-AFZ1PVSTACK
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
Estimated Time to Ship:

1 to 2 days

54.75" H x 23.38" W x 24.38" D
(139cm H x 59cm W x 62cm D)

Overview
Nominal Height 55.0" (140 cm)
Height of Cabinet 54.75" (139 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.38" (62 cm)
Capacity 7.4 cu.ft. (210 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101145853
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 24.5" (62 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 6.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.66 oz.
Freezer - Interior Height 16.5" (42 cm)
Freezer - Interior Width 15.25" (39 cm)
Freezer - Interior Depth 15.75" (40 cm)
Freezer - Capacity 1.4 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -30 to -10ºC
Freezer - Refrigerant Type R290a
Freezer - Refrigerant Amount 0.85 oz.

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit

Performance Series Refrigerator-Freezer Combination

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

Easy assembly

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top

Antimicrobial silver ion-coated handles

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)

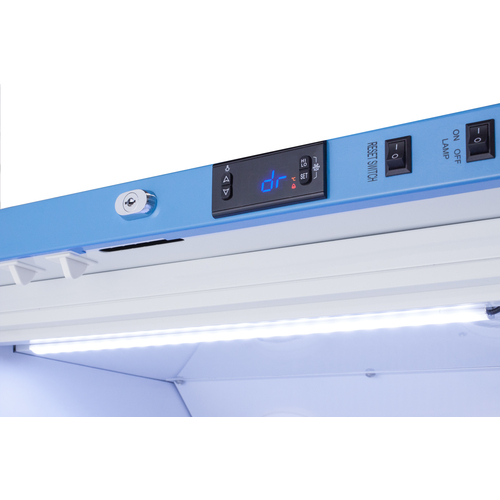

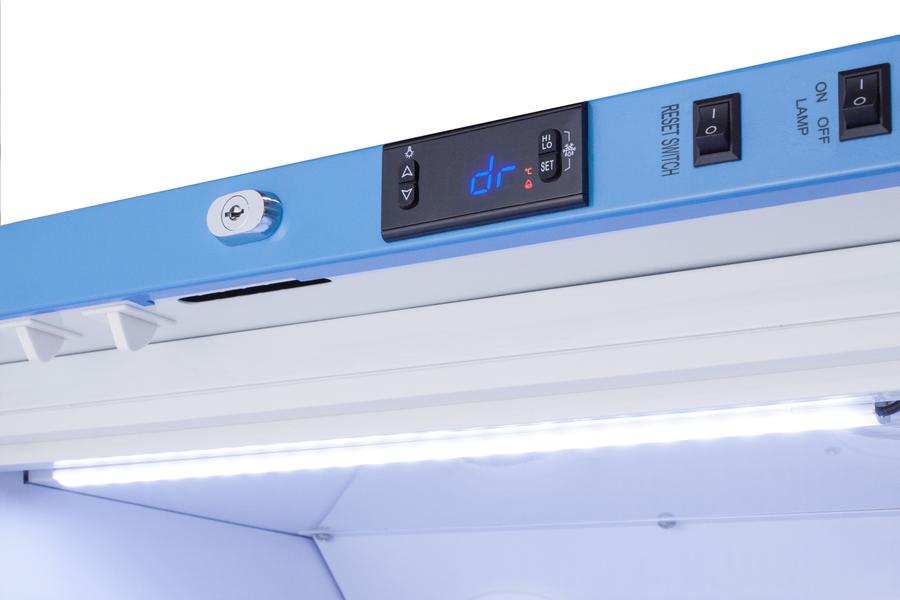

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

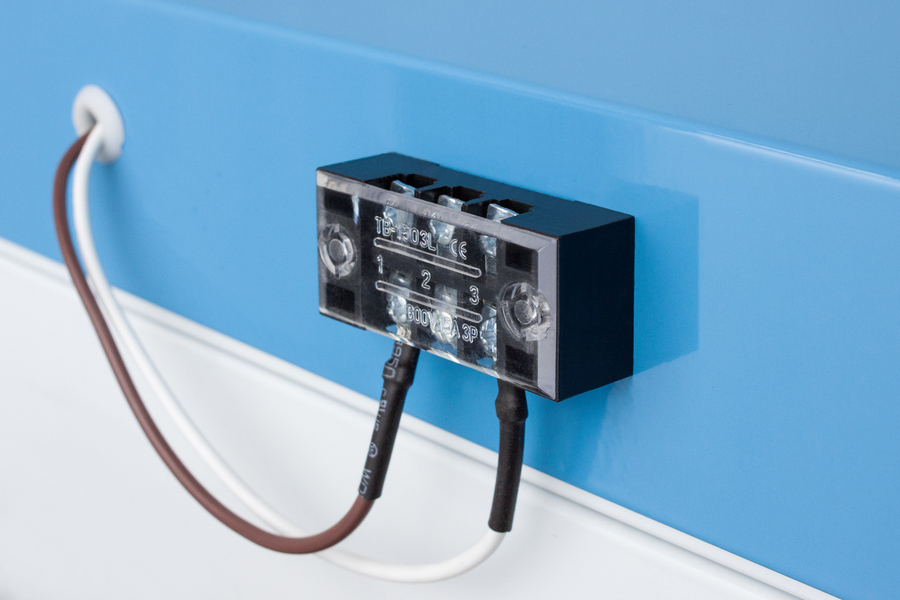

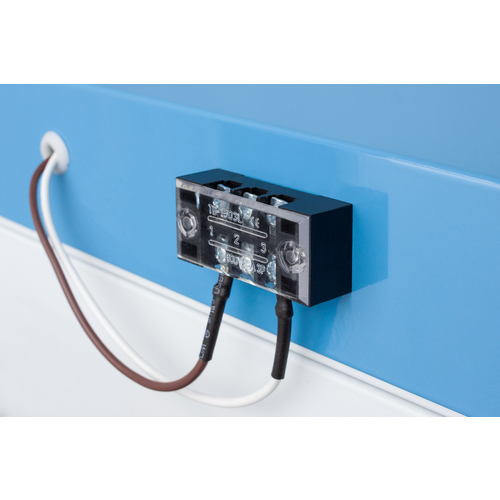

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

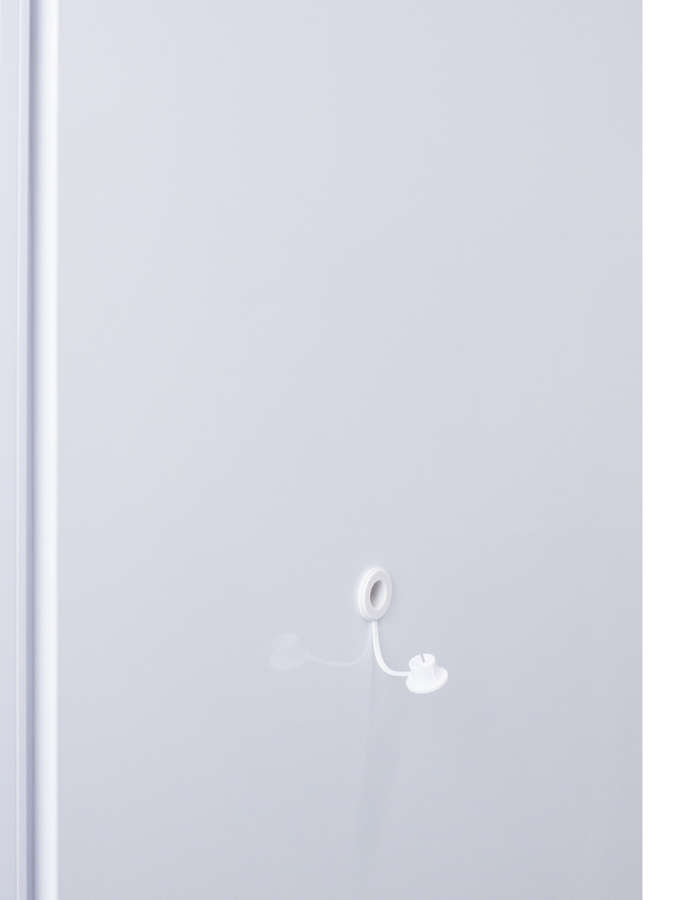

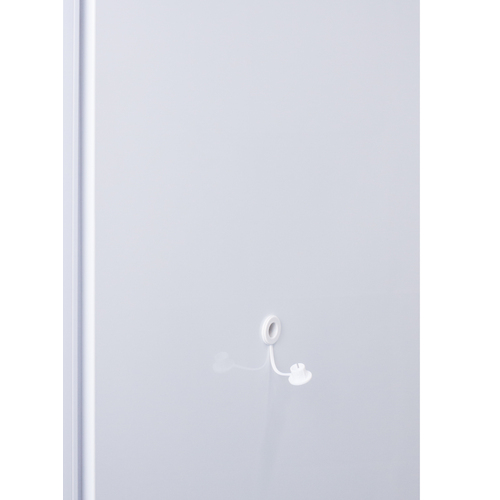

Access ports

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Open door alarms

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarms

Battery-powered alarms sound if the power connection is interrupted

Sensor failure alarms

Audible and visual alarms warn if the sensor is disrupted

Password protection

Control panels require password entry to adjust the parameters beyond the set point

Microprocessor control panels

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max displays

Control panels provide a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

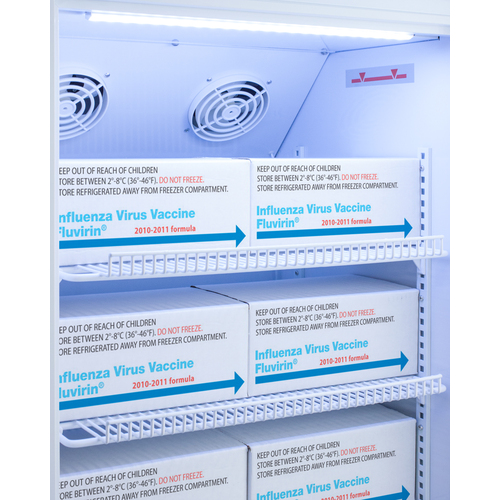

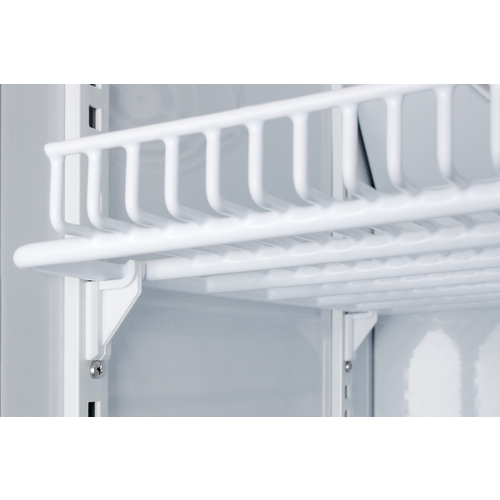

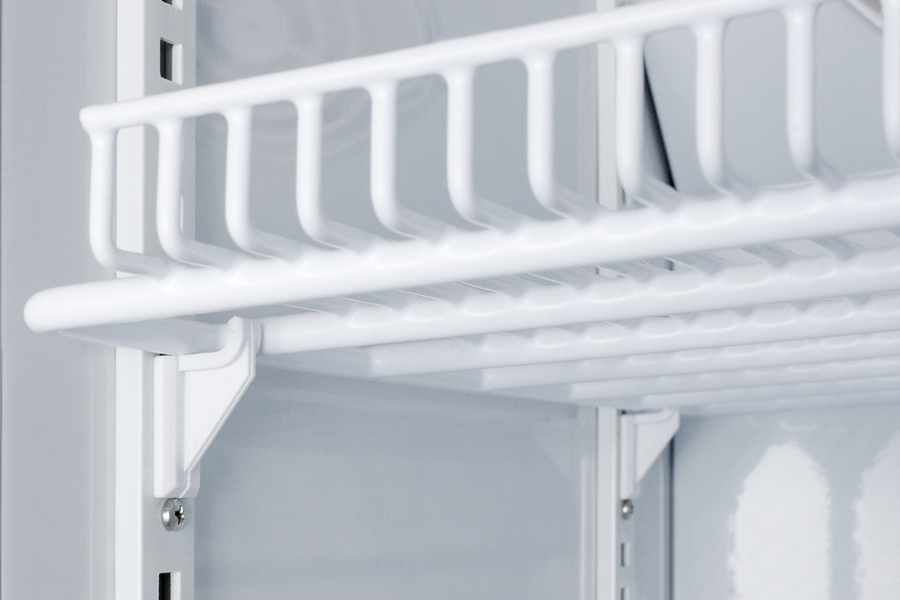

Adjustable plastic-coated wire shelves for improved circulation

Designed to accommodate a variety of sizes for flexible storage

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly (refrigerator)

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC/VFA guidelines.

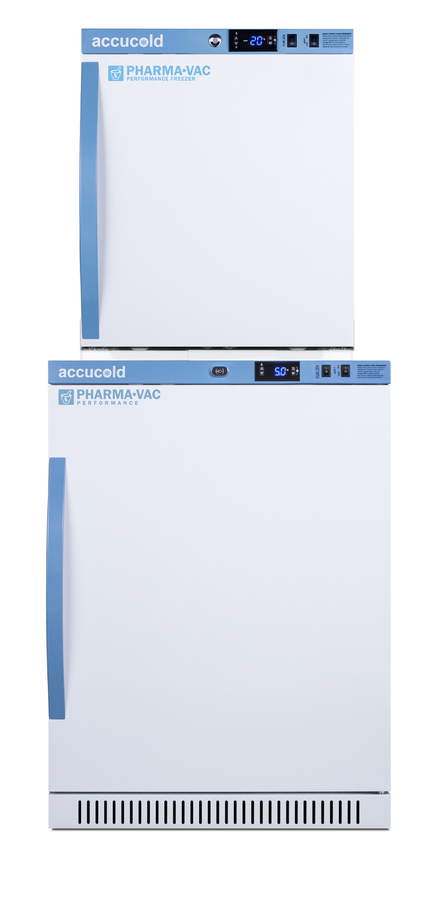

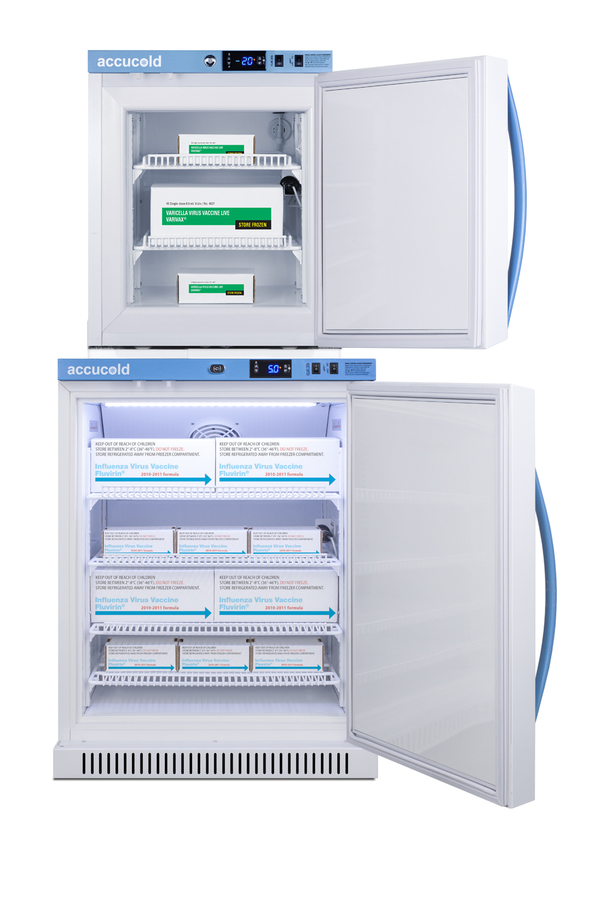

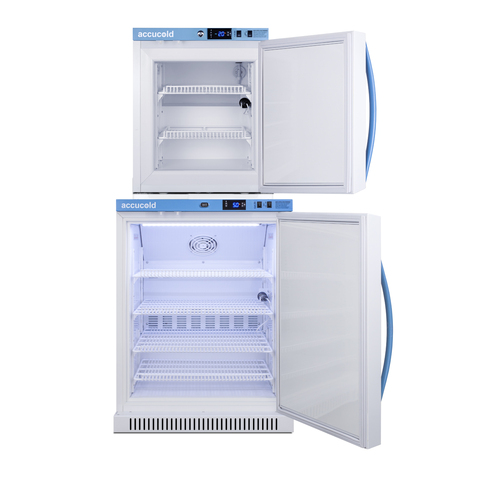

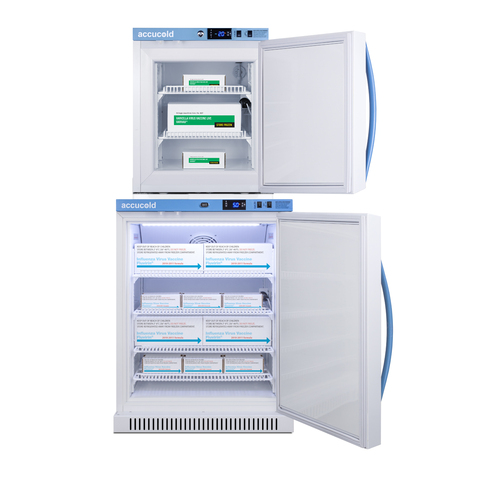

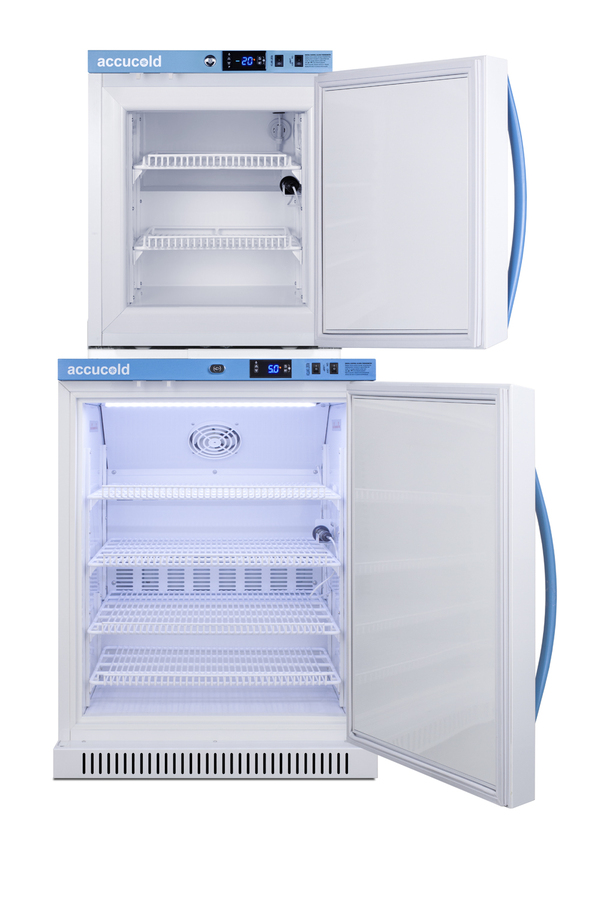

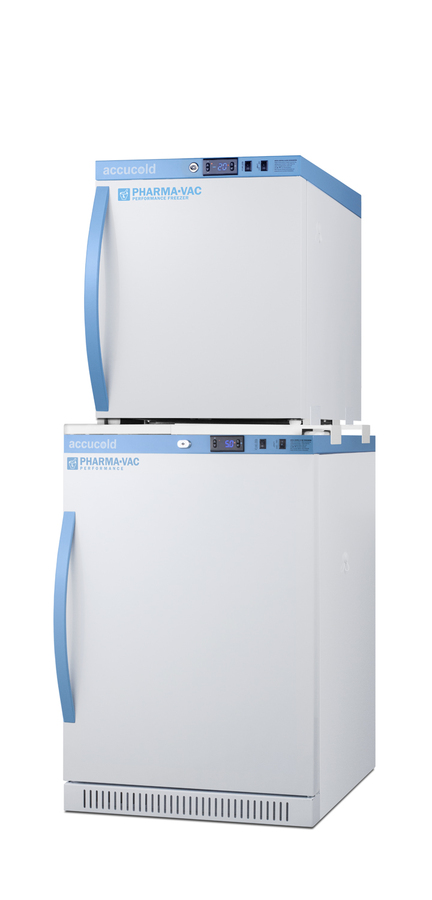

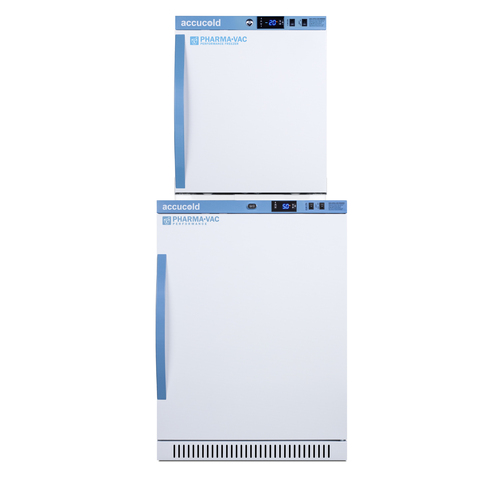

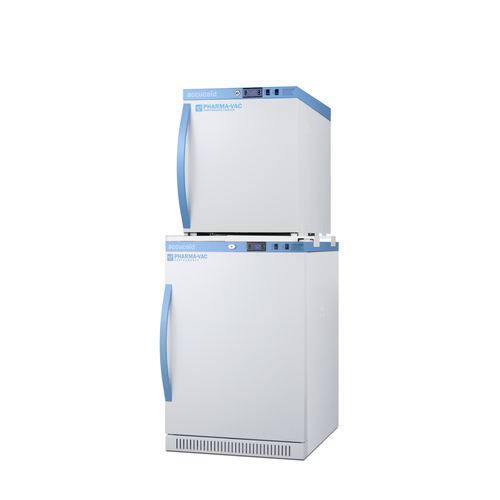

Sized just under 20" wide, the ARS6PV-AFZ1PVSTACK combines the 6 cu.ft. ARS6PV auto defrost all-refrigerator with the 1.4 cu.ft. AFZ1PV all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.

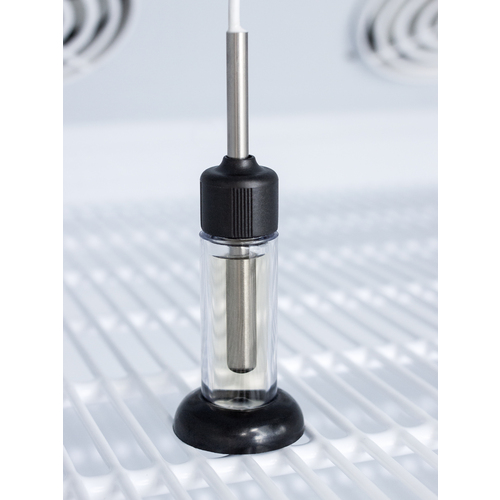

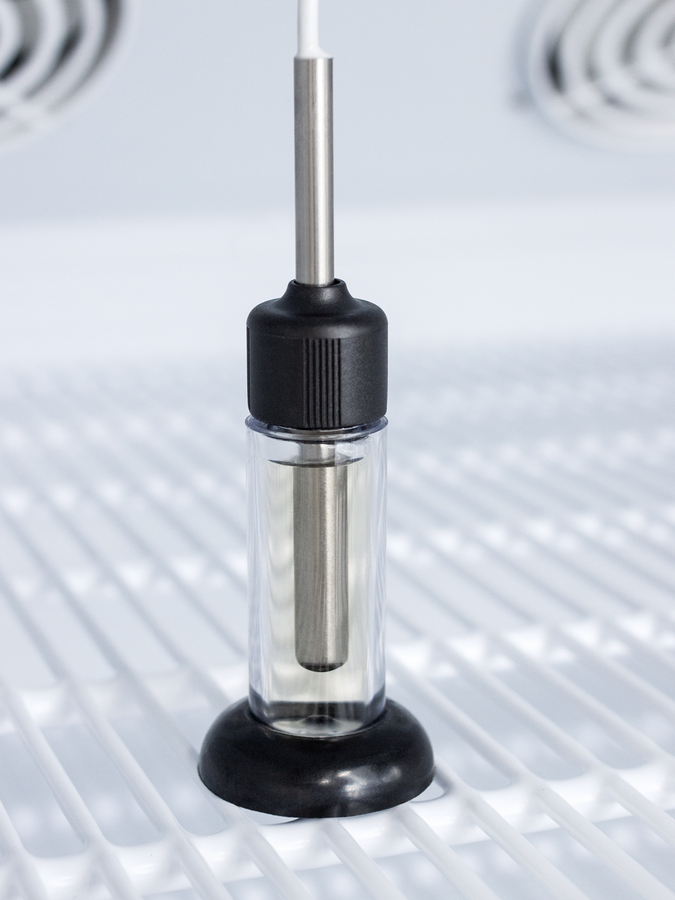

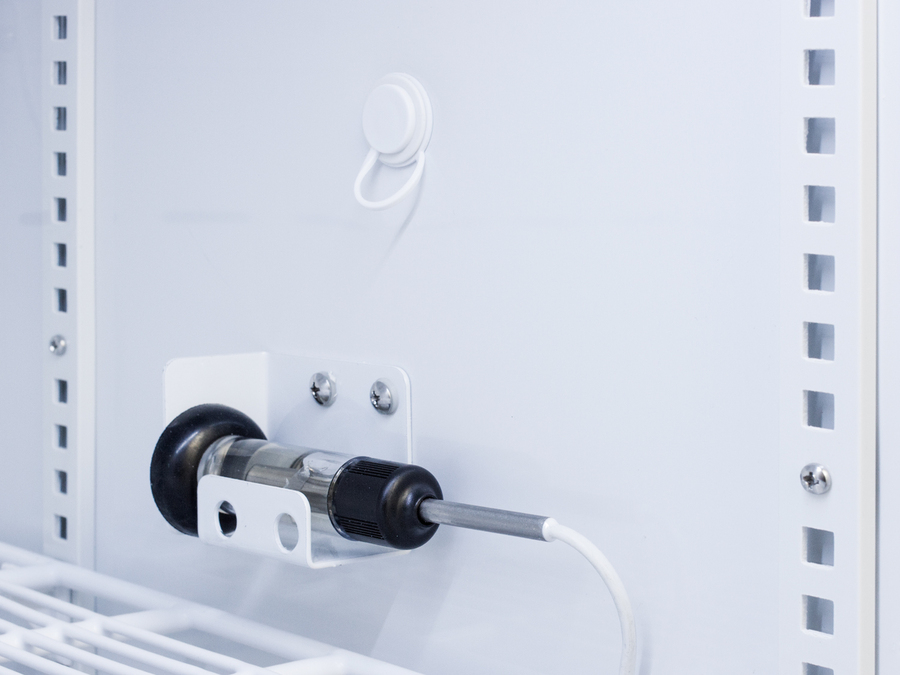

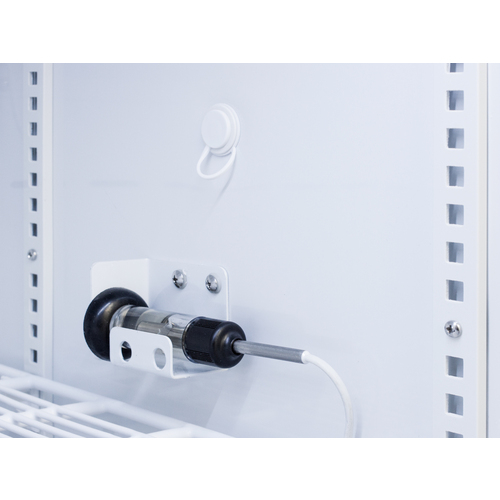

The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units' interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

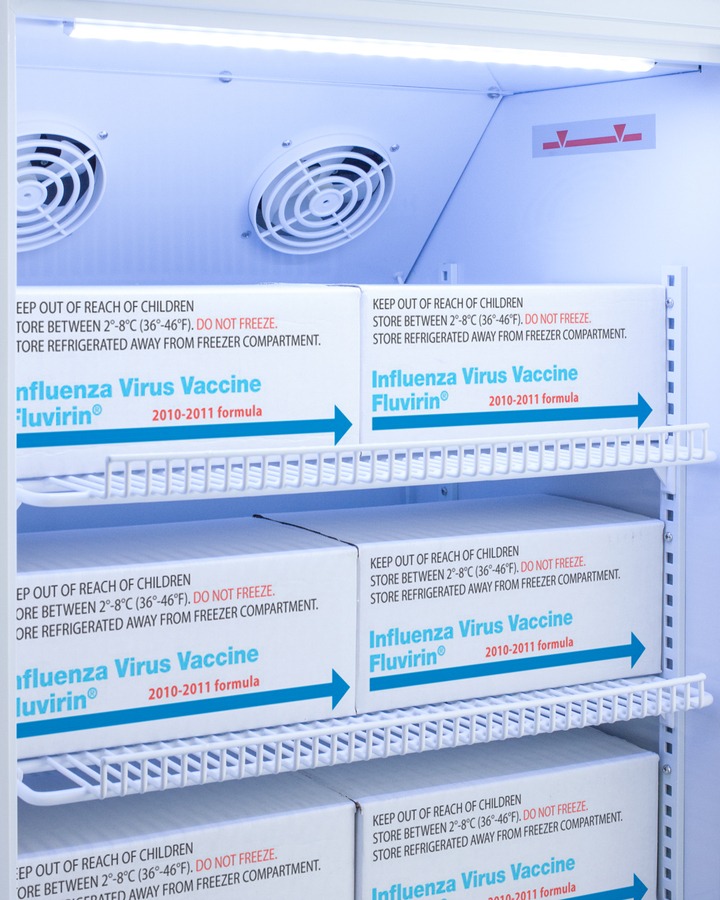

Inside, the ARG6PV refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

Freezer model AFZ1PV can be installed on top of the refrigerator with our stacking rack. This freezer utilizes static manual defrost operation. It comes with two adjustable shelves.

Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
