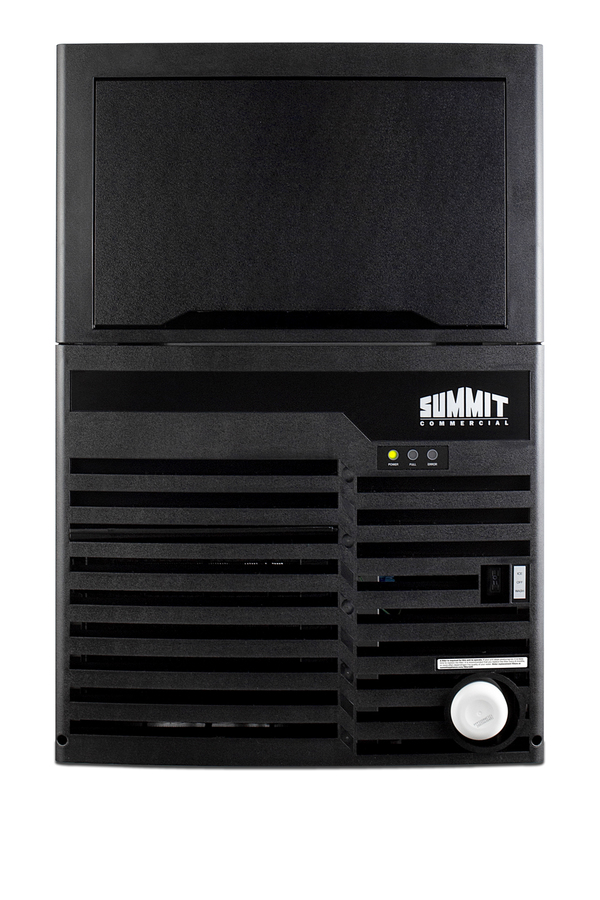

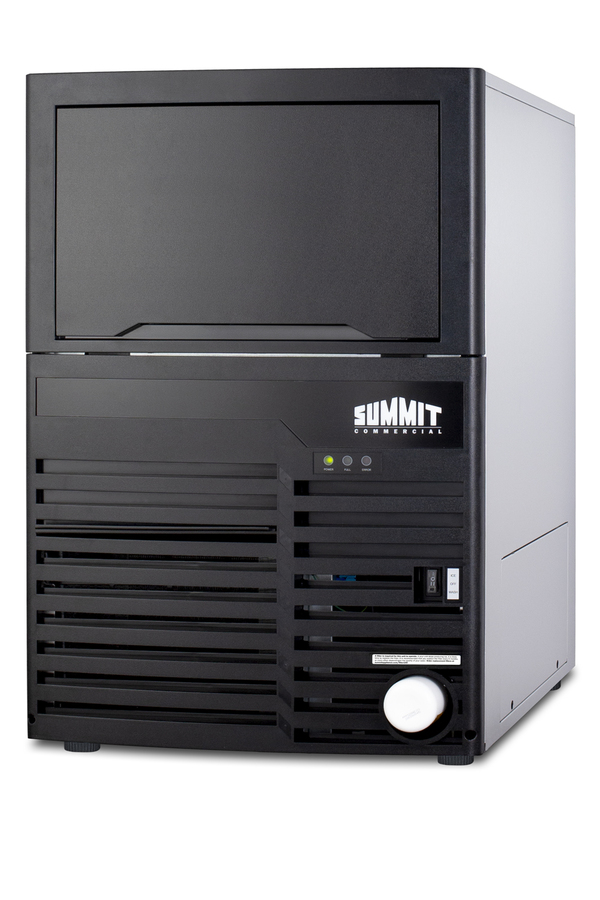

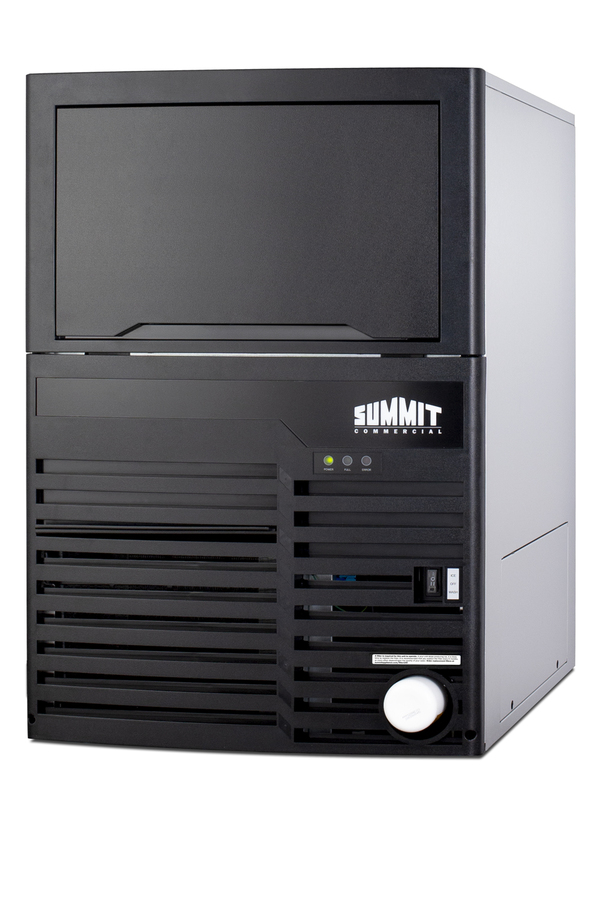

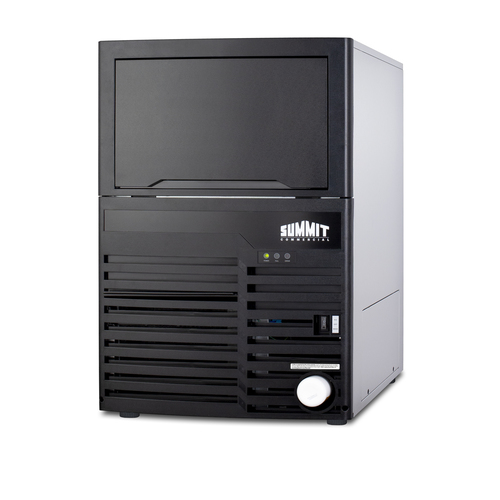

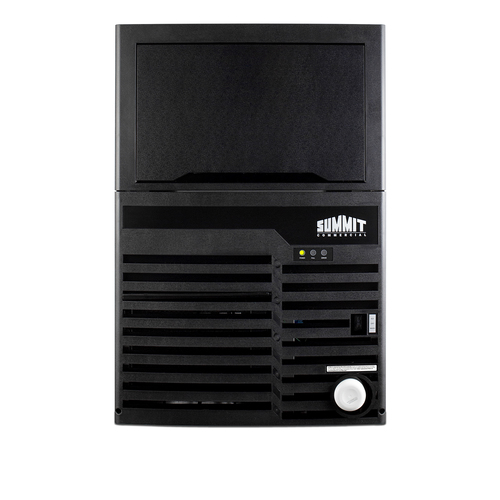

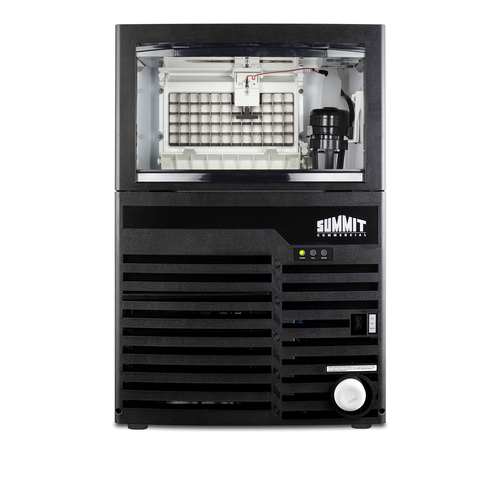

100 lb. Commercial Icemaker, ADA Compliant

SKU: BIM100ADA
High capacity 100 lb. clear ice production in a slim-fitting design
Out of Stock; ETA:

12/31/2024

31.5" H x 20.5" W x 22.25" D
(80cm H x 52cm W x 57cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.5" (80 cm)
Nominal Width 21.0" (53 cm)
Width 20.5" (52 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.25" (57 cm)
Defrost Type Automatic
Door Black
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 3.75
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075709
Icemaker
Door Swing Lift-Up
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 100.0 lbs. (45 kg)
Ice Storage Capacity 27.0 lbs. (12 kg)
Ice Shape Cube
Size of Cube 1" x 1"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 8.5 oz.
High Side PSI 190.0
Low Side PSI 133.0
Interior Height 10.25" (26 cm)
Interior Width 18.0" (46 cm)
Interior Depth 17.0" (43 cm)
Level Legs 4

Commercially approved

ETL-S listed to NSF-12 commercial standards

ADA compatible height

Includes a set of 1 1/2" high leveling legs to bring the overall height up to 31 1/2", ideal for fitting under lower counters following ADA guidelines

Large production capacity

Produces up to 100 lbs. of clear ice in a day cycle

Easy cleaning

Included leg set allows you to clean the space below the icemaker

Built-in capable

Front-breathing design allows this unit to be installed under counters

Quiet operation

Efficient, low noise fan for a quiet performance

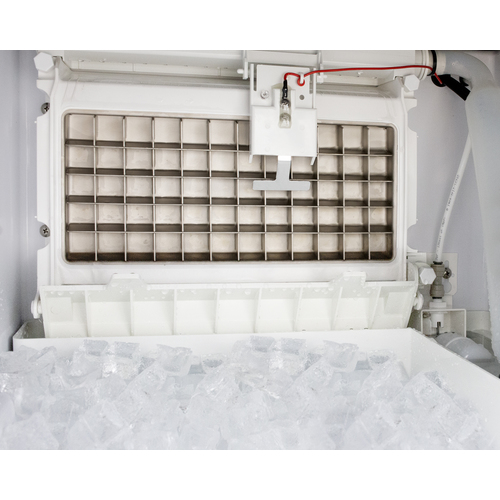

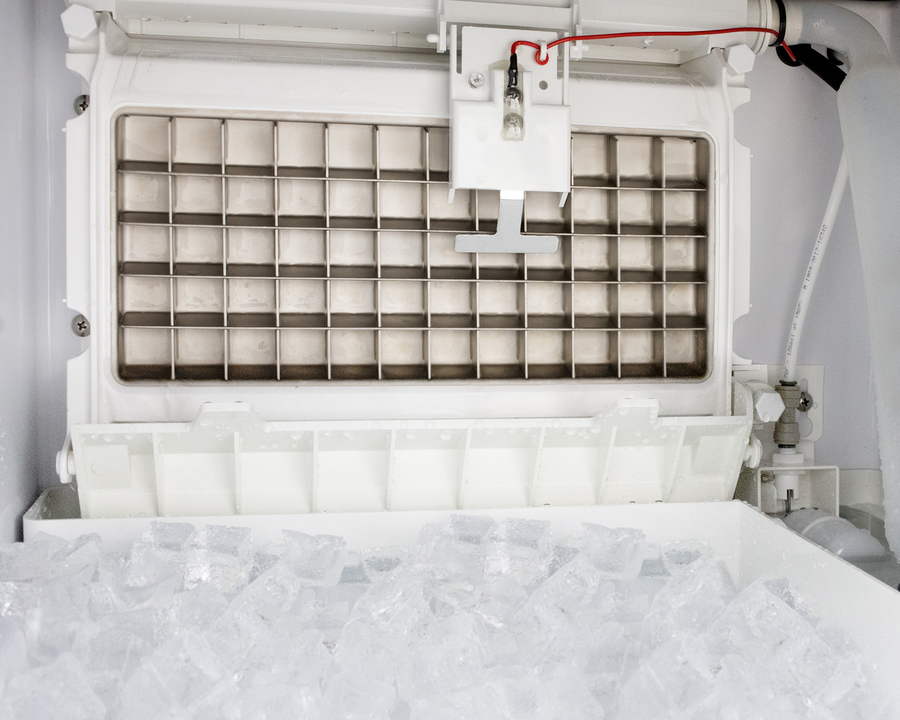

Clear ice production

Produces clear 1" x 1" dice cubes

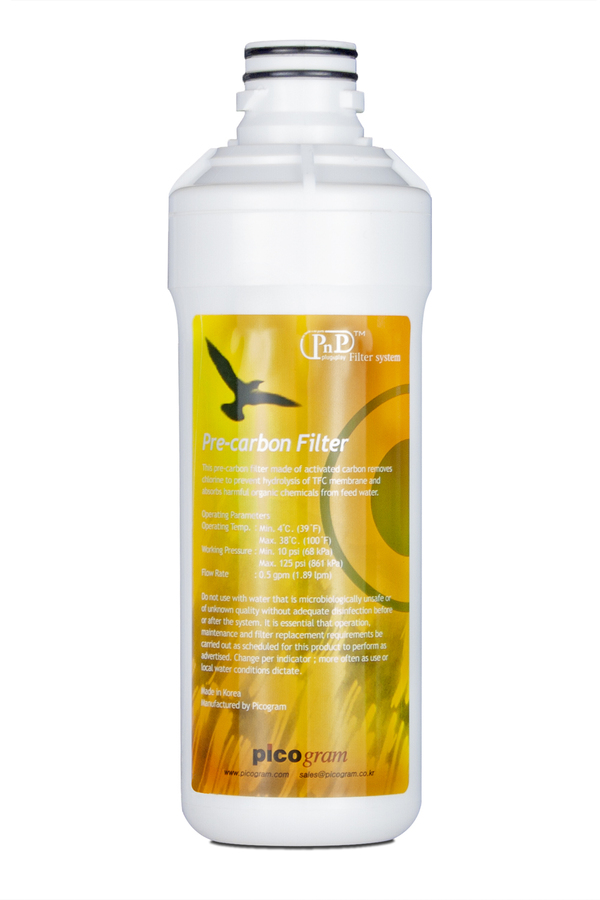

Water purification filter

Helps maintain great tasting ice. A purification filter is required for operation (1 is included with your initial purchase); To order replacement filters, visit summitappliance.com/filter100

Sliding door

Top lid is on lift-up glides for easy access to the ice bin

Ice full sensor

Automatic sensor alerts when bin is full and stops ice production to prevent overfill

Air filter

Removable mesh filter located in the front of the icemaker makes it easy to keep the condenser clean

Wash function

Auto clean mode allows you to periodically clean the system as needed with a neutral detergent

Generous storage

Interior holds up to 27 lbs. of ice

Ice scoop

Ice scoop included for added convenience

Sealed back

Space-saving design with easier cleanability

Fully finished stainless steel cabinet

Durable finish allows the unit to be used freestanding

7.5" long power cord

Extra long pre-installed power cord allows more flexibility in placing the unit

Extra leveling legs

We include a set of 4 1/2" high legs for optional use to raise the height up to 34 1/2"

Requires professional installation

Gravity drain system

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit Commercial brings powerful performance and user-friendly convenience in an under the counter design with the BIM100ADA commercially approved icemaker, specially designed to fit in ADA compliant settings.

Made for Summit in South Korea, the BIM100ADA is ETL-S listed to NSF-12 standards for use in commercial applications.This unit features a fully finished stainless steel cabinet and jet black front with a slide-up lid. It can be built-in under counters or used freestanding, with a front-breathing air-cooled system to prevent overheating. The BIM100 produces up to 100 lbs. of clear dice style ice cubes per day. The interior can store up to 27 lbs. to help meet the needs of high traffic commercial environments, with an automatic sensor to prevent overproduction.

This unit has a 30" high cabinet and ships two sets of leveling legs: adjustable .5" to 1.5" legs that raises the height up to 31.5" for use under lower ADA compliant counters, and a standard set of 4.5" high commercial legs for a more traditional 34.5" counter height. All controls are conveniently located in front, with a removable mesh filter to make it easy to remove dust buildup from affecting the condenser. We also include an ice scoop for serving convenience. The BIM100ADA is designed to operate quietly. It comes equipped with an internal wash setting for simple maintenance, and a 7.5" long power cord for flexible placement. This unit has a sealed back in stainless steel for added space savings and easier cleanup. It utilizes a gravity drain system and requires professional installation (drain size: 3/4"; water supply/inlet size: 3/8").

The BIM100ADA ships with an included water purification filter to ensure better tasting ice. This filter is required in order to operate the unit and will need to be replaced every six months (timing may vary based on the quality of your water). To order a replacement set, visit summitappliance.com/filter100.

With its high capacity output and slim-fitting design, the BIM100ADA is ideal for bars, restaurants, cafes, office spaces, and similar environments seeking a professional ADA height icemaker in a durable design.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
