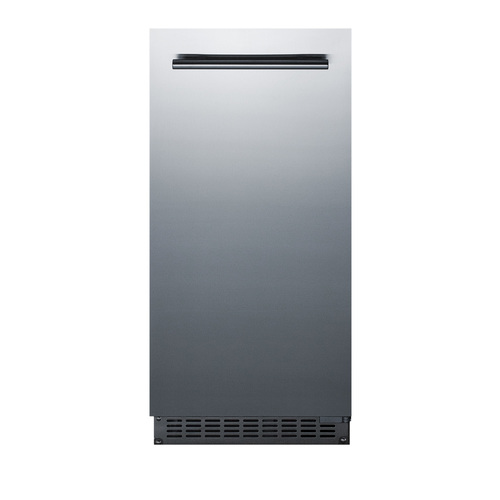

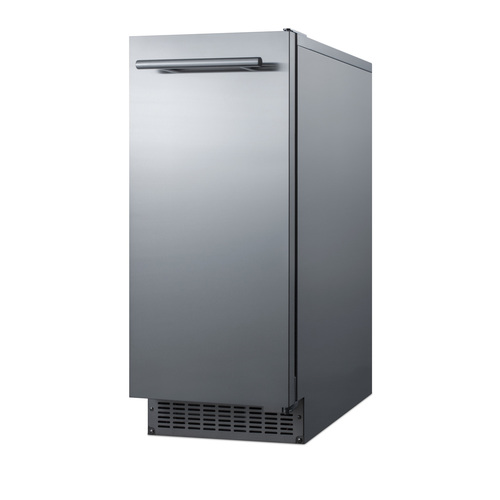

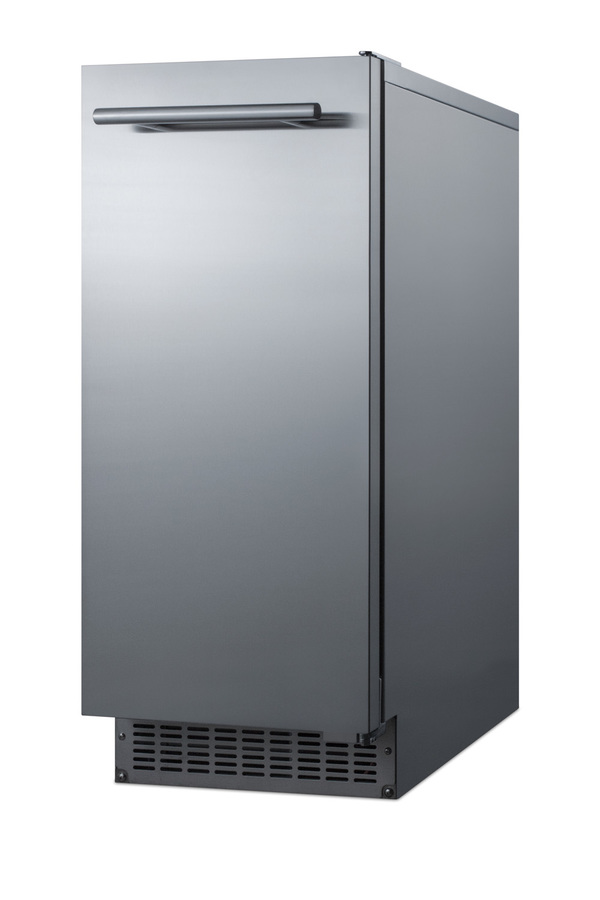

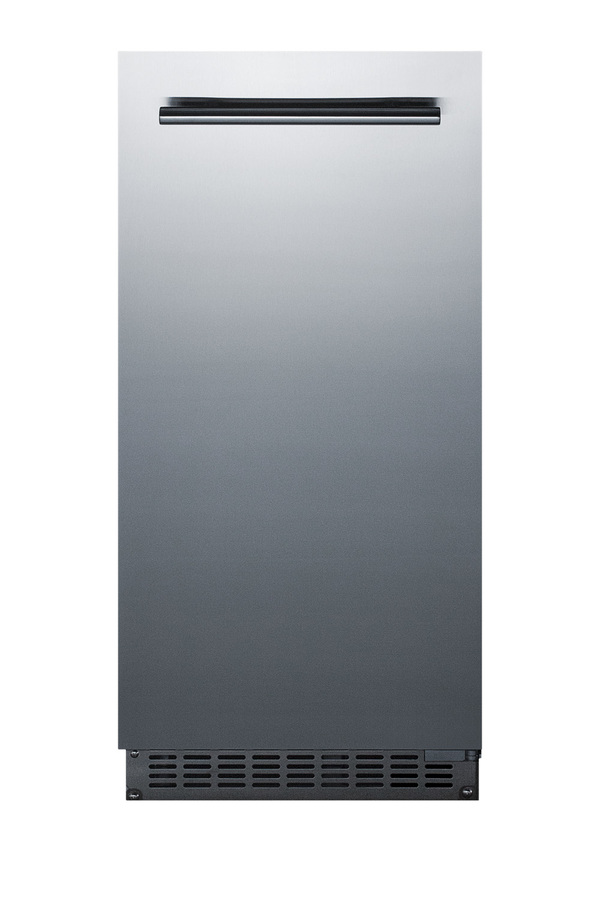

62 lb. Clear Outdoor/Indoor Icemaker
Next day shipping
(85cm H x 38cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 37.25" (95 cm) |
| Capacity | 0.98 cu.ft. (28 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 4.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101057095 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Daily Ice Production | 62.0 lbs. (28 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Ice Shape | Dice |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 7.4 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Interior Height | 12.75" (32 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 9.25" (23 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
Versatile design can be installed inside or out
ETL-S listed to NSF-12 commercial standards for use in foodservice settings
Durable construction for safe installation in outdoor kitchens
Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Internal pump allows more flexibility in placing the unit
Make the best use of space by installing your icemaker under the counter and flush with other cabinets
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

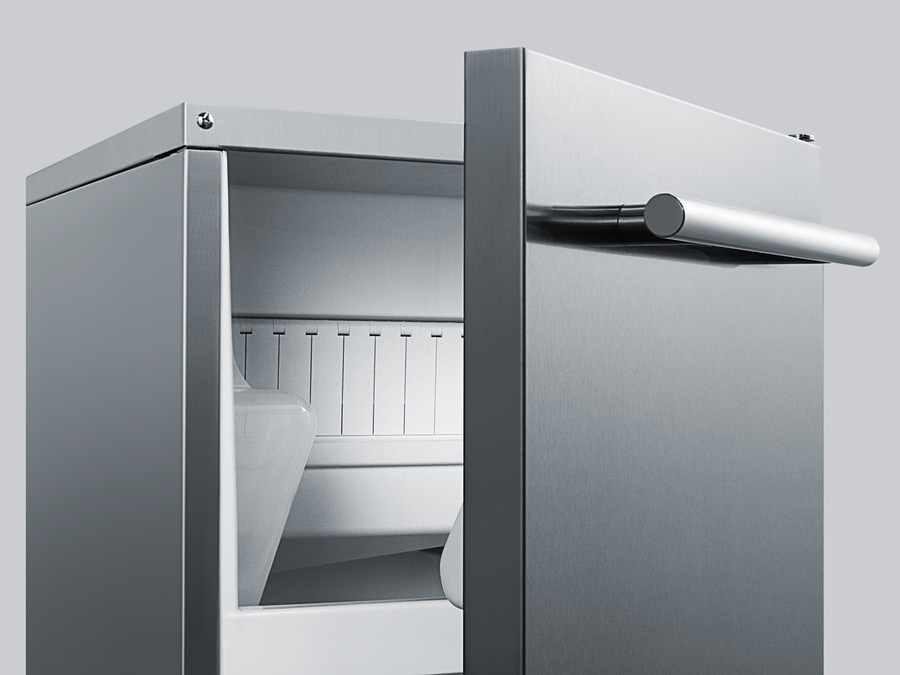

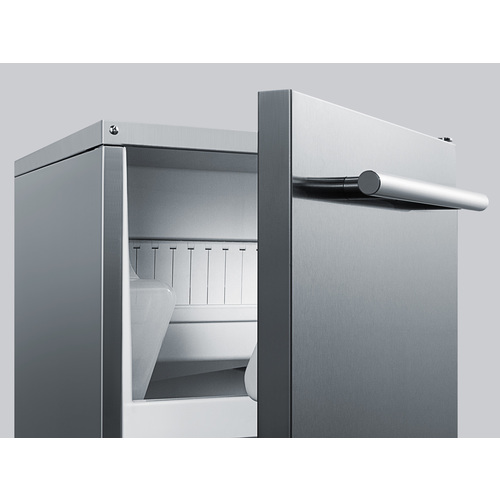

Horizontally mounted towel bar style handle in stainless steel

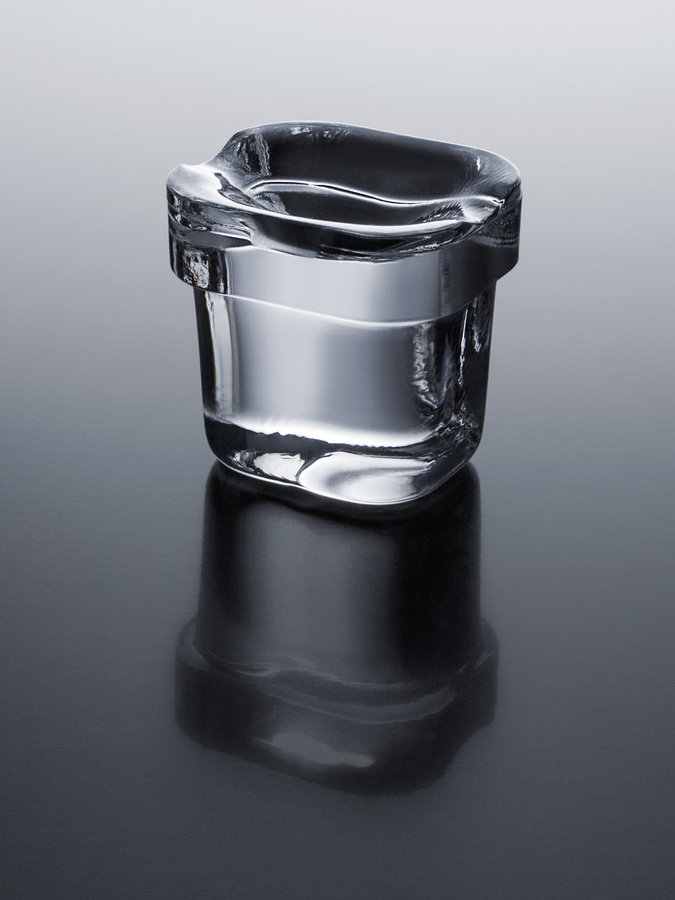

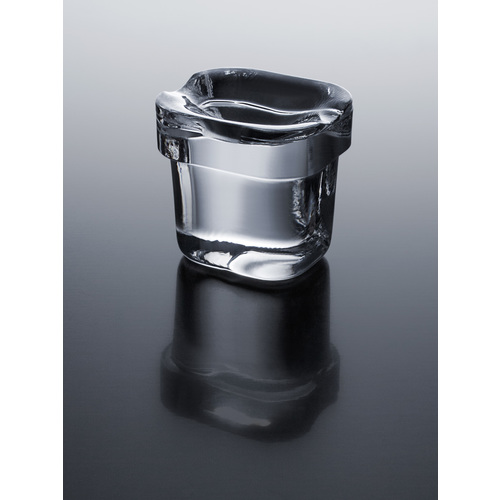

Gourmet style rounded dice-style ice cubes
No-frost operation for minimum user maintenance

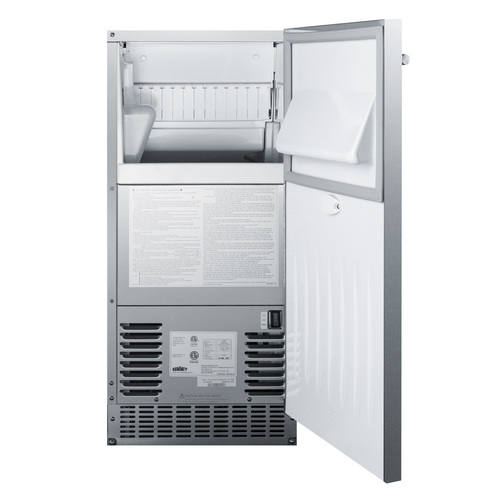

User-reversible door swing for flexible placement
Operates with a standard 1/4” OD water supply line
Space-saving design with easier cleanability
Allows the unit to be used freestanding

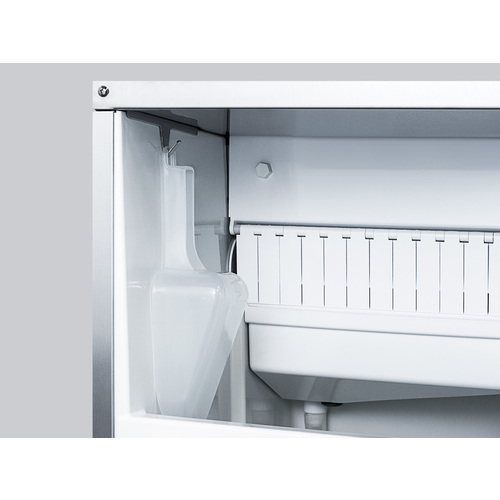

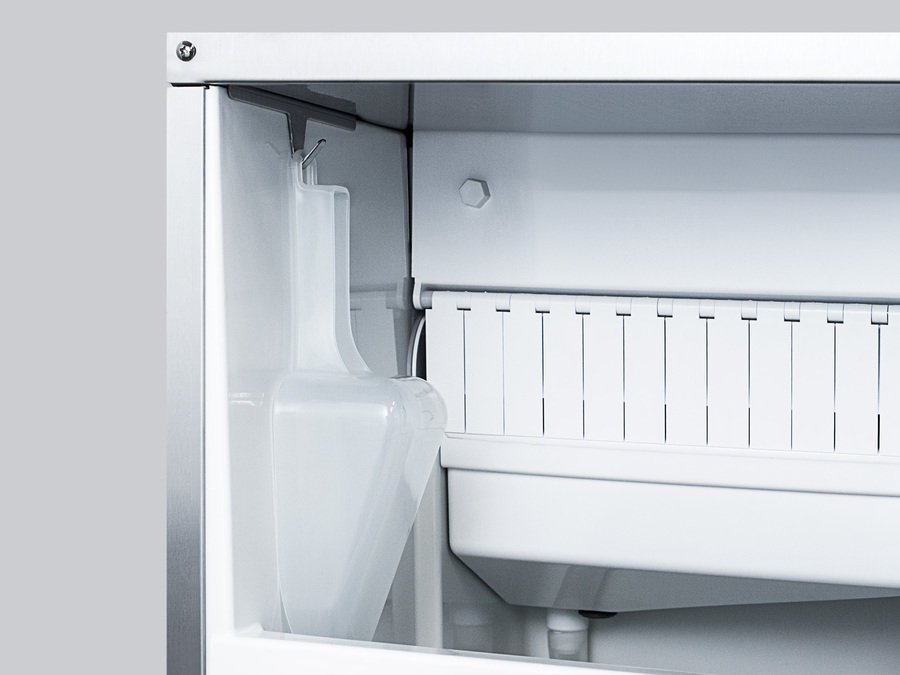

Interior wall includes hook to hang for easy storage
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DESCRIPTION
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location. Sized at 15" wide, the BIM68OSPUMP features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup. The BIM68OSPUMP produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSPUMP is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSPUMP) is also available. NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
