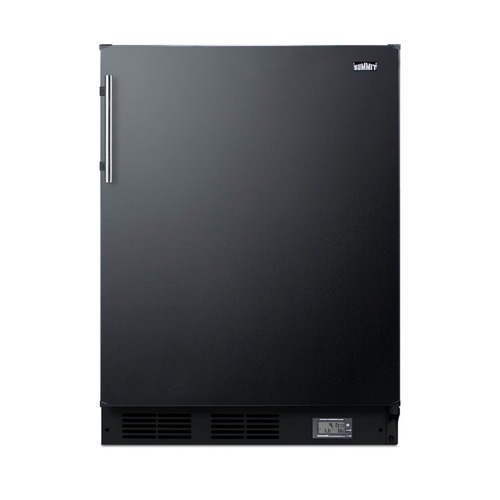

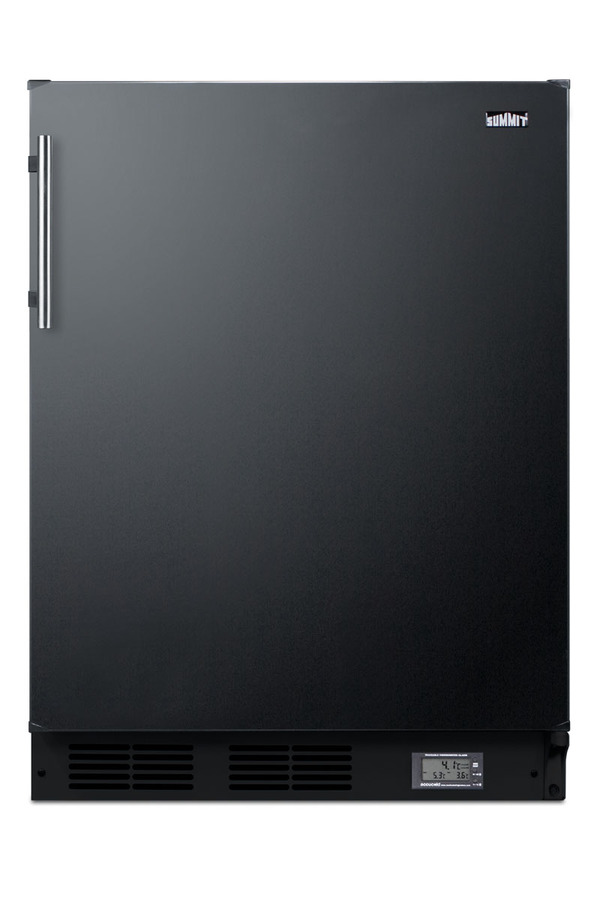

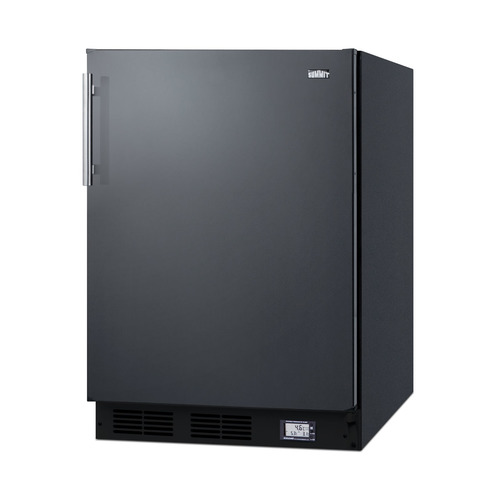

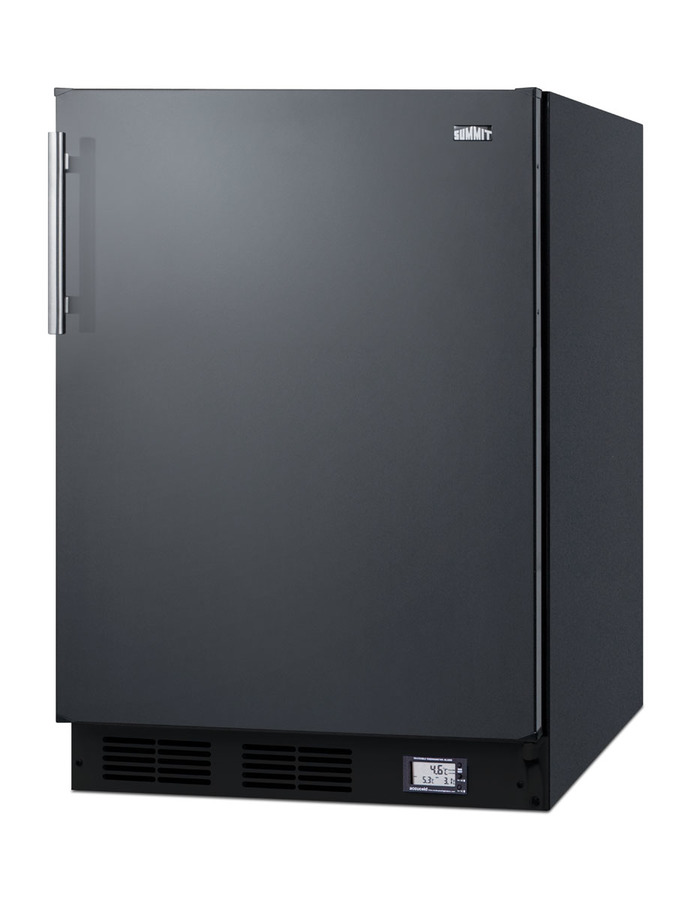

24" Wide Break Room Refrigerator-Freezer

SKU: BKRF663B

Ideal for break rooms and other general purpose applications, with an externally located continuous temperature display

Estimated Time to Ship:

1 to 2 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.63" H x 23.63" W x 23.0" D
(83cm H x 60cm W x 58cm D)

Overview
Nominal Height	33.0" (84 cm)
Height of Cabinet	32.63" (83 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Black
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	365.0kWh/year
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061375
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	18.0" (46 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	18.0" (46 cm)
Refrigerator - Capacity	4.5 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.25" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Freezer - Capacity	0.6 cu.ft
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
Level Legs	2
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Legs to raise unit height 6" high leveling legs	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate	CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate	CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

Slim counter height dimensions

Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

NIST calibrated thermometer

Thermometer provides an external readout of the current and high/low refrigerator temperature to the nearest tenth of a degree

High/low temperature alarm

Audible alarm sounds if the refrigerator interior temperature rises or falls out of set range

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Door storage

Store tall bottles and condiments right on the door for convenient access

Interior light

Automatically illuminates when you open the door

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Reversible door

User-reversible door swing for added flexibility

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's selection of break room refrigeration features a variety of units for convenient and reliable storage in hospitals, clinics, and other facilities.

The BKRF663B is a counter height refrigerator-freezer made in Europe and sized with a 24" footprint. It features a black exterior finish and stainless steel handle, with a user-reversible door swing for added flexibility. A factory-installed NIST calibrated thermometer is located in the kickplate to provide a continuous display of the current and high/low temperatures of the refrigerator compartment to the nearest tenth of a degree. Temperature can be viewed in Celsius or Fahrenheit for added convenience. The device also includes an audible alarm to warn of major temperature fluctuations.

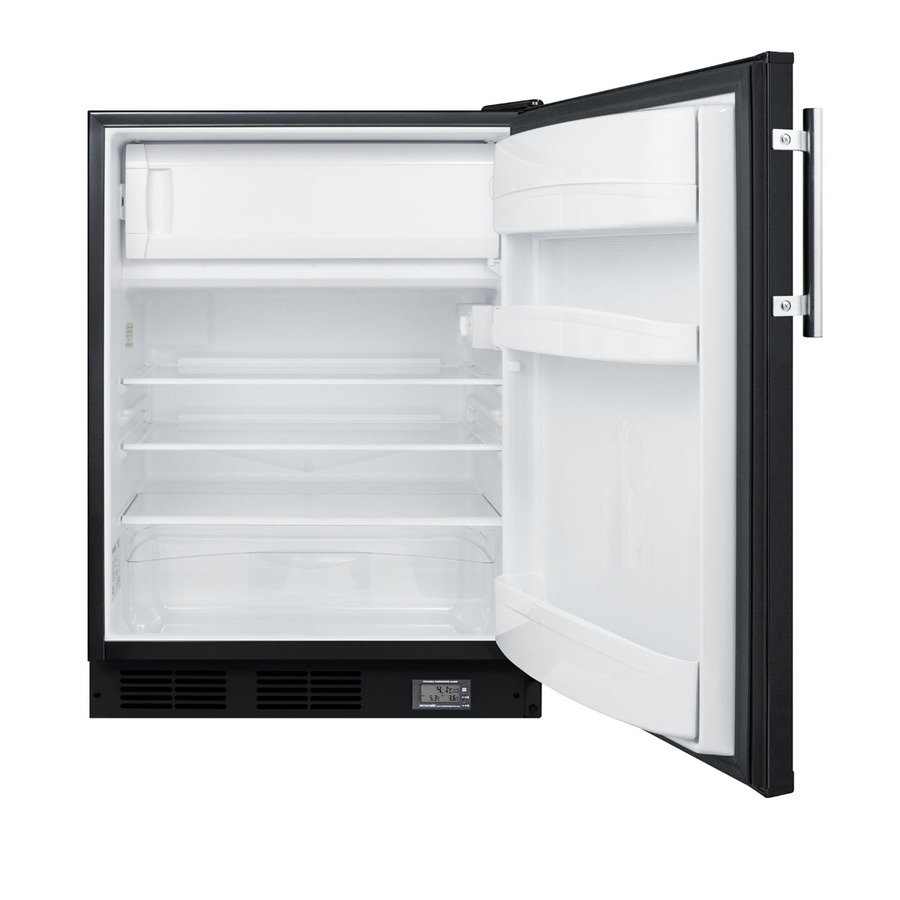

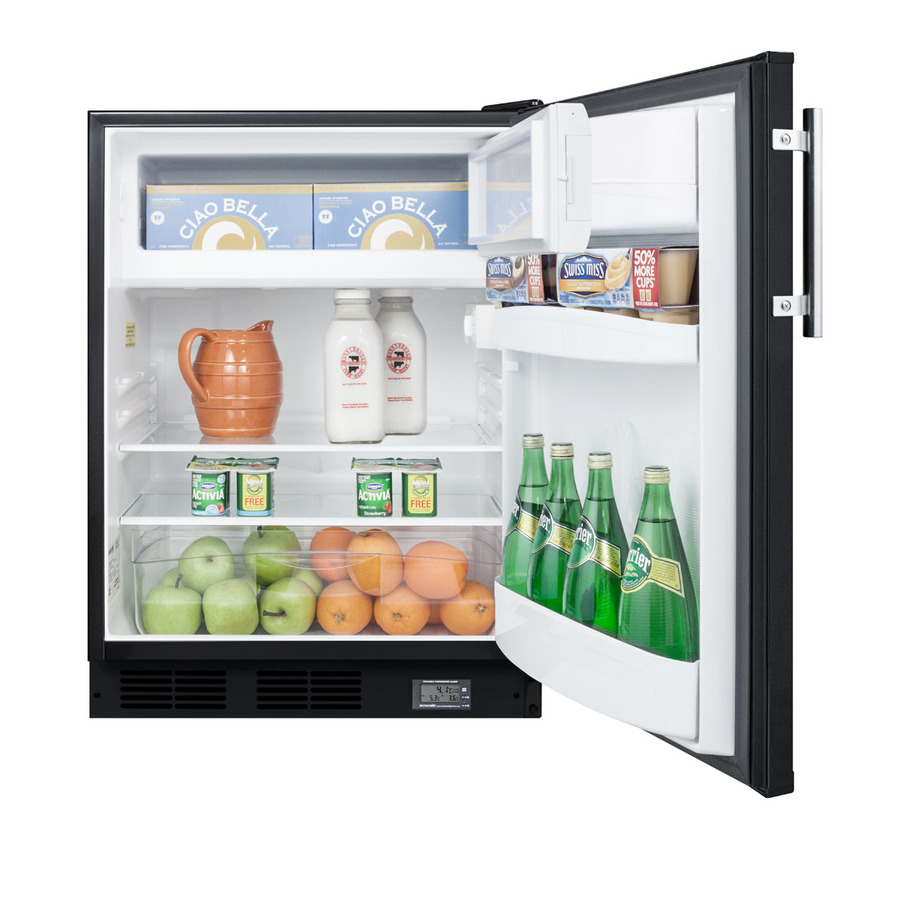

Inside, the BKRF663B features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for frozen food. Additional features include adjustable glass shelves, a crisper drawer, door racks for condiments and tall bottles, and an automatic interior light.

The BKRF663B is designed for freestanding use. For a built-in version, see the BKRF663BBI. Additional styles and ADA compliant sizes are available.

Note: Model prefix "BKRF" is a marketing designation. Actual unit will carry Summit model number CT663B.

BROCHURE w/ DRAWINGS
BKRF663B.pdf

TECHNICAL DRAWING (.dwg)
CT661_CT663BREF._FRE.A-C2000.dwg

USE & CARE
AL3_Alarm_Thermometer_Instructions.pdf

USE & CARE
CT661W_CT663BK__User_Manual_51220.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
