48" Wide All-In-One Kitchenette

SKU: C48EL

Complete kitchen convenience in just 48" of width

Estimated Time to Ship:

1 to 2 days

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

40.0" H x 47.25" W x 24.0" D
(102cm H x 120cm W x 61cm D)

Overview
Nominal Height	40.0" (102 cm)
Height of Cabinet	40.0" (102 cm)
Nominal Width	48.0" (122 cm)
Width	47.25" (120 cm)
Nominal Depth	24.0" (61 cm)
Depth	24.0" (61 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	25.0
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
UPC	761101023854
Kitchenette
Refrigerator Included	CT661W
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	3
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
Cooking Type	Coil Cooktop
Number of Burners	2
Cooktop Controls	Dial
Interior Height 1	19.5" (50 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	17.0" (43 cm)
Interior Height 2	5.0" (13 cm)
Interior Width 2	19.0" (48 cm)
Interior Depth 2	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step With	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Sink Height	5.88" (15 cm)
Sink Width	16.75" (43 cm)
Sink Depth	14.88" (38 cm)

Exterior

CKIND-Induction Cooktop Upgrade to 2-burner 115V induction cooktop (model SINC2B115)	LHD - Left hand door swing Door reversal to left hand swing
CKMB-Mobile design with pre-installed casters on kitchenette Factory-installed dolly with four wheels (two locking) to allow easier mobility

Door

STO-Step-To-Open Door Pedal

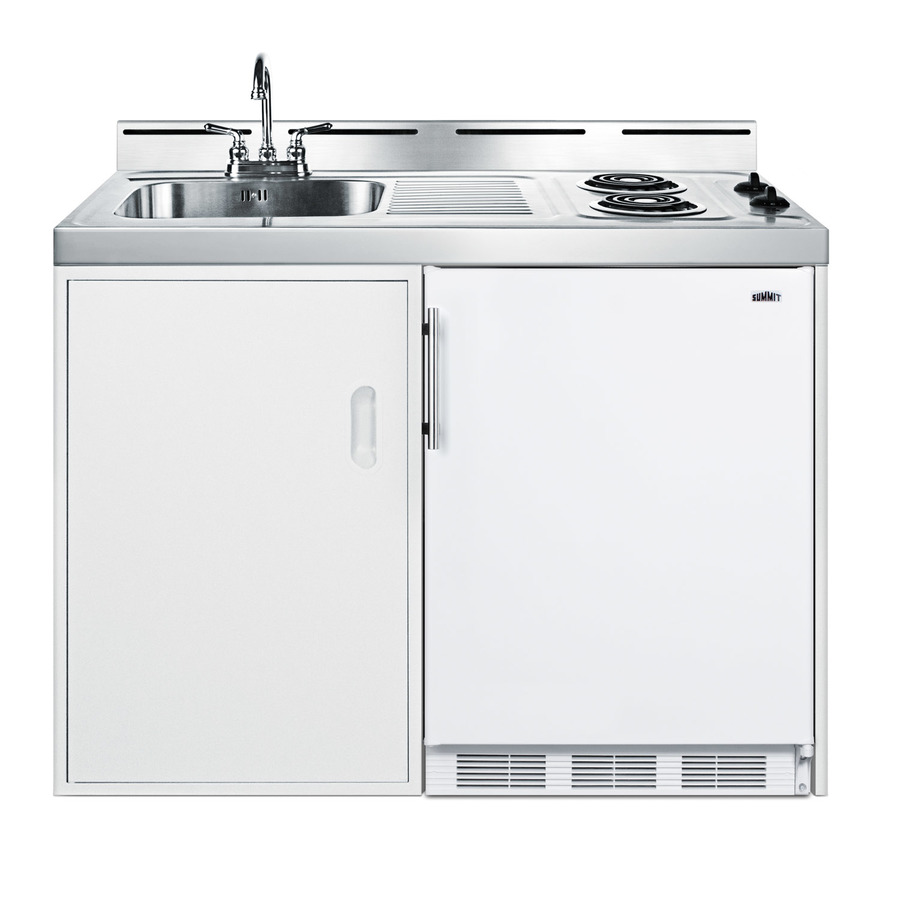

Complete all-in-one kitchenette

All-in-one kitchen is built with virtually everything you need for meal preparation

Refrigerator-freezer included

Includes SUMMIT CT661W, a refrigerator-freezer with dual evaporator cooling, adjustable glass shelves, a crisper, and more

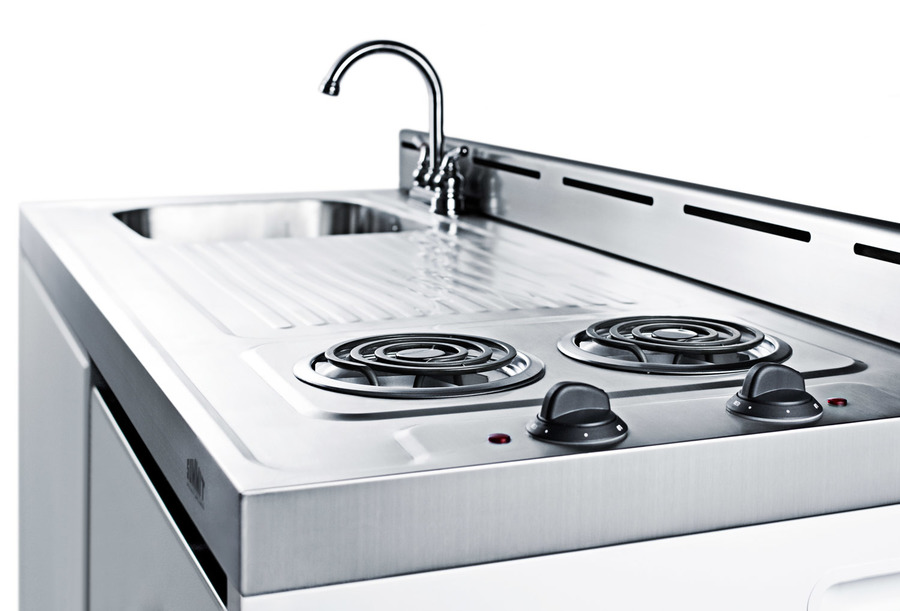

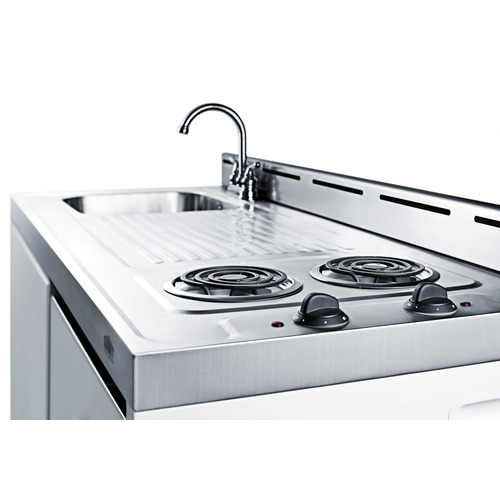

2-burner cooktop

Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate a range of heating options

115V operation with pre-installed cords

Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup

Push-to-turn knobs

Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

One piece stainless steel countertop

Easy-to-clean surface with a professional look

Sink and faucet

Stainless steel sink with ready-to-use gooseneck faucet included

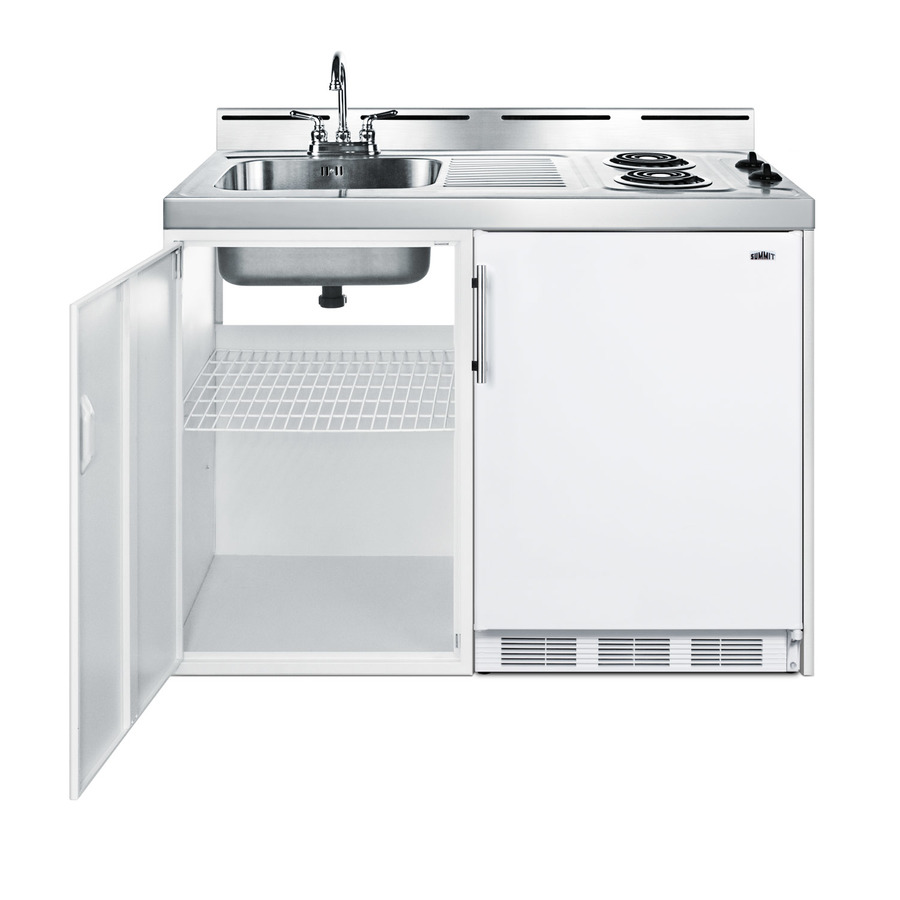

Storage compartment

Large convenient cabinet with center shelf lets you store dry goods behind a door

Ships fully assembled

Base model comes in one box. Just slide the refrigerator-freezer into its opening and plug in

Stainless steel backguard

Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible door

User-reversible door swings on the refrigerator-freezer for added flexibility

Optional storage cabinets available

Add more storage convenience with Summit wall cabinets, 12" or 18" wide choices with powder-coated metal construction in white or black finishes

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner coil cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.

The C48EL is our deluxe combination kitchen in a full 48" width. At 24" deep, it leaves you plenty of room to navigate while preparing food on two 120V coil burners.

SUMMIT CT661W, one of our most popular compact refrigerator-freezers, slides in under the counter. This unit uses SUMMIT's exclusive dual evaporator cooling, for energy efficiency with quality results. Automatic defrost eases maintenance in the refrigerator section and a manual defrost zero degree freezer keeps even ice cream frozen. Adjustable glass shelves, door storage, a wine shelf, and a crisper provide added storage options.

A side cabinet provides ample space for dry storage. This unit includes a stainless steel work surface with a sink and faucet.

Our all-in-one combination kitchens ship fully assembled in two boxes. Just slide the refrigerator in and start serving. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, and any other location in need of a full kitchen area at one great price.

BROCHURE w/ DRAWINGS
C48EL.pdf

TECHNICAL DRAWING (.dwg)
C48EL_COMBO_KITCHEN__A-C_2000_.dwg

REVIT MODEL
QF_Summit_C48EL_Kitchenette.rfa

USE & CARE
C30_C36_C39_C48_C54_C60_C72_Manual.pdf

ENERGY GUIDES
EnergyGuide-CT661.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
