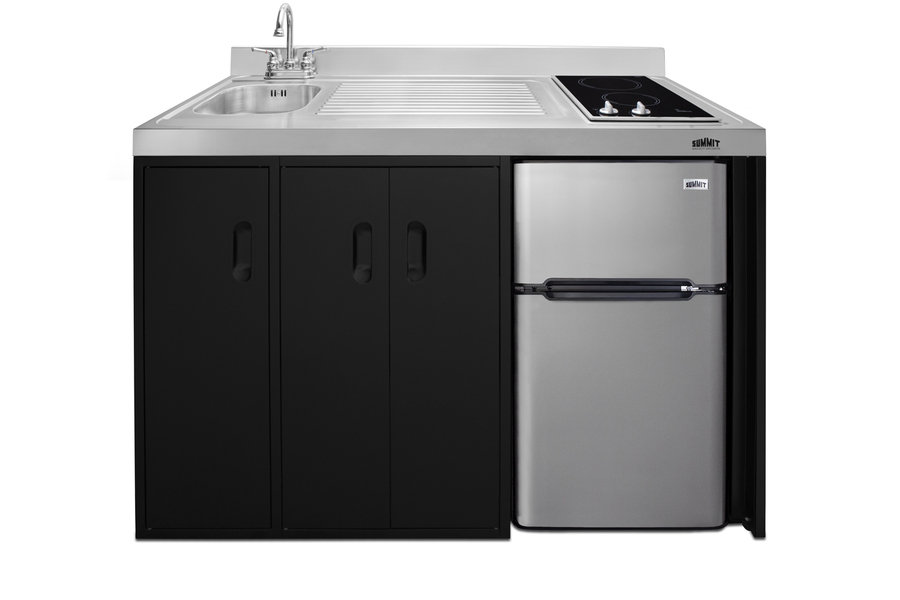

54" Wide All-In-One Kitchenette
Next day shipping
(100cm H x 137cm W x 60cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 40.0" (102 cm) |
Height of Cabinet | 39.5" (100 cm) |
Nominal Width | 54.0" (137 cm) |
Width | 54.0" (137 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.75" (60 cm) |
Depth with Handle | 23.75" (60 cm) |
Depth with door at 90° | 42.0" (107 cm) |
Capacity | 3.2 cu.ft. (91 L) |
Defrost Type | Cycle |
Door | Black/SS |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 322.0kWh/year |
Other Energy Info | Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps |
Amps | 21.1 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 145.0 lbs. (66 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101066837 |
Kitchenette
|
|
Refrigerator Included | CP34BSS |
Refrigerator Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Glass |
Shelf Qty | 1 |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Full Door Shelves | 2 |
Can Storage | Yes |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 1.16 oz. |
High Side PSI | 250.0 |
Low Side PSI | 88.0 |
Cooking Type | Smooth-Top Cooktop |
Number of Burners | 2 |
Cooktop Controls | Dial |
Interior Height 1 | 18.5" (47 cm) |
Interior Width 1 | 15.75" (40 cm) |
Interior Depth 1 | 15.0" (38 cm) |
Interior Height 2 | 7.5" (19 cm) |
Interior Width 2 | 14.0" (36 cm) |
Interior Depth 2 | 14.0" (36 cm) |
Sink Height | 4.0" (10 cm) |
Sink Width | 11.0" (28 cm) |
Sink Depth | 13.0" (33 cm) |
AVAILABLE UPGRADES
Exterior | |||
---|---|---|---|
|
FEATURES
All-in-one kitchen is built with virtually everything you need for meal preparation
CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
Stainless steel sink with ready-to-use gooseneck faucet included

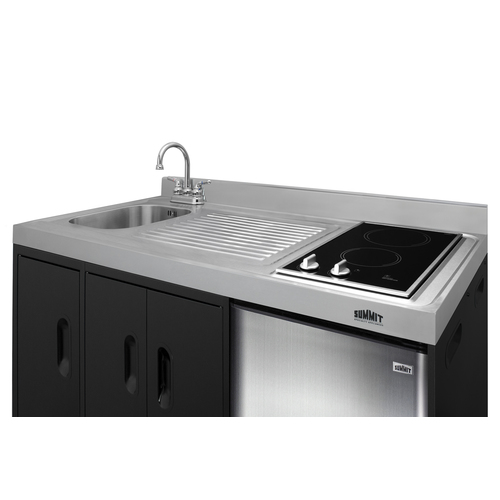

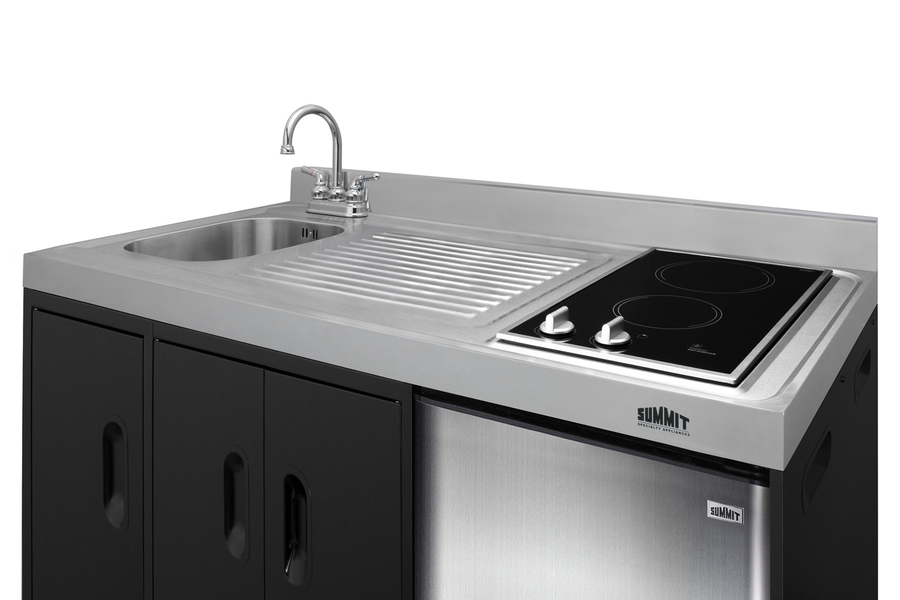

Includes a 5½" 500W front element and a 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking
Both the cooktop (20amps) and refrigerator (1.1amps) include 3-pronged cords for easy setup
Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
Operating indicators light up to show which burner is in use
Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
Easy-to-clean surface with a professional look

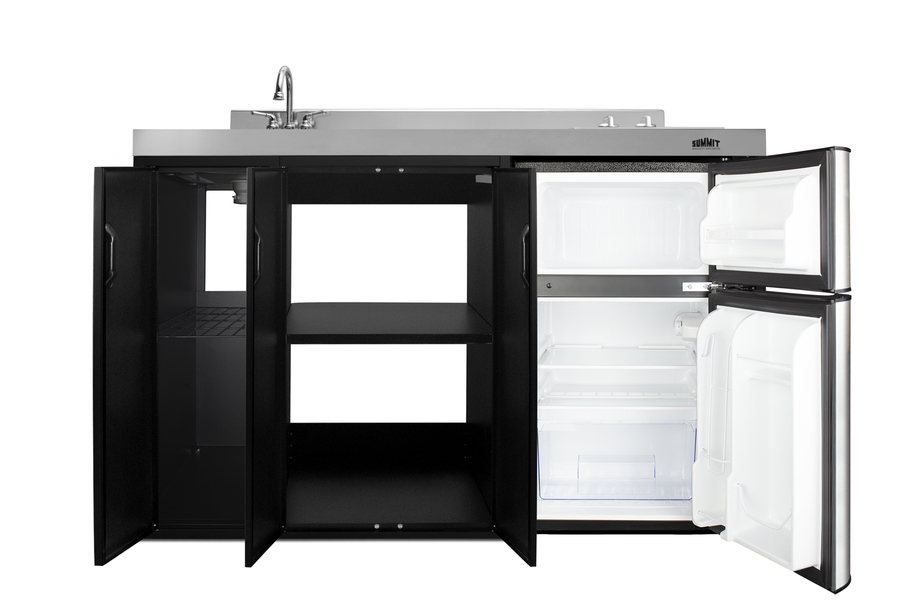

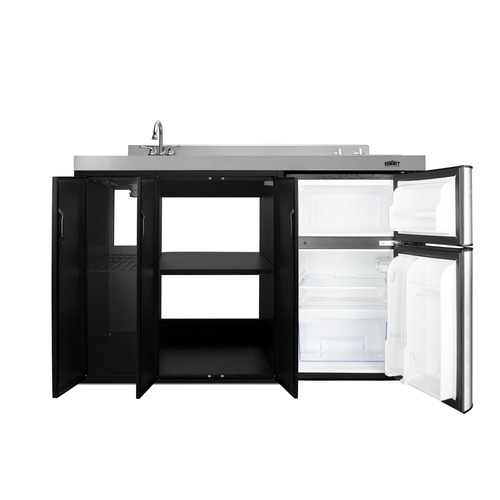

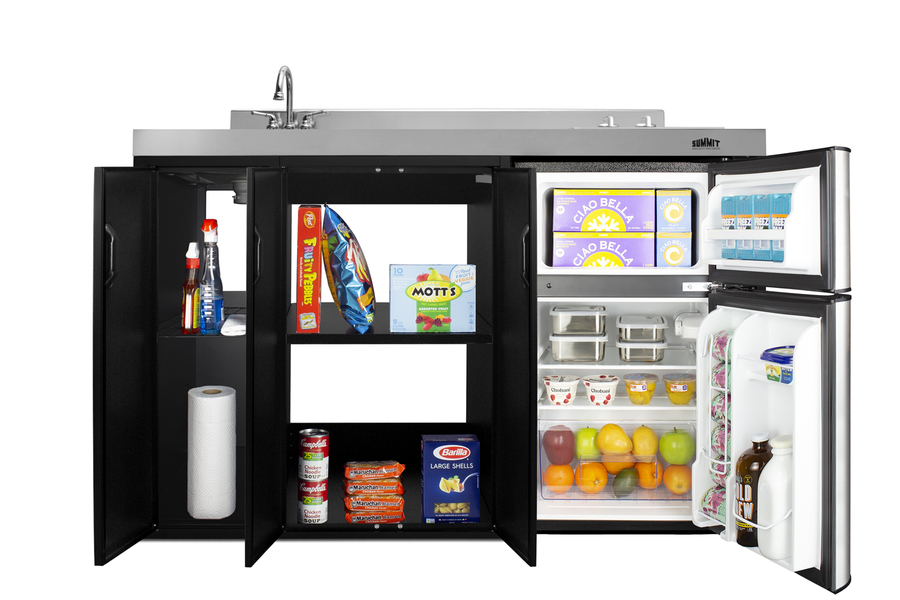

Single and double-door lower cabinet storage compartments with removable shelves provide ample storage capacity for cleaning supplies, dry goods, and similar contents
Kitchenette is shipped in one piece, with reinforced packaging for added protection
Includes a 4" high backguard to complete the look and offer added protection to your walls
User-reversible door swings on the refrigerator-freezer for added flexibility
Side indents afford easy movement of the unit for added portability

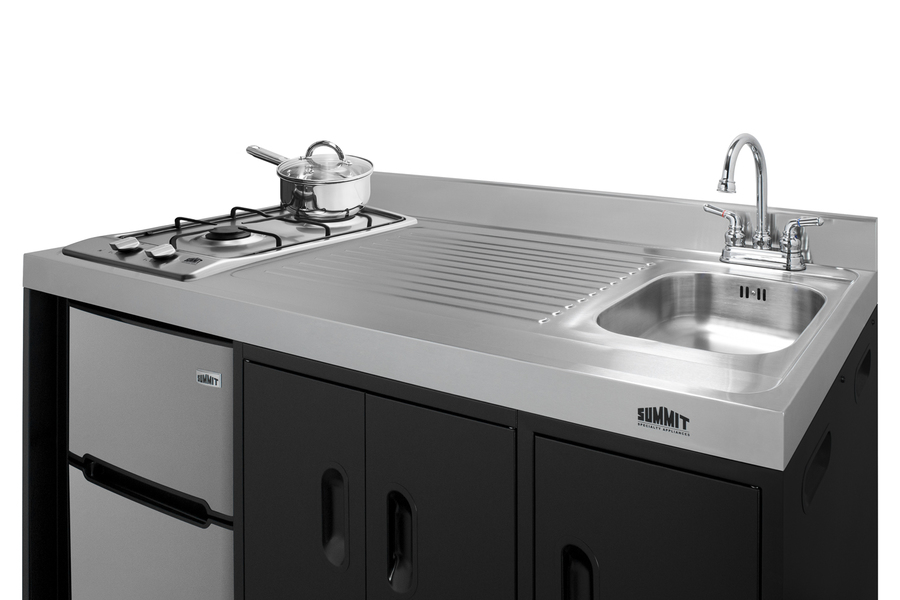

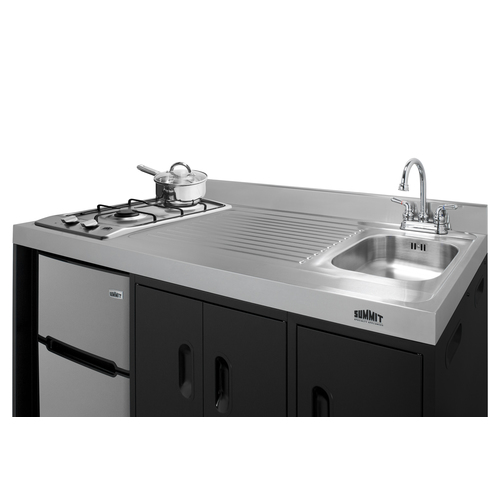

Pre-installed radiant cooktop can be removed in the field to substitute another cooktop option (cutout: 11" W x 19 1/4" D); Compatible with Summit GC22SS 2-burner gas cooktop (LP convertible with included kit)
Pre-installed center storage cabinet can be removed by users to install an 18" wide dishwasher; Compatible with the ENERGY STAR certified DW18SS4ADA dishwasher
For this unit with a sink on the right of the kitchenette, see the CK54SINKR. Also, additional models are available in a variety of widths and finishes. Visit summitappliance.com to view the entire line
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

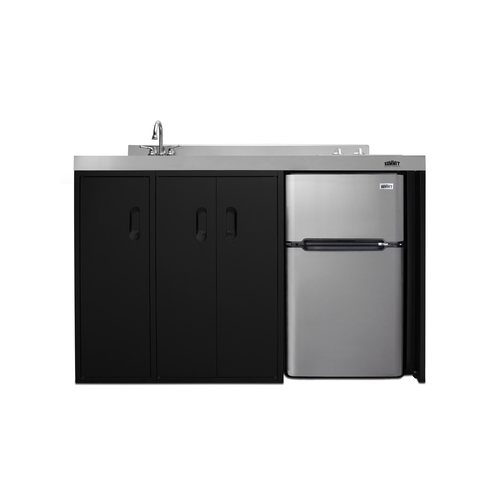

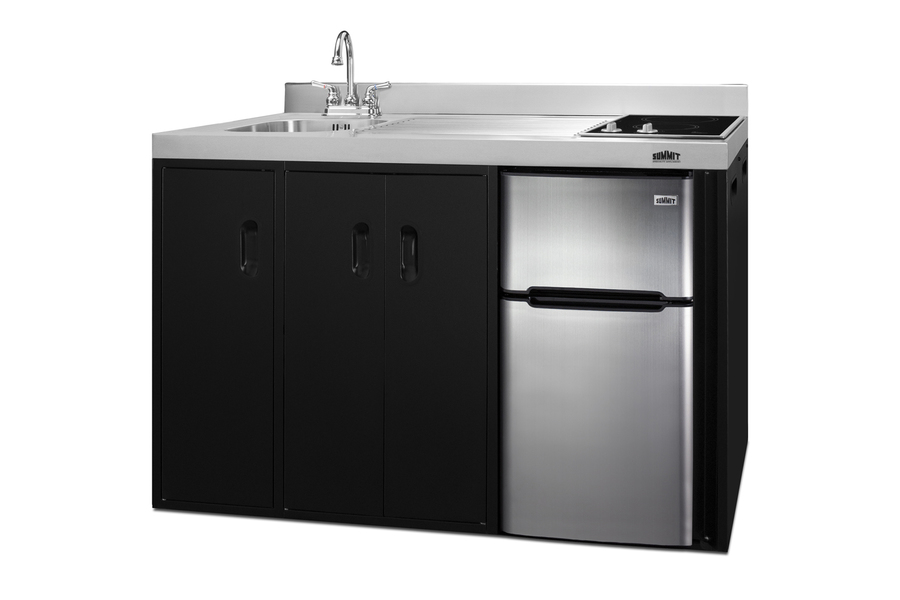

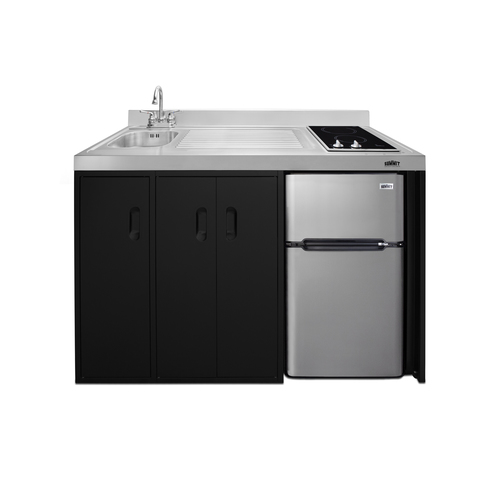

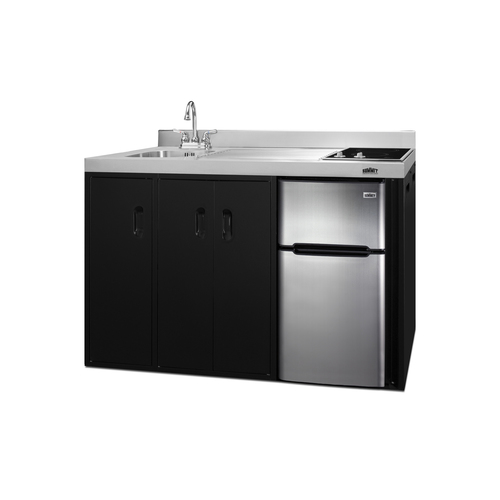

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, and refrigerator with a freezer compartment. The CK54SINKL is 54" wide with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a rear 7" 900W and a front 5½" 500W heating element. The power cord comes pre-installed for easy setup. The right side of the kitchenette features a compact sink with ready-to-use faucet. A single-door cabinet under the sink includes a removable wire shelf, perfect for storing cleaning supplies, while a French-door style cabinet under the work surface has a solid removable shelf, ideal for dry storage. Two grooved handles on each side allow for easy movement of the unit. Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK54SINKL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper. The CK54SINKL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of low maintenance, fully-featured compact kitchenette. For this unit with a sink located on the right of the kitchenette, see the CK54SINKR. Note: For users who prefer a gas connection, Summit model GC22SS can fit inside the existing 11" W x 19 1/4" D cooktop cutout. Additionally, users can remove the center storage cabinet and install an 18" wide ADA compliant dishwasher, such as Summit model DW18SS4ADA. See the instructions in the "DOWNLOADS" section of this page.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
