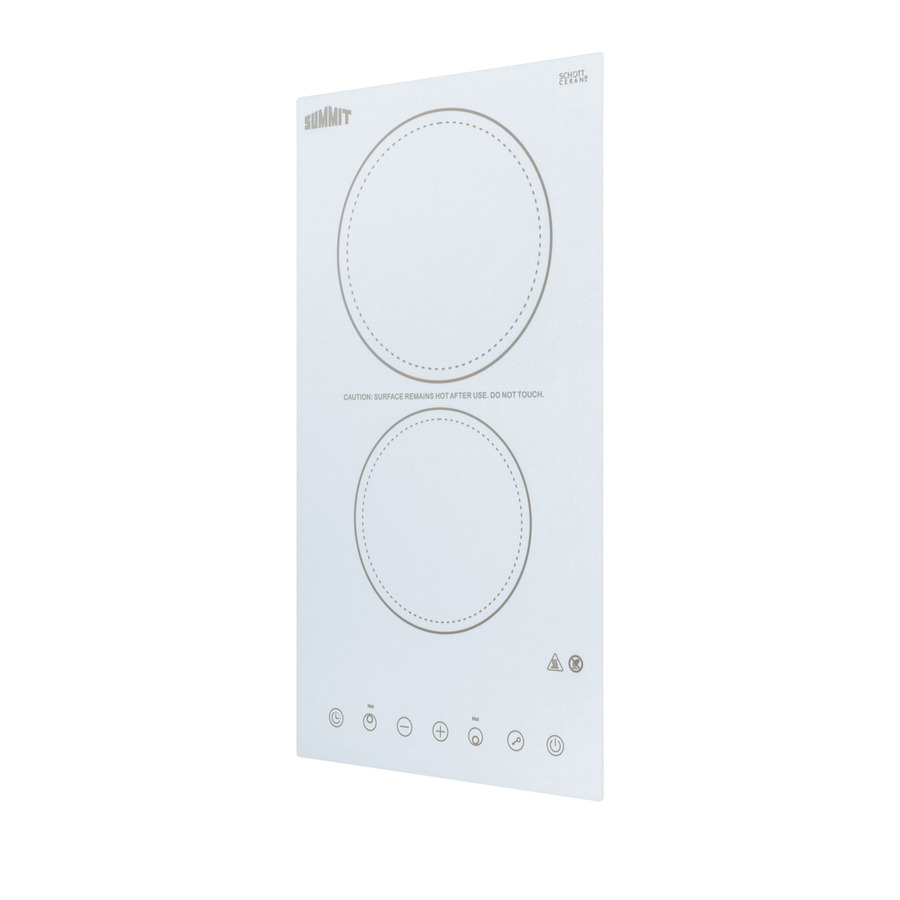

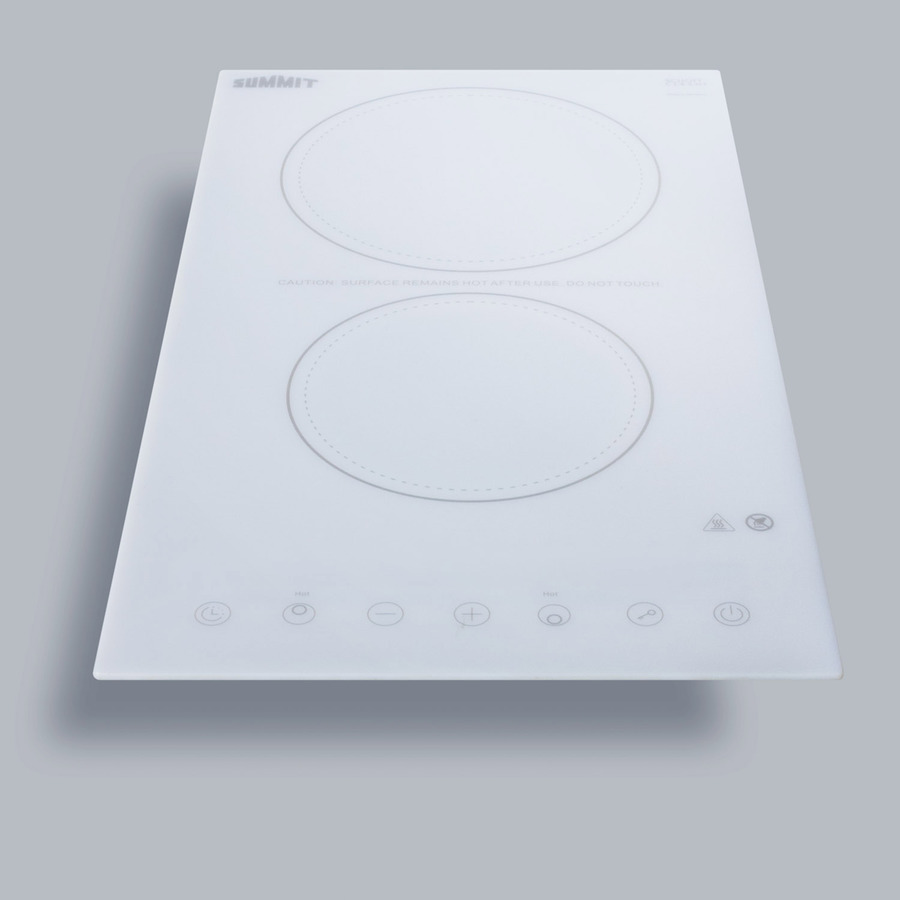

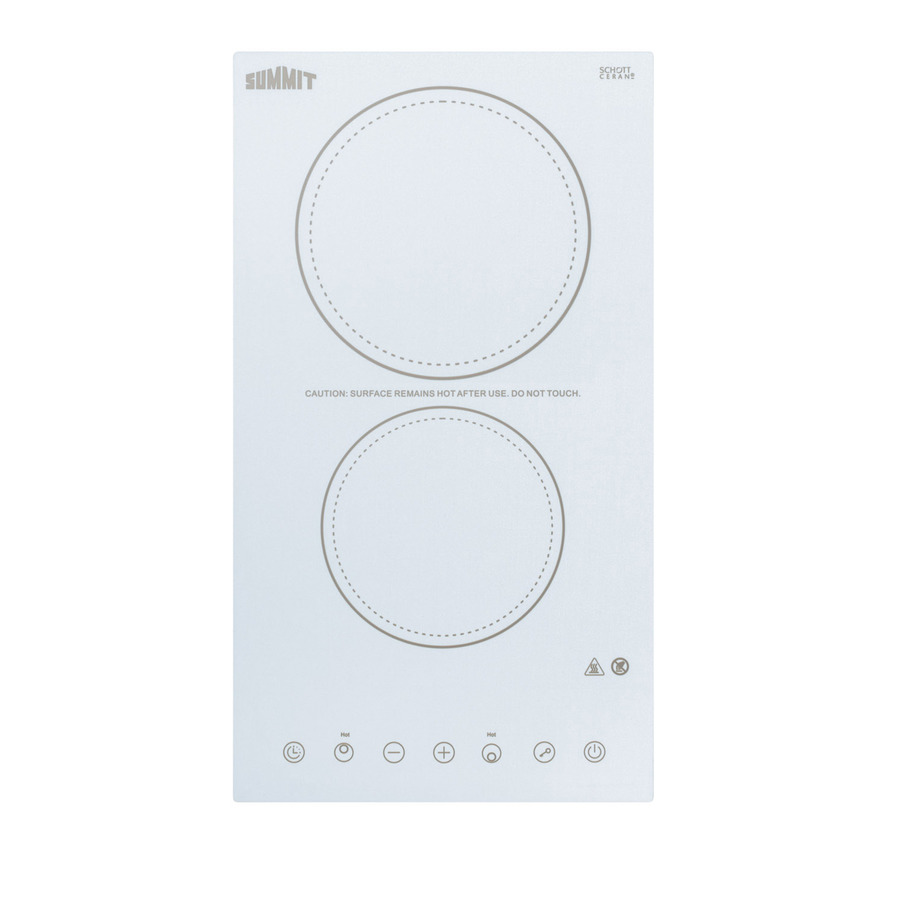

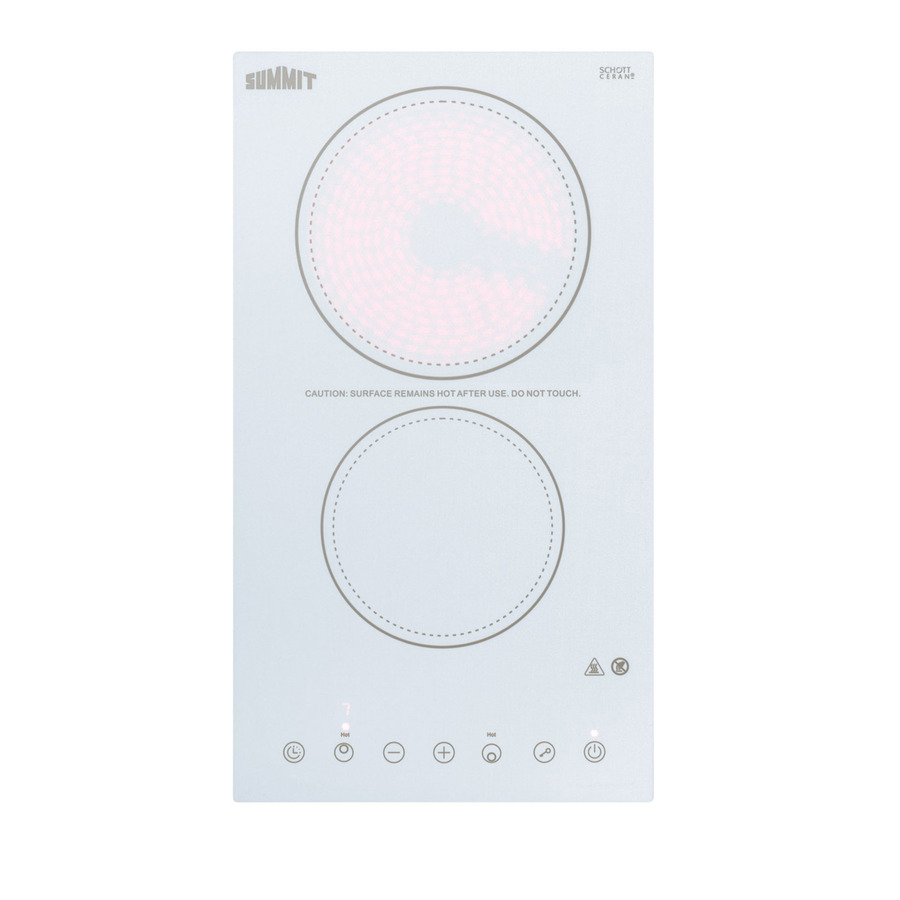

12" Wide 230V 2-Burner Radiant Cooktop

SKU: CR2B23T4W
Intuitive touch controls & a large 7" 1800W burner for easy cooking
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
2.0" H x 11.38" W x 20.5" D
(5cm H x 29cm W x 52cm D)

Overview
Nominal Height 2.0" (5 cm)
Height of Cabinet 2.0" (5 cm)
Nominal Width 12.0" (30 cm)
Width 11.38" (29 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 15.0
Voltage/Frequency 230 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101053301
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 5.9" (15 cm)
Countertop Cutout Width 10.75" (27 cm)
Countertop Cutout Depth 19.9" (51 cm)
Power Source 230V
Element #1 Size 7.0" (18 cm)
Element #1 Wattage 1800.0
Element #2 Size 5.5" (14 cm)
Element #2 Wattage 1200.0
Power Cord Included No

2-Burner Radiant Cooktop

230V cooktop with digital controls and a smooth glass surface

Schott glass surface

Made in Germany, the white Schott glass offers easier cleanup and lasting durability

Large 1800W burner

Rear 7" burner offers 1800W for faster heating of larger cooking vessels

Standard 1200W burner

Front burner is 5.5" in diameter to meet most cooking needs

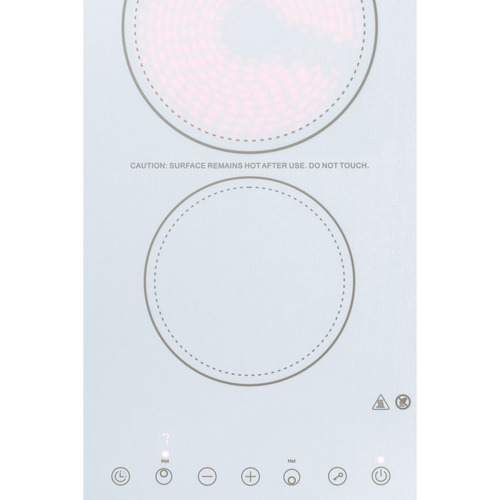

Digital touch controls

Easy operation with a digital control panel and digital display

9 power levels

Select and adjust your heating levels at the touch of a button

Residual heat indicator lights

Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation

Fits counter cutout sizes that are 10.75" wide by 19.9" deep

ADA compliant design

Upfront controls meet ADA guidelines for easier accessibilty

Timer

Allows you to program either burner to heat at a specified level for up to 99 minutes

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation

Requires professional hardwired installation to 230V power supply

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

The CR2B23T4W is a 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

For true cooking versatility, the CR2B23T4W features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.

With its attractive design, ideal size, and intuitive touch controls, the CR2B23T4W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
