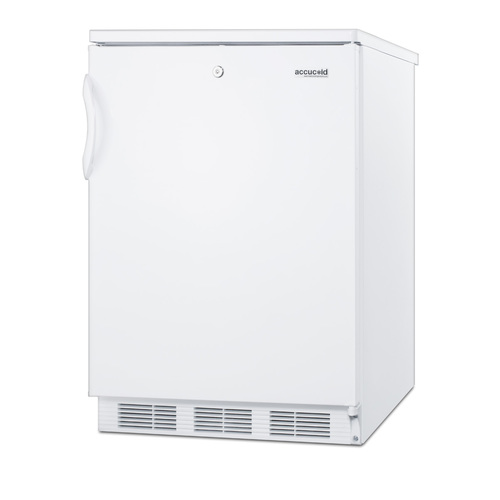

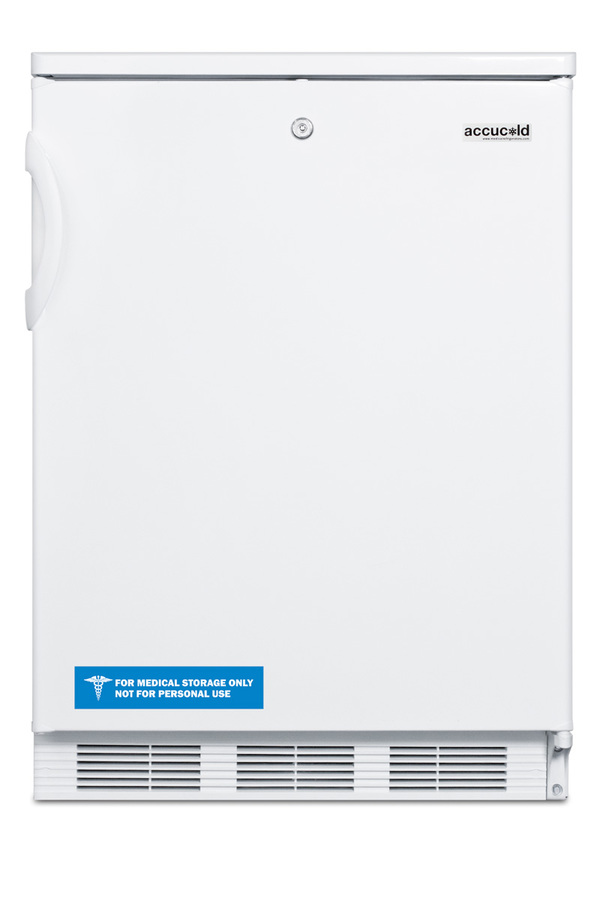

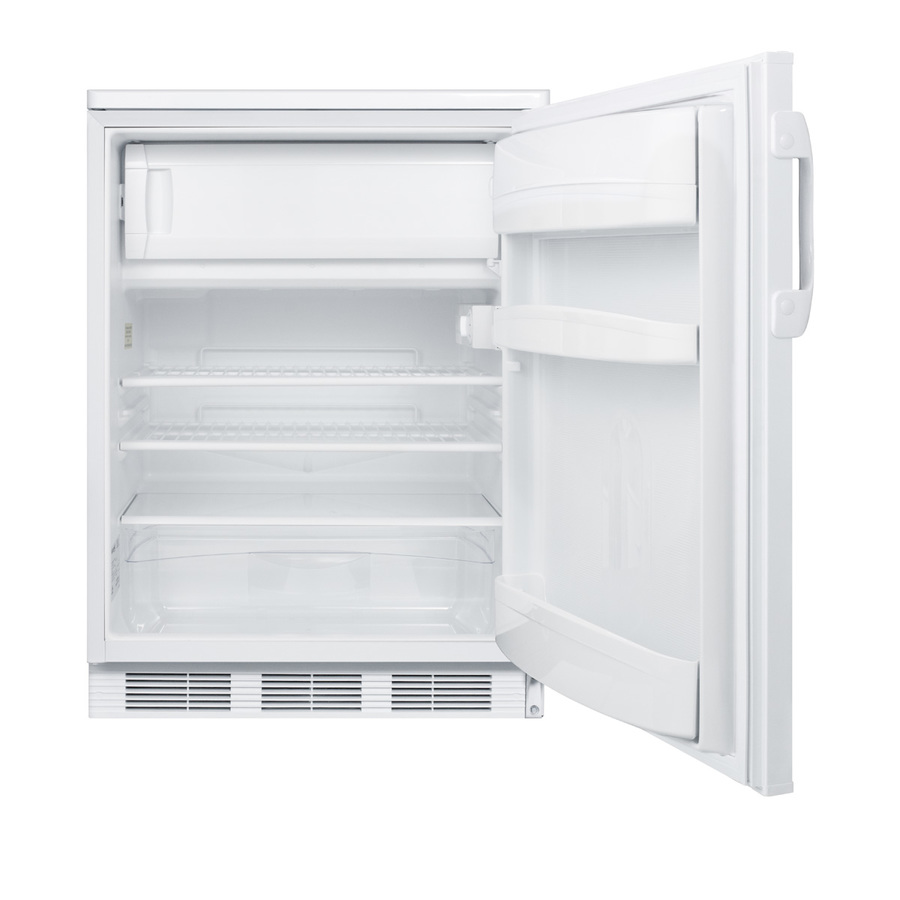

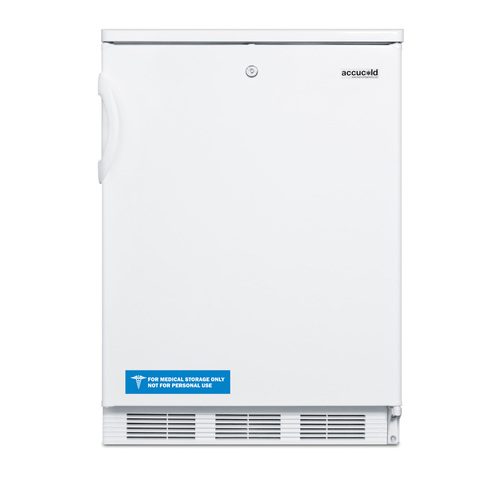

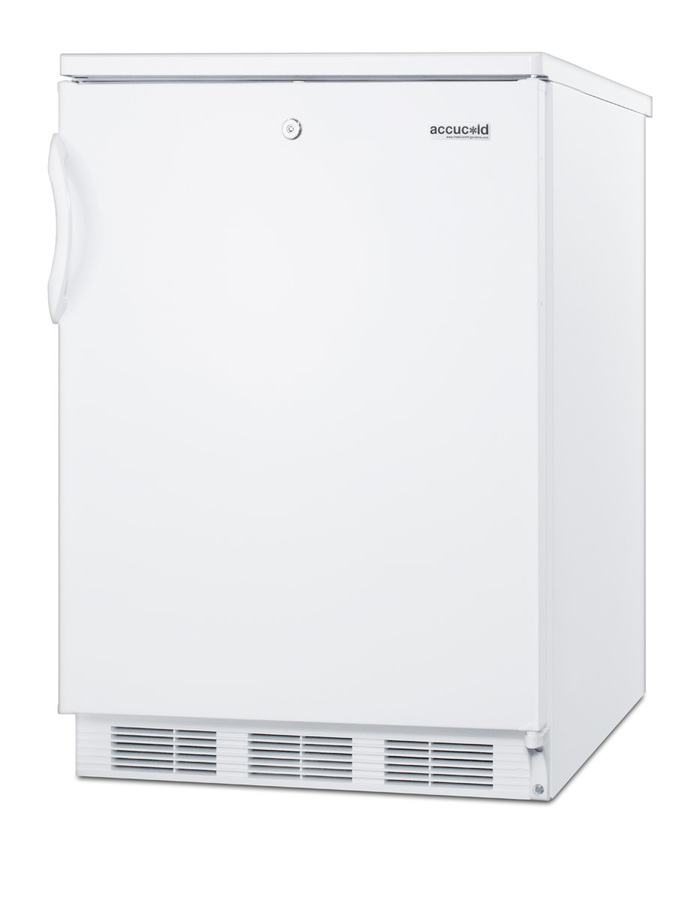

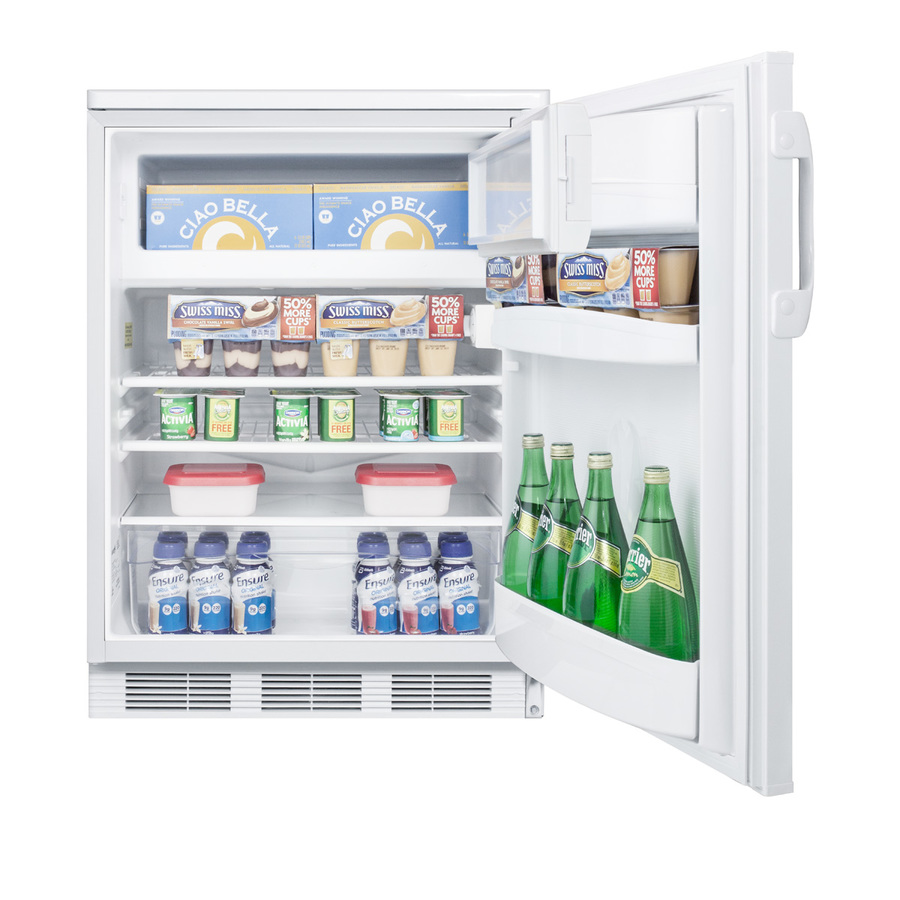

24" Wide Refrigerator-Freezer, ADA Compliant
01/30/2025
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.13" (61 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068794 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Interior | |||||||||
|
|||||||||
| Handle | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
32" height for use in settings complying with ADA guidelines for lower counter height
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Allows the unit to be used freestanding
Keyed lock offers added security
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
User-reversible door swing for added flexibility
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Get the longest life and best taste out of produce by storing greens in lower slide drawer
Store tall bottles and condiments right on the door for convenient access
Automatically illuminates when the door is opened
Cold wall design with hidden evaporator and seamless interior
Dial thermostat located inside for easy temperature management
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design does not contain ozone-damaging chemicals
DESCRIPTION
Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66JADA Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines. At 32" high, the CT66LWADA is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a white exterior finish and a user-reversible door swing. A factory installed front lock offers convenient safety. Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting. The CT66LWADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WADA Series. For built-in undercounter applications, see the CT66LWBIADA. Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
