24" Wide Built-In Refrigerator-Freezer (Panel Not Included)
01/30/2025
(85cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068848 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| Interior | ||||||||
|
FEATURES
Less than 24 inches wide to fit tight spaces
Keyed lock offers added security
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Allows the unit to be used freestanding
Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

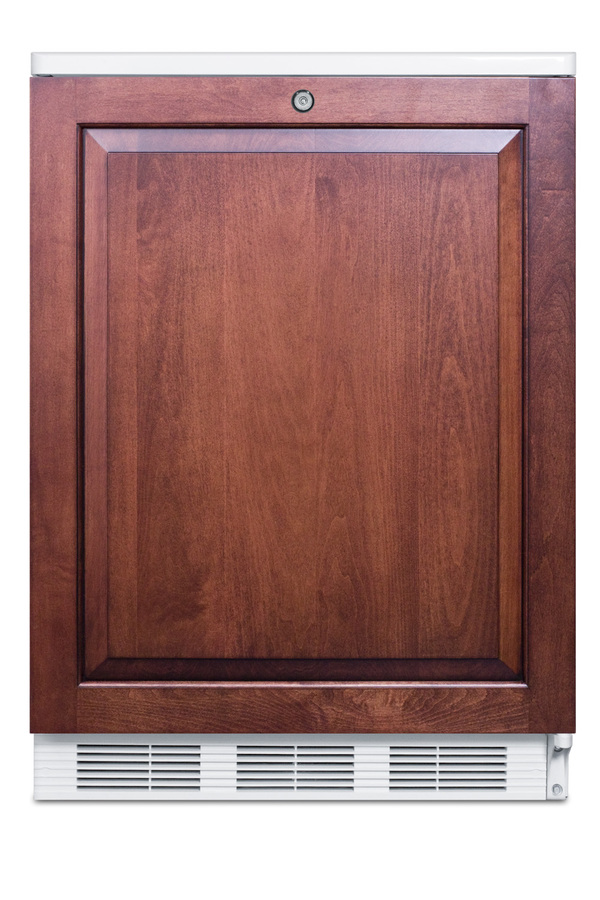

Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

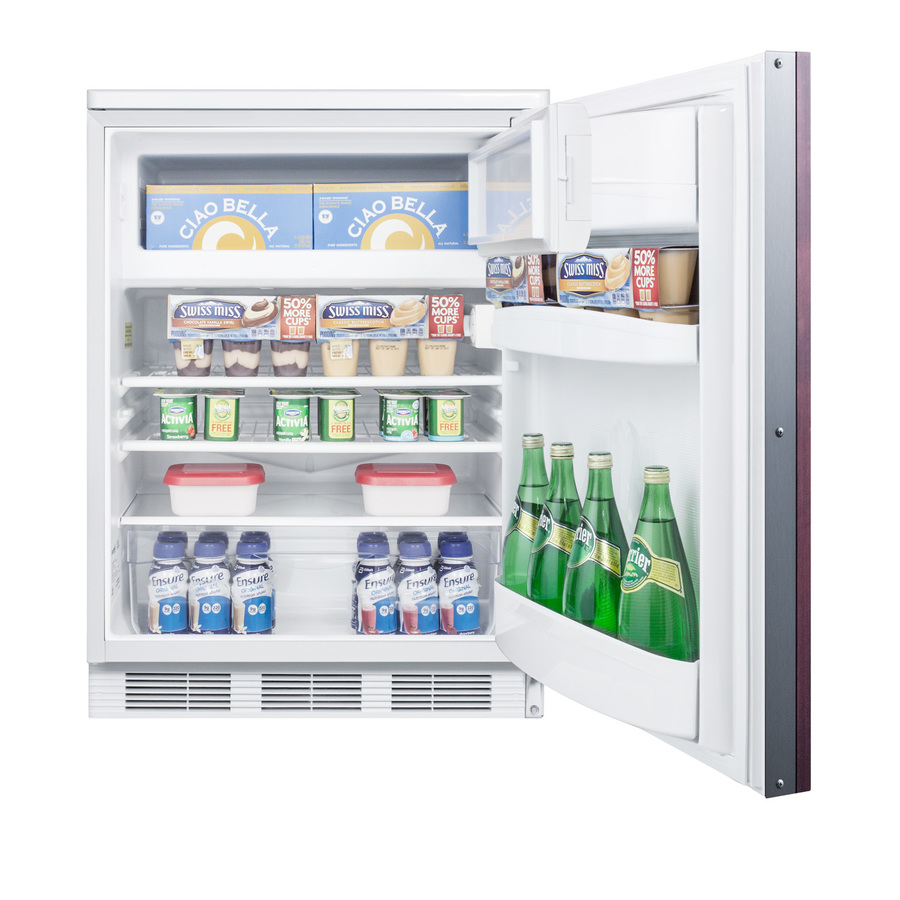

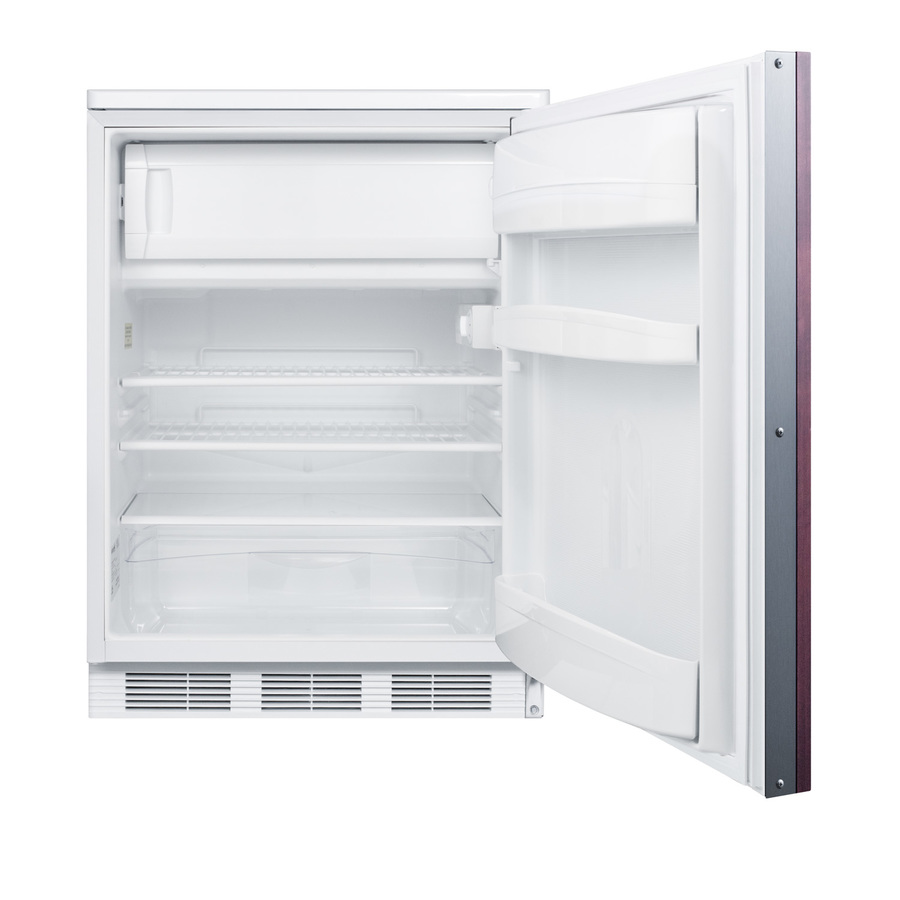

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Get the longest life and best taste out of produce by storing greens in lower slide drawer
Keep tall bottles and condiments right on the door for convenient access
Automatically illuminates when the door is opened
Dial thermostat located inside for easy temperature management
Environmentally friendly design does not contain ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions. Sized with a 24" footprint, the CT66LWBIIF can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white cabinet. The factory reversible door includes a factory installed lock and an integrated frame designed to accept full overlay panels for a custom look. Users provide their own handle. Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting. The CT66LWBIIF has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBI Series. Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
