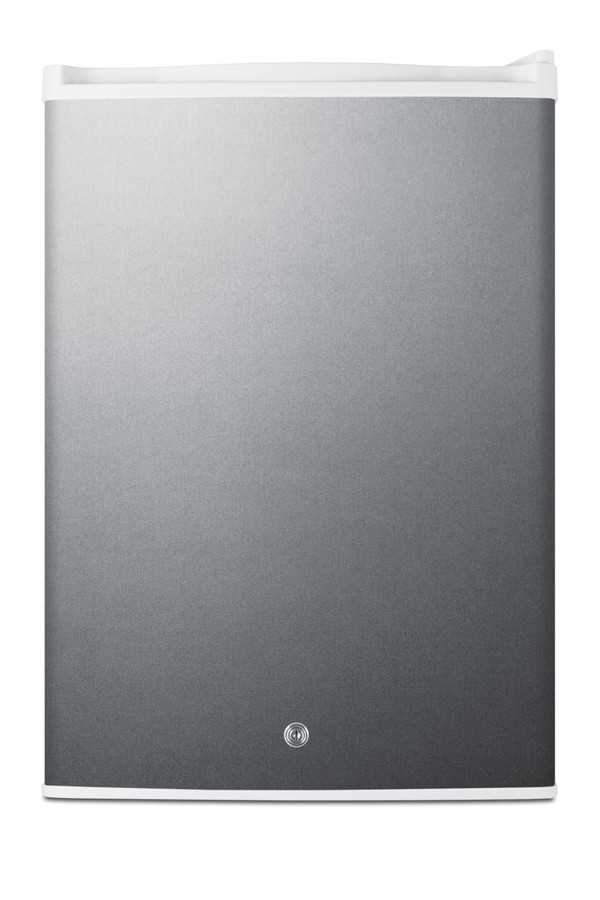

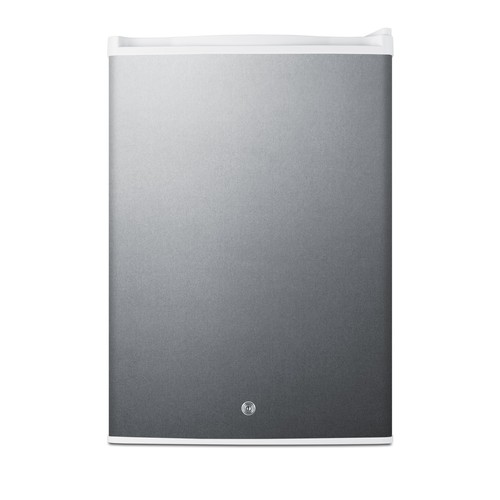

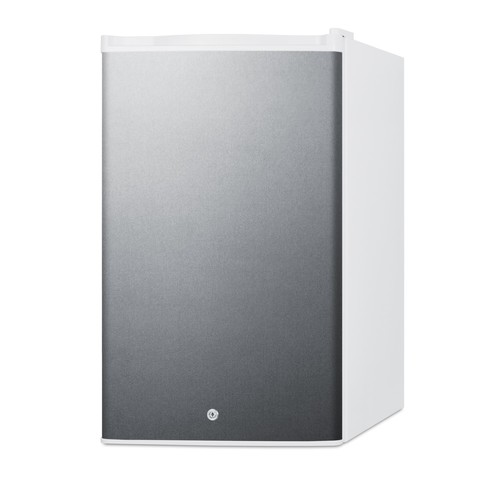

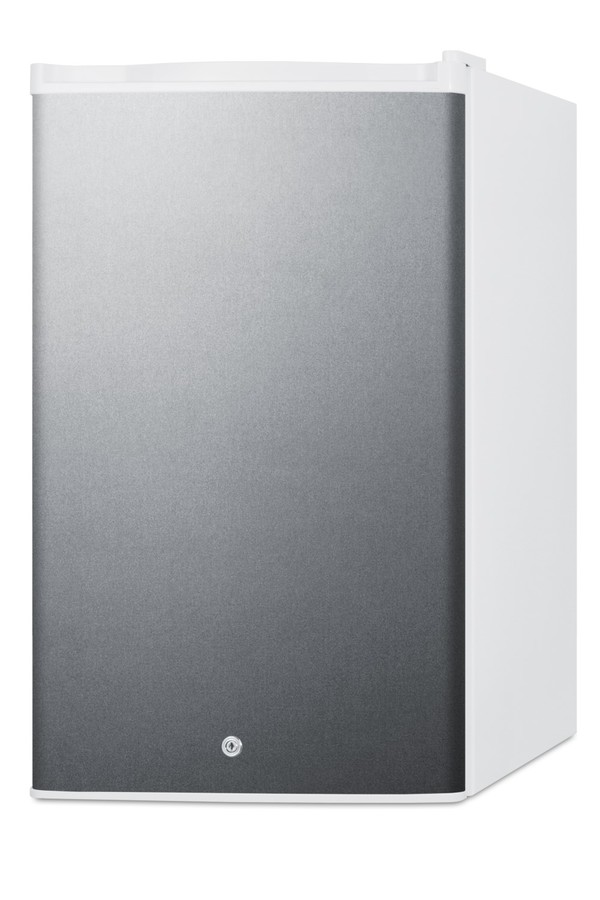

Compact All-Refrigerator

SKU: FF31L7SS

Commercially approved design, with a digital thermostat for easy temperature control

Estimated Time to Ship:

3 to 5 days

How to Buy

This unit is designed for commercial use. It meets the U.S. Department of Energy (DOE) commercial energy standards but may not meet DOE residential standards.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

26.13" H x 17.0" W x 19.0" D
(66cm H x 43cm W x 48cm D)

Overview
Nominal Height	26.0" (66 cm)
Height of Cabinet	25.5" (65 cm)
Height to Hinge Cap	26.13" (66 cm)
Nominal Width	17.0" (43 cm)
Width	17.0" (43 cm)
Width with Door Open	17.75" (45 cm)
Nominal Depth	19.0" (48 cm)
Depth	19.0" (48 cm)
Depth with door at 90°	34.75" (88 cm)
Capacity	2.5 cu.ft. (71 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	379.6kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	58.0 lbs. (26 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101053431
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.6oz.
High Side PSI	270.0
Low Side PSI	103.0
Interior Light	Yes
Dimensions
Interior Height	21.25" (54 cm)
Interior Width	13.5" (34 cm)
Interior Depth	14.75" (37 cm)
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing	FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Automatic defrost

No-frost convenience for reduced user maintenance

Digital thermostat

Electronic controls offer more precision in temperature management, with a readout viewable in Celsius or Fahrenheit

Factory-installed lock

Keyed lock for a secure interior

Adjustable chrome shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

LED lighting

Interior LED lighting offers an energy efficient view in an attractive blue hue

Reversible stainless steel door

User-reversible door swing for added flexibility

Flat door liner

No door shelving allows the unit to accommodate deeper items

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Commercial design

Meets UL-471 commercial electrical standards

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality line of compact refrigeration designed and constructed for reliable use in commercial applications.

The FF31L7SS is a compact all-refrigerator designed to meet UL-471 standards. It comes in a white exterior finish with a reversible stainless steel door. A factory installed front lock offers keyed security, while the rear features a sealed metal cover for improved sanitation.

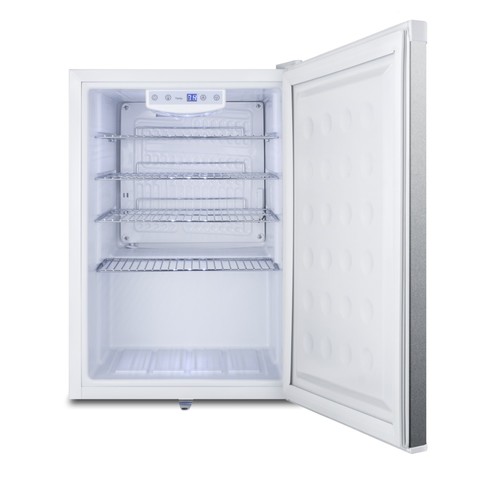

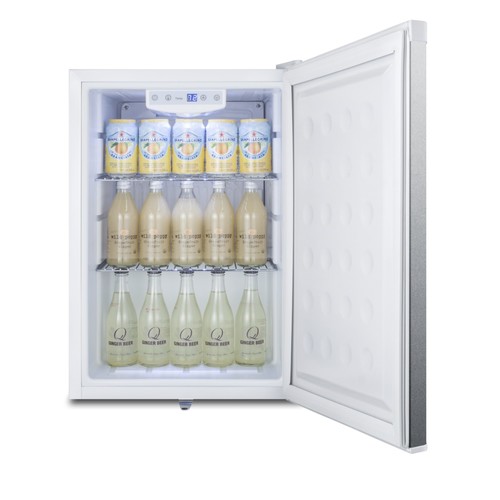

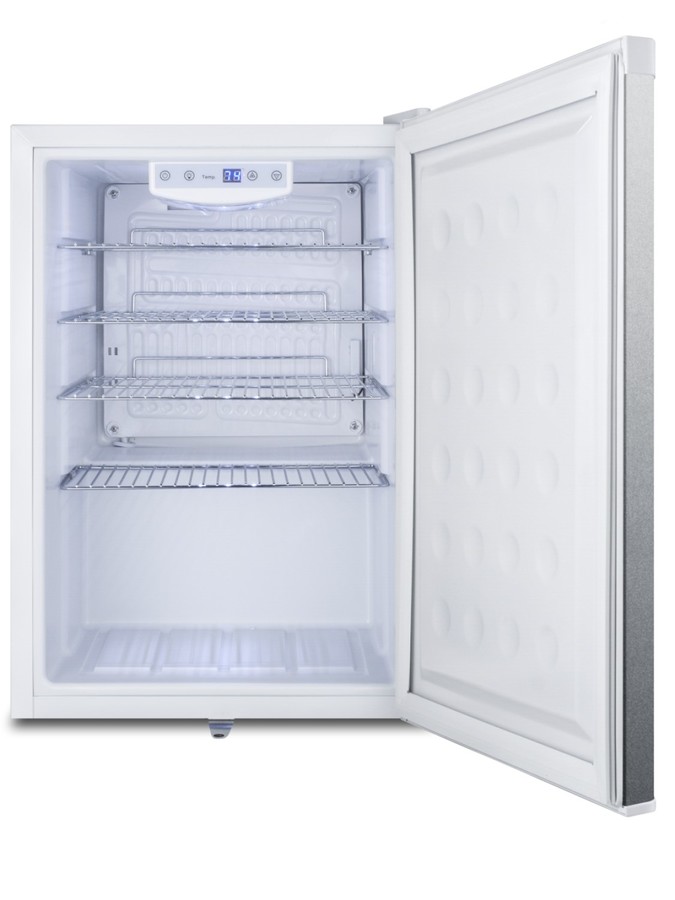

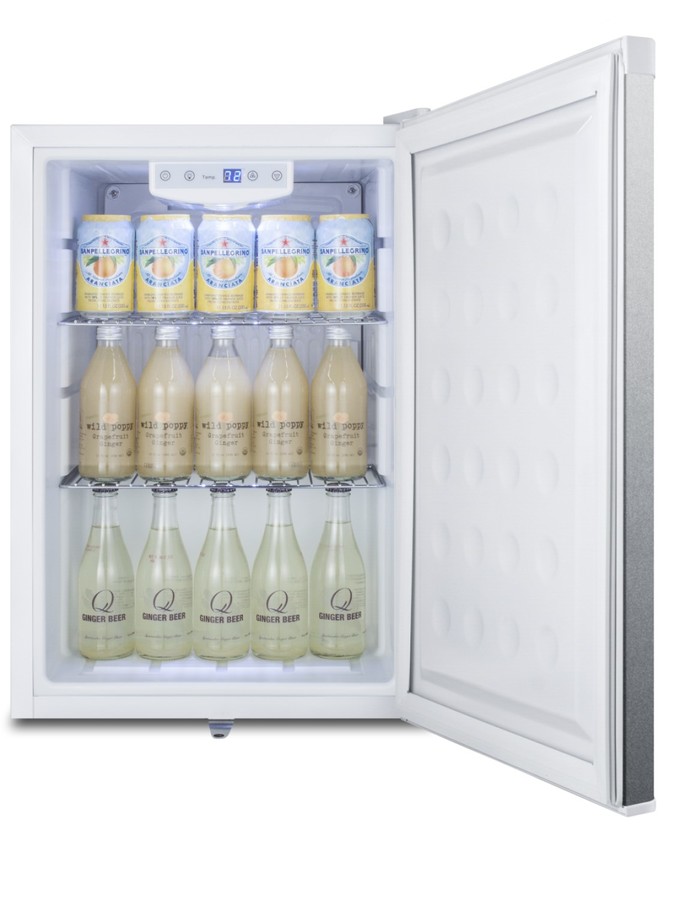

Inside, the 2.5 cu.ft. FF31L7SS utilizes automatic defrost operation for low maintenance use. Four removable chrome shelves offer convenient storage, while the flat door liner allows you to store deeper items. The digital thermostat is located inside and can be managed in Celsius or Fahrenheit. Interior LED lighting offers an attractive, energy efficient view of the interior in a soft blue hue.

With its ideal dimensions and user-friendly features, the FF31L7SS offers added convenience to the usual compact refrigerator.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FF31L7SS.pdf

TECHNICAL DRAWING (.dwg)
FF31L7_REFRIGERATOR__A-C_2000_.dwg

REVIT MODEL
QF_Summit_FF31L7_Counter_All_Refrigerator.rfa

USE & CARE
FF31L7_Manual_160413.pdf

MSDS INFORMATION
MSDS_R600a_C.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
