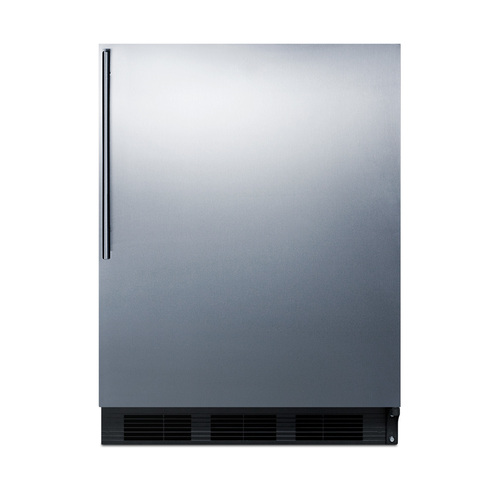

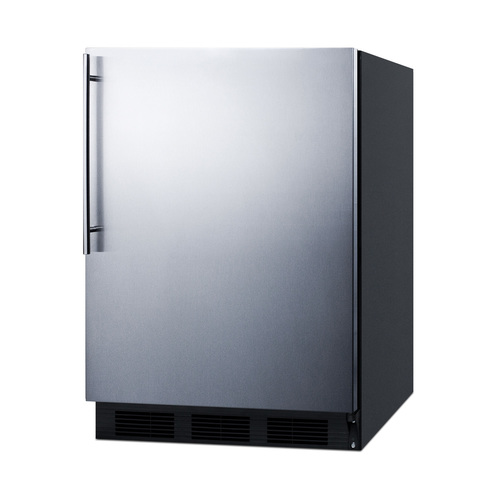

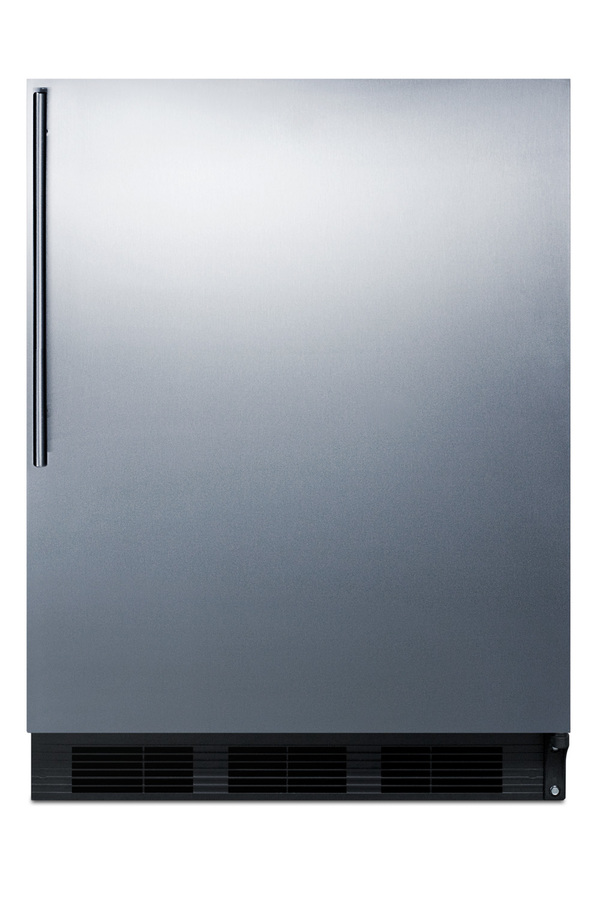

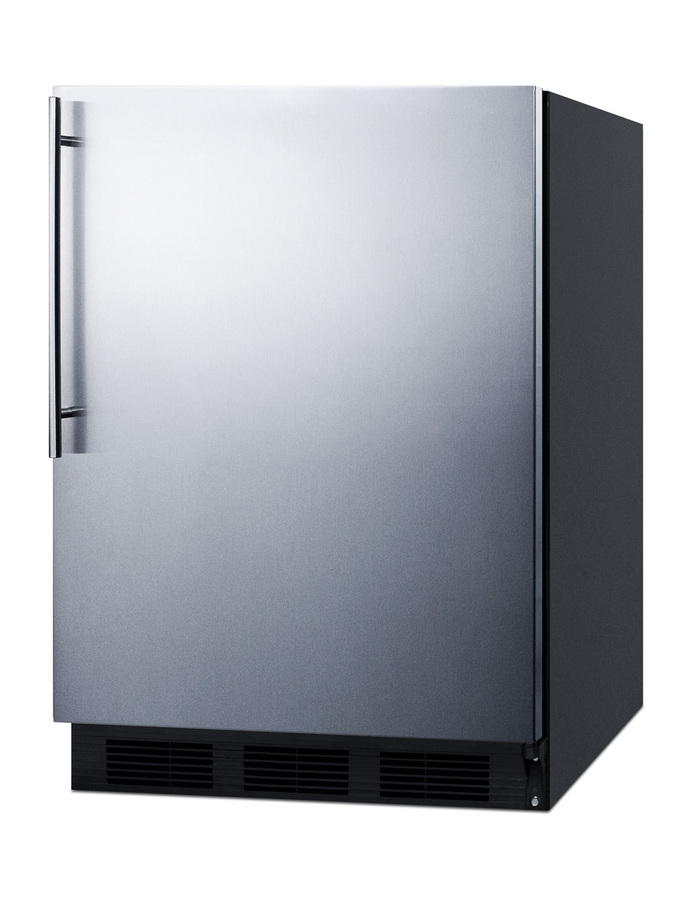

24" Wide Built-In All-Refrigerator, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069234 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Exterior | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| Lock | ||||||||||
|
||||||||||
| Interior | ||||||||||
|
||||||||||
| Handle | ||||||||||
|
||||||||||
| Door | ||||||||||
|
FEATURES
32" height to fit under lower ADA compliant counters
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Durable design with lasting elegance
Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Reduced maintenance with auto defrost system

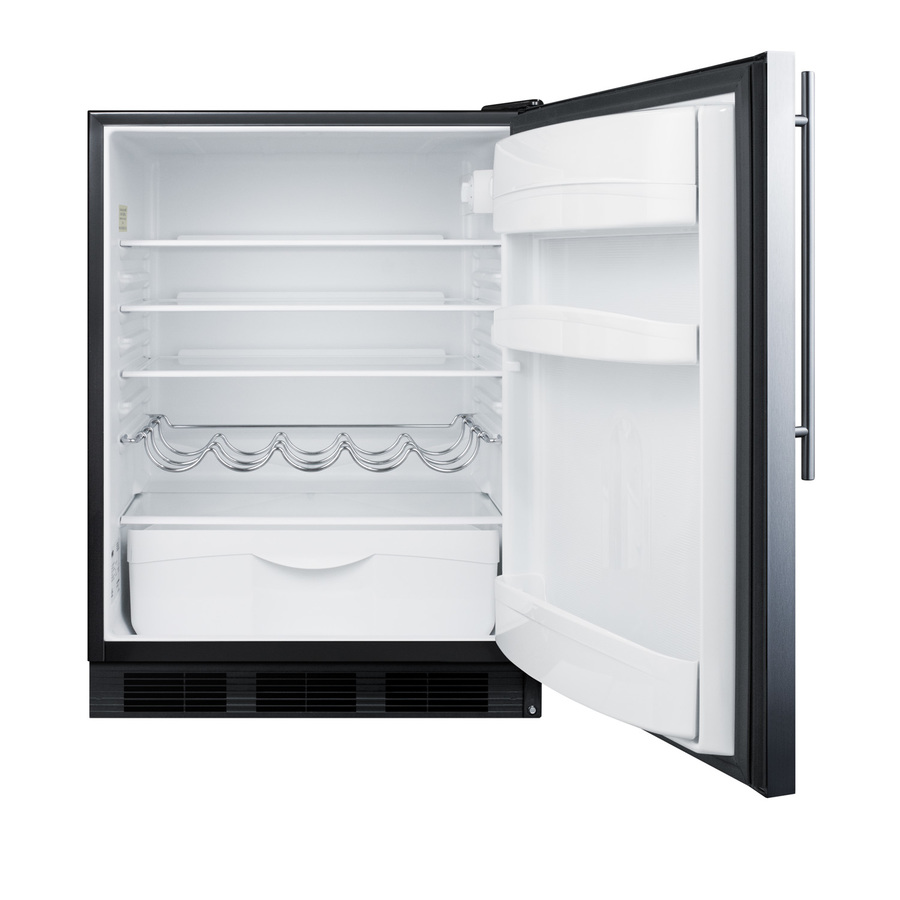

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

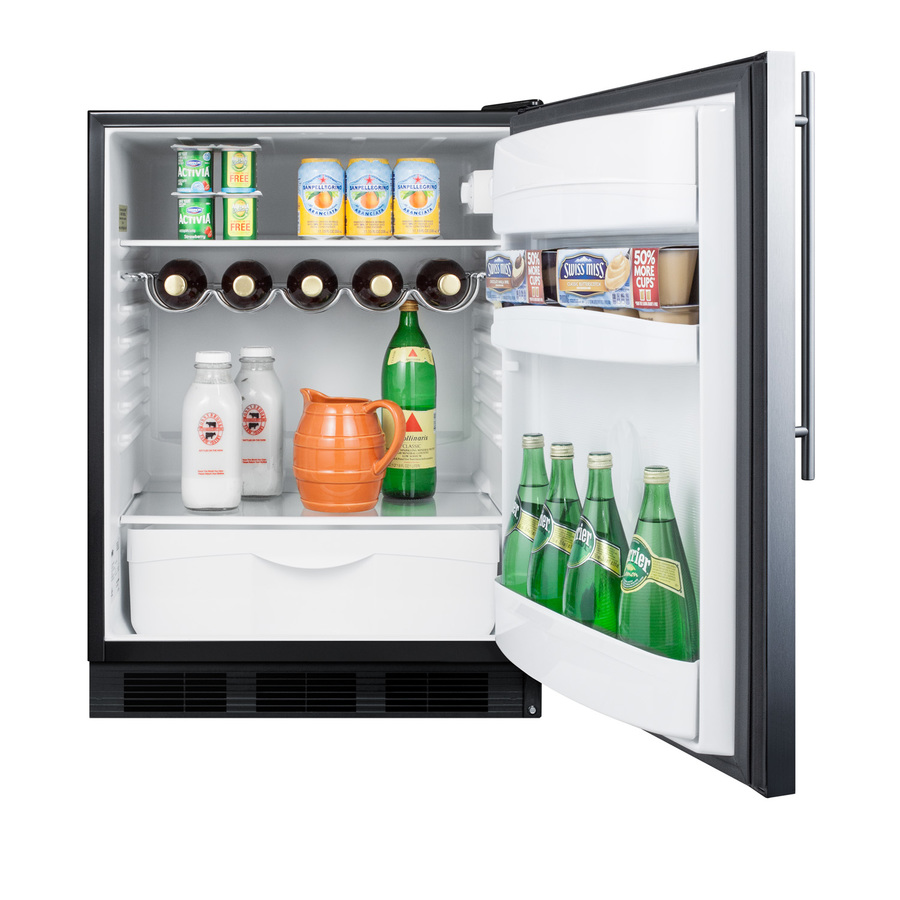

Store tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Automatically illuminates when you open the door
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Dial thermostat located inside for easy temperature management
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. The FF63BBIADA Series includes fully featured all-refrigerators for built-in or freestanding use in residential settings. Sized with a 24” footprint and 32” height, the front-breathing FF63BKBISSHVADA all-refrigerator can be built-in under lower ADA compliant counters or used freestanding. This model comes with a black cabinet finish and stainless steel wrapped door. A sleek handle in brushed stainless steel completes the look. Inside, the FF63BKBISSHVADA utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light. Designed and constructed in Europe, the FF63BKBISSHVADA brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
