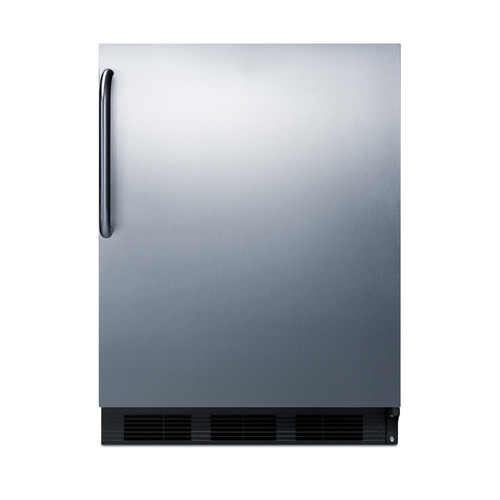

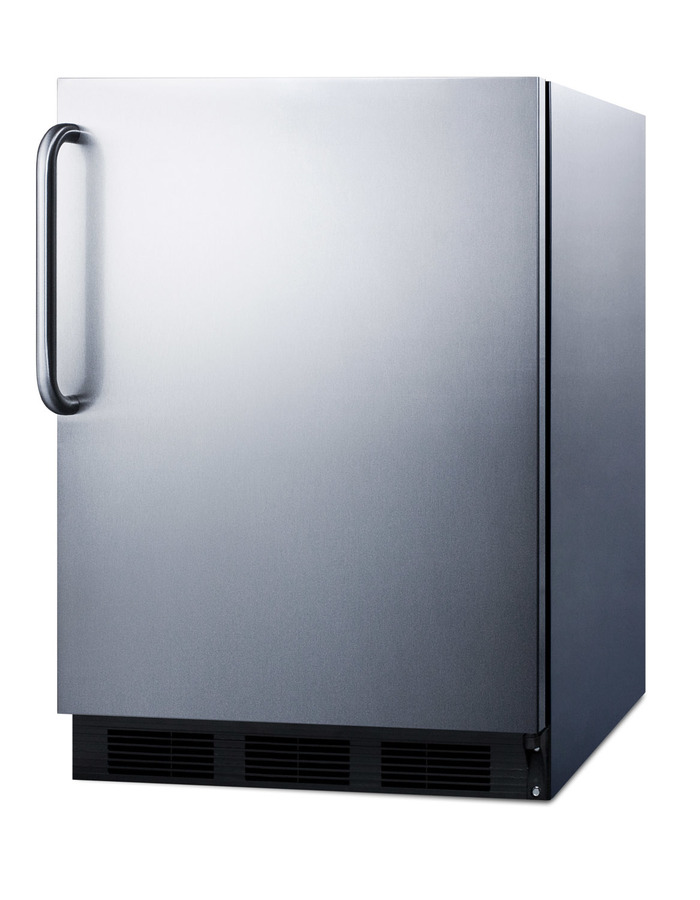

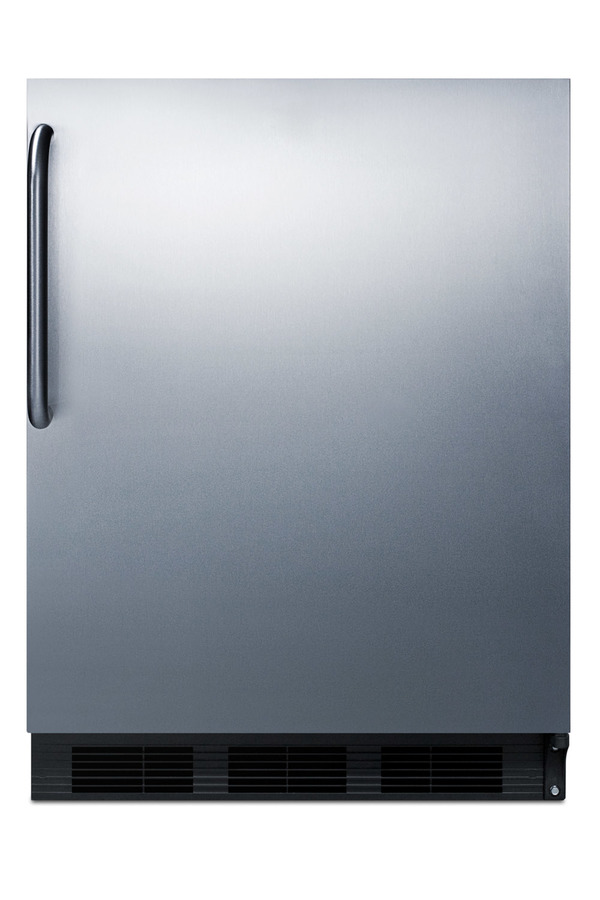

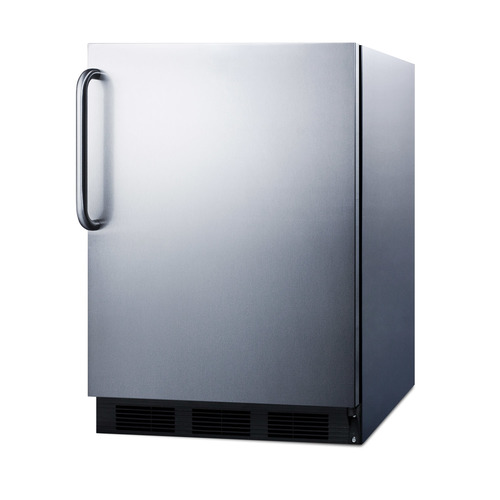

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF63BKCSSADA
Made in Europe in a convenient 24" footprint for built-in or freestanding use under ADA compliant counters
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.25" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 23.0" (58 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101070186
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant

32" height to fit under lower ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Stainless steel exterior

Fully wrapped in 304 grade stainless steel

Professional towel bar handle

Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door shelves

Store tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. The FF63BBIADA Series includes fully featured all-refrigerators for built-in or freestanding use in residential settings.

Sized with a 24” footprint and 32” height, the front-breathing FF63BKCSSADA all-refrigerator can be built-in under lower ADA compliant counters or used freestanding. The door and cabinet feature a wrapped stainless steel finish for durable luxury designed to last. A curved towel bar style handle in brushed stainless steel completes the professional look.

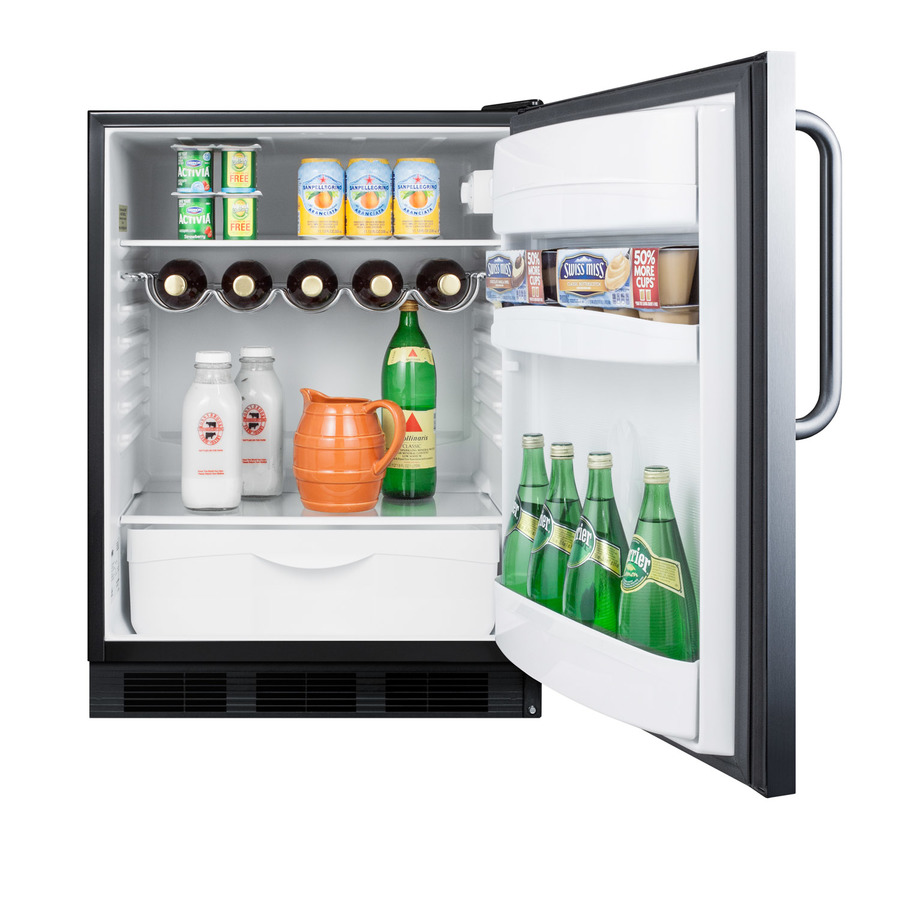

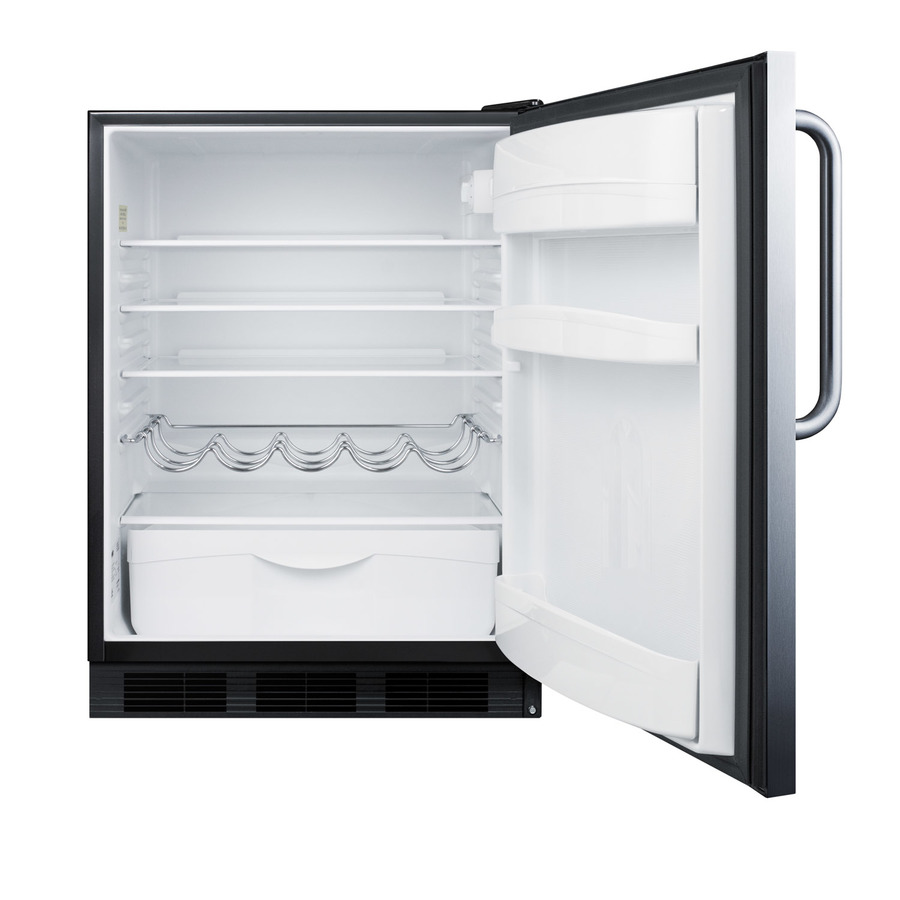

Inside, the FF63BKCSSADA utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.

Designed and constructed in Europe, the FF63BKCSSADA brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
