24" Wide All-Refrigerator, ADA Compliant

SKU: FF6LW7ADA

Made in Europe and meets NSF-7 commercial standards, with a lower height ideal for ADA compliant settings

Estimated Time to Ship:

3 to 5 days

How to Buy

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101071053
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
SS Hinges Stainless steel top and bottom hinges	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock

AC Keypad - AC powered keypad lock

Interior

FCGP internal fan with gel packs

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal

ADA compliant

32" height for use in settings complying with ADA guidelines for lower counter height

Commercially approved

ETL-S listed to NSF-7 commercial standards

Factory installed lock

Keyed lock offers added security

Slim counter height dimensions

Less than 24 inches wide with a full 5.5 c.f. capacity

Fully finished white cabinet

Allows the unit to be used freestanding

Reversible door

User-reversible door swing for added flexibility

Automatic defrost

Reduced maintenance with auto defrost system

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door shelves

Store large bottles right on the door for easy access

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Interior light

Automatically illuminates when you open the door

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF6ADA Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

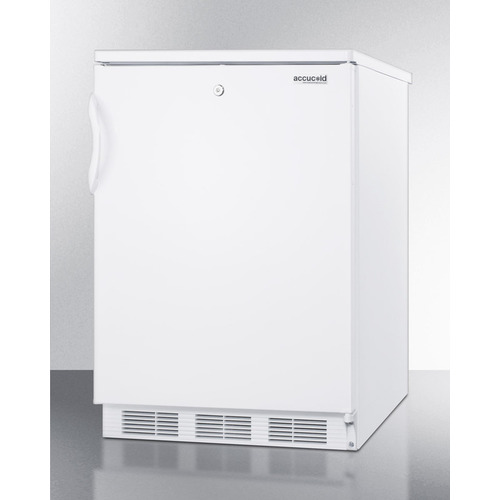

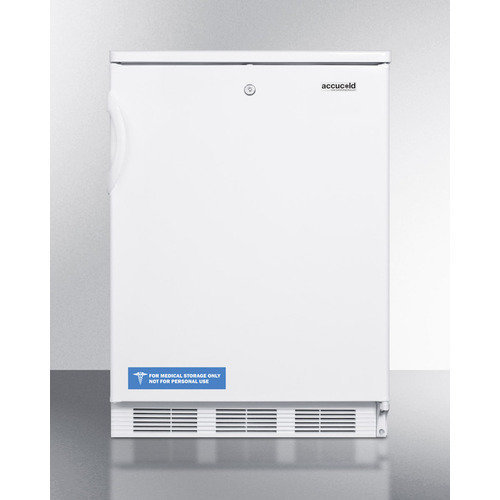

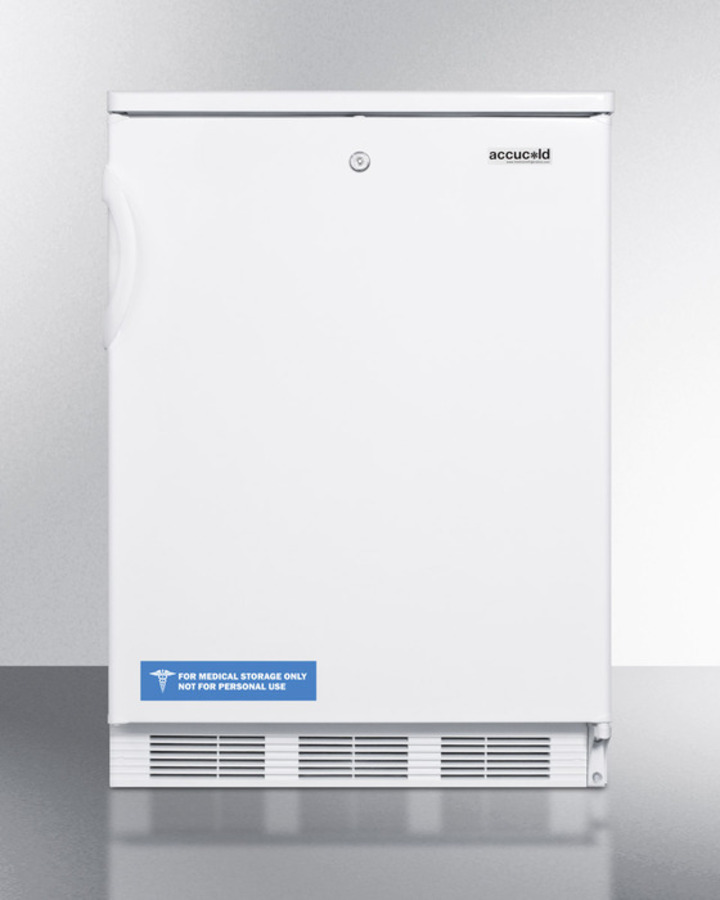

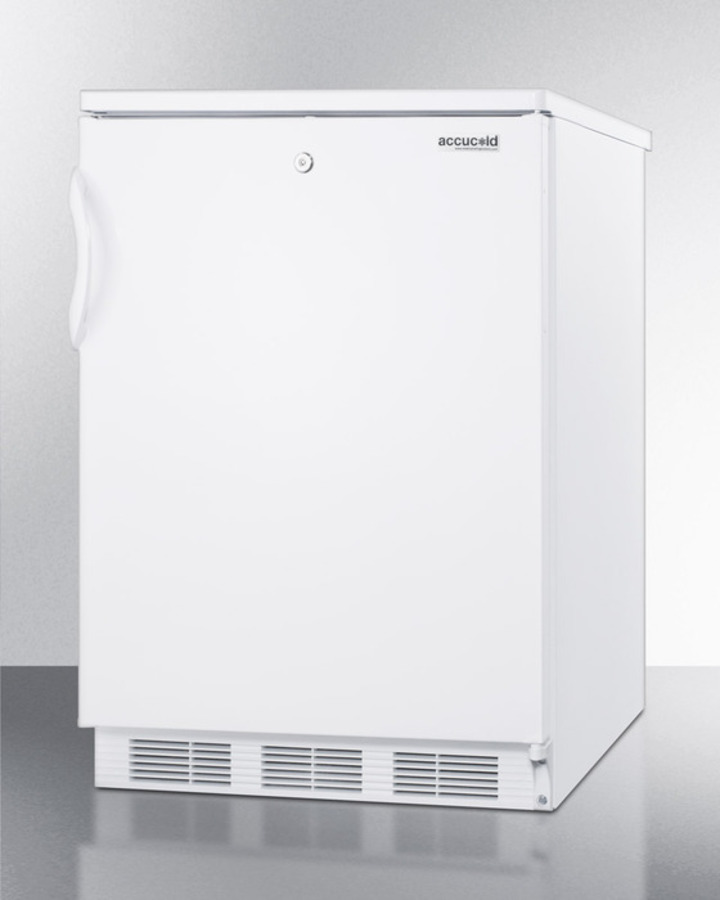

The FF6LW7ADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a white exterior and user-reversible door swing. A front-mounted lock offers convenient security.

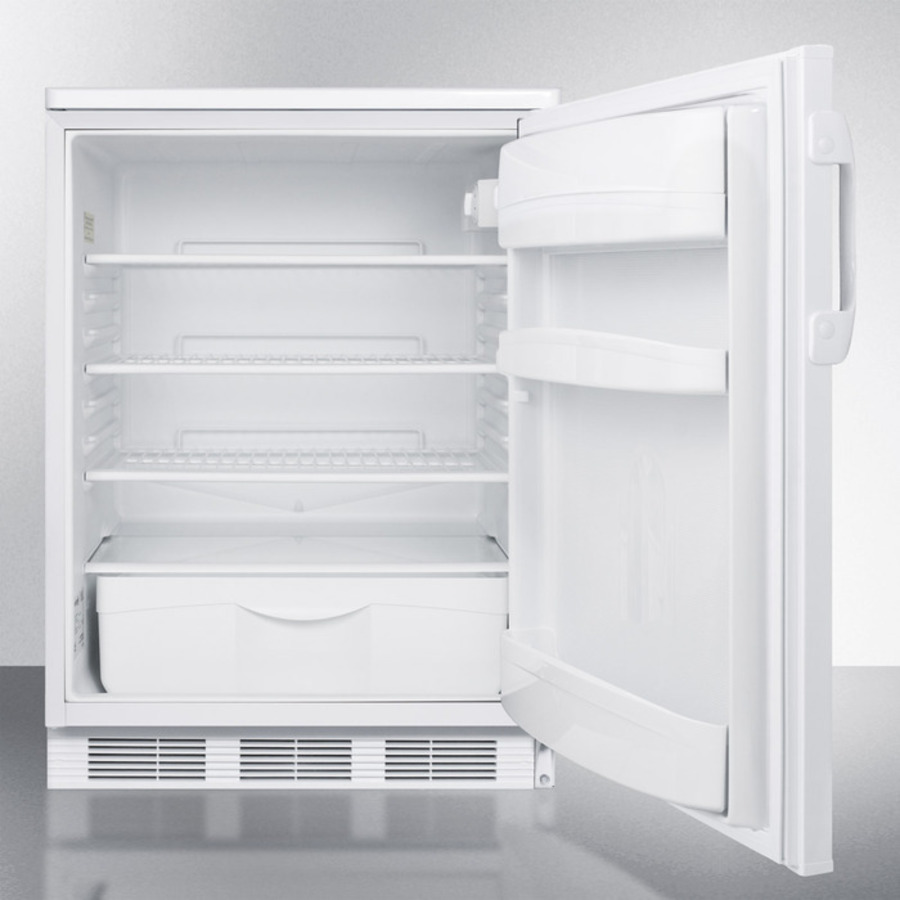

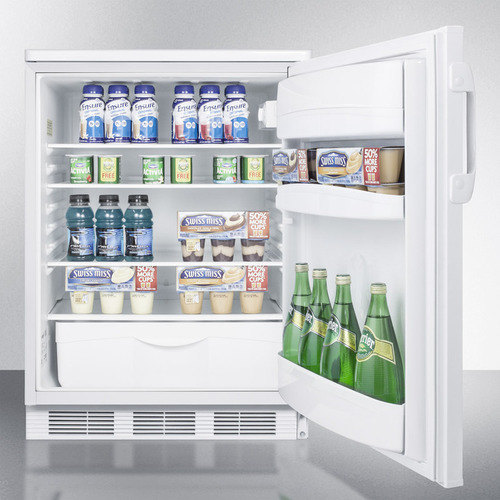

Inside, the FF6LW7ADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior. Adjustable wire shelves allow users to reconfigure the interior for optimum storage. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

The FF6LW7ADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For a built-in version of this unit, see the FF6LWBI7ADA. For more finish options, browse the entire FF67ADA Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

BROCHURE w/ DRAWINGS
FF6LW7ADA.pdf

TECHNICAL DRAWING (.dwg)
FF6LADA_FF6LBIADAREFRIGERATORA-C2000.dwg

REVIT MODEL
QF_Summit_FF6LWADA_Refrigerator.rfa

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
