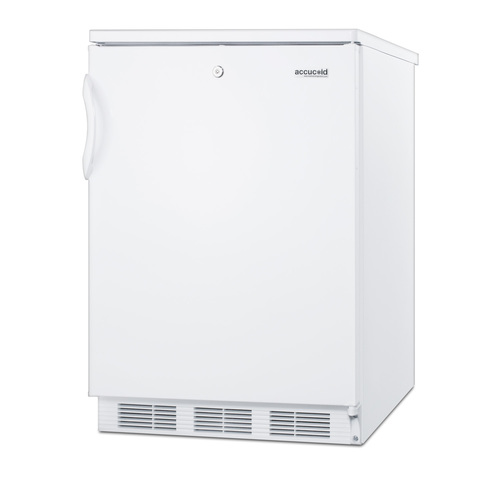

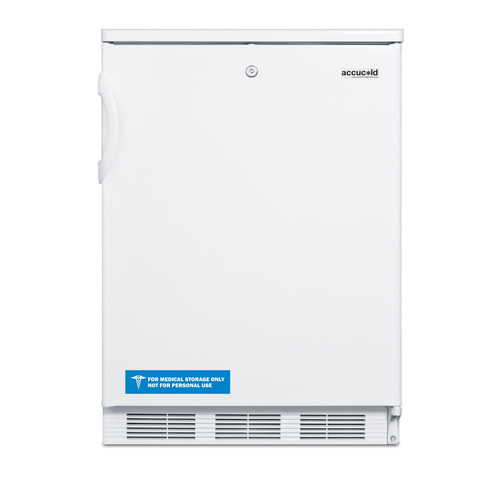

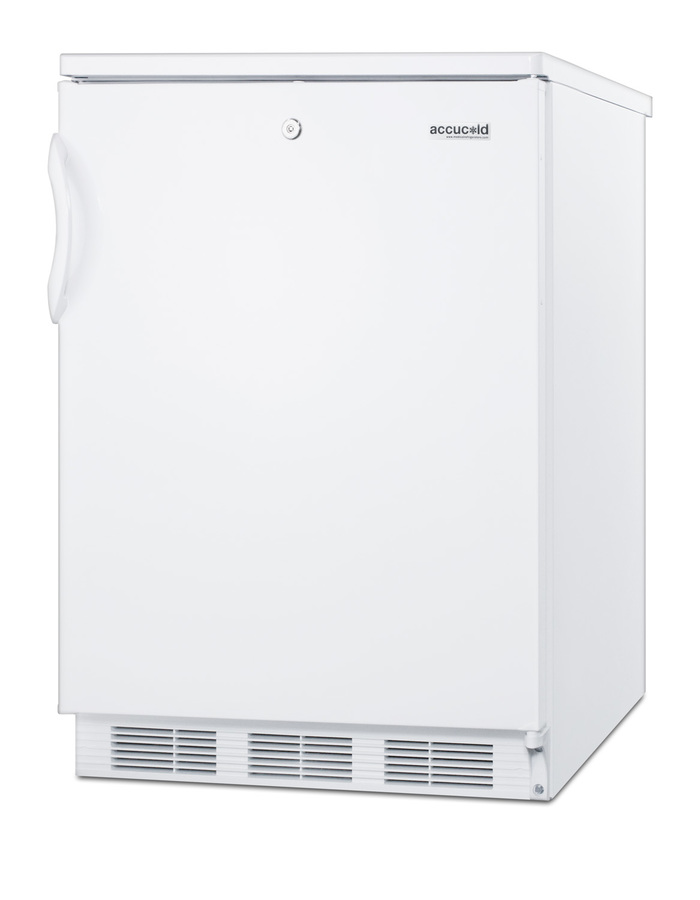

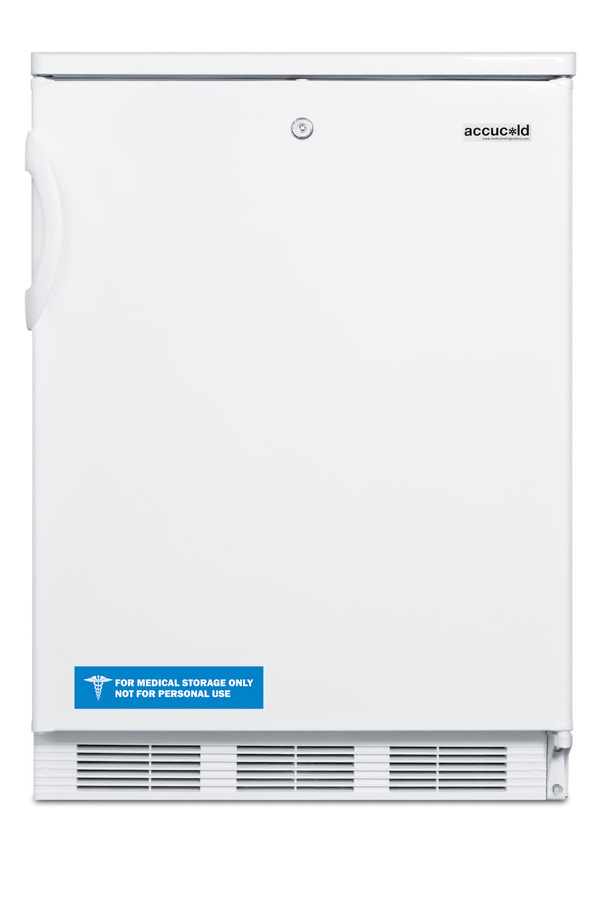

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF6LWBI7

Made in Europe and meets NSF-7 commercial standards

Estimated Time to Ship:

3 to 5 days

How to Buy

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101071459
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height 6" high leveling legs	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges Stainless steel top and bottom hinges	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock

AC Keypad - AC powered keypad lock

Interior

FCGP internal fan with gel packs

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal

Slim undercounter dimensions

Our unique 24" wide models offer full capacity in a slim fit

Commercially approved

ETL-S listed to NSF-7 commercial standards

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Front-mounted lock

Keyed lock offers added security

Automatic defrost

Reduced maintenance with auto defrost system

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Door storage

Store large bottles right on the door for easy access

Interior light

Automatically illuminates when you open the door

Reversible door

User-reversible door swing for added flexibility

Adjustable thermostat

Dial thermostat located inside for easy temperature management

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The FF6LBI7 Series features commercially listed all-refrigerators for built-in undercounter installation, with automatic defrost and deluxe interiors designed for maximum storage convenience.

The FF6LWBI7 can be built-in under counters or used freestanding. The 24" footprint is ideal for many cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit has a white exterior and user-reversible door swing. A front-mounted lock located towards the top of the door offers convenient security.

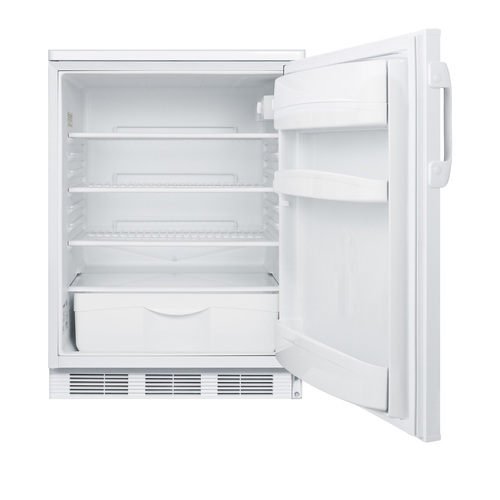

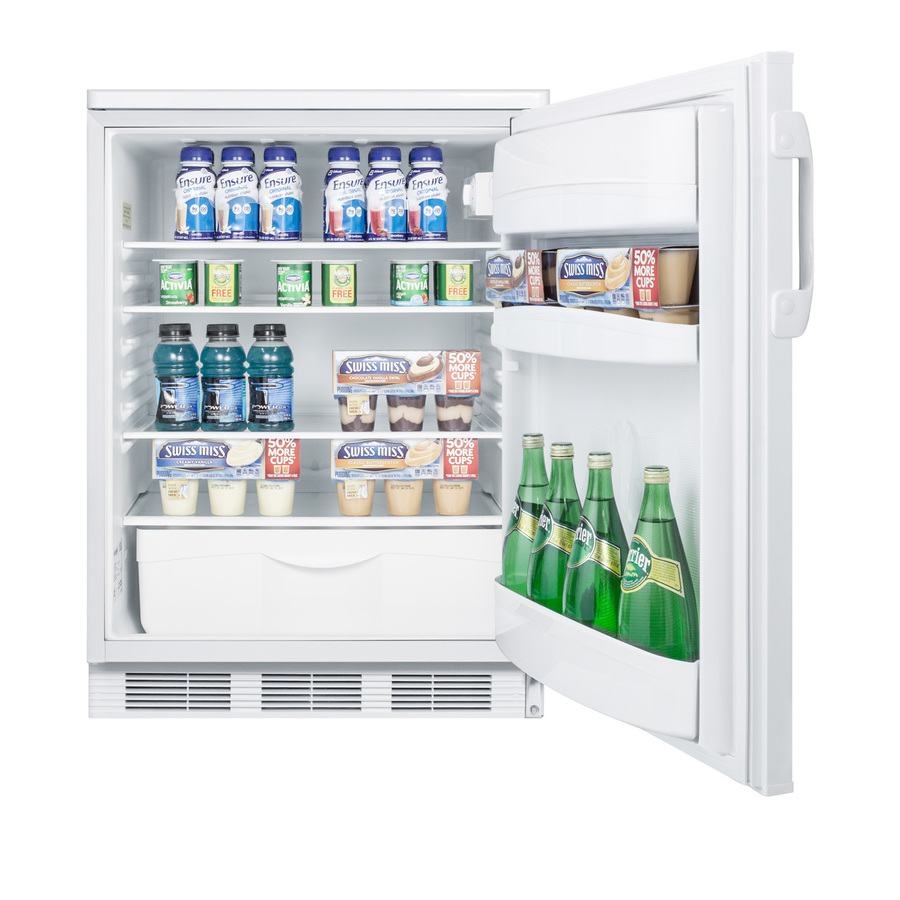

Inside, the FF6LWBI7 utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space to provide generous storage. Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

The FF6LWBI7 is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF6BI7 Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

BROCHURE w/ DRAWINGS
FF6LWBI7.pdf

TECHNICAL DRAWING (.dwg)
FF6LBI_FF6L7BIREFRIGERATORA-C2000.dwg

REVIT MODEL
QF_Summit_FF6LW_Refrigerator.rfa

USE & CARE
FF6WBI_FF7WBI__SCR600LBI_SCR600BLBI_Engl_French.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
