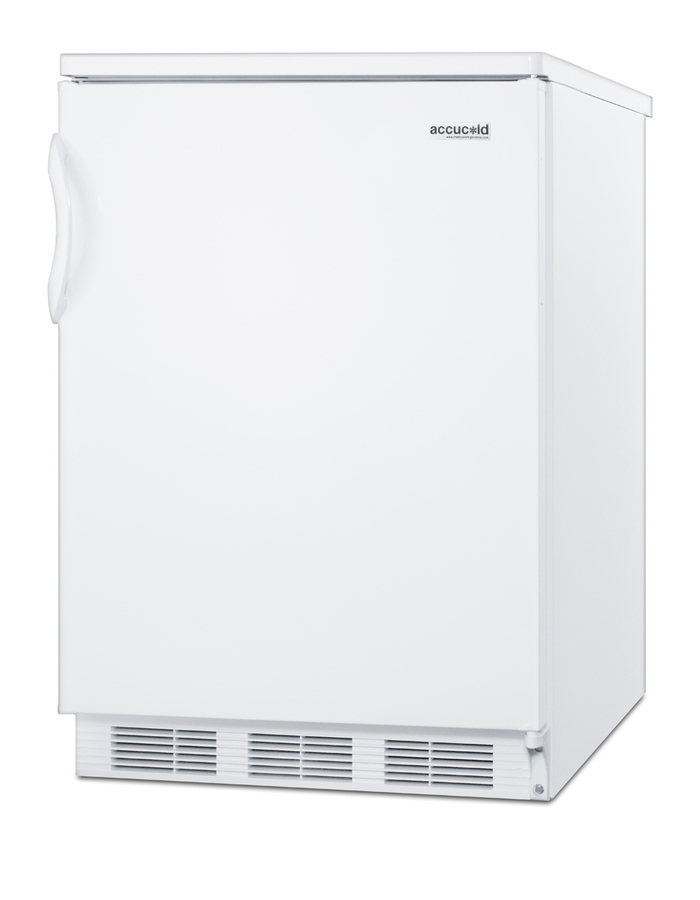

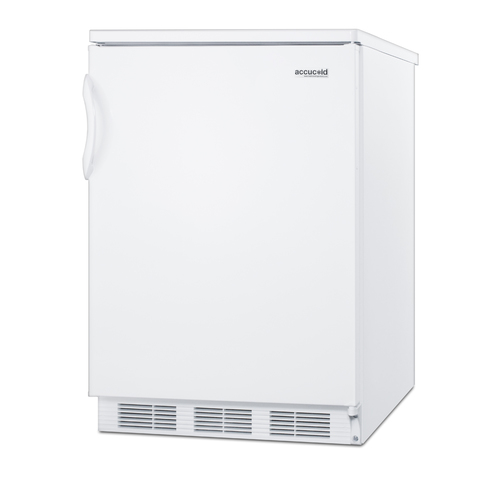

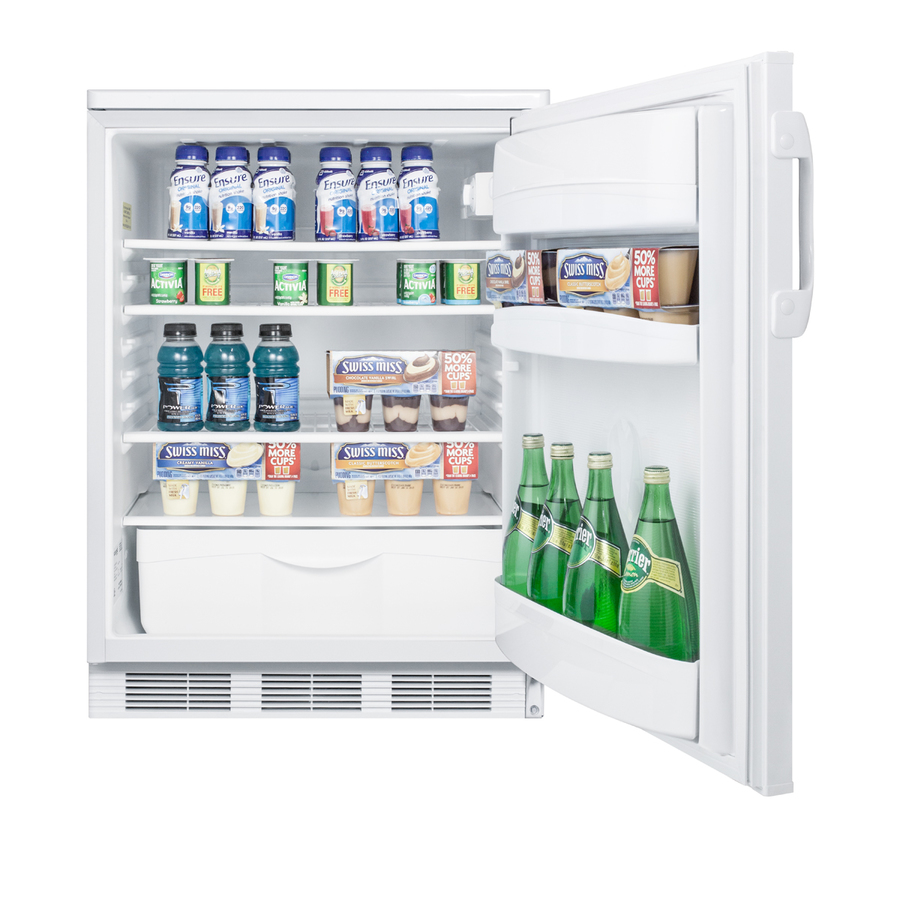

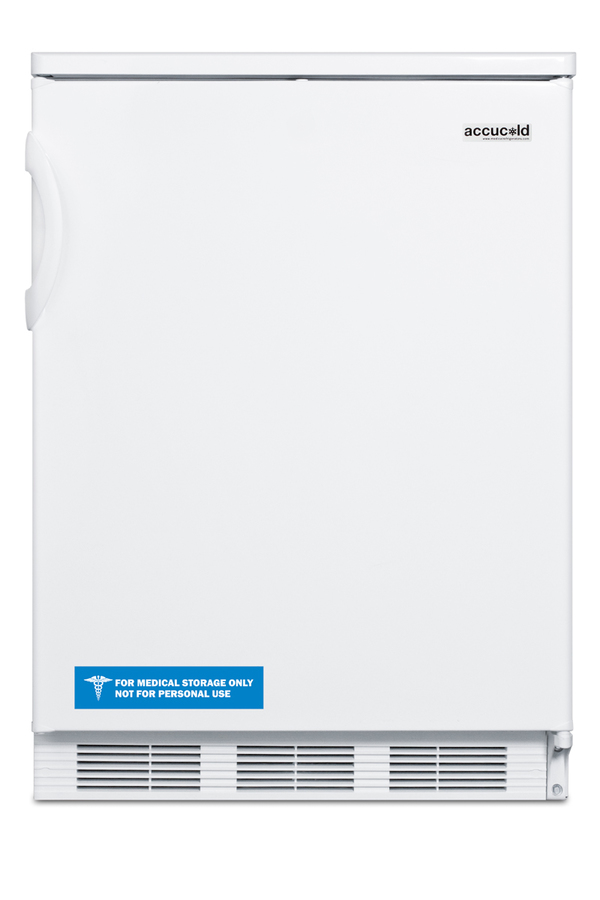

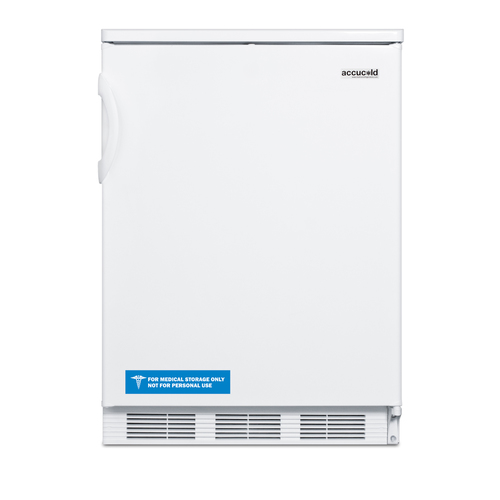

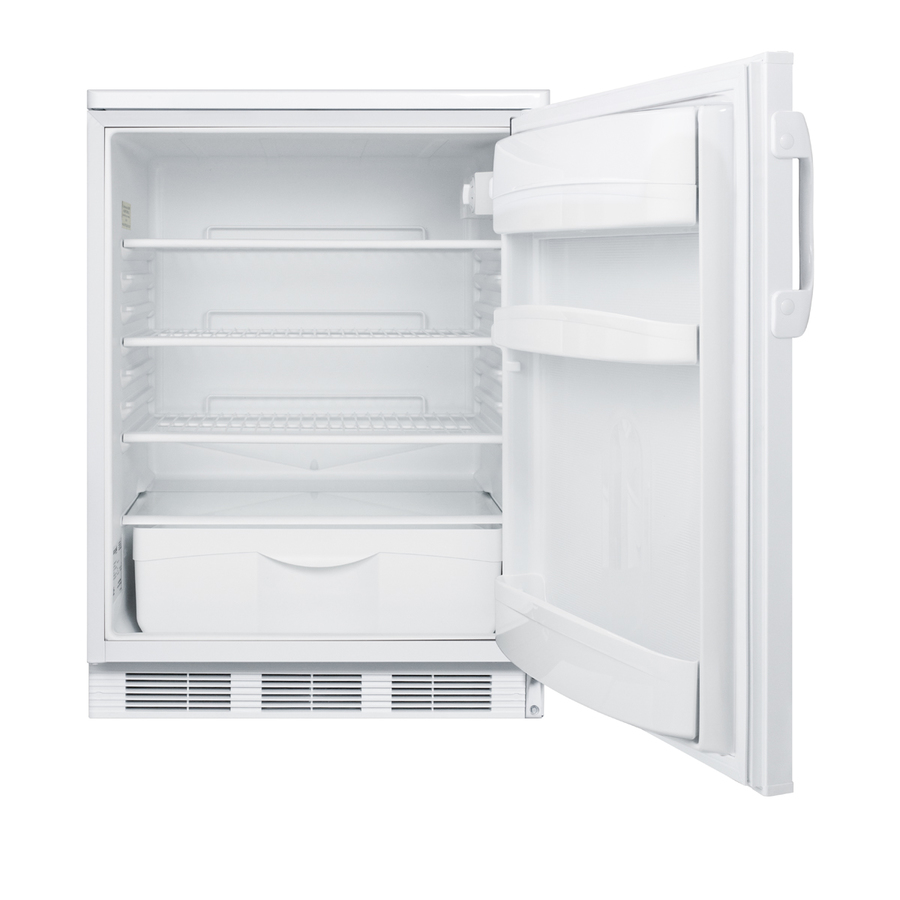

24" Wide All-Refrigerator

SKU: FF6W7

Made in Europe and meets NSF-7 commercial standards

DISCONTINUED- REPLACED BY FF6W7BZ

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101070865
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Legs to raise unit height 6" high leveling legs
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
SS Hinges Stainless steel top and bottom hinges	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)	KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Interior

FCGP internal fan with gel packs

Handle

TB - Stainless steel towel bar style handle Install a 12" handle with curved towel bar design in brushed stainless steel	TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees	CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate	CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

Commercially approved

ETL-S listed to NSF-7 commercial standards

Fully finished white cabinet

Allows the unit to be used freestanding

Slim counterheight dimensions

Our unique 24" wide models offer full capacity in a slim fit

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage

Store large bottles right on the door for easy access

Crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Interior light

Automatically illuminates when you open the door

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable thermostat

Control your food's temperature with ease and accuracy

Reversible door

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF67 Series features high performing, perfectly sized all-refrigerators with automatic defrost and deluxe interiors designed for storage convenience.

The FF6W7 is a counter height all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a white exterior and user-reversible door swing.

Inside, the FF6W7 utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space to provide generous storage. Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

The FF6W7 is ETL-S listed to NSF-7 standards for use in commercial establishments. For a built-in version of this unit, see the FF6WBI7. For more finish options, browse the entire FF67 Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

BROCHURE w/ DRAWINGS
FF6W7.pdf

TECHNICAL DRAWING (.dwg)
FF6_FF67REFRIGERATORA-C2000.dwg

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
