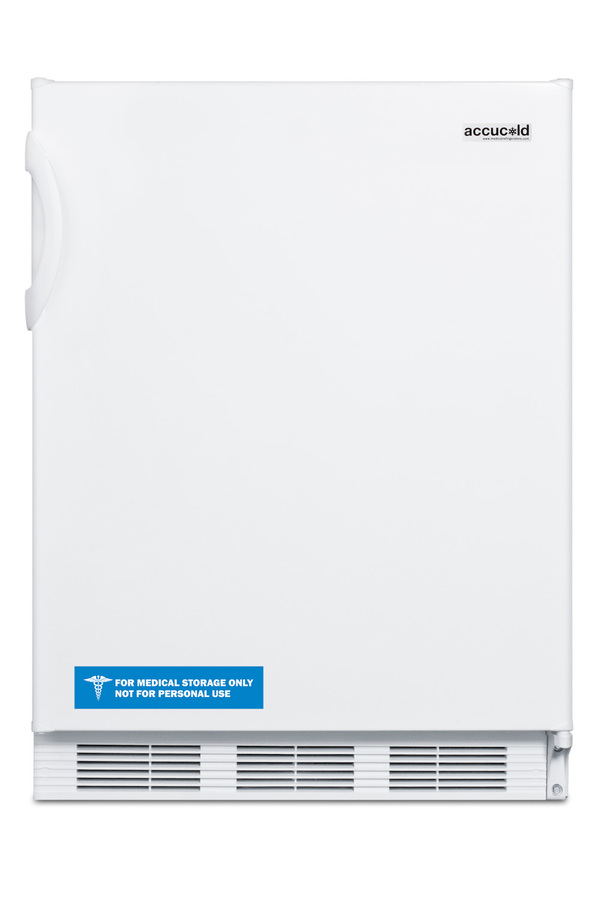

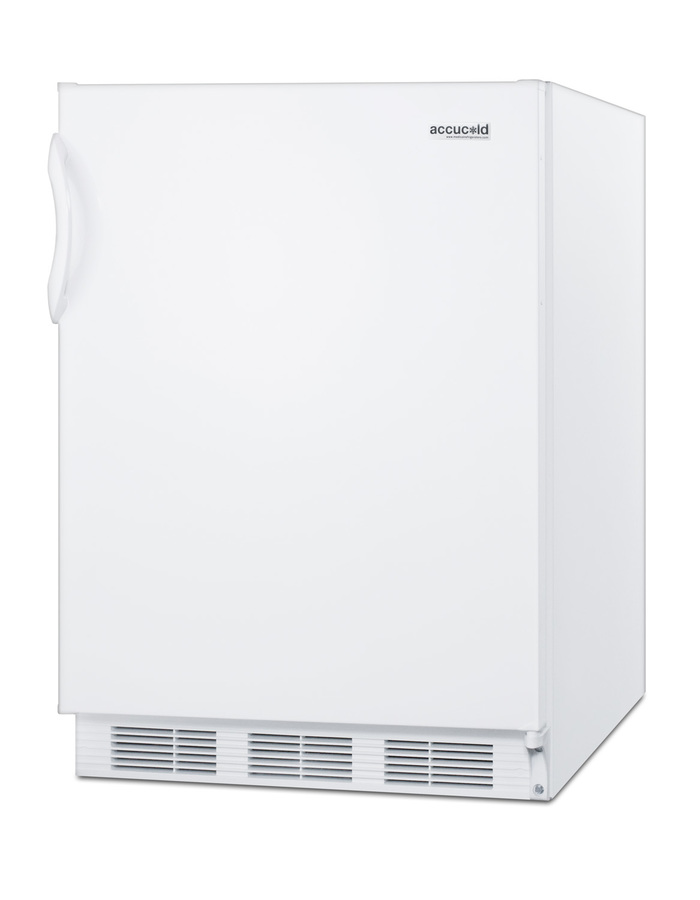

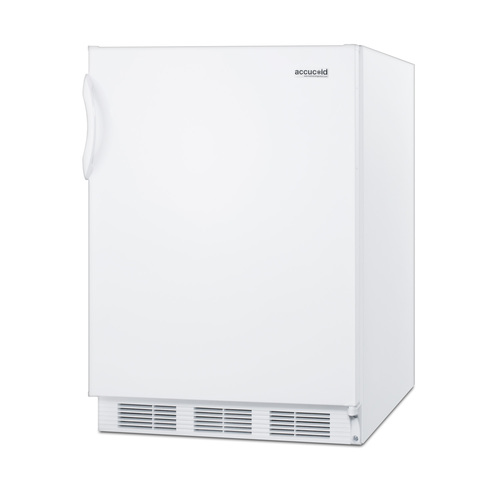

24" Wide All-Refrigerator, ADA Compliant

SKU: FF6WADA

Hidden evaporator for a clean seamless interior

DISCONTINUED- REPLACED BY FF61WADA

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.9
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069890
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	SS Hinges Stainless steel top and bottom hinges
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Interior

FCGP internal fan with gel packs

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees	CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate	CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant

32 inch height meets ADA guidelines

Slim counterheight dimensions

Less than 24 inches wide with a full 5.5 c.f. capacity

Automatic defrost

Reduced maintenance with auto defrost system

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door storage

Keep large bottles and condiments right on the door for easy access

Reversible door

User-reversible door swing for added flexibility

Adjustable thermostat

Manage the interior temperature with ease and accuracy

Interior light

Automatically illuminates when you open the door

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The FF6ADA Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

The FF6WADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a white exterior and user-reversible door swing.

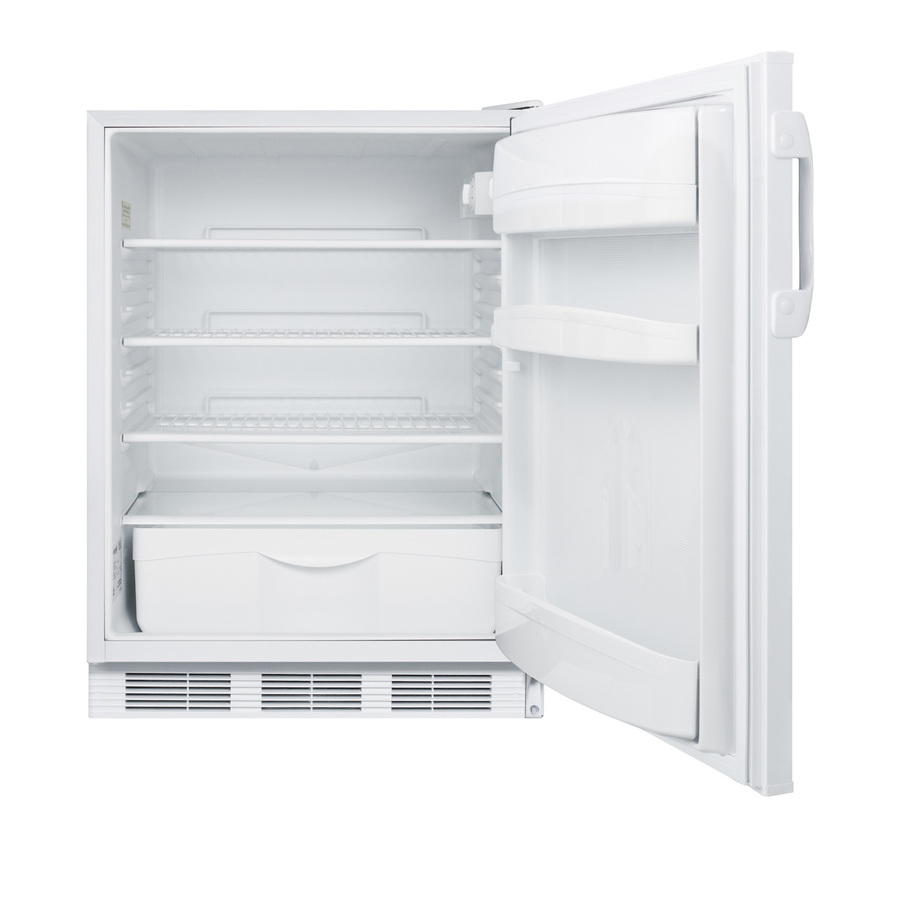

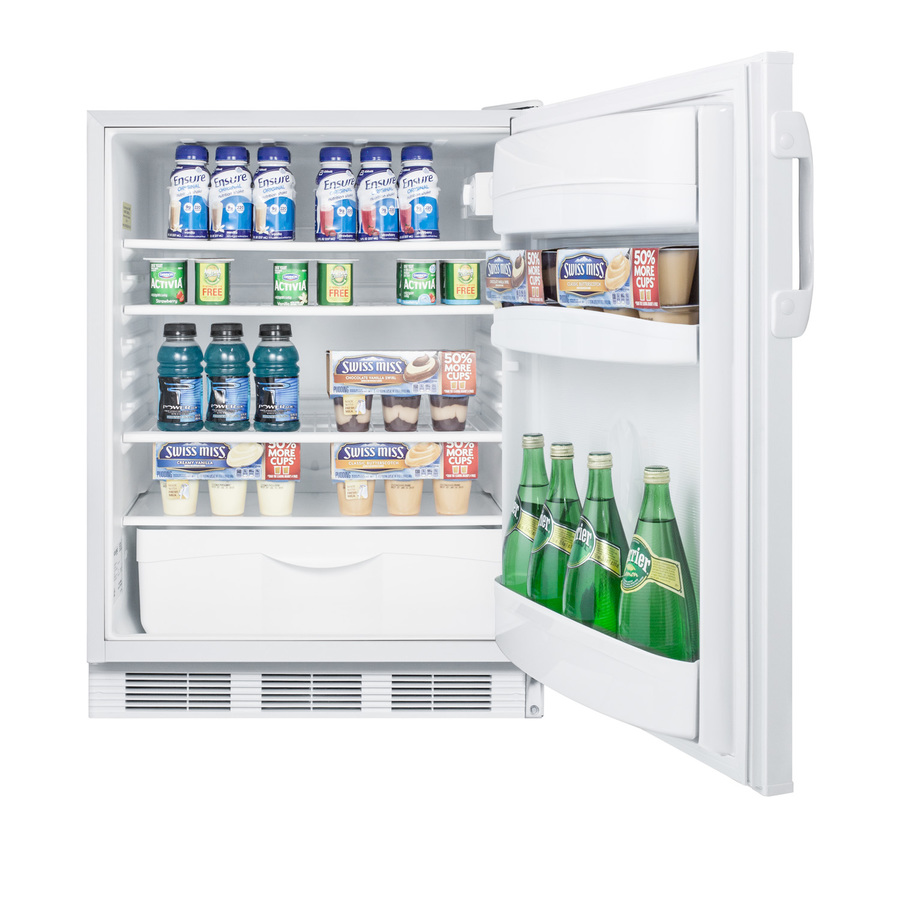

Inside, the FF6WADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior. Adjustable wire shelves allow users to reconfigure the interior for optimum storage. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

With its unique size and quality design, the FF6WADA is ideal for a variety of general purpose applications. For a built-in version of this unit, see the FF6WBIADA.  For more finish options, browse the entire FF6ADA Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

BROCHURE w/ DRAWINGS
FF6WADA.pdf

TECHNICAL DRAWING (.dwg)
FF6ADA_FF6BIADAREFRIGERATORA-C2000.dwg

REVIT MODEL
QF_Summit_FF6WADA_Refrigerator.rfa

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
