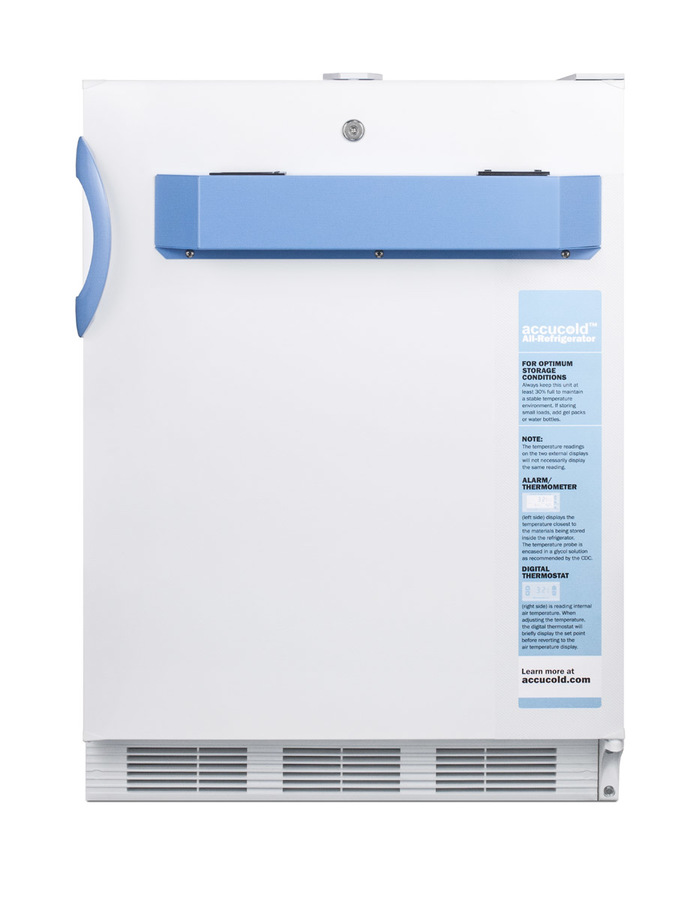

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF7LWBIMED2ADA
Designed and constructed to meet strict CDC, VFC and VFA refrigeration guidelines
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101072463
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2º to 8ºC
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Legs to raise unit height
6" high leveling legs
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in FF7 and FFAR10 models
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

ADA compliant design

Sized at 32" high to allow installation under lower ADA compliant counters

Built-in capable

Front-breathing system allows the unit to be used built-in

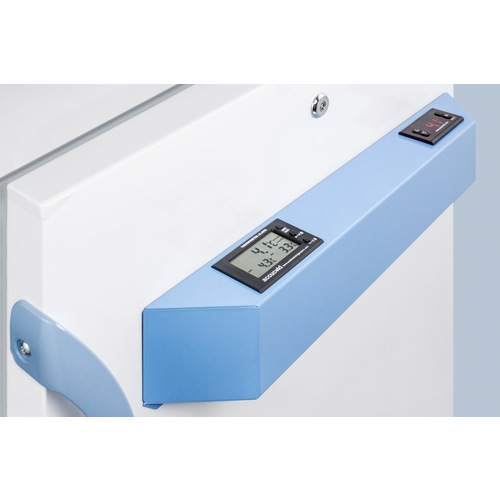

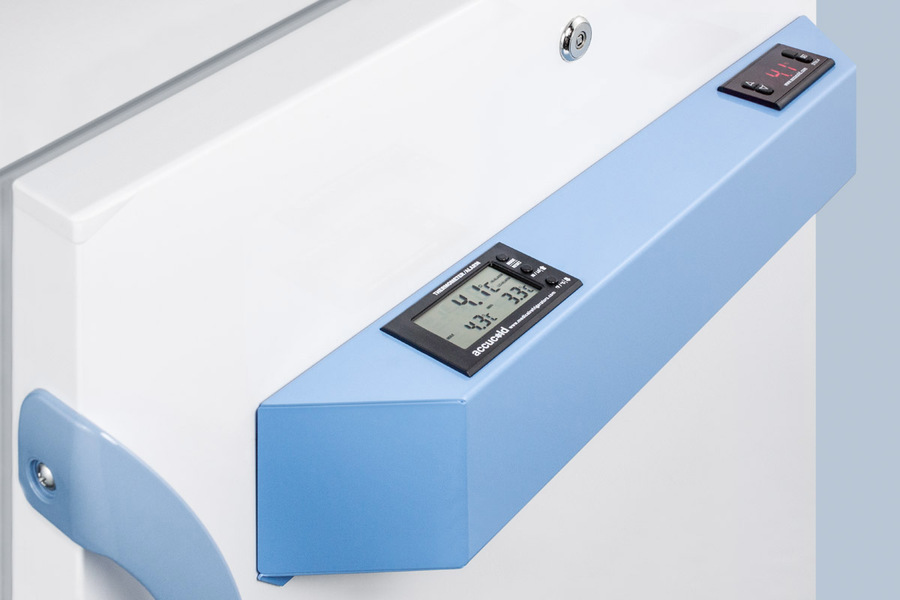

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

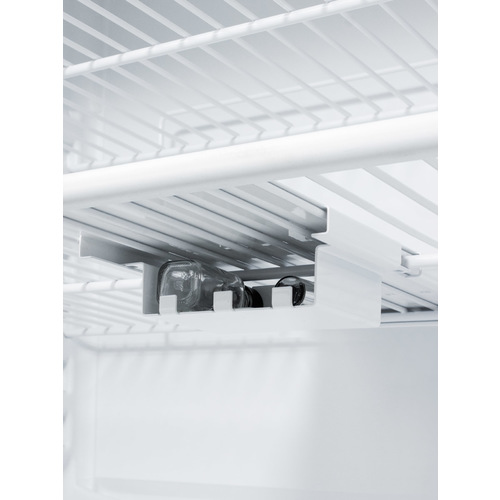

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Automatic defrost

Reduced maintenance with auto defrost system

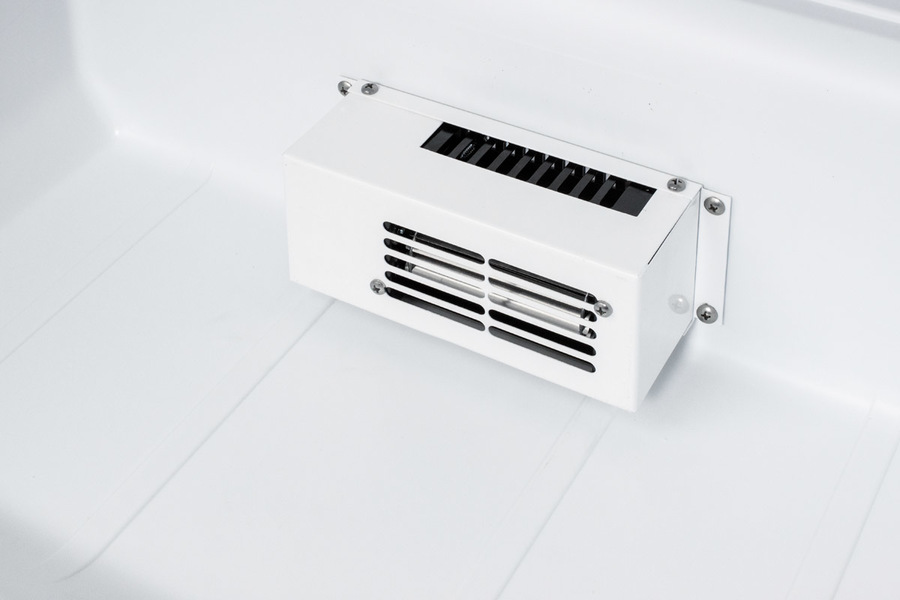

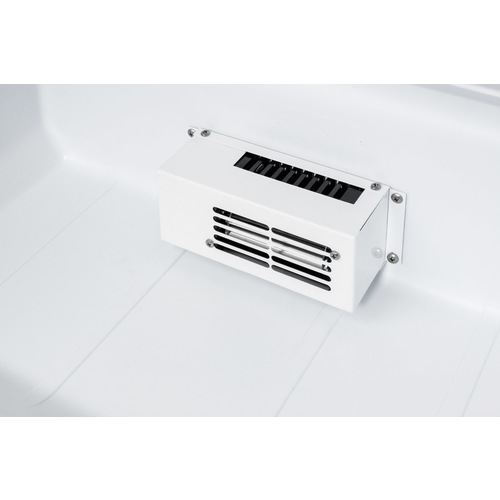

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Adjustable wire shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

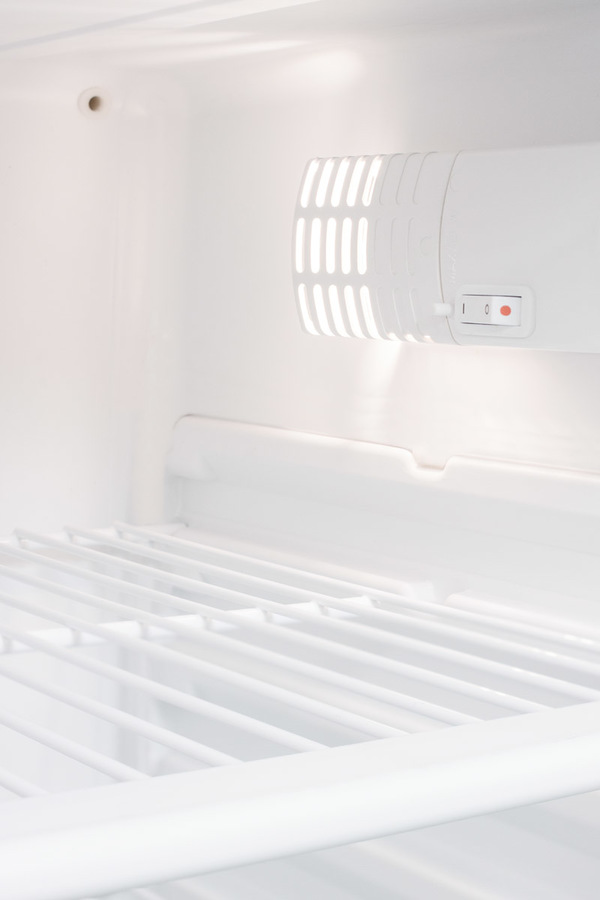

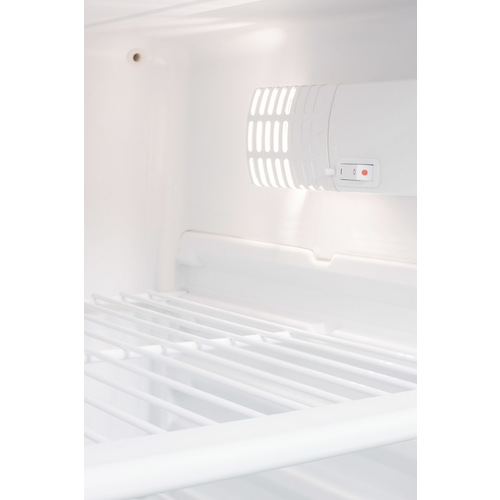

LED lighting

Efficient lighting for the interior controlled by an on/off rocker switch that allows the user to manage the display

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Fully finished white cabinet

Allows the unit to be used freestanding

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching freezer available

Pair with the VT65MLBIMED2ADA to create a complete set

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

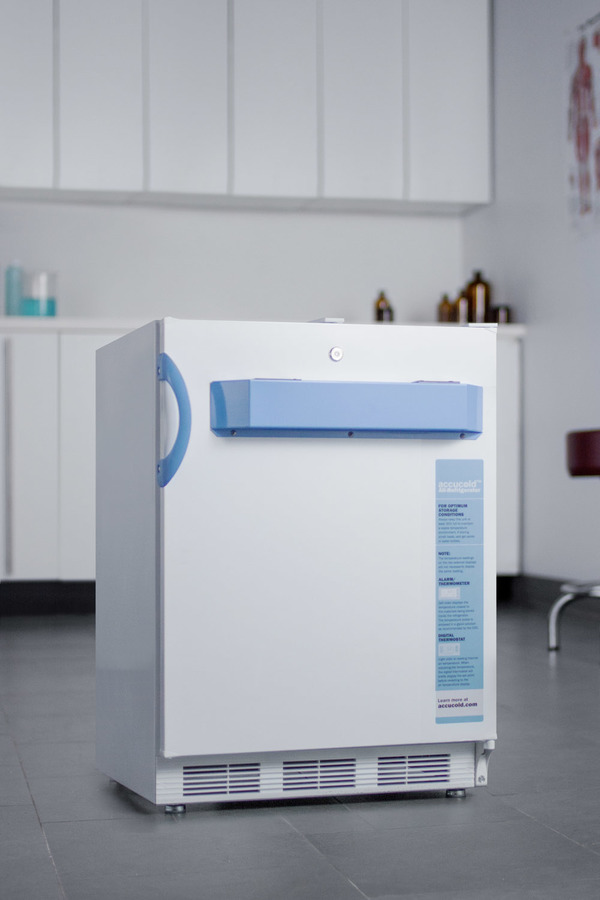

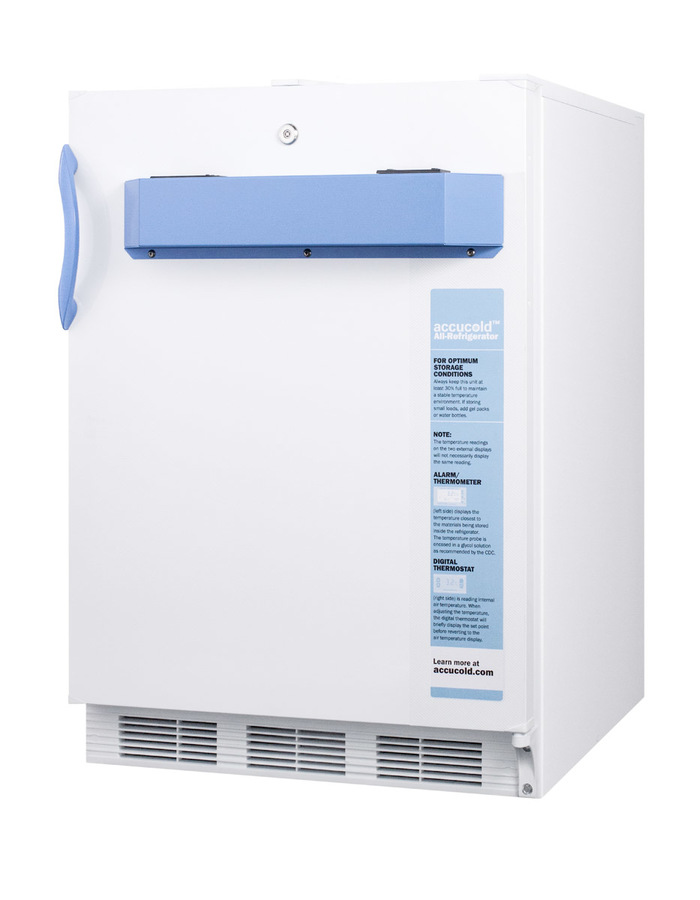

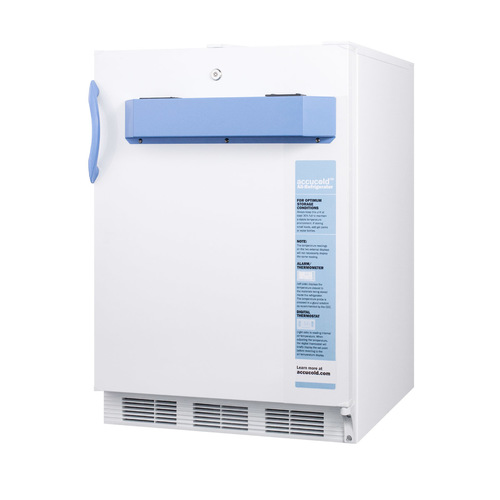

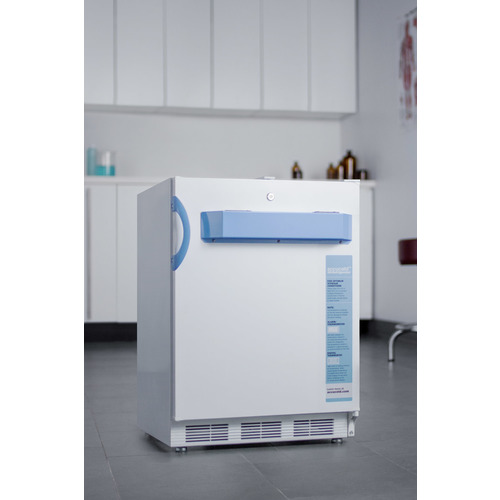

The FF7LWBIMED2ADA is an all-refrigerator sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is  designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments.

As recommended by the CDC, VFC and VFA programs, the FF7LWBIMED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each FF7LWBIMED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

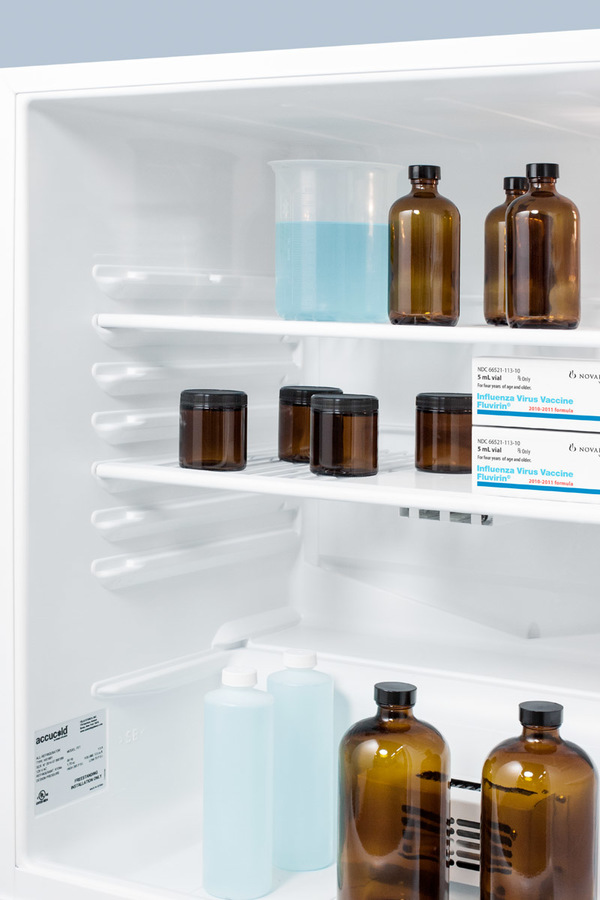

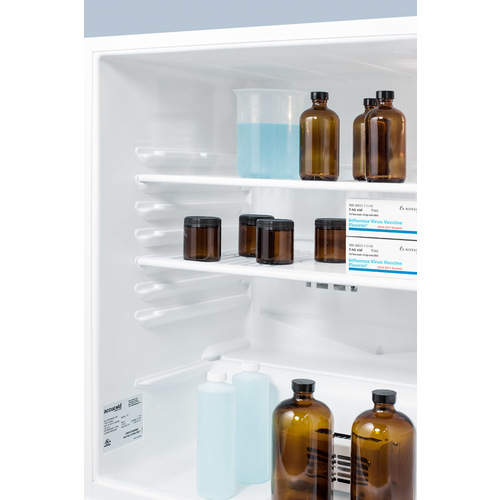

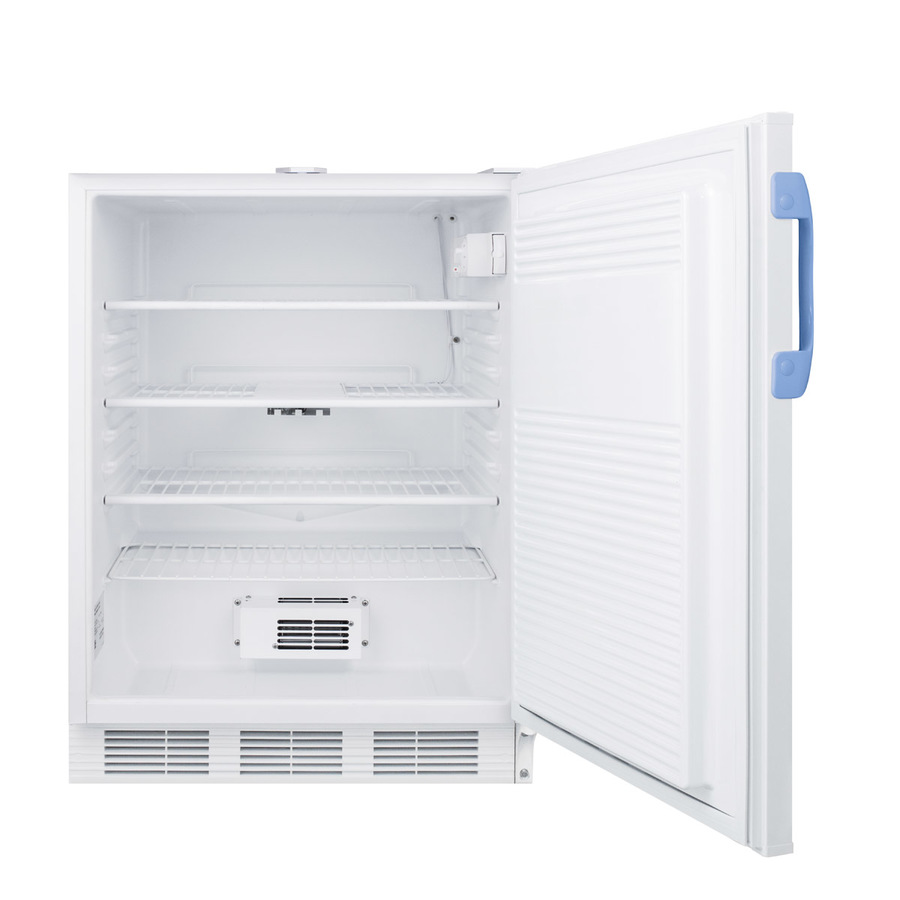

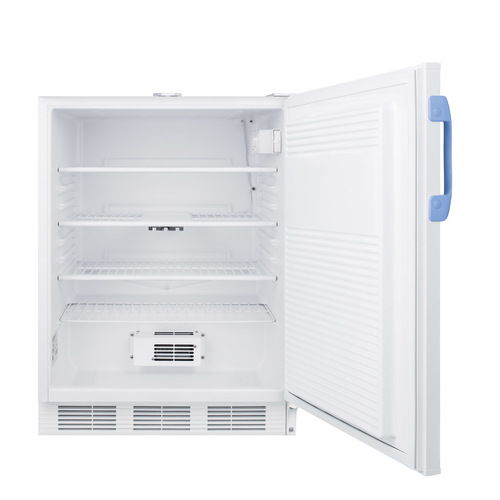

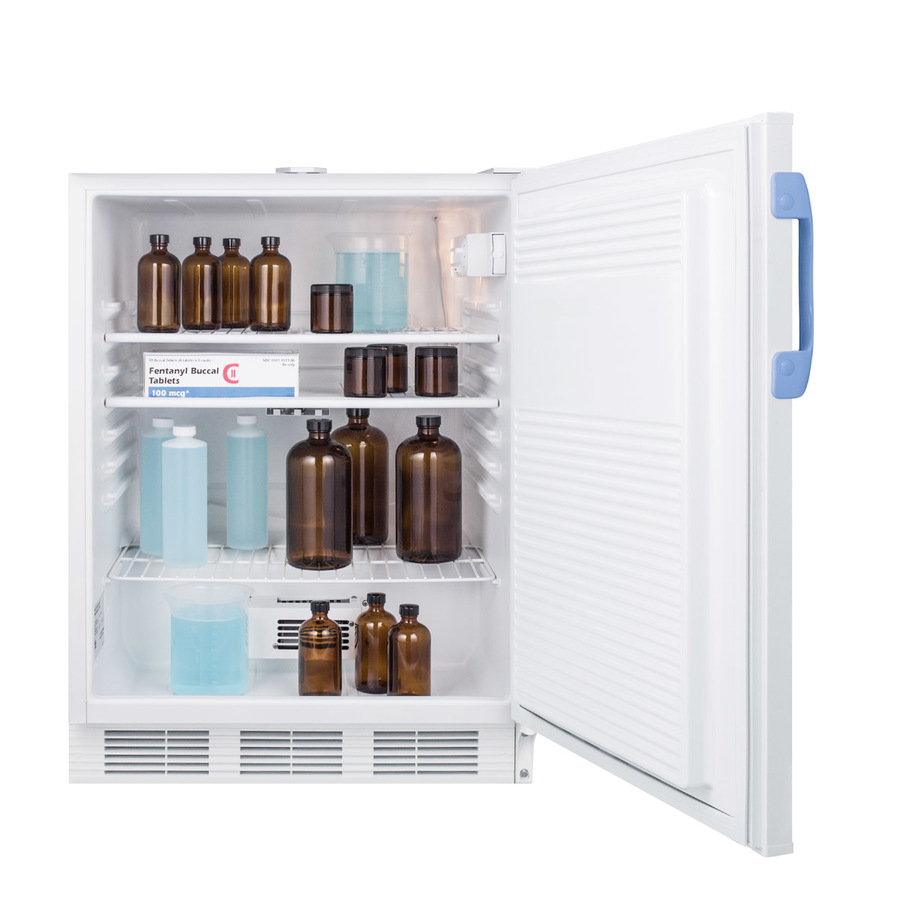

The generous 5.5 cu.ft. interior capacity includes adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The flat door liner offers deeper storage space, holding trays up to 19 1/2" x 16." This unit includes an energy efficient LED interior light on an on/off rocker switch for added visibility. An internal fan ensures the interior is evenly cooled from top to bottom.

All MED2 series units are assembled in the USA from domestic and imported components. The FF7LWBIMED2ADA can be paired with a matching low temperature all-freezer (VT65MLBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
