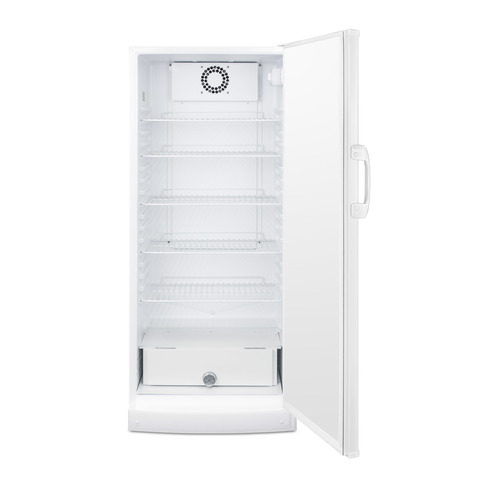

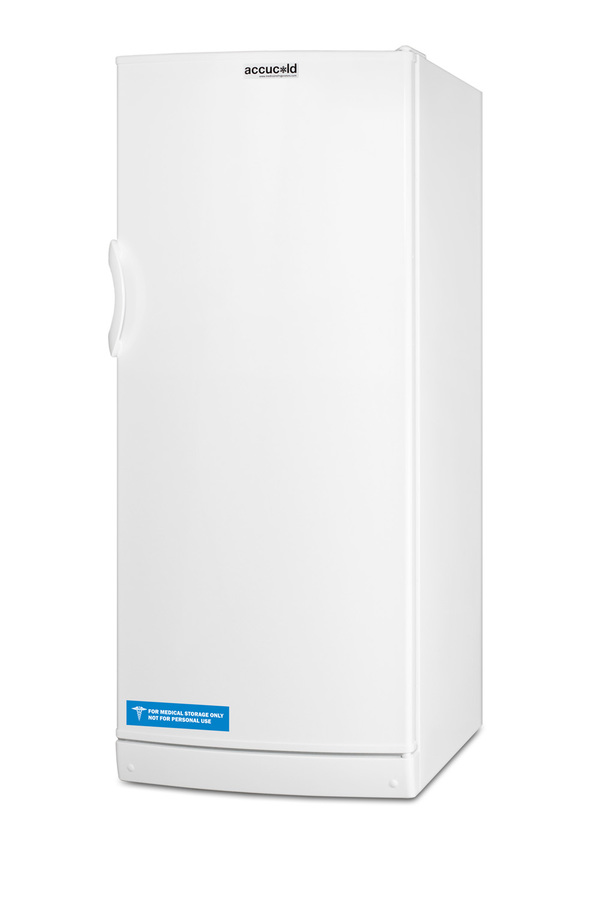

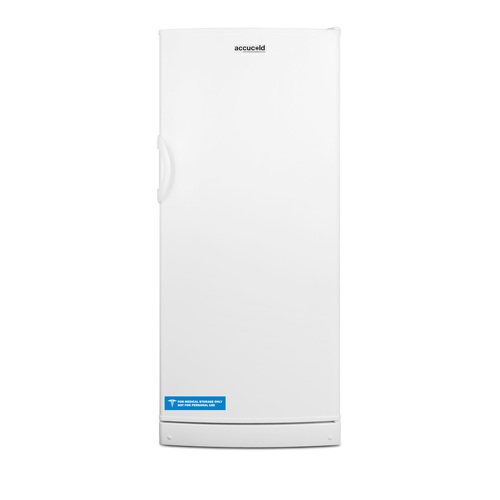

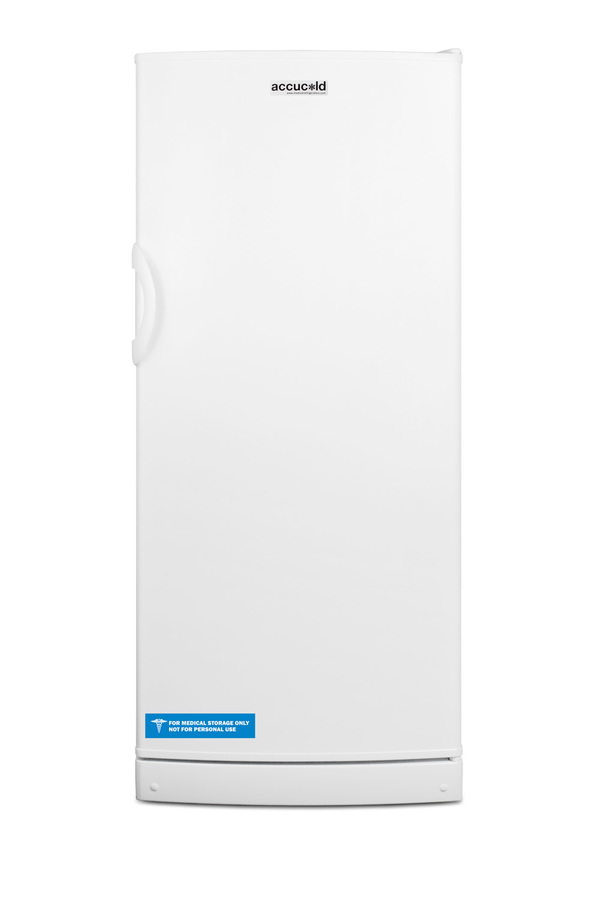

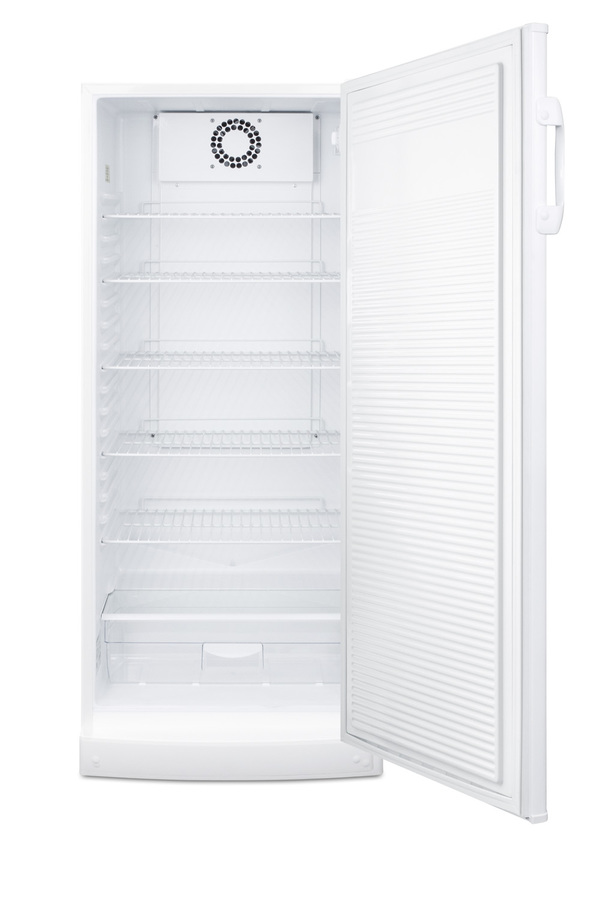

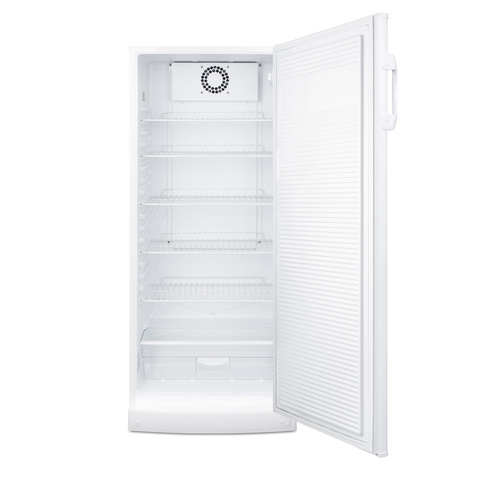

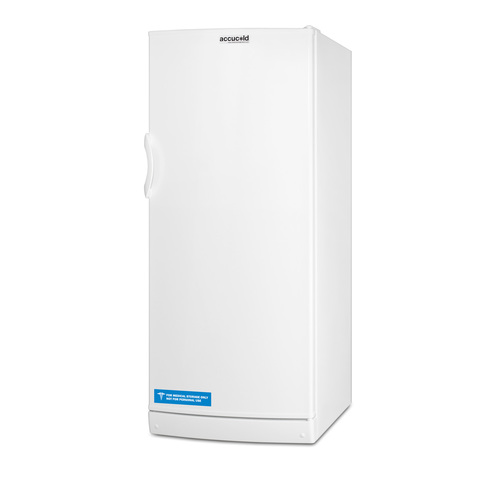

24" Wide All-Refrigerator

SKU: FFAR10

Made in Europe with a fully auto defrost operation in 10.1 cu.ft. interior

DISCONTINUED- REPLACED BY ARS8PV

54.88" H x 23.63" W x 23.0" D
(139cm H x 60cm W x 58cm D)

Overview
Nominal Height	55.0" (140 cm)
Height of Cabinet	54.5" (138 cm)
Height to Hinge Cap	54.88" (139 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with Handle	24.75" (63 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	10.1 cu.ft. (286 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Other Energy Info	120 Volts / 60 Hz.
Amps	1.5
Weight	135.0 lbs. (61 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101001593
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	3.0oz.
High Side PSI	290.0
Low Side PSI	70.0
Level Legs Qty	2
Interior Light	Yes
Dimensions
Interior Height	48.0" (122 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

LockBox24 - Interior locking compartment

FCGP internal fan with gel packs

Lock

AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security	KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security
L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)	L-TopLock Add a single keyed lock located on top of the unit

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Thin-line design

Slim 24" footprint is ideal for space-challenged areas

Full-sized capacity

Over 10 cu.ft. of storage room inside

Automatic defrost

Reduced user maintenance with auto defrost system

Internal fan

Fan-cooled interior for even temperature distribution

Interior light

Automatically illuminates when you open the door

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper drawer

Lower slide-out drawer offers convenient storage

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance's FFAR10 line of all-refrigerators are made in Europe and designed for quality cooling in general purpose applications.

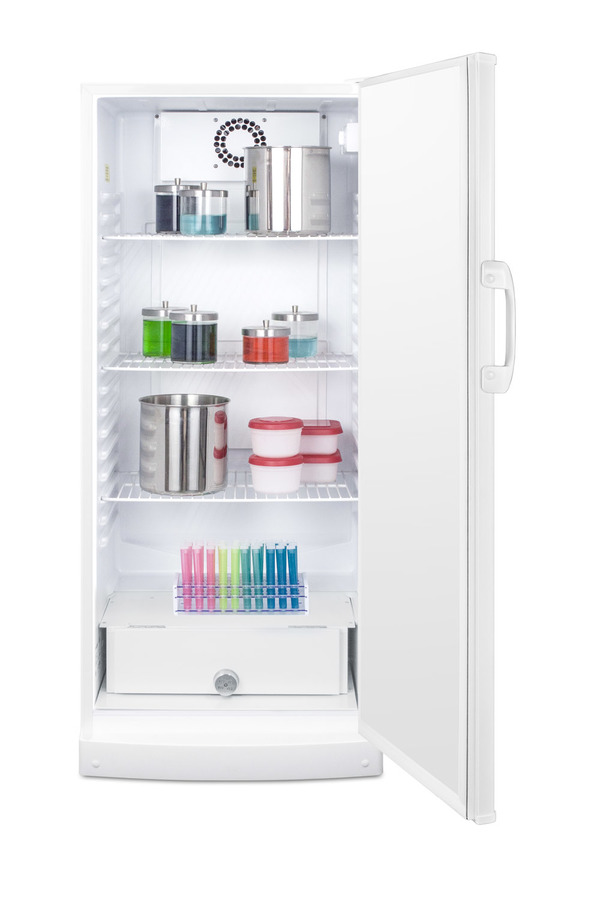

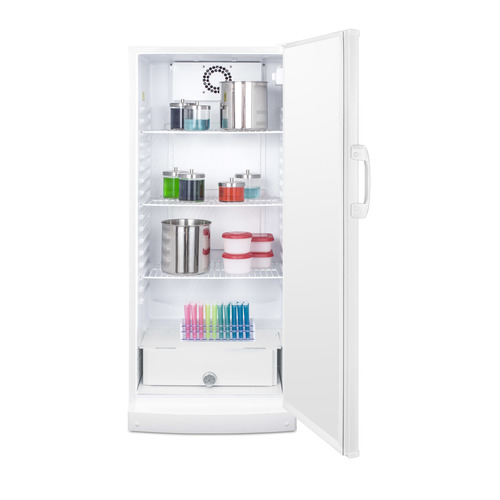

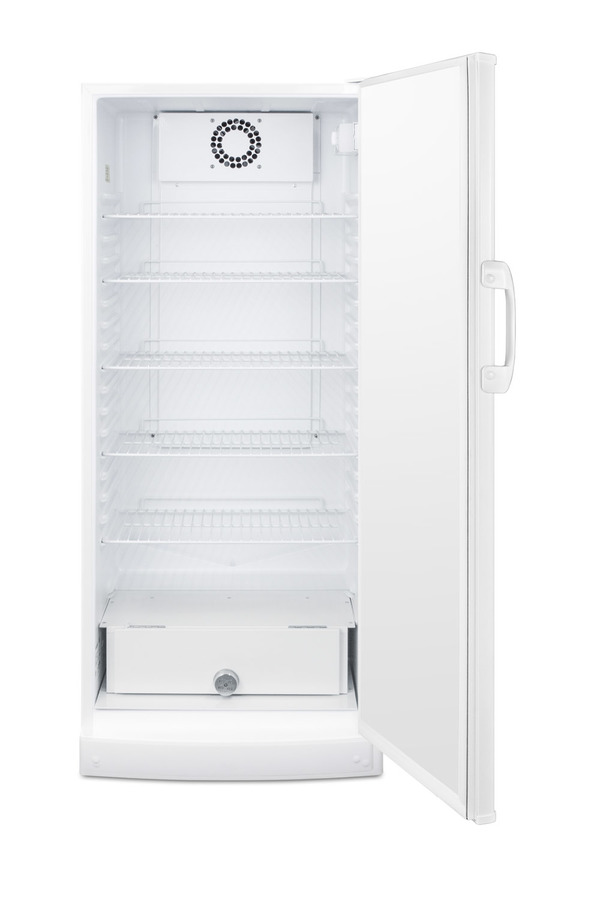

The FFAR10 contains over 10 cu.ft. of storage capacity in a conveniently sized 24" footprint. Four adjustable wire shelves and a crisper drawer offer flexible storage options.

Automatic defrost saves on user maintenance, with fan-forced air circulation maintaining an even temperature throughout the interior. Additional features include a reversible door, interior lighting, and adjustable thermostat.

With its low maintenance design and ideal size, the FFAR10 is a great choice for hospitals, clinics, and other general purpose facilities in need of reliable cooling in an easy-fitting footprint.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FFAR10.pdf

TECHNICAL DRAWING (.dwg)
FFAR10_FEFRIGERATOR__A-C_2000_.dwg

OTHER
FFAR10_Wiring_diagram.pdf

USE & CARE
FFAR10_Accucold_manual.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
