24" Wide All-Refrigerator/All-Freezer Combination
(212cm H x 61cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 84.0" (213 cm) |
| Height of Cabinet | 83.63" (212 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 24.0" (61 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 12.1 cu.ft. (343 L) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101058856 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 48.25" (123 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.75" (45 cm) |
| Refrigerator - Capacity | 10.1 cu.ft |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 4 |
| Refrigerator - Temperature Range | 2ºC to 8ºC |
| Refrigerator - Refrigerant Type | R134a |
| Refrigerator - Refrigerant Amount | 3.0 oz. |
| Freezer - Interior Height | 18.5" (47 cm) |
| Freezer - Interior Width | 13.5" (34 cm) |
| Freezer - Interior Depth | 13.0" (33 cm) |
| Freezer - Capacity | 1.8 cu.ft |
| Freezer - Shelf Type | Wire |
| Freezer - Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Freezer - Temperature Range | -20º to -15ºC |
| Freezer - Refrigerant Type | R600a |
| Freezer - Refrigerant Amount | 0.8 oz. |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
||||
| Lock | ||||
|
||||
| Interior | ||||
|
||||
| Handle | ||||
|
FEATURES
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Designed to comply with the most current guidelines for vaccine storage
10.1 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
Compact manual defrost all-freezer with digital thermostat and wire shelving

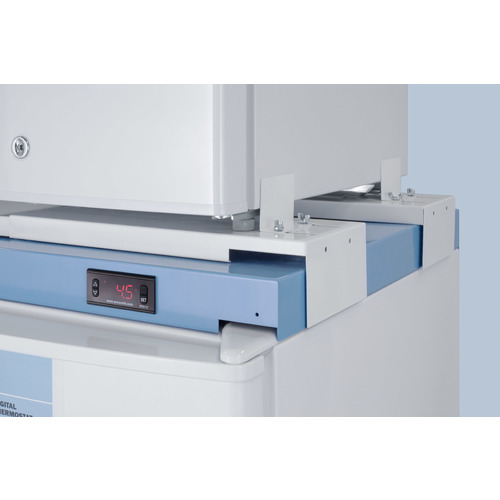

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Rear-mounted 3/8" access port in both units allows users to install their own monitoring equipment
Audible alarm sounds if the interior temperature rises or falls out of set range
Alarms include continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Secure three-pronged cord for added unit safety (both units)
Both models include locks for added security, with two keys included for each unit
StackRack ships with anti-tip bracket for easy aftermarket installation
Designed to ensure a sufficiently insulated interior
Quality door gaskets ensure a tight seal for energy savings and improved performance
ETL and ETL-C listed for North American sales
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Environmentally friendly design with no ozone-damaging chemicals
DESCRIPTION

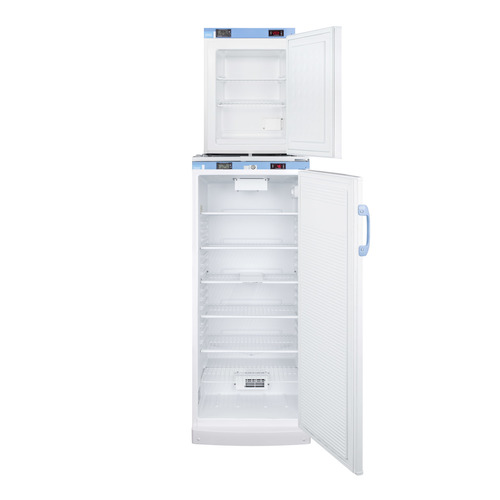

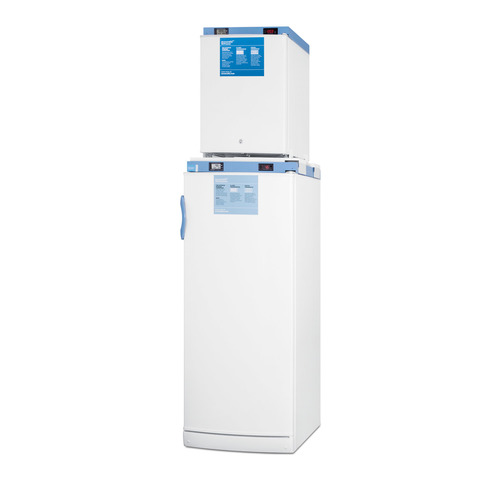

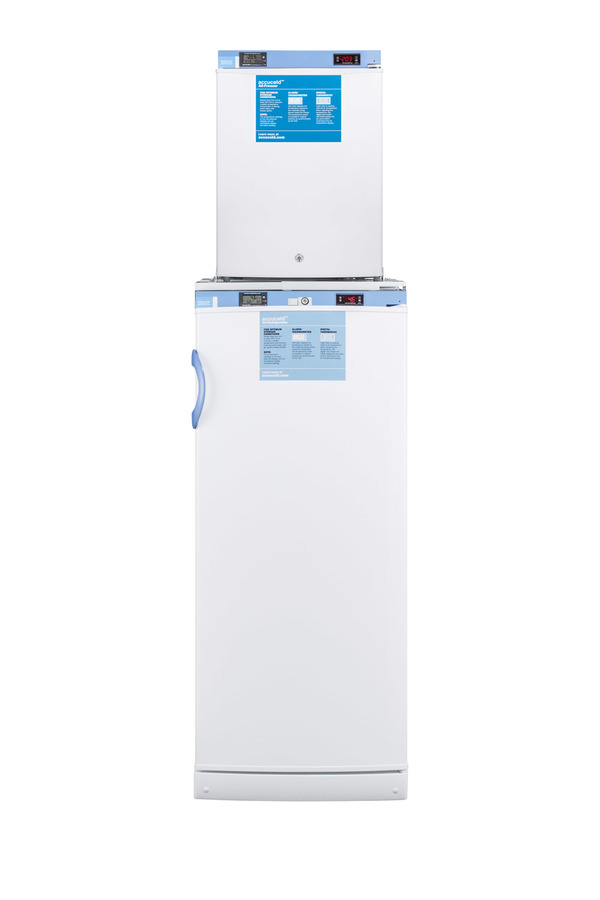

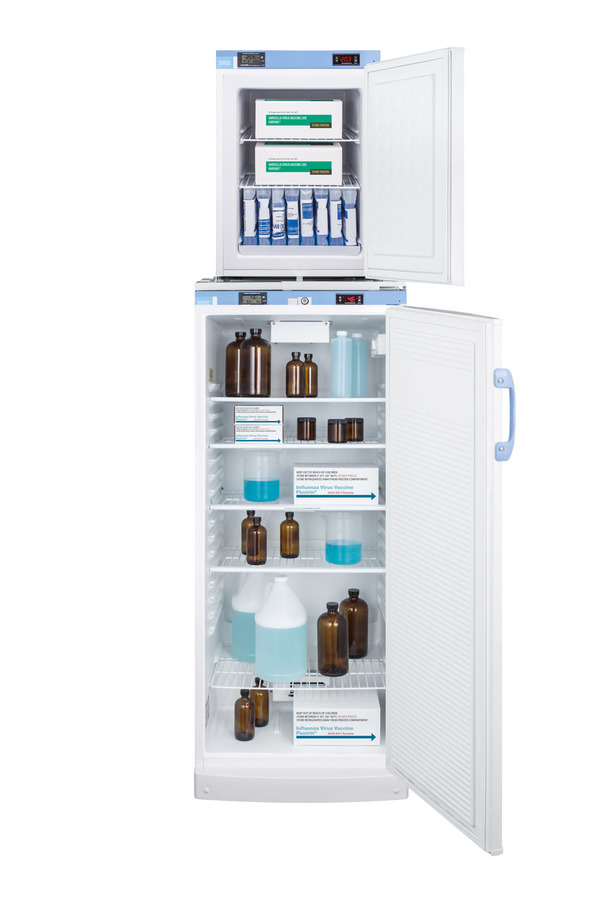

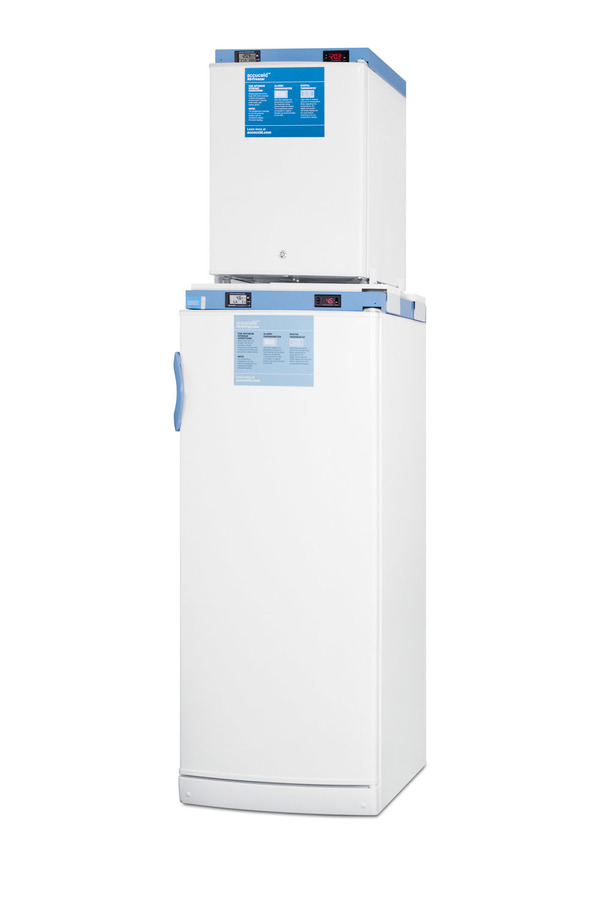

Accucold offers innovative solutions to vaccine storage with the STACKMED2 stackable refrigerator-freezer combination series. Sized just under 24" wide, the FFAR10-FS30LSTACKMED2 combines our full-sized FFAR10MED2 auto defrost all-refrigerator with the compact FS30LMED2 all-freezer in one slim footprint. Made in Europe, the FFAR10MED2 offers 10.1 cu.ft. of storage, with fan-forced cooling and adjustable wire shelves to ensure an even temperature distribution. The FS30LMED2 freezer utilizes static manual defrost cooling. Both units feature front-located control panels equipped with digital thermostats and NIST calibrated thermometers with high/low temperature alarms. Calibration is done in our ISO/IEC certified laboratory. The buffered temperature probes are encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment in the rear of both units. Additional features include front locks and hospital grade cords. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor. All Accucold STACKMED2 units ship in three boxes and require some minor assembly upon delivery. Additional stacked combinations can be created by ordering virtually any two units with our StackRack. These units can also be customized with a variety of refrigeration options, including NIST calibrated thermometers, USB data loggers, open door alarms, and much more. To create a custom combination, contact our sales team at 718-893-3900. *NOTE: Thermostats come pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
