24" Wide All-Refrigerator

SKU: FFAR10MED2
Designed and constructed to meet strict CDC and VFC refrigeration guidelines
DISCONTINUED- REPLACED BY ARS8PV
56.75" H x 23.63" W x 23.5" D
(144cm H x 60cm W x 60cm D)

Overview
Nominal Height 57.0" (145 cm)
Height of Cabinet 56.75" (144 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 10.1 cu.ft. (286 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Other Energy Info 120 Volts / 60 Hz.
Amps 1.5
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101056579
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 3.0oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2ºC to 8ºC
Dimensions
Interior Height 48.25" (123 cm)
Interior Width 20.5" (52 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.5" (14 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in FF7 and FFAR10 models
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

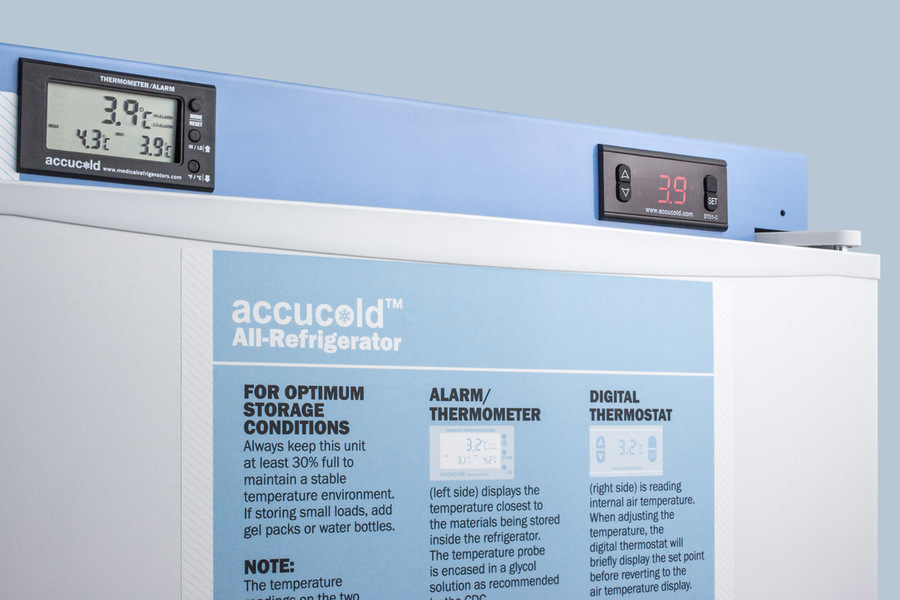

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

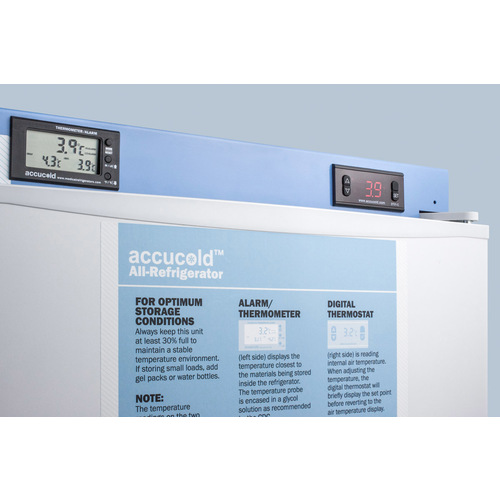

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

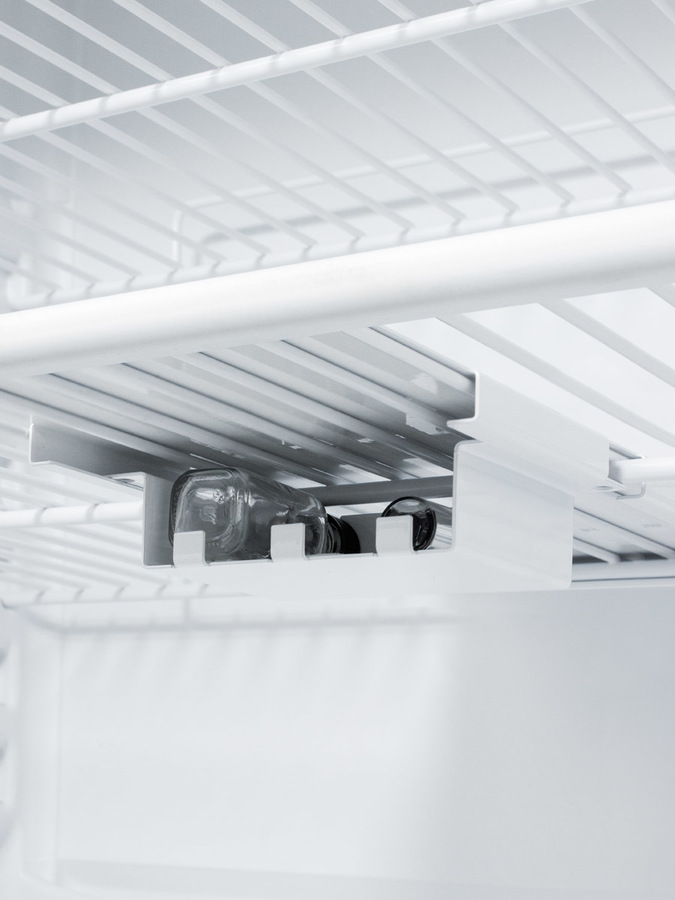

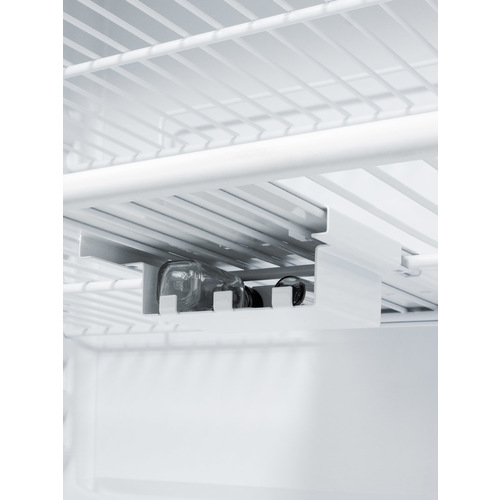

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

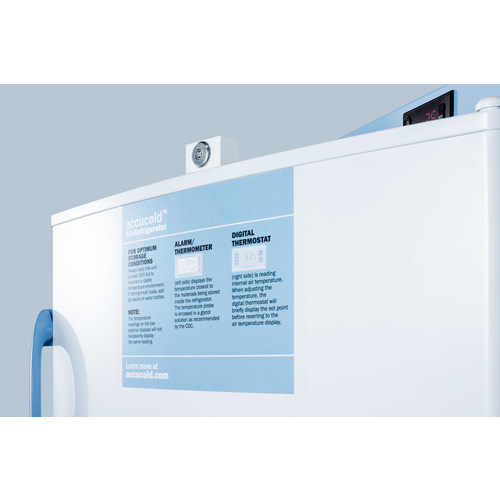

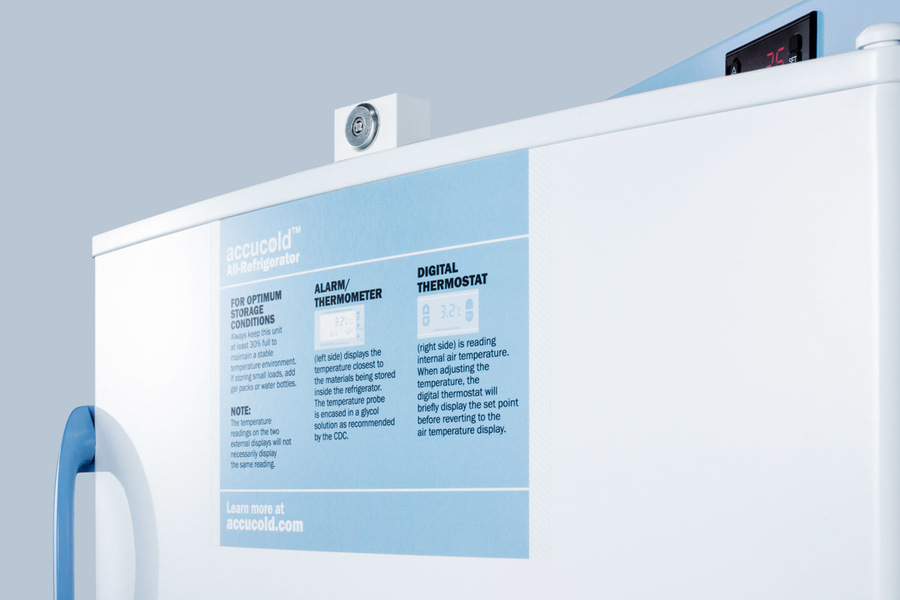

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Adjustable wire shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

LED lighting

Efficient lighting for the interior controlled by an on/off rocker switch that allows the user to manage the display

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

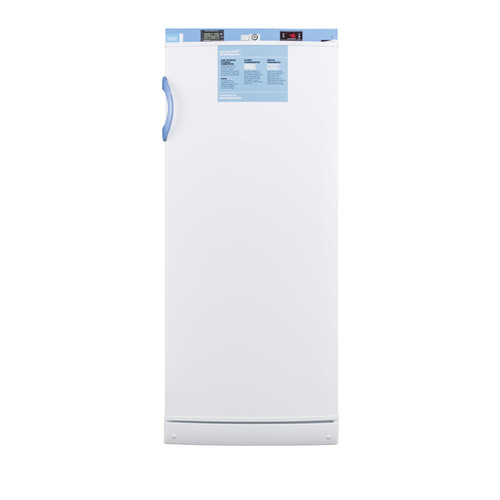

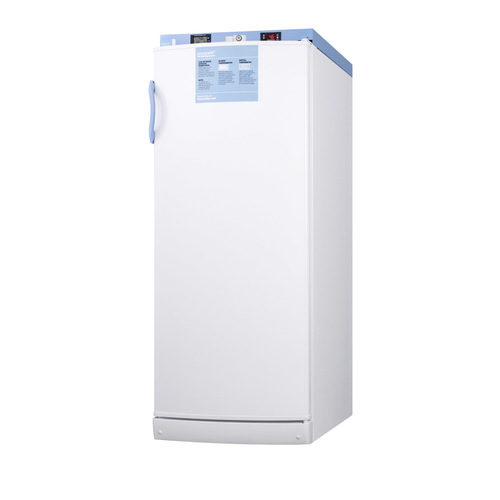

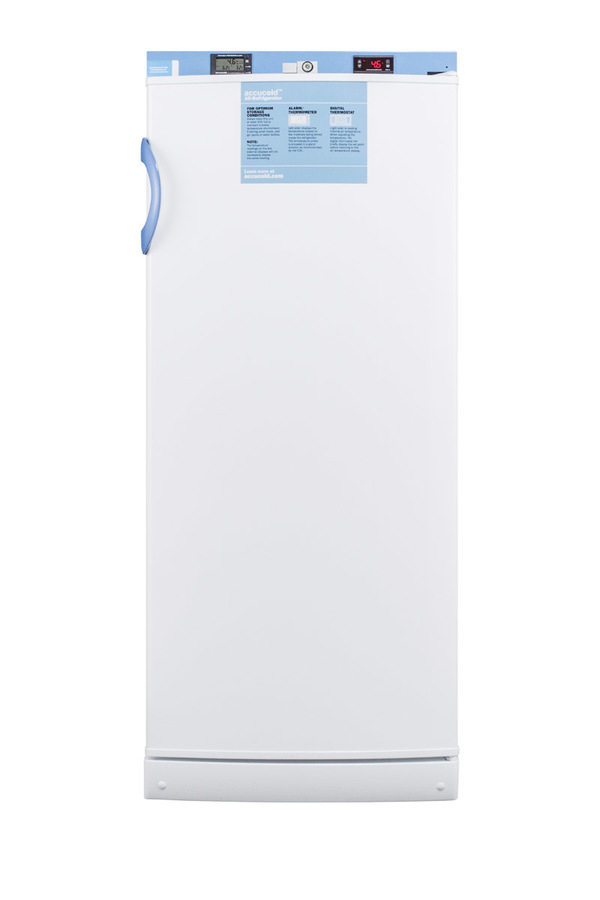

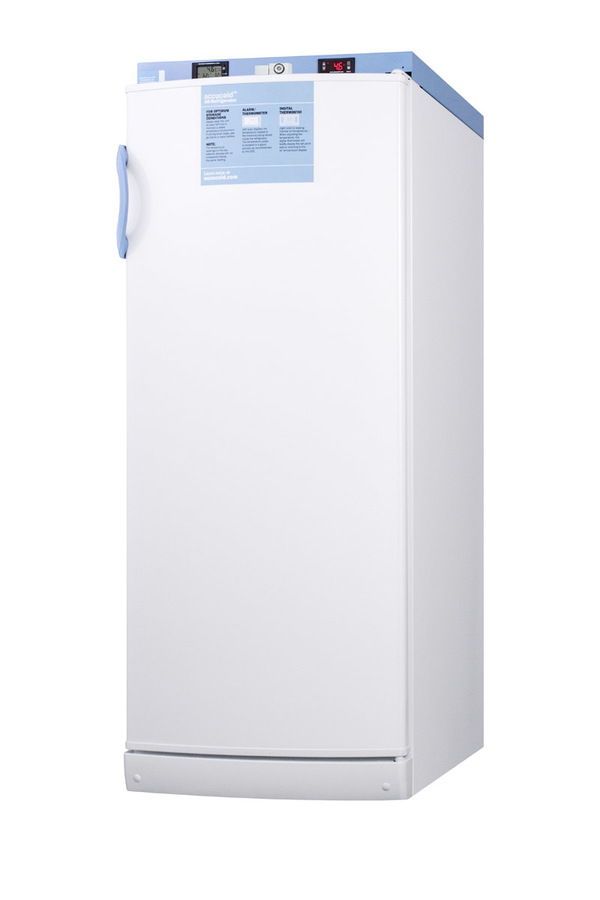

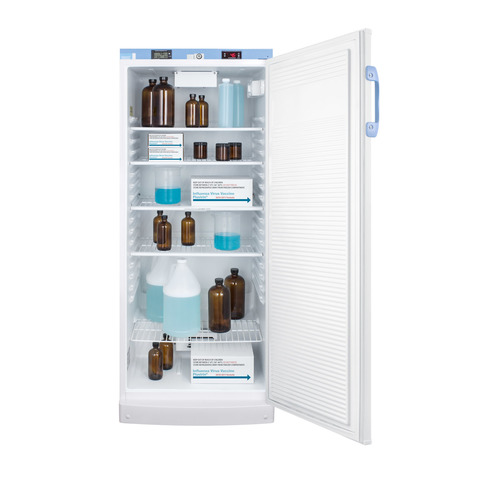

The FFAR10MED2 is an upright all-refrigerator sized in a convenient 24" footprint. The top-mounted control panel allows users to adjust and monitor the temperature without opening the door, with a keyed lock included towards the top of the door for convenient access. A hospital grade 'green dot' cord offers added safety in high traffic environments.

As recommended by the CDC and VFC programs, the FFAR10MED2 is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each FFAR10MED2 ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

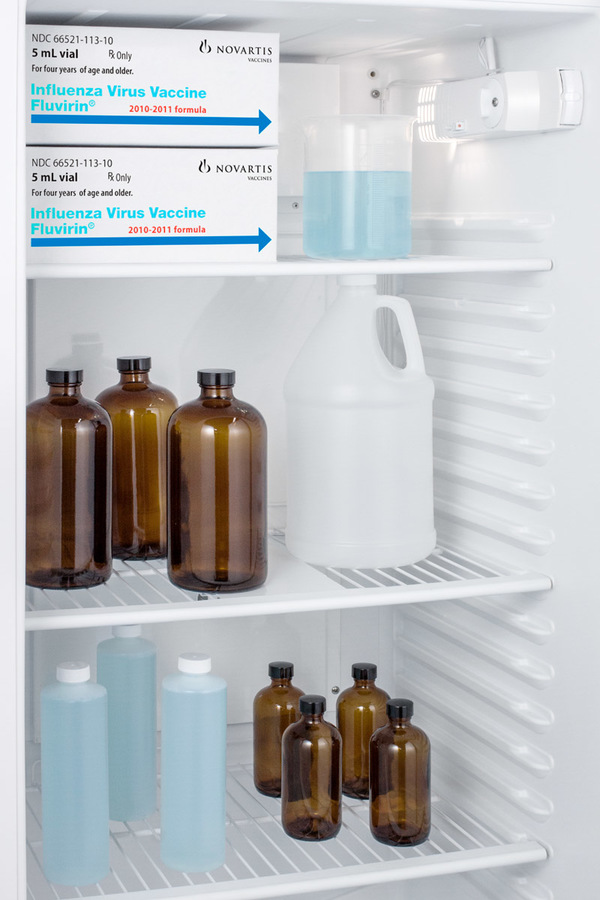

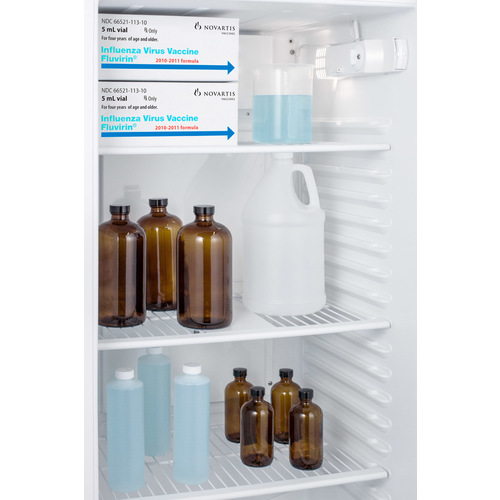

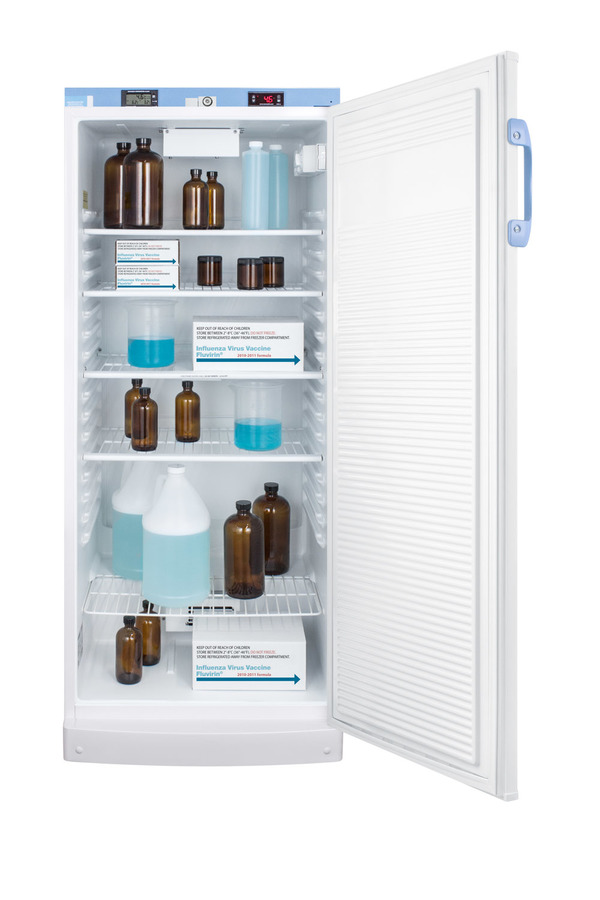

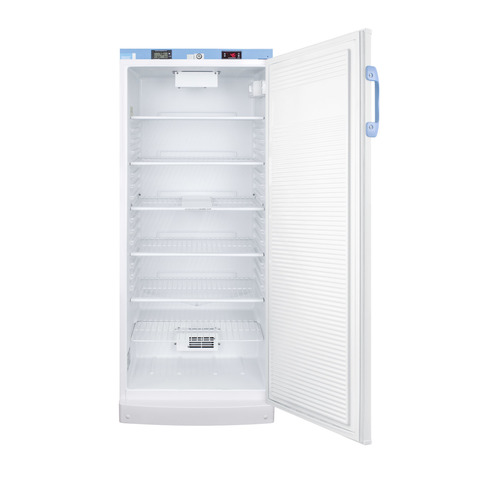

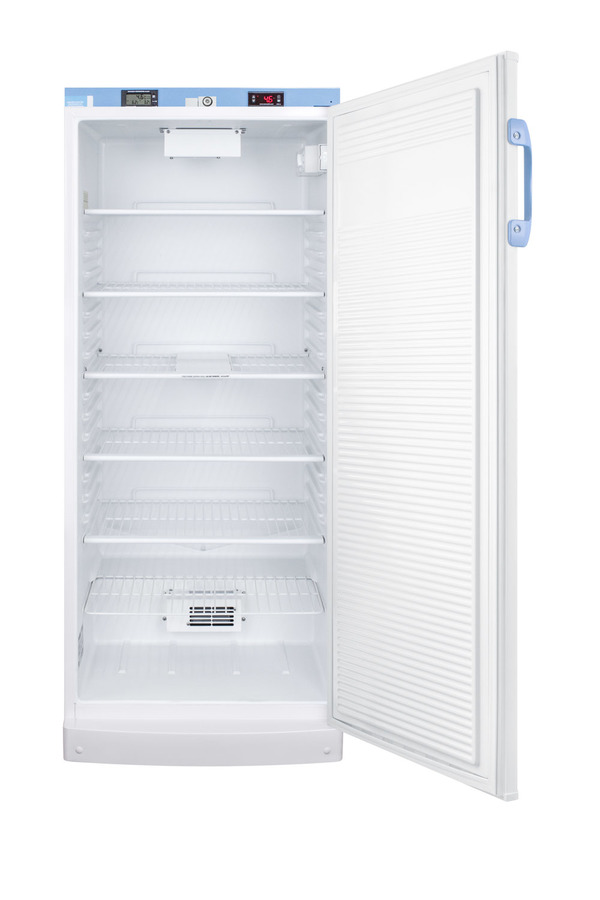

The generous 10.1 cu.ft. interior capacity includes adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The flat door liner allows you access deeper storage space, holding trays up to 19 1/2" x 16." This unit includes an energy efficient LED interior light on an on/off rocker switch for added visibility. Two internal fans ensure the interior is evenly cooled from top to bottom.

All MED2 series units are assembled in the USA from domestic and imported components. We offer stacking kits that allow you to combine this refrigerator with a compact freezer. The FFAR10MED2 can also be customized with additional features, including a USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
FFAR10MED2.pdf
Download
TECHNICAL DRAWING (.dwg)
FFAR10MED2_FEF.__A-C_2000_.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
