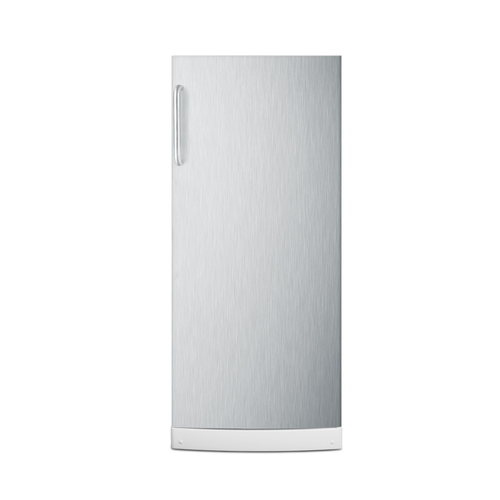

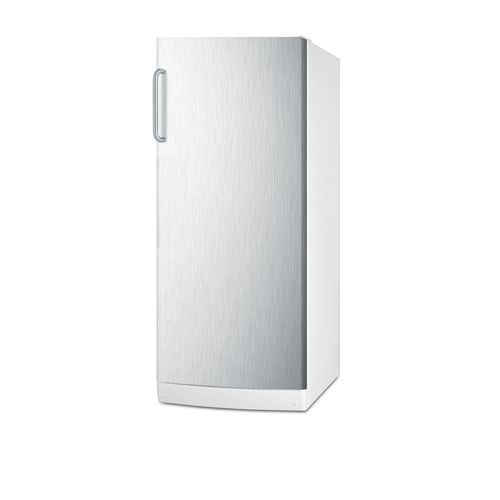

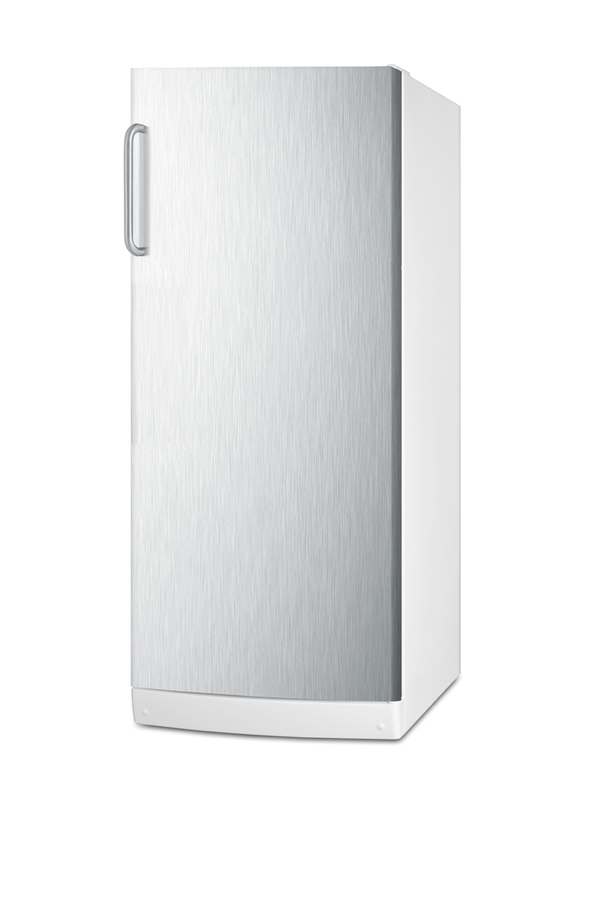

24" Wide All-Refrigerator

SKU: FFAR10SSTBLOCKER

Includes 9 interior locking compartments

DISCONTINUED

55.0" H x 23.63" W x 23.5" D
(140cm H x 60cm W x 60cm D)

Overview
Nominal Height	55.0" (140 cm)
Height of Cabinet	54.63" (139 cm)
Height to Hinge Cap	55.0" (140 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	26.0" (66 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	10.1 cu.ft. (286 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101025292
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	3.0oz.
High Side PSI	290.0
Low Side PSI	70.0
Interior Light	Yes
Dimensions
Interior Height	48.25" (123 cm)
Interior Width	20.5" (52 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.5" (14 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing Door reversal to left hand swing	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

FCGP internal fan with gel packs

Lock

AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security	KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security
L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)	L-TopLock Add a single keyed lock located on top of the unit

Handle

TBC Copper Towel Bar Handle Upgrade

Thin-line design

Just 24" wide for an easy fit in tight spots

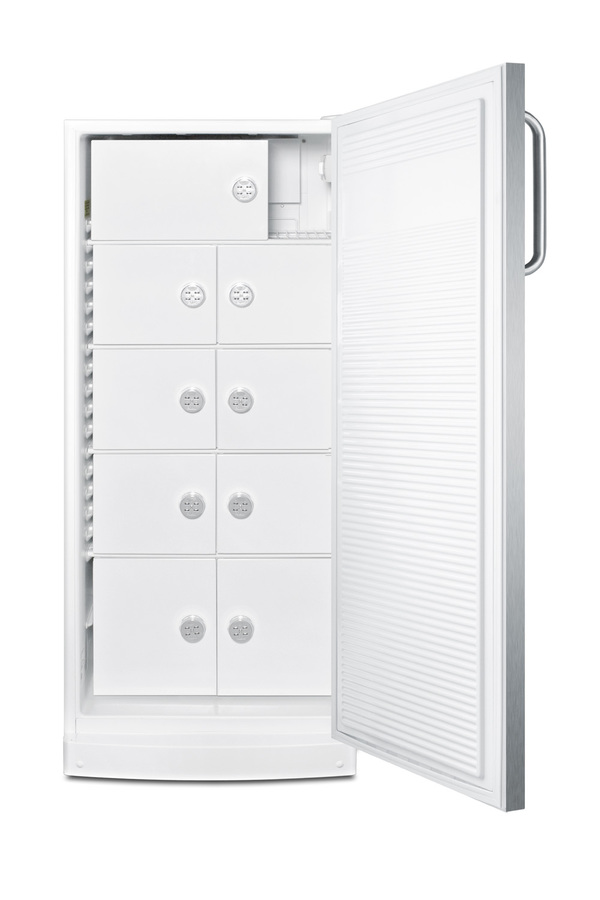

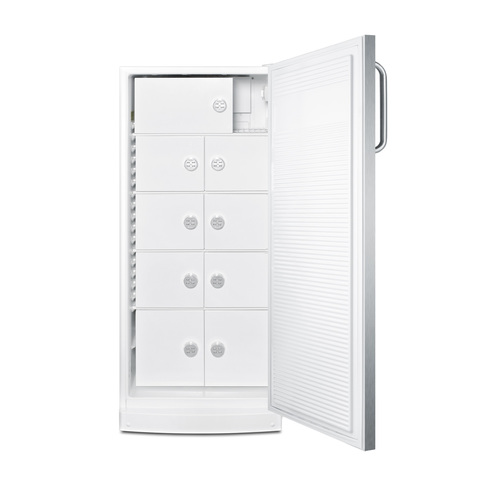

Locking storage compartments

Nine sections secured by combination locks

Automatic defrost

Reduced maintenance with auto defrost system

Stainless steel door

Durable 304 grade wrapping

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Two master keys provided

Keys will override combinations in case of lost codes or full refrigerator cleaning

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold's FFAR10SSTBLOCKER makes sharing a community refrigerator safe and simple.

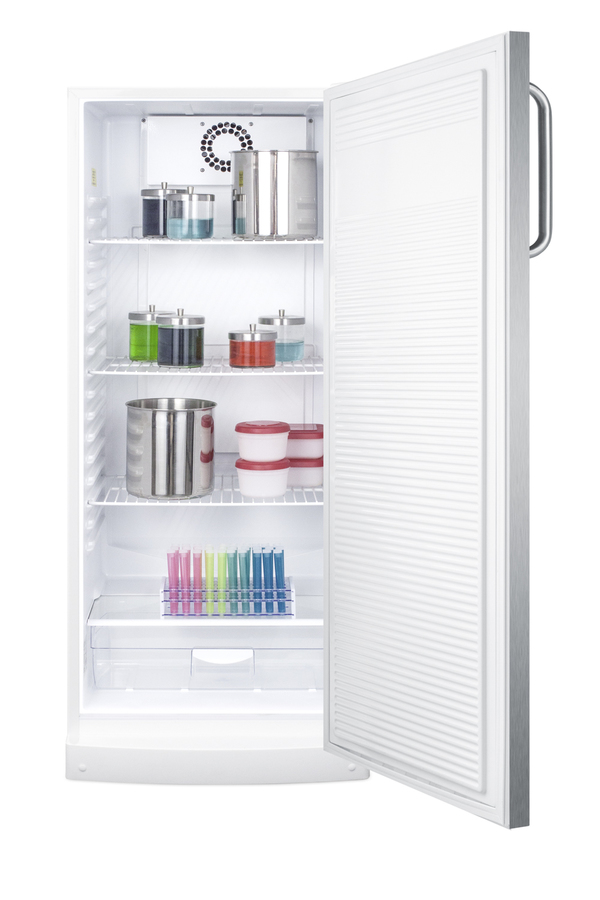

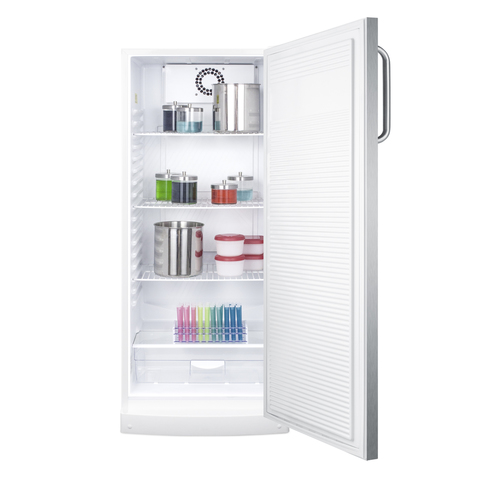

This 10.1 cu.ft. all-refrigerator features nine locking interior compartments. Each is secured by a combination lock that lets users set their own codes. Two master keys are provided to override combinations in case of emergency, lost combinations or interior cleaning.

Each compartment is safely enclosed to keep contents separated. Wire shelving ensures air is properly circulated, with an interior fan for even cooling from top to bottom. The FFAR10SSTBLOCKER is fully auto defrost for added convenience.

At just under 24" wide, the FFAR10SSTBLOCKER fits well in tight settings. This unit has a white cabinet and 304 grade stainless steel wrapped door with curved towel bar handle.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE
FFAR10SSTBLOCKER.pdf

OTHER
FFAR10_Wiring_diagram.pdf

SUPPORT
LLF2_Instructions.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
