24" Wide All-Refrigerator

SKU: FFAR12W

Designed for optimum use in commercial and facility settings, with a stainless steel interior for improved sanitation

DISCONTINUED

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

58.38" H x 23.63" W x 22.75" D
(148cm H x 60cm W x 58cm D)

Overview
Nominal Height	59.0" (150 cm)
Height of Cabinet	58.38" (148 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	10.1 cu.ft. (286 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Other Energy Info	120 Volts / 60 Hz.
Amps	1.7
Weight	145.0 lbs. (66 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101049069
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.66oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Light	Yes
Temperature Range	2º to 6ºC
Dimensions
Interior Height	50.25" (128 cm)
Interior Width	19.63" (50 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	19.63" (50 cm)
Compressor Step Depth	4.5" (11 cm)

Interior

LockBoxSS - Interior locking compartment

LockBoxW - Interior locking compartment with window

Lock

KEYPAD - Battery-powered keypad door lock

Exterior

LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Commercially approved

ETL-S listed to ANSI-NSF Standard 7

Stainless steel interior

Full construction on interior walls and floor ensures improved sanitation

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

Cantilevered shelves

Adjustable chrome shelves can be arranged in virtually any configuration for flexible storage

Factory installed lock

Keyed lock offers convenient security

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures even temperature distribution from top to bottom

LED lighting

Recessed LED lighting offers an energy efficient view of the interior

Reversible door

User-reversible door swing for added flexibility

Sealed back

Space-saving design offers easy cleanability

Front-breathing system

Unit can be installed built-in for added space savings

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance carries a versatile line of slim-fitting all-refrigerators designed for reliable general purpose storage.

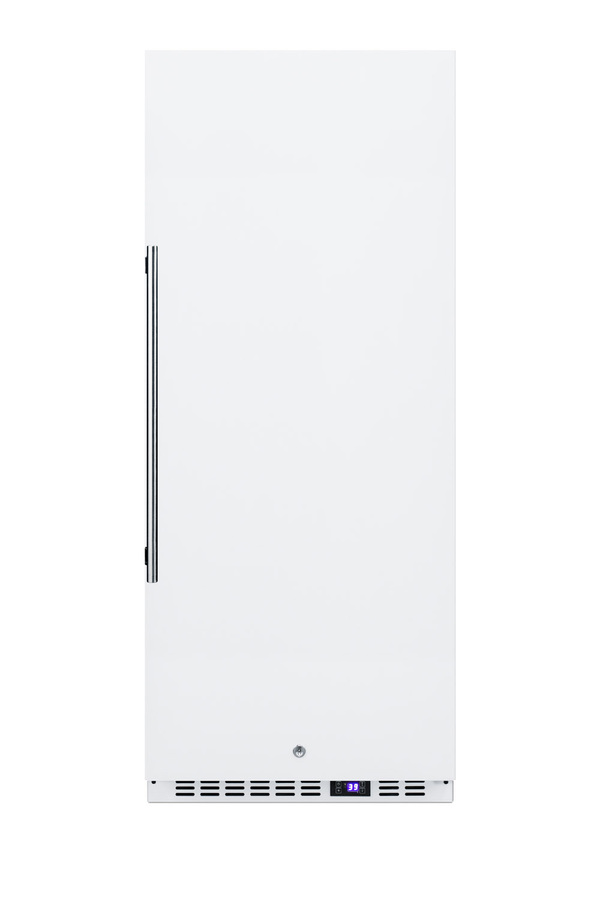

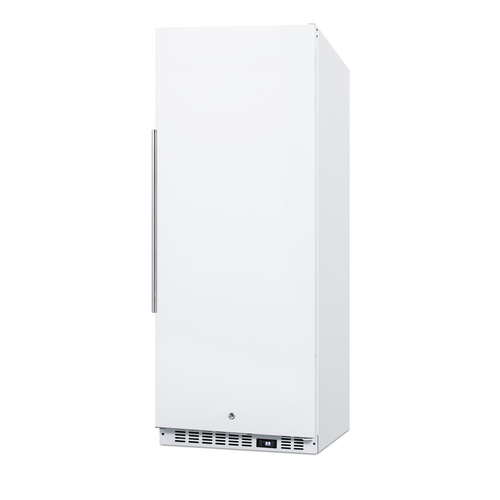

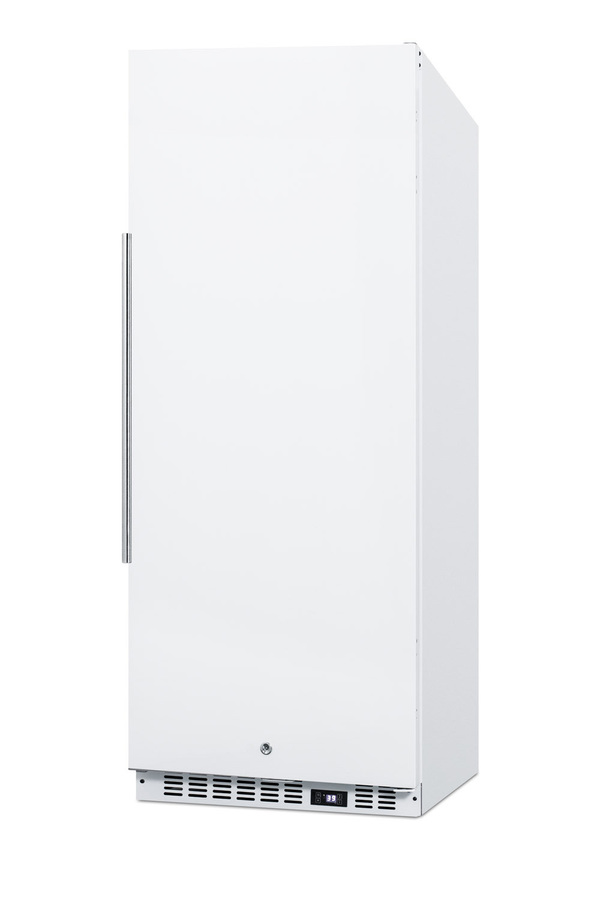

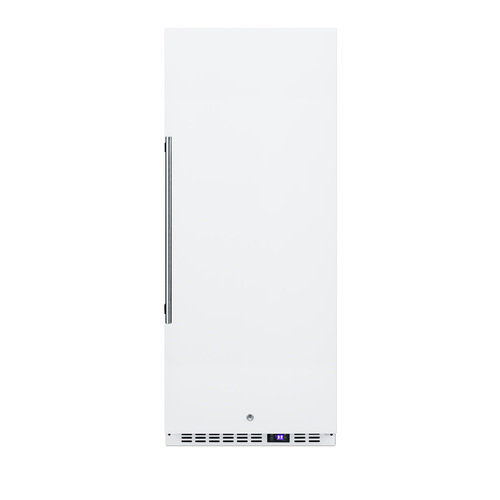

The FFAR12W is a front-opening all-refrigerator sized with a 24" footprint. It features a generous 10 cu.ft. capacity inside the automatic defrost interior. The exterior comes in a white finish with a user-reversible door and stainless steel handle. A factory installed lock offers added security and the sealed back makes the unit easy to clean. This unit includes a hospital grade cord with a 'green dot' plug. The front-breathing system and fully finished cabinet allow built-in or freestanding use.

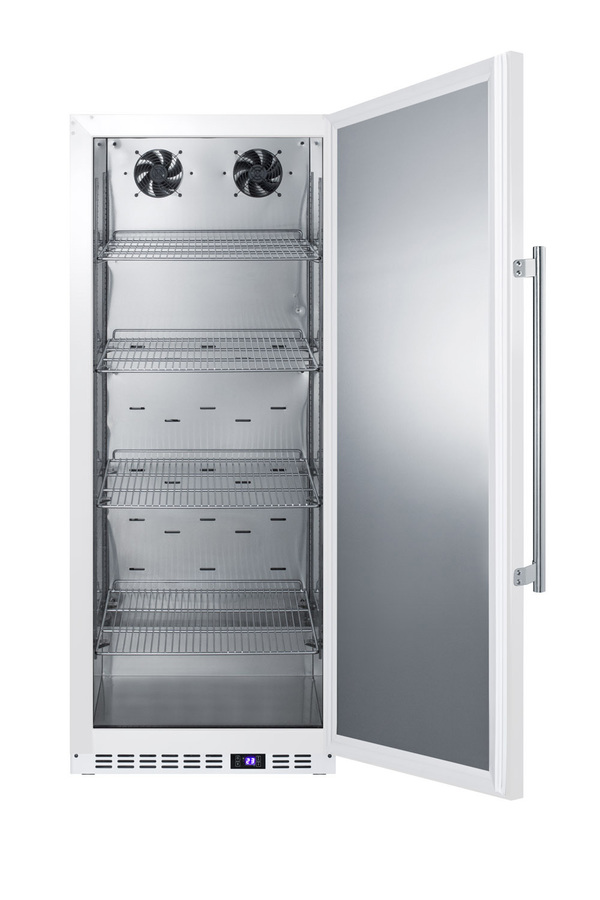

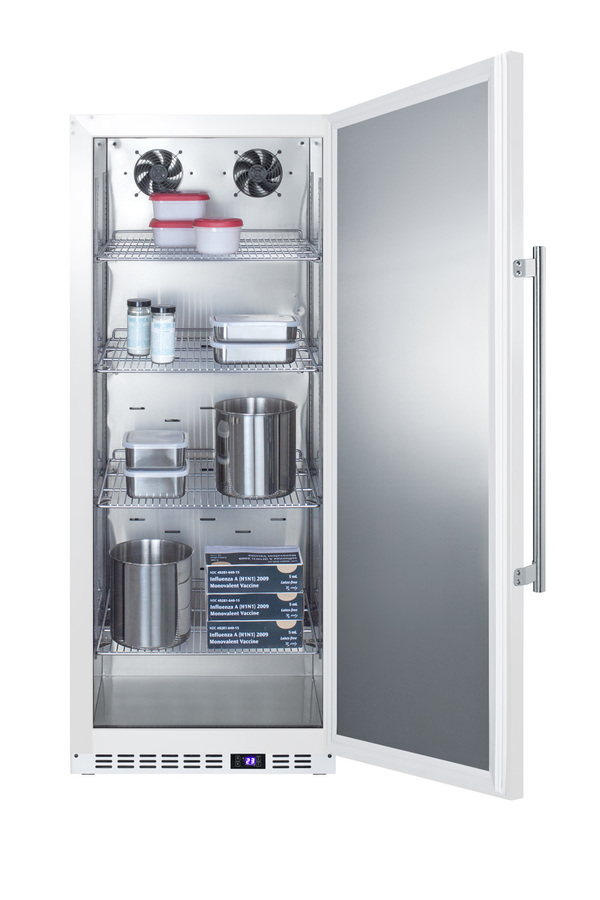

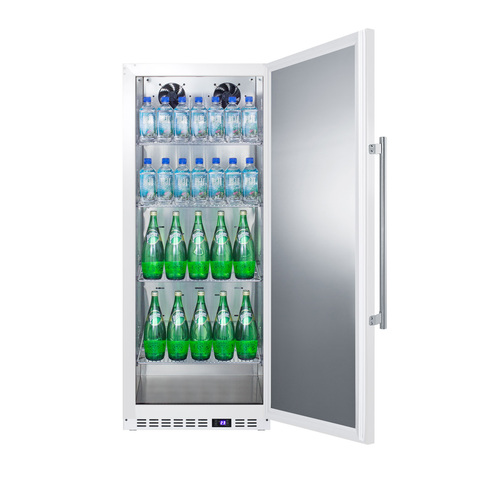

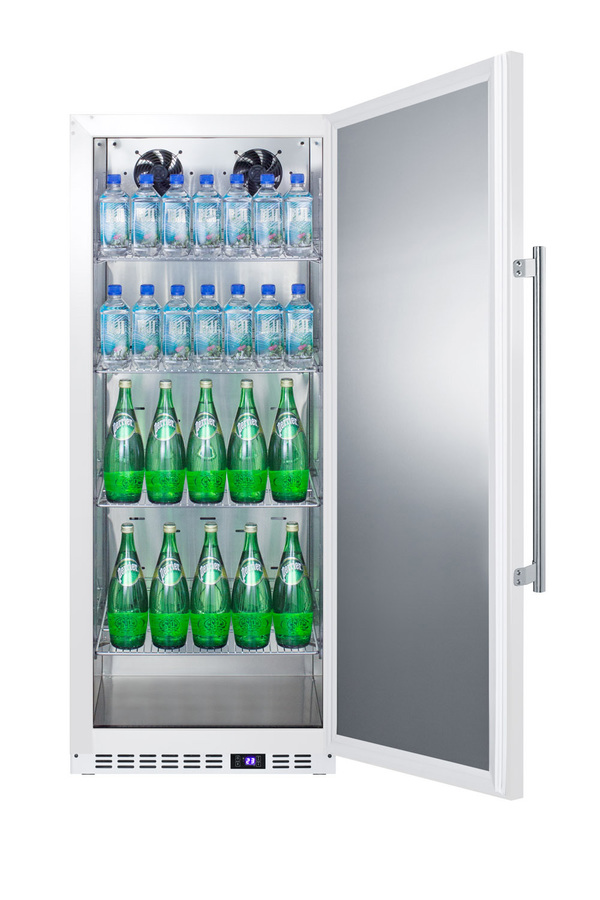

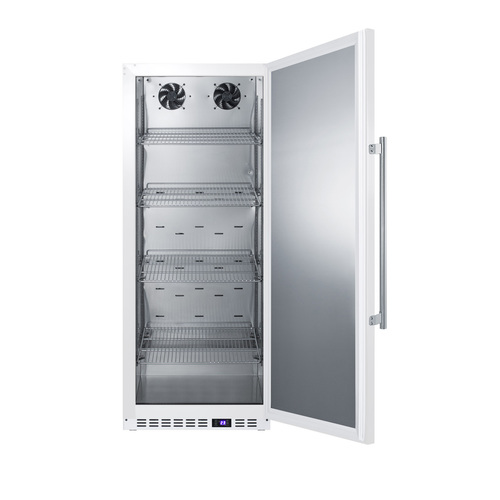

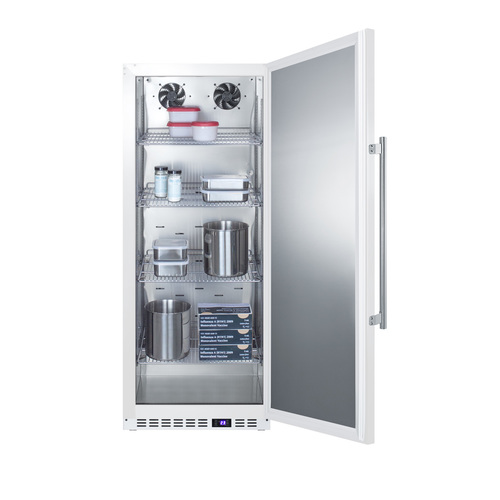

Inside, the FFAR12W features stainless steel construction on the walls, floor, and inner door liner. Four chrome shelves are included with a cantilevered system that allows you to position your storage in virtually any configuration. LED lighting offers an efficient view. A digital thermostat is installed in the unit's kickplate with settings to view in Celsius or Fahrenheit. This unit includes an open door alarm that will sound if the door is left opened for over one minute.

The FFAR12W is ETL-S listed to NSF-7 commercial sanitation standards. For this same unit with a stainless steel exterior, see the FFAR121SS.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FFAR12W.pdf

TECHNICAL DRAWING (.dwg)
FFAR121SS_FFAR12W_FEF.__A-C_2000_.dwg

USE & CARE
FFAR12W_FFAR121SS_Use___Care_03062020.pdf

MSDS INFORMATION
R600a_K.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
