Compact All-Refrigerator

SKU: FFAR23L

Compact size for an easy fit on the counter, with a front lock for added security

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

20.75" H x 18.75" W x 17.5" D
(53cm H x 48cm W x 44cm D)

Overview
Nominal Height	21.0" (53 cm)
Height of Cabinet	20.25" (51 cm)
Height to Hinge Cap	20.75" (53 cm)
Nominal Width	19.0" (48 cm)
Width	18.75" (48 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.5" (44 cm)
Depth with door at 90°	35.0" (89 cm)
Capacity	1.7 cu.ft. (48 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	265.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	36.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061399
Refrigerator Features
Door Swing	RHD
Reversible	No
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.57oz.
High Side PSI	180.0
Low Side PSI	56.0
Level Legs Qty	2
Interior Light	Yes
Dimensions
Interior Height	16.25" (41 cm)
Interior Width	15.5" (39 cm)
Interior Depth	12.25" (31 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	15.5" (39 cm)
Compressor Step Depth	6.5" (17 cm)

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

KEYPAD - Battery-powered keypad door lock

AC Keypad - AC powered keypad lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Compact dimensions

Slim width and compact depth for easy placement on counters

Automatic defrost

Reduced maintenance with auto defrost system

Front-mounted lock

Keyed lock for a secure interior (2 keys included)

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

LED lighting

Interior light for efficient illumination with an easy on/off rocker switch

Adjustable thermostat

Dial thermostat located inside unit for easy temperature management

Flat door liner

Allows the interior to store deeper items, while also providing improved temperature performance by eliminating hot spots commonly found in door shelves

Removable wire shelf

Half shelf included to help you organize your storage as needed

Sealed back

Space-saving convenience with easier cleanability

Leveling legs

Front legs are adjustable, allowing you to keep the refrigerator level when placed on slightly unlevel surfaces

100% CFC

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a quality line of compact refrigeration designed for general purpose applications.

Sized just under 19" wide, the FFAR23L is a compact all-refrigerator with a white exterior finish. The front door includes a factory-installed lock for convenient security, with two keys included. The sealed back helps to ensure easier cleanup and a hospital grade 'green dot' cord offers added safety in high traffic environments. This unit has a right hand door swing.

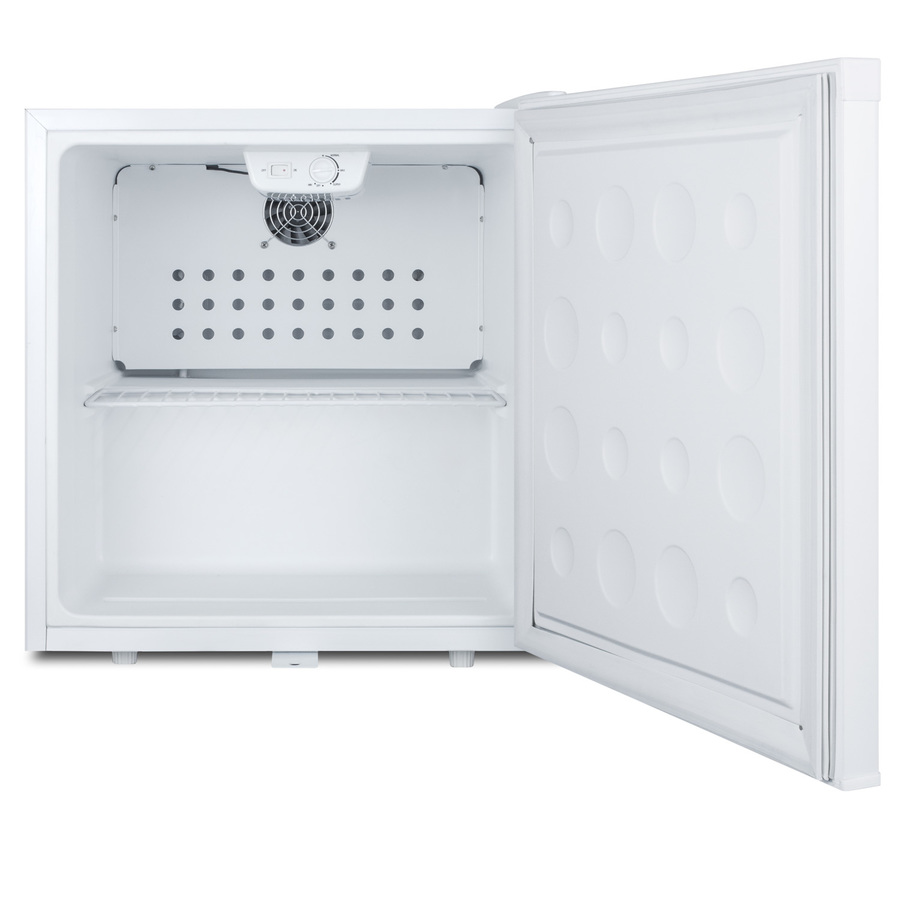

Inside, the FFAR23L utilizes automatic defrost operation for minimum user maintenance. An internal fan helps to keep a more even temperature throughout the 1.7 cu.ft. interior. A removable shelf is included to accommodate different sized storage needs. The dial thermostat is located inside, helping to prevent any accidental adjustments. This unit includes an interior LED light with an on/off rocker switch.

With its conveniently compact size and user-friendly design, the FFAR23L is the perfect choice for facilities in need of a reliable general purpose all-refrigerator. Additional choices with digital controls, data loggers, and other higher grade features are available. Contact your Accucold representative at 718-893-3900 ext. 508 for more information.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FFAR23L.pdf

TECHNICAL DRAWING (.dwg)
FFAR23L_REFRIGERATOR__A-C_2018_.dwg

USE & CARE
FFAR23L_manual_061919.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
