36" Wide Built-In Refrigerator-Freezer, ADA Compliant
3 to 5 days
(80cm H x 90cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.5" (90 cm) |
| Width with Door Open | 36.75" (93 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.25" (62 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 504.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 160.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063324 |
|
Refrigerator-Freezer
|
|
| Door Swing | French |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 23.5" (60 cm) |
| Refrigerator - Interior Width | 12.75" (32 cm) |
| Refrigerator - Interior Depth | 16.75" (43 cm) |
| Refrigerator - Capacity | 2.9 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Temperature Range | 36°F to 46°F |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 1.59 oz. |
| Freezer - Interior Height | 23.5" (60 cm) |
| Freezer - Interior Width | 12.75" (32 cm) |
| Freezer - Interior Depth | 16.75" (43 cm) |
| Freezer - Capacity | 2.9 cu.ft |
| Freezer - Shelf Type | Chrome |
| Freezer - Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.59 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Freezer - Temperature Range | -22°F to 46°F |
| Compressor Step Height | 4.75" (12 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
AVAILABLE UPGRADES
| Handle | ||
|---|---|---|
|
FEATURES
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
31 1/2 height for use under lower ADA compliant counters
Front-breathing system allows the unit to be used built-in
Separate refrigerator and freezer sections with single compressor operation
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
Keyed locks for each section offer added security
Stainless steel handles offer an attractive finish for the appliance
Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation
Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
Freezer compartment temperature can be set to serve as a second refrigerator as needed
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Space-saving design with no exposed coils in the rear offers easy cleanability
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Allows the unit to be used freestanding
Two leveling legs ensure the unit is even when placed on uneven surfaces
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

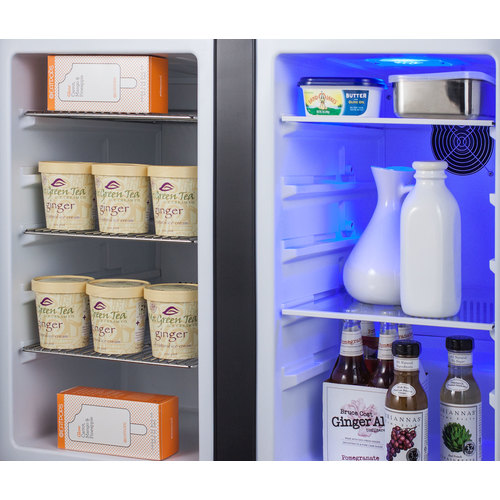

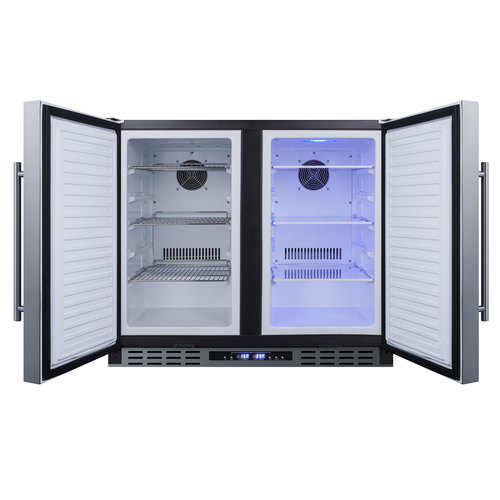

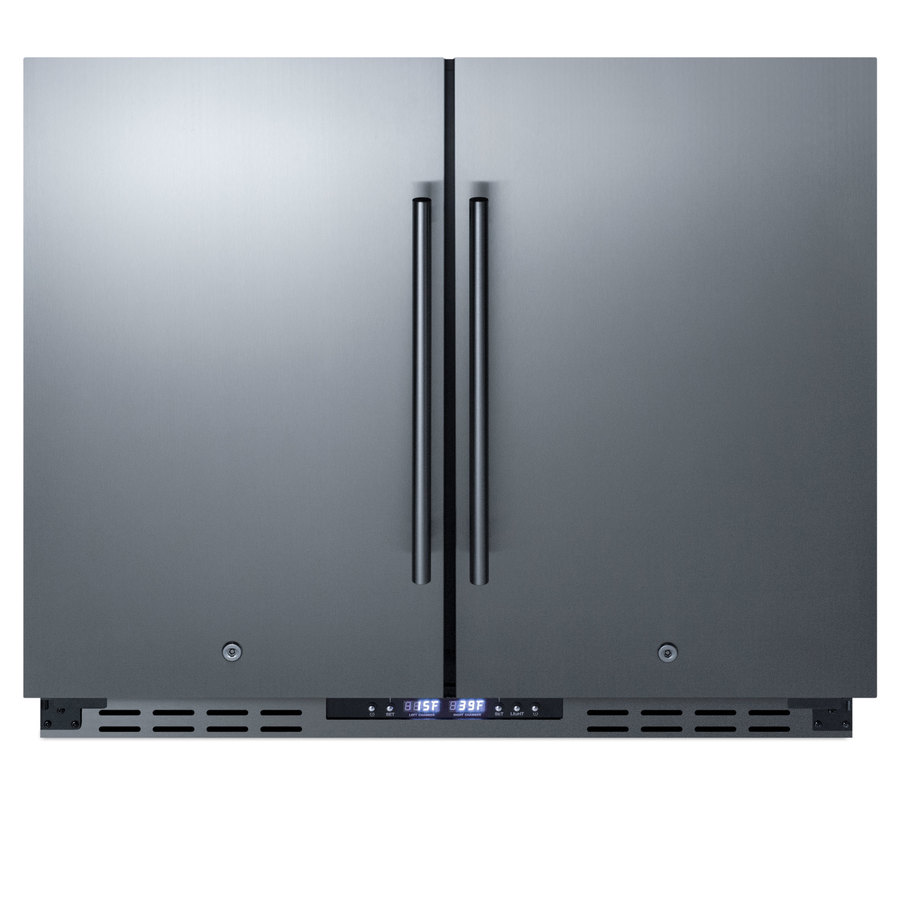

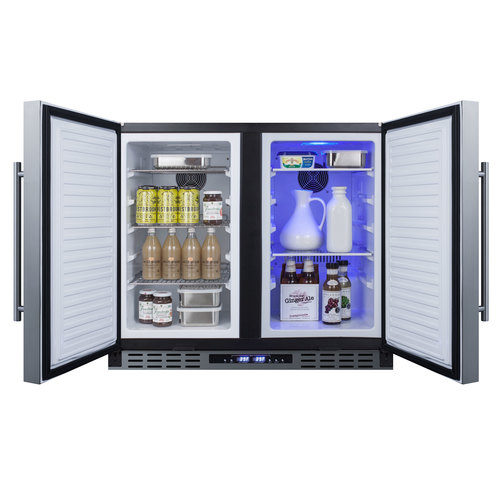

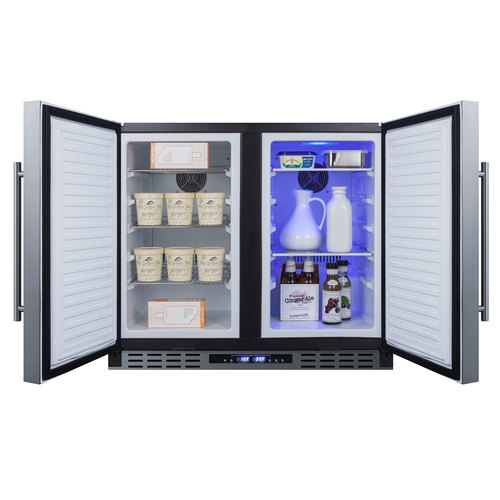

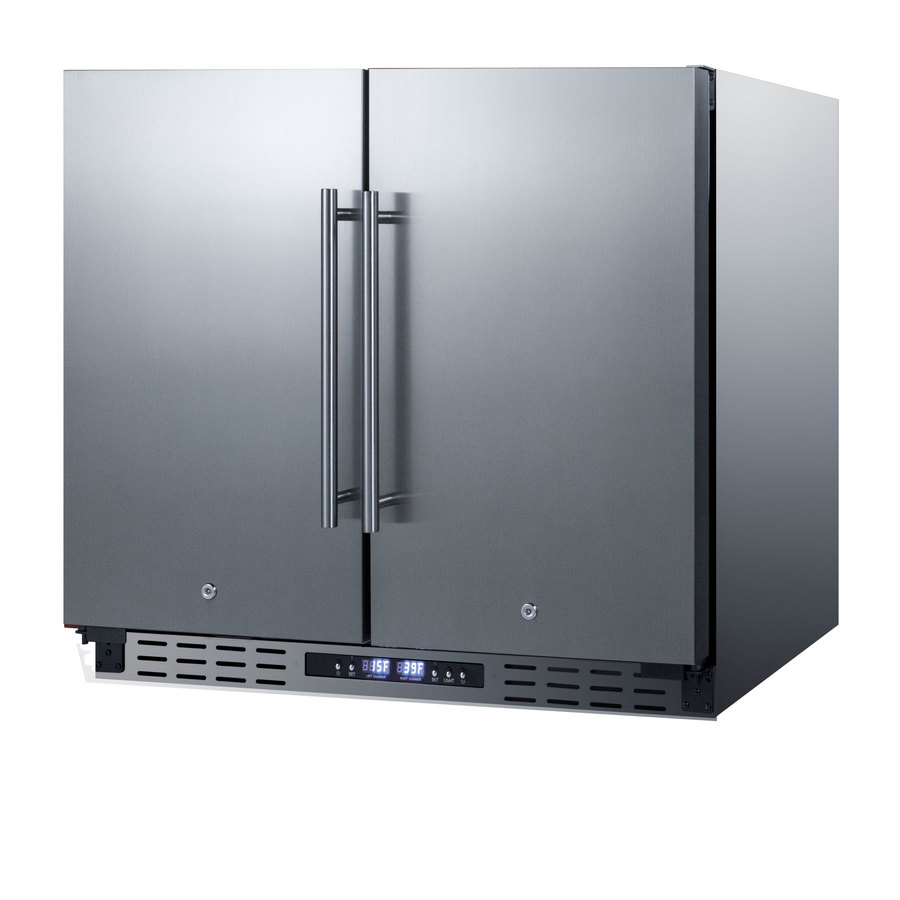

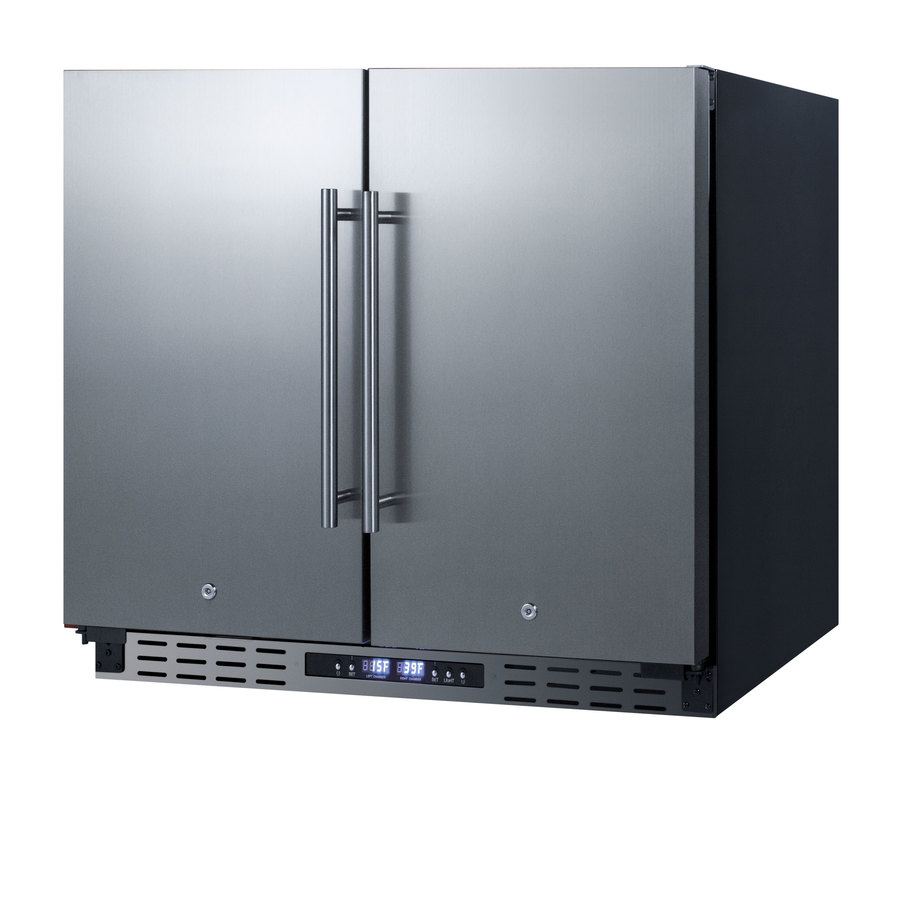

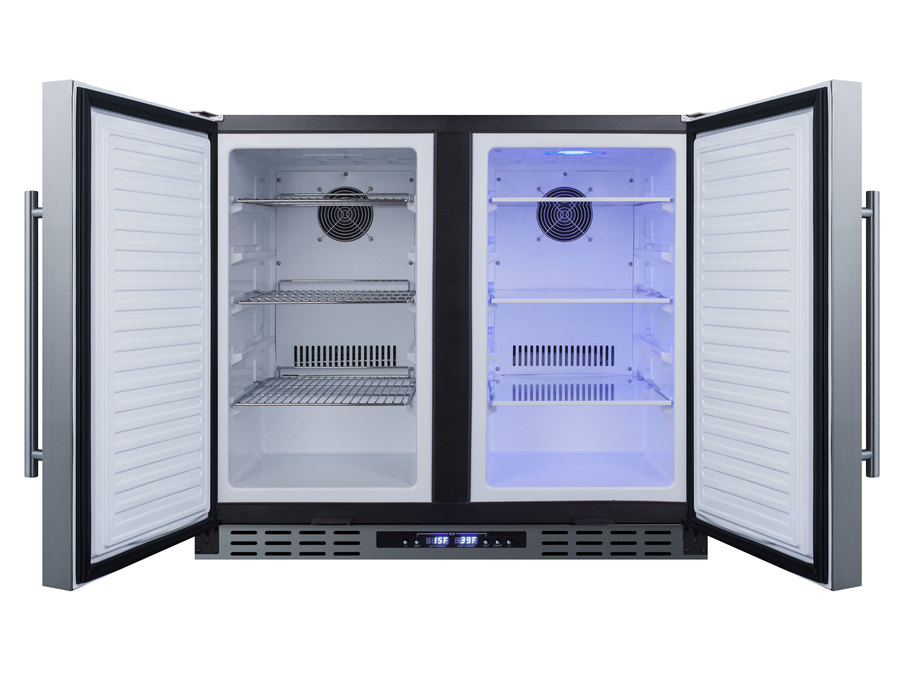

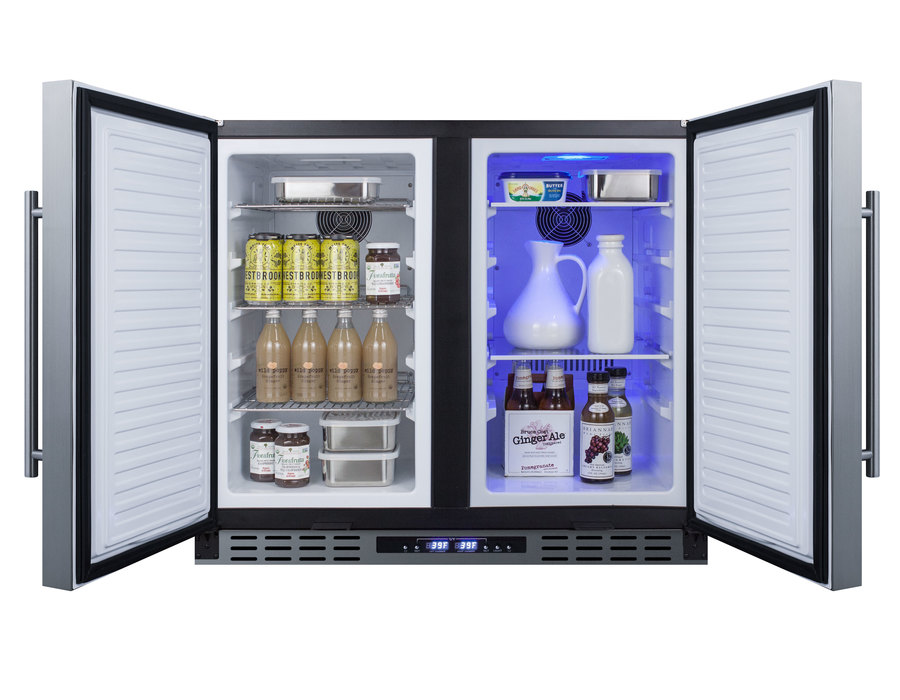

SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The FFRF36ADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. This unit features a jet black cabinet and stainless steel doors complete with pro style handles. Both sections include factory-installed keyed locks for added security. Digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36ADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves, with five placement options for optimal storage options and proper cold air circulation. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. The FFRF36ADA is sized at 31 1/2 inches high to fit under lower ADA compliant counters. For this unit with panel ready doors, see the FFRF36IFADA. NOTE: Due to its larger commercial design, the FFRF36ADA requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
