Compact All-Freezer

SKU: FS24LMED
Includes a NIST calibrated high/low temperature alarm
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
20.0" H x 18.5" W x 17.63" D
(51cm H x 47cm W x 45cm D)

Overview
Nominal Height 20.0" (51 cm)
Height of Cabinet 19.63" (50 cm)
Height to Hinge Cap 20.0" (51 cm)
Nominal Width 19.0" (48 cm)
Width 18.5" (47 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 35.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101047836
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
High Side PSI 110.0
Low Side PSI 70.0
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Compact dimensions

Ideal size for use on top of counters

-20° capable

Low temperature capability ideal for certain sensitive items

Factory installed lock

Keyed lock for secure interior

High temperature alarm

Warns of temperature fluctuations and includes an external temperature readout on the door

NIST calibrated temperature display

Alarm includes NIST calibrated display of the current interior and high/low temperature

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Manual defrost

Static cooling system for reduced temperature fluctuations

Removable shelf

Includes one wire shelf for easier storage

One-piece interior liner

Seamless interior for easier cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers MED series all-freezers for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.

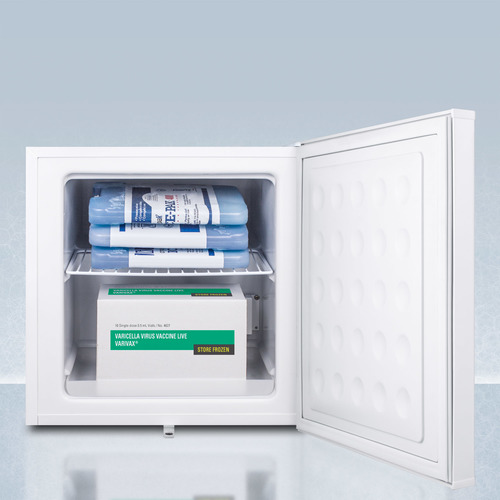

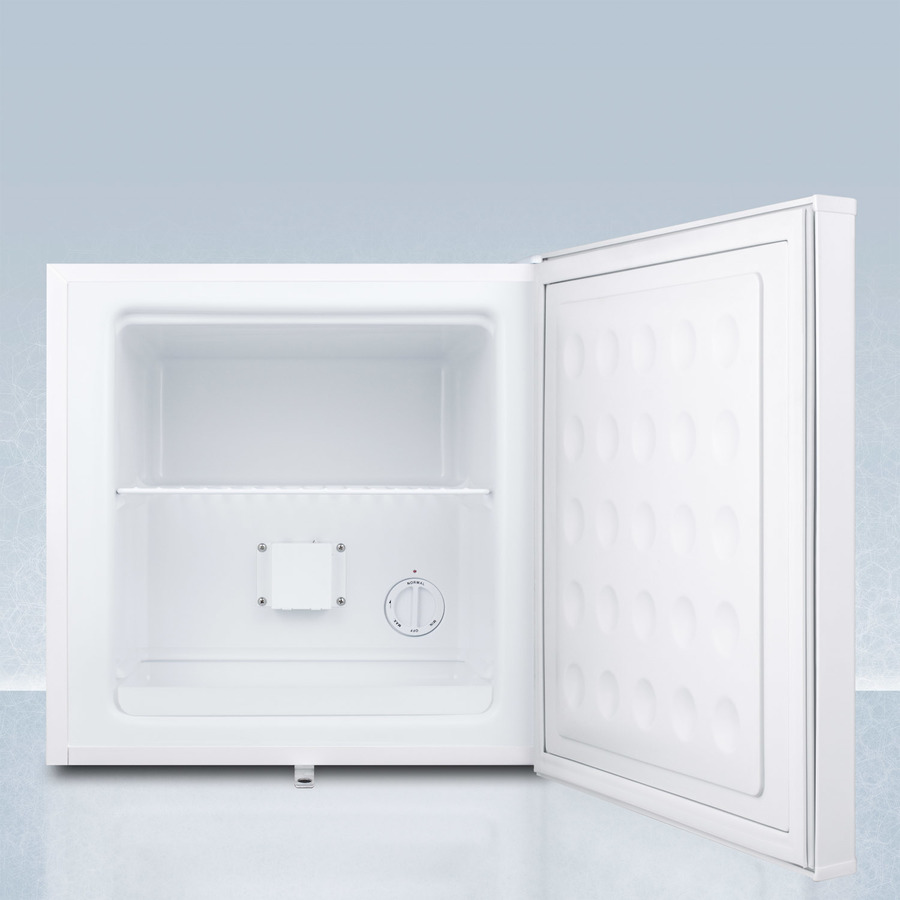

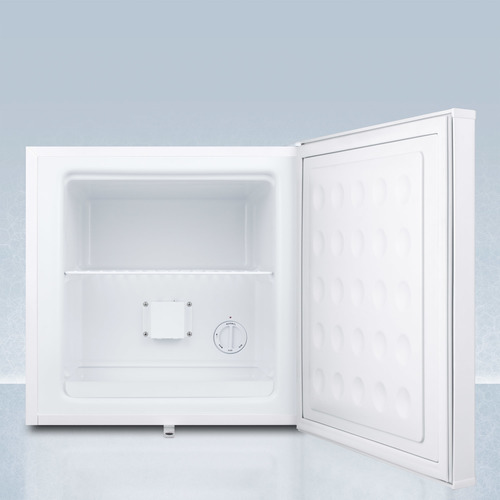

The FS24LMED is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.

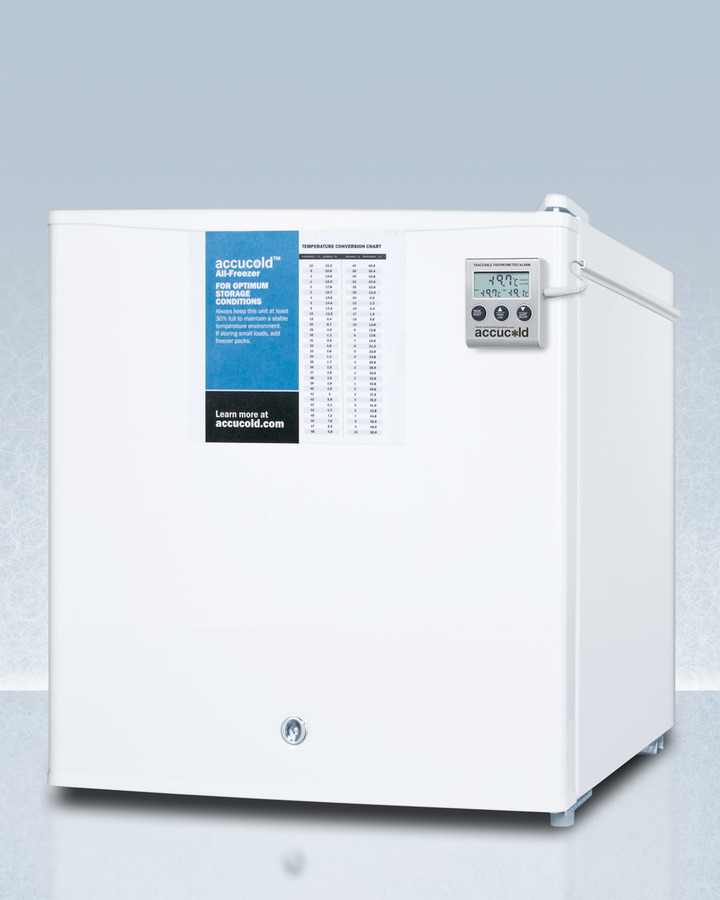

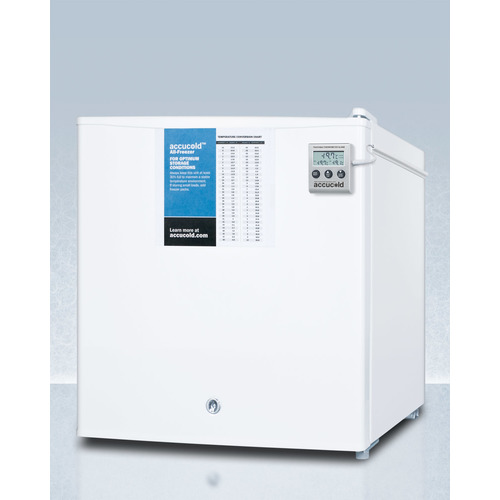

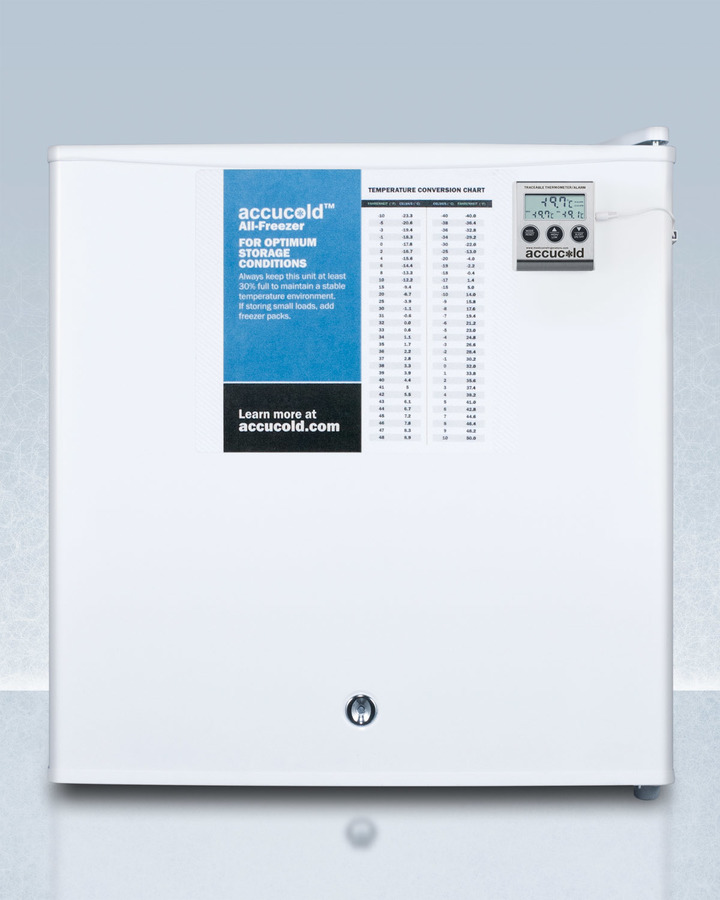

For added temperature assurance, the FS24LMED includes a high/low temperature alarm that also includes a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings. This model comes in a white finish and includes a factory installed lock and a preinstalled probe hole for users connecting their own monitoring equipment.

In addition to the included features, the FS24LMED can be ordered with more advanced medical features, including a digital thermostat, power-out alarm, self-closing door, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
